vtk3DSImporter Class Reference

#include <vtk3DSImporter.h>

Inheritance diagram for vtk3DSImporter:

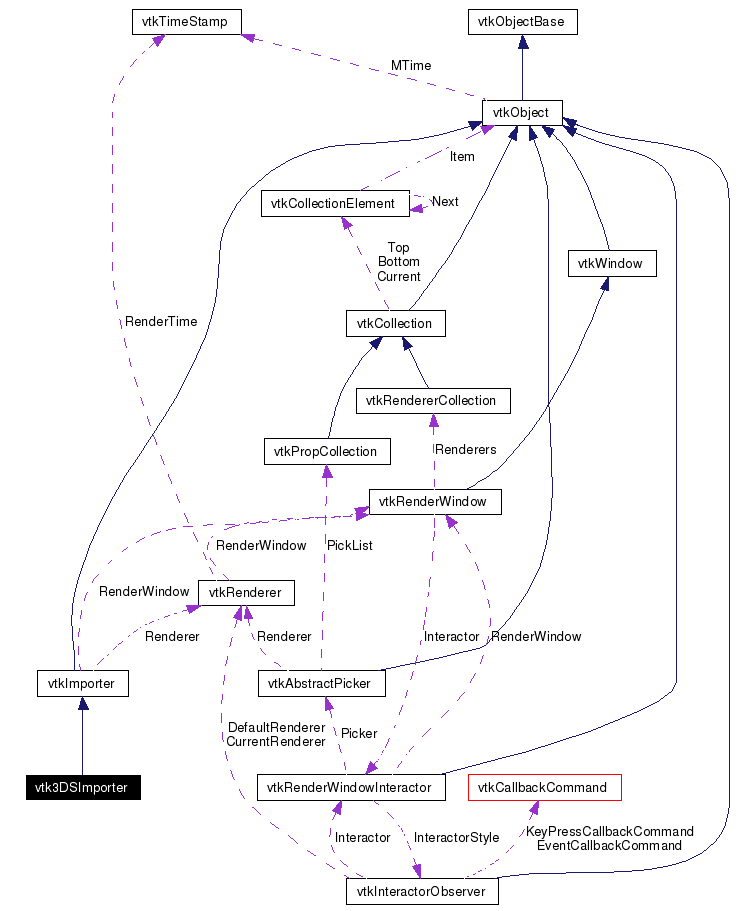

[legend]Collaboration diagram for vtk3DSImporter:

[legend]List of all members.

---

Detailed Description

imports 3D Studio files.

vtk3DSImporter imports 3D Studio files into vtk.

See also:

vtkImporter

Examples:

vtk3DSImporter (Examples)

Tests:

vtk3DSImporter (Tests)

Definition at line 38 of file vtk3DSImporter.h.

Public Types
typedef vtkImporter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
FILE *	GetFileFD ()
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
virtual void	SetComputeNormals (int)
virtual int	GetComputeNormals ()
virtual void	ComputeNormalsOn ()
virtual void	ComputeNormalsOff ()
Static Public Member Functions
static vtk3DSImporter *	New ()
static int	IsTypeOf (const char *type)
static vtk3DSImporter *	SafeDownCast (vtkObject *o)
Public Attributes
vtk3DSOmniLight *	OmniList
vtk3DSSpotLight *	SpotLightList
vtk3DSCamera *	CameraList
vtk3DSMesh *	MeshList
vtk3DSMaterial *	MaterialList
vtk3DSMatProp *	MatPropList
Protected Member Functions
	vtk3DSImporter ()
	~vtk3DSImporter ()
virtual int	ImportBegin ()
virtual void	ImportEnd ()
virtual void	ImportActors (vtkRenderer *renderer)
virtual void	ImportCameras (vtkRenderer *renderer)
virtual void	ImportLights (vtkRenderer *renderer)
virtual void	ImportProperties (vtkRenderer *renderer)
vtkPolyData *	GeneratePolyData (vtk3DSMesh *meshPtr)
int	Read3DS ()
Protected Attributes
char *	FileName
FILE *	FileFD
int	ComputeNormals

---

Member Typedef Documentation

typedef vtkImporter vtk3DSImporter::Superclass

Reimplemented from vtkImporter. Definition at line 43 of file vtk3DSImporter.h.

---

Constructor & Destructor Documentation

vtk3DSImporter::vtk3DSImporter (   )  [protected]

vtk3DSImporter::~vtk3DSImporter (   )  [protected]

---

Member Function Documentation

static vtk3DSImporter* vtk3DSImporter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtk3DSImporter::GetClassName (   )  [virtual]

Reimplemented from vtkImporter.

static int vtk3DSImporter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

virtual int vtk3DSImporter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

static vtk3DSImporter* vtk3DSImporter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImporter.

void vtk3DSImporter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImporter.

virtual void vtk3DSImporter::SetFileName (  const char *   )  [virtual]

Specify the name of the file to read.

virtual char* vtk3DSImporter::GetFileName (   )  [virtual]

virtual void vtk3DSImporter::SetComputeNormals (  int   )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

virtual int vtk3DSImporter::GetComputeNormals (   )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

virtual void vtk3DSImporter::ComputeNormalsOn (   )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

virtual void vtk3DSImporter::ComputeNormalsOff (   )  [virtual]

Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals.

FILE* vtk3DSImporter::GetFileFD (   )  [inline]

Return the file pointer to the open file. Definition at line 61 of file vtk3DSImporter.h.

virtual int vtk3DSImporter::ImportBegin (   )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtk3DSImporter::ImportEnd (   )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtk3DSImporter::ImportActors (  vtkRenderer *  renderer  )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtk3DSImporter::ImportCameras (  vtkRenderer *  renderer  )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtk3DSImporter::ImportLights (  vtkRenderer *  renderer  )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtk3DSImporter::ImportProperties (  vtkRenderer *  renderer  )  [protected, virtual]

Reimplemented from vtkImporter.

vtkPolyData* vtk3DSImporter::GeneratePolyData (  vtk3DSMesh *  meshPtr  )  [protected]

int vtk3DSImporter::Read3DS (   )  [protected]

---

Member Data Documentation

vtk3DSOmniLight* vtk3DSImporter::OmniList

Definition at line 61 of file vtk3DSImporter.h.

vtk3DSSpotLight* vtk3DSImporter::SpotLightList

Definition at line 64 of file vtk3DSImporter.h.

vtk3DSCamera* vtk3DSImporter::CameraList

Definition at line 65 of file vtk3DSImporter.h.

vtk3DSMesh* vtk3DSImporter::MeshList

Definition at line 66 of file vtk3DSImporter.h.

vtk3DSMaterial* vtk3DSImporter::MaterialList

Definition at line 67 of file vtk3DSImporter.h.

vtk3DSMatProp* vtk3DSImporter::MatPropList

Definition at line 68 of file vtk3DSImporter.h.

char* vtk3DSImporter::FileName [protected]

Definition at line 83 of file vtk3DSImporter.h.

FILE* vtk3DSImporter::FileFD [protected]

Definition at line 84 of file vtk3DSImporter.h.

int vtk3DSImporter::ComputeNormals [protected]

Definition at line 85 of file vtk3DSImporter.h.

---

The documentation for this class was generated from the following file:

• dox/Hybrid/vtk3DSImporter.h

---
