vtkProcessObject Class Reference

#include <vtkProcessObject.h>

Inheritance diagram for vtkProcessObject:

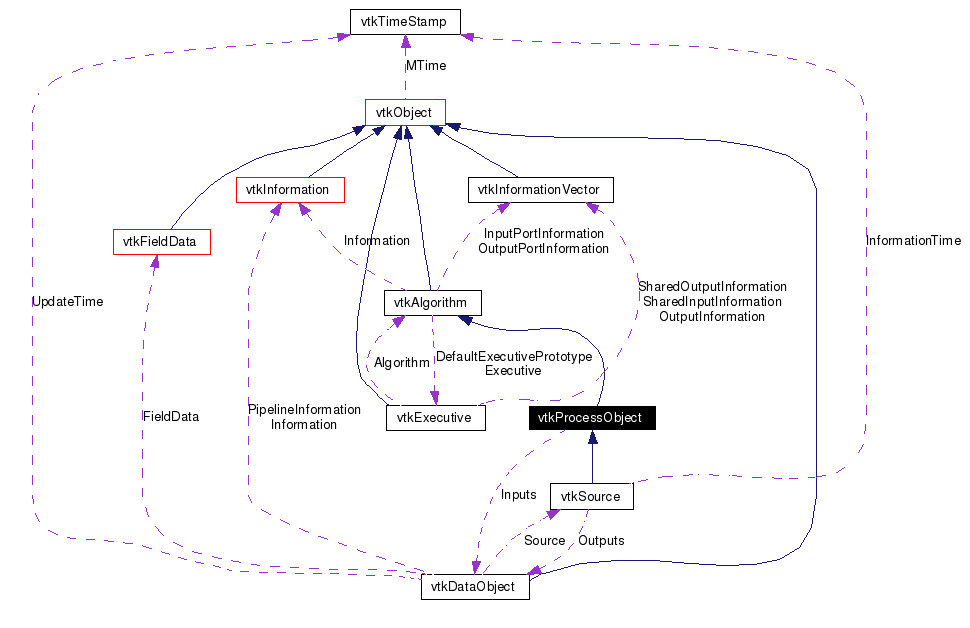

[legend]Collaboration diagram for vtkProcessObject:

[legend]List of all members.

---

Detailed Description

abstract class specifies interface for visualization filters

vtkProcessObject is an abstract object that specifies behavior and interface of visualization network process objects (sources, filters, mappers). Source objects are creators of visualization data; filters input, process, and output visualization data; and mappers transform data into another form (like rendering primitives or write data to a file).

vtkProcessObject fires events for Start and End events before and after object execution (via Execute()). These events can be used for any purpose (e.g., debugging info, highlighting/notifying user interface, etc.)

Another event, Progress, can be observed. Some filters fire this event periodically during their execution. The use is similar to that of Start and End events. Filters may also check their AbortExecute flag to determine whether to prematurely end their execution.

An important feature of subclasses of vtkProcessObject is that it is possible to control the memory-management model (i.e., retain output versus delete output data). If enabled the ReleaseDataFlag enables the deletion of the output data once the downstream process object finishes processing the data (please see text).

See also:

vtkDataObject vtkSource vtkFilter vtkMapper vtkWriter

Definition at line 51 of file vtkProcessObject.h.

Public Types
typedef vtkAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	SqueezeInputArray ()
void	PrintSelf (ostream &os, vtkIndent indent)
vtkDataObject **	GetInputs ()
int	GetNumberOfInputs ()
void	RemoveAllInputs ()
virtual void	SetInputConnection (vtkAlgorithmOutput *input)
virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)
virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)
virtual void	AddInputConnection (vtkAlgorithmOutput *input)
virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)
virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)
virtual void	SetNumberOfInputConnections (int port, int n)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkProcessObject *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkProcessObject ()
	~vtkProcessObject ()
void	SetNumberOfInputs (int num)
virtual void	SetNthInput (int num, vtkDataObject *input)
virtual void	AddInput (vtkDataObject *input)
virtual void	RemoveInput (vtkDataObject *input)
virtual void	ReportReferences (vtkGarbageCollector *)
virtual int	FillInputPortInformation (int, vtkInformation *)
virtual int	FillOutputPortInformation (int, vtkInformation *)
void	AddInputInternal (vtkDataObject *input)
void	RemoveInputInternal (vtkDataObject *input)
void	SetupInputs ()
Protected Attributes
int	NumberOfInputs
int	NumberOfRequiredInputs
vtkDataObject **	Inputs

---

Member Typedef Documentation

typedef vtkAlgorithm vtkProcessObject::Superclass

Reimplemented from vtkAlgorithm. Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSource, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkGenericProbeFilter, vtkSpatialRepresentationFilter, vtkImageSpatialFilter, vtkAVIWriter, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGenericMovieWriter, vtkMPEG2Writer, and vtkPLOT3DReader. Definition at line 54 of file vtkProcessObject.h.

---

Constructor & Destructor Documentation

vtkProcessObject::vtkProcessObject (   )  [protected]

vtkProcessObject::~vtkProcessObject (   )  [protected]

---

Member Function Documentation

virtual const char* vtkProcessObject::GetClassName (   )  [virtual]

Reimplemented from vtkAlgorithm. Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSource, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkGenericProbeFilter, vtkSpatialRepresentationFilter, vtkImageSpatialFilter, vtkAVIWriter, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGenericMovieWriter, vtkMPEG2Writer, and vtkPLOT3DReader.

static int vtkProcessObject::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkAlgorithm. Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSource, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkGenericProbeFilter, vtkSpatialRepresentationFilter, vtkImageSpatialFilter, vtkAVIWriter, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGenericMovieWriter, vtkMPEG2Writer, and vtkPLOT3DReader.

virtual int vtkProcessObject::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkAlgorithm. Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSource, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkGenericProbeFilter, vtkSpatialRepresentationFilter, vtkImageSpatialFilter, vtkAVIWriter, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGenericMovieWriter, vtkMPEG2Writer, and vtkPLOT3DReader.

static vtkProcessObject* vtkProcessObject::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkAlgorithm. Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSource, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkGenericProbeFilter, vtkSpatialRepresentationFilter, vtkImageSpatialFilter, vtkAVIWriter, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGenericMovieWriter, vtkMPEG2Writer, and vtkPLOT3DReader.

void vtkProcessObject::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkAlgorithm. Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSource, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkGenericProbeFilter, vtkSpatialRepresentationFilter, vtkImageSpatialFilter, vtkAVIWriter, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGenericMovieWriter, vtkMPEG2Writer, and vtkPLOT3DReader.

vtkDataObject** vtkProcessObject::GetInputs (   )

Return an array with all the inputs of this process object. This is useful for tracing back in the pipeline to construct graphs etc.

int vtkProcessObject::GetNumberOfInputs (   )

void vtkProcessObject::SqueezeInputArray (   )

This method will rearrange the input array so that all NULL entries are removed.

void vtkProcessObject::RemoveAllInputs (   )

Remove all the input data. Reimplemented from vtkAlgorithm.

virtual void vtkProcessObject::SetInputConnection (  vtkAlgorithmOutput *  input  )  [inline, virtual]

Reimplemented from vtkAlgorithm to maintain backward compatibility for vtkProcessObject. Reimplemented from vtkAlgorithm. Definition at line 74 of file vtkProcessObject.h. References vtkAlgorithm::SetInputConnection().

virtual void vtkProcessObject::SetInputConnection (  int  port, vtkAlgorithmOutput *  input )  [virtual]

Remove all the input data. Reimplemented from vtkAlgorithm.

virtual void vtkProcessObject::AddInputConnection (  int  port, vtkAlgorithmOutput *  input )  [virtual]

Remove all the input data. Reimplemented from vtkAlgorithm.

virtual void vtkProcessObject::AddInputConnection (  vtkAlgorithmOutput *  input  )  [inline, virtual]

Remove all the input data. Reimplemented from vtkAlgorithm. Definition at line 78 of file vtkProcessObject.h. References vtkAlgorithm::AddInputConnection().

virtual void vtkProcessObject::RemoveInputConnection (  int  port, vtkAlgorithmOutput *  input )  [virtual]

Remove all the input data. Reimplemented from vtkAlgorithm.

virtual void vtkProcessObject::SetNthInputConnection (  int  port, int  index, vtkAlgorithmOutput *  input )  [virtual]

Remove all the input data. Reimplemented from vtkAlgorithm.

virtual void vtkProcessObject::SetNumberOfInputConnections (  int  port, int  n )  [virtual]

Remove all the input data. Reimplemented from vtkAlgorithm.

void vtkProcessObject::SetNumberOfInputs (  int  num  )  [protected]

virtual void vtkProcessObject::SetNthInput (  int  num, vtkDataObject *  input )  [protected, virtual]

virtual void vtkProcessObject::AddInput (  vtkDataObject *  input  )  [protected, virtual]

virtual void vtkProcessObject::RemoveInput (  vtkDataObject *  input  )  [protected, virtual]

virtual void vtkProcessObject::ReportReferences (  vtkGarbageCollector *   )  [protected, virtual]

Reimplemented from vtkAlgorithm. Reimplemented in vtkSource, and vtkSpatialRepresentationFilter.

virtual int vtkProcessObject::FillInputPortInformation (  int  , vtkInformation *  )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm. Reimplemented in vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageMultipleInputFilter, vtkImageToImageFilter, vtkPolyDataToPolyDataFilter, vtkRectilinearGridToPolyDataFilter, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, and vtkSpatialRepresentationFilter.

virtual int vtkProcessObject::FillOutputPortInformation (  int  , vtkInformation *  )  [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm. Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkImageSource, vtkPointSetSource, vtkPolyDataSource, vtkRectilinearGridSource, vtkSource, vtkStructuredGridSource, vtkStructuredPointsSource, and vtkUnstructuredGridSource.

void vtkProcessObject::AddInputInternal (  vtkDataObject *  input  )  [protected]

void vtkProcessObject::RemoveInputInternal (  vtkDataObject *  input  )  [protected]

void vtkProcessObject::SetupInputs (   )  [protected]

---

Member Data Documentation

int vtkProcessObject::NumberOfInputs [protected]

Definition at line 91 of file vtkProcessObject.h.

int vtkProcessObject::NumberOfRequiredInputs [protected]

Definition at line 92 of file vtkProcessObject.h.

vtkDataObject** vtkProcessObject::Inputs [protected]

Definition at line 93 of file vtkProcessObject.h.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkProcessObject.h

---
