vtkImageExtractComponents Class Reference

#include <vtkImageExtractComponents.h>

Inheritance diagram for vtkImageExtractComponents:

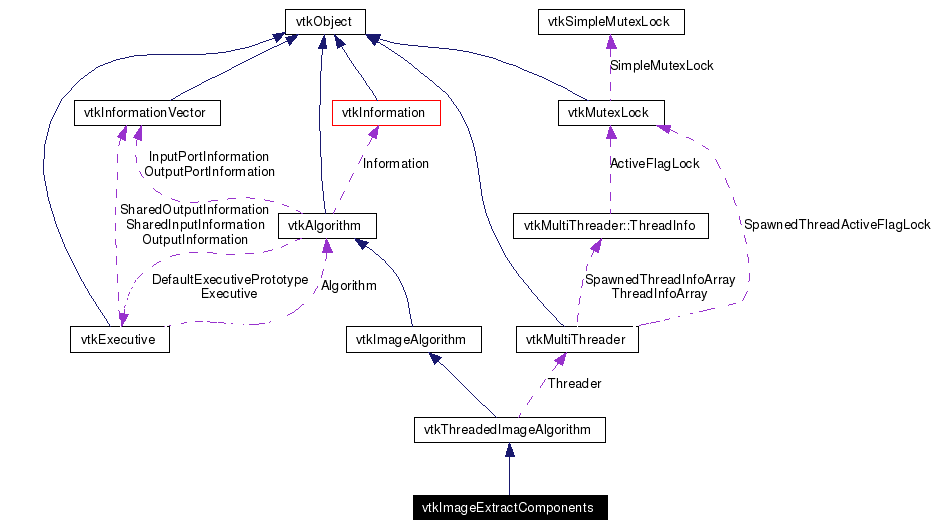

[legend]Collaboration diagram for vtkImageExtractComponents:

[legend]List of all members.

---

Detailed Description

Outputs a single component.

vtkImageExtractComponents takes an input with any number of components and outputs some of them. It does involve a copy of the data.

See also:

vtkImageAppendComponents

Tests:

vtkImageExtractComponents (Tests)

Definition at line 34 of file vtkImageExtractComponents.h.

Public Types
typedef vtkThreadedImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetComponents (int c1)
void	SetComponents (int c1, int c2)
void	SetComponents (int c1, int c2, int c3)
virtual int *	GetComponents ()
virtual void	GetComponents (int &, int &, int &)
virtual void	GetComponents (int[3])
virtual int	GetNumberOfComponents ()
Static Public Member Functions
static vtkImageExtractComponents *	New ()
static int	IsTypeOf (const char *type)
static vtkImageExtractComponents *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageExtractComponents ()
	~vtkImageExtractComponents ()
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)
Protected Attributes
int	NumberOfComponents
int	Components [3]

---

Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageExtractComponents::Superclass

Reimplemented from vtkThreadedImageAlgorithm. Definition at line 38 of file vtkImageExtractComponents.h.

---

Constructor & Destructor Documentation

vtkImageExtractComponents::vtkImageExtractComponents (   )  [protected]

vtkImageExtractComponents::~vtkImageExtractComponents (   )  [inline, protected]

Definition at line 57 of file vtkImageExtractComponents.h.

---

Member Function Documentation

static vtkImageExtractComponents* vtkImageExtractComponents::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkImageExtractComponents::GetClassName (   )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageExtractComponents::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageExtractComponents::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageExtractComponents* vtkImageExtractComponents::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageExtractComponents::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageExtractComponents::SetComponents (  int  c1  )

Set/Get the components to extract.

void vtkImageExtractComponents::SetComponents (  int  c1, int  c2 )

void vtkImageExtractComponents::SetComponents (  int  c1, int  c2, int  c3 )

virtual int* vtkImageExtractComponents::GetComponents (   )  [virtual]

virtual void vtkImageExtractComponents::GetComponents (  int &  , int &  , int &  )  [virtual]

virtual void vtkImageExtractComponents::GetComponents (  int  [3]  )  [virtual]

virtual int vtkImageExtractComponents::GetNumberOfComponents (   )  [virtual]

Get the number of components to extract. This is set implicitly by the SetComponents() method.

virtual int vtkImageExtractComponents::RequestInformation (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

Reimplemented from vtkImageAlgorithm.

void vtkImageExtractComponents::ThreadedExecute (  vtkImageData *  inData, vtkImageData *  outData, int  ext[6], int  id )  [protected, virtual]

Reimplemented from vtkThreadedImageAlgorithm.

---

Member Data Documentation

int vtkImageExtractComponents::NumberOfComponents [protected]

Definition at line 57 of file vtkImageExtractComponents.h.

int vtkImageExtractComponents::Components[3] [protected]

Definition at line 60 of file vtkImageExtractComponents.h.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageExtractComponents.h

---
