vtkMesaPolyDataMapper Class Reference

#include <vtkMesaPolyDataMapper.h>

Inheritance diagram for vtkMesaPolyDataMapper:

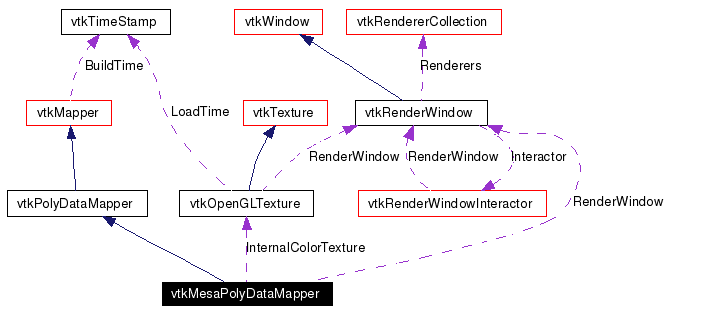

[legend]Collaboration diagram for vtkMesaPolyDataMapper:

[legend]List of all members.

---

Detailed Description

a PolyDataMapper for the Mesa library

vtkMesaPolyDataMapper is a subclass of vtkPolyDataMapper. vtkMesaPolyDataMapper is a geometric PolyDataMapper for the Mesa rendering library.

Examples:

vtkMesaPolyDataMapper (Examples)

Tests:

vtkMesaPolyDataMapper (Tests)

Definition at line 43 of file vtkMesaPolyDataMapper.h.

Public Types
typedef vtkPolyDataMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	RenderPiece (vtkRenderer *ren, vtkActor *a)
void	ReleaseGraphicsResources (vtkWindow *)
virtual int	Draw (vtkRenderer *ren, vtkActor *a)
Static Public Member Functions
static vtkMesaPolyDataMapper *	New ()
static int	IsTypeOf (const char *type)
static vtkMesaPolyDataMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMesaPolyDataMapper ()
	~vtkMesaPolyDataMapper ()
void	DrawPoints (int idx, vtkPoints *p, vtkDataArray *n, vtkUnsignedCharArray *c, vtkDataArray *t, vtkIdType &cellNum, int &noAbort, vtkCellArray *ca, vtkRenderer *ren)
void	DrawLines (int idx, vtkPoints *p, vtkDataArray *n, vtkUnsignedCharArray *c, vtkDataArray *t, vtkIdType &cellNum, int &noAbort, vtkCellArray *ca, vtkRenderer *ren)
void	DrawPolygons (int idx, vtkPoints *p, vtkDataArray *n, vtkUnsignedCharArray *c, vtkDataArray *t, vtkIdType &cellNum, int &noAbort, GLenum rep, vtkCellArray *ca, vtkRenderer *ren)
void	DrawTStrips (int idx, vtkPoints *p, vtkDataArray *n, vtkUnsignedCharArray *c, vtkDataArray *t, vtkIdType &cellNum, int &noAbort, GLenum rep, vtkCellArray *ca, vtkRenderer *ren)
Protected Attributes
vtkIdType	TotalCells
int	ListId
vtkOpenGLTexture *	InternalColorTexture
vtkRenderWindow *	RenderWindow

---

Member Typedef Documentation

typedef vtkPolyDataMapper vtkMesaPolyDataMapper::Superclass

Reimplemented from vtkPolyDataMapper. Definition at line 47 of file vtkMesaPolyDataMapper.h.

---

Constructor & Destructor Documentation

vtkMesaPolyDataMapper::vtkMesaPolyDataMapper (   )  [protected]

vtkMesaPolyDataMapper::~vtkMesaPolyDataMapper (   )  [protected]

---

Member Function Documentation

static vtkMesaPolyDataMapper* vtkMesaPolyDataMapper::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkPolyDataMapper.

virtual const char* vtkMesaPolyDataMapper::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataMapper.

static int vtkMesaPolyDataMapper::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataMapper.

virtual int vtkMesaPolyDataMapper::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataMapper.

static vtkMesaPolyDataMapper* vtkMesaPolyDataMapper::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataMapper.

virtual void vtkMesaPolyDataMapper::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataMapper.

virtual void vtkMesaPolyDataMapper::RenderPiece (  vtkRenderer *  ren, vtkActor *  a )  [virtual]

Implement superclass render method. Implements vtkPolyDataMapper.

void vtkMesaPolyDataMapper::ReleaseGraphicsResources (  vtkWindow *   )  [virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkMapper.

virtual int vtkMesaPolyDataMapper::Draw (  vtkRenderer *  ren, vtkActor *  a )  [virtual]

Draw method for Mesa.

void vtkMesaPolyDataMapper::DrawPoints (  int  idx, vtkPoints *  p, vtkDataArray *  n, vtkUnsignedCharArray *  c, vtkDataArray *  t, vtkIdType &  cellNum, int &  noAbort, vtkCellArray *  ca, vtkRenderer *  ren )  [protected]

void vtkMesaPolyDataMapper::DrawLines (  int  idx, vtkPoints *  p, vtkDataArray *  n, vtkUnsignedCharArray *  c, vtkDataArray *  t, vtkIdType &  cellNum, int &  noAbort, vtkCellArray *  ca, vtkRenderer *  ren )  [protected]

void vtkMesaPolyDataMapper::DrawPolygons (  int  idx, vtkPoints *  p, vtkDataArray *  n, vtkUnsignedCharArray *  c, vtkDataArray *  t, vtkIdType &  cellNum, int &  noAbort, GLenum  rep, vtkCellArray *  ca, vtkRenderer *  ren )  [protected]

void vtkMesaPolyDataMapper::DrawTStrips (  int  idx, vtkPoints *  p, vtkDataArray *  n, vtkUnsignedCharArray *  c, vtkDataArray *  t, vtkIdType &  cellNum, int &  noAbort, GLenum  rep, vtkCellArray *  ca, vtkRenderer *  ren )  [protected]

---

Member Data Documentation

vtkIdType vtkMesaPolyDataMapper::TotalCells [protected]

Definition at line 107 of file vtkMesaPolyDataMapper.h.

int vtkMesaPolyDataMapper::ListId [protected]

Definition at line 108 of file vtkMesaPolyDataMapper.h.

vtkOpenGLTexture* vtkMesaPolyDataMapper::InternalColorTexture [protected]

Definition at line 109 of file vtkMesaPolyDataMapper.h.

vtkRenderWindow* vtkMesaPolyDataMapper::RenderWindow [protected]

Definition at line 110 of file vtkMesaPolyDataMapper.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkMesaPolyDataMapper.h

---
