vtkRIBExporter Class Reference

#include <vtkRIBExporter.h>

Inheritance diagram for vtkRIBExporter:

Inheritance graph
[legend]
Collaboration diagram for vtkRIBExporter:

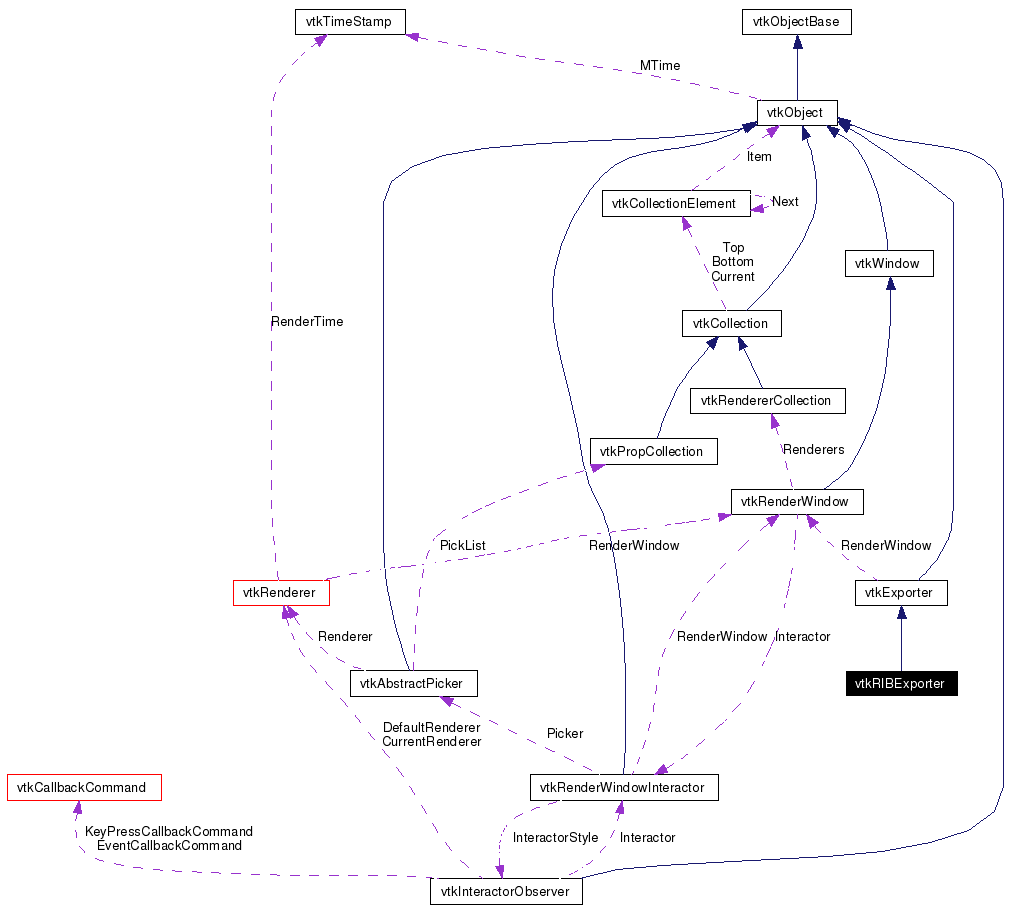

Collaboration graph
[legend]
List of all members.

Detailed Description

export a scene into RenderMan RIB format.

vtkRIBExporter is a concrete subclass of vtkExporter that writes a Renderman .RIB files. The input specifies a vtkRenderWindow. All visible actors and lights will be included in the rib file. The following file naming conventions apply: rib file - FilePrefix.rib image file created by RenderMan - FilePrefix.tif texture files - TexturePrefix_0xADDR_MTIME.tif This object does NOT generate an image file. The user must run either RenderMan or a RenderMan emulator like Blue Moon Ray Tracer (BMRT). vtk properties are convert to Renderman shaders as follows: Normal property, no texture map - plastic.sl Normal property with texture map - txtplastic.sl These two shaders must be compiled by the rendering package being used. vtkRIBExporter also supports custom shaders. The shaders are written using the Renderman Shading Language. See "The Renderman Companion", ISBN 0-201-50868, 1989 for details on writing shaders. vtkRIBProperty specifies the declarations and parameter settings for custom shaders. Tcl Example: generate a rib file for the current rendering. vtkRIBExporter myRIB myRIB SetInput $renWin myRIB SetFIlePrefix mine myRIB Write This will create a file mine.rib. After running this file through a Renderman renderer a file mine.tif will contain the rendered image.

See also:
vtkExporter vtkRIBProperty
Tests:
vtkRIBExporter (Tests)

Definition at line 65 of file vtkRIBExporter.h.

Public Types

typedef vtkExporter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetSize (int, int)
void SetSize (int[2])
virtual int * GetSize ()
virtual void GetSize (int data[2])
virtual void SetPixelSamples (int, int)
void SetPixelSamples (int[2])
virtual int * GetPixelSamples ()
virtual void GetPixelSamples (int data[2])
virtual void SetFilePrefix (const char *)
virtual char * GetFilePrefix ()
virtual void SetTexturePrefix (const char *)
virtual char * GetTexturePrefix ()
virtual void SetBackground (int)
virtual int GetBackground ()
virtual void BackgroundOn ()
virtual void BackgroundOff ()
virtual void SetExportArrays (int)
virtual void ExportArraysOn ()
virtual void ExportArraysOff ()
virtual int GetExportArrays ()

Static Public Member Functions

static vtkRIBExporterNew ()
static int IsTypeOf (const char *type)
static vtkRIBExporterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkRIBExporter ()
void WriteData ()
void WriteActor (vtkActor *anActor)
void ModifyArrayName (char *newname, const char *name)
char * GetTextureName (vtkTexture *aTexture)
char * GetTIFFName (vtkTexture *aTexture)
 ~vtkRIBExporter ()
void WriteHeader (vtkRenderer *aRen)
void WriteTrailer ()
void WriteTexture (vtkTexture *aTexture)
void WriteViewport (vtkRenderer *aRenderer, int size[2])
void WriteCamera (vtkCamera *aCamera)
void WriteLight (vtkLight *aLight, int count)
void WriteAmbientLight (int count)
void WriteProperty (vtkProperty *aProperty, vtkTexture *aTexture)
void WritePolygons (vtkPolyData *pd, vtkUnsignedCharArray *colors, vtkProperty *aProperty)
void WriteStrips (vtkPolyData *pd, vtkUnsignedCharArray *colors, vtkProperty *aProperty)

Protected Attributes

int Background
int Size [2]
int PixelSamples [2]
int ExportArrays
char * FilePrefix
FILE * FilePtr
char * TexturePrefix


Member Typedef Documentation

typedef vtkExporter vtkRIBExporter::Superclass


Reimplemented from vtkExporter.

Definition at line 69 of file vtkRIBExporter.h.


Constructor & Destructor Documentation

vtkRIBExporter::vtkRIBExporter  )  [protected]


vtkRIBExporter::~vtkRIBExporter  )  [protected]



Member Function Documentation

static vtkRIBExporter* vtkRIBExporter::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkRIBExporter::GetClassName  )  [virtual]


Reimplemented from vtkExporter.

static int vtkRIBExporter::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

virtual int vtkRIBExporter::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

static vtkRIBExporter* vtkRIBExporter::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkExporter.

void vtkRIBExporter::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExporter.

virtual void vtkRIBExporter::SetSize int  ,
int
[virtual]


Specify the size of the image for RenderMan. If none is specified, the size of the render window will be used.

void vtkRIBExporter::SetSize int  [2]  )


virtual int* vtkRIBExporter::GetSize  )  [virtual]


virtual void vtkRIBExporter::GetSize int  data[2]  )  [virtual]


virtual void vtkRIBExporter::SetPixelSamples int  ,
int
[virtual]


Specify the sampling rate for the rendering. Default is 2 2.

void vtkRIBExporter::SetPixelSamples int  [2]  )


Specify the sampling rate for the rendering. Default is 2 2.

virtual int* vtkRIBExporter::GetPixelSamples  )  [virtual]


Specify the sampling rate for the rendering. Default is 2 2.

virtual void vtkRIBExporter::GetPixelSamples int  data[2]  )  [virtual]


Specify the sampling rate for the rendering. Default is 2 2.

virtual void vtkRIBExporter::SetFilePrefix const char *   )  [virtual]


Specify the prefix of the files to write out. The resulting file names will have .RIB appended to them.

virtual char* vtkRIBExporter::GetFilePrefix  )  [virtual]


Specify the prefix of the files to write out. The resulting file names will have .RIB appended to them.

virtual void vtkRIBExporter::SetTexturePrefix const char *   )  [virtual]


Specify the prefix of any generated texture files.

virtual char* vtkRIBExporter::GetTexturePrefix  )  [virtual]


Specify the prefix of any generated texture files.

virtual void vtkRIBExporter::SetBackground int   )  [virtual]


Set/Get the background flag. Default is 0 (off). If set, the rib file will contain an image shader that will use the renderer window's background color. Normally, RenderMan does generate backgrounds. Backgrounds are composited into the scene with the tiffcomp program that comes with Pixar's RenderMan Toolkit. In fact, Pixar's Renderman will accept an image shader but only sets the alpha of the background. Images created this way will still have a black background but contain an alpha of 1 at all pixels and CANNOT be subsequently composited with other images using tiffcomp. However, other RenderMan compliant renderers like Blue Moon Ray Tracing (BMRT) do allow image shaders and properly set the background color. If this sounds too confusing, use the following rules: If you are using Pixar's Renderman, leave the Background off. Otherwise, try setting BackGroundOn and see if you get the desired results.

virtual int vtkRIBExporter::GetBackground  )  [virtual]


Set/Get the background flag. Default is 0 (off). If set, the rib file will contain an image shader that will use the renderer window's background color. Normally, RenderMan does generate backgrounds. Backgrounds are composited into the scene with the tiffcomp program that comes with Pixar's RenderMan Toolkit. In fact, Pixar's Renderman will accept an image shader but only sets the alpha of the background. Images created this way will still have a black background but contain an alpha of 1 at all pixels and CANNOT be subsequently composited with other images using tiffcomp. However, other RenderMan compliant renderers like Blue Moon Ray Tracing (BMRT) do allow image shaders and properly set the background color. If this sounds too confusing, use the following rules: If you are using Pixar's Renderman, leave the Background off. Otherwise, try setting BackGroundOn and see if you get the desired results.

virtual void vtkRIBExporter::BackgroundOn  )  [virtual]


Set/Get the background flag. Default is 0 (off). If set, the rib file will contain an image shader that will use the renderer window's background color. Normally, RenderMan does generate backgrounds. Backgrounds are composited into the scene with the tiffcomp program that comes with Pixar's RenderMan Toolkit. In fact, Pixar's Renderman will accept an image shader but only sets the alpha of the background. Images created this way will still have a black background but contain an alpha of 1 at all pixels and CANNOT be subsequently composited with other images using tiffcomp. However, other RenderMan compliant renderers like Blue Moon Ray Tracing (BMRT) do allow image shaders and properly set the background color. If this sounds too confusing, use the following rules: If you are using Pixar's Renderman, leave the Background off. Otherwise, try setting BackGroundOn and see if you get the desired results.

virtual void vtkRIBExporter::BackgroundOff  )  [virtual]


Set/Get the background flag. Default is 0 (off). If set, the rib file will contain an image shader that will use the renderer window's background color. Normally, RenderMan does generate backgrounds. Backgrounds are composited into the scene with the tiffcomp program that comes with Pixar's RenderMan Toolkit. In fact, Pixar's Renderman will accept an image shader but only sets the alpha of the background. Images created this way will still have a black background but contain an alpha of 1 at all pixels and CANNOT be subsequently composited with other images using tiffcomp. However, other RenderMan compliant renderers like Blue Moon Ray Tracing (BMRT) do allow image shaders and properly set the background color. If this sounds too confusing, use the following rules: If you are using Pixar's Renderman, leave the Background off. Otherwise, try setting BackGroundOn and see if you get the desired results.

virtual void vtkRIBExporter::SetExportArrays int   )  [virtual]


Set or get the ExportArrays. If ExportArrays is set, then all point data, field data, and cell data arrays will get exported together with polygons.

virtual void vtkRIBExporter::ExportArraysOn  )  [virtual]


Set or get the ExportArrays. If ExportArrays is set, then all point data, field data, and cell data arrays will get exported together with polygons.

virtual void vtkRIBExporter::ExportArraysOff  )  [virtual]


Set or get the ExportArrays. If ExportArrays is set, then all point data, field data, and cell data arrays will get exported together with polygons.

virtual int vtkRIBExporter::GetExportArrays  )  [virtual]


Set or get the ExportArrays. If ExportArrays is set, then all point data, field data, and cell data arrays will get exported together with polygons.

void vtkRIBExporter::WriteHeader vtkRenderer aRen  )  [protected]


Write the RIB header.

void vtkRIBExporter::WriteTrailer  )  [protected]


void vtkRIBExporter::WriteTexture vtkTexture aTexture  )  [protected]


void vtkRIBExporter::WriteViewport vtkRenderer aRenderer,
int  size[2]
[protected]


void vtkRIBExporter::WriteCamera vtkCamera aCamera  )  [protected]


void vtkRIBExporter::WriteLight vtkLight aLight,
int  count
[protected]


void vtkRIBExporter::WriteAmbientLight int  count  )  [protected]


void vtkRIBExporter::WriteProperty vtkProperty aProperty,
vtkTexture aTexture
[protected]


void vtkRIBExporter::WritePolygons vtkPolyData pd,
vtkUnsignedCharArray colors,
vtkProperty aProperty
[protected]


void vtkRIBExporter::WriteStrips vtkPolyData pd,
vtkUnsignedCharArray colors,
vtkProperty aProperty
[protected]


void vtkRIBExporter::WriteData  )  [protected, virtual]


Implements vtkExporter.

void vtkRIBExporter::WriteActor vtkActor anActor  )  [protected]


void vtkRIBExporter::ModifyArrayName char *  newname,
const char *  name
[protected]


Since additional variables are sent to the shader as variables, and their names are used in the shader, these names have to follow C naming convention. This method modifies array name so that you can use it in shader.

char* vtkRIBExporter::GetTextureName vtkTexture aTexture  )  [protected]


char* vtkRIBExporter::GetTIFFName vtkTexture aTexture  )  [protected]



Member Data Documentation

int vtkRIBExporter::Background [protected]


Definition at line 131 of file vtkRIBExporter.h.

int vtkRIBExporter::Size[2] [protected]


Definition at line 132 of file vtkRIBExporter.h.

int vtkRIBExporter::PixelSamples[2] [protected]


Definition at line 133 of file vtkRIBExporter.h.

int vtkRIBExporter::ExportArrays [protected]


This variable defines whether the arrays are exported or not.

Definition at line 136 of file vtkRIBExporter.h.

char* vtkRIBExporter::FilePrefix [protected]


Definition at line 165 of file vtkRIBExporter.h.

FILE* vtkRIBExporter::FilePtr [protected]


Definition at line 166 of file vtkRIBExporter.h.

char* vtkRIBExporter::TexturePrefix [protected]


Definition at line 167 of file vtkRIBExporter.h.


The documentation for this class was generated from the following file:
