vtkTextActor Class Reference

#include <vtkTextActor.h>

Inheritance diagram for vtkTextActor:

[legend]Collaboration diagram for vtkTextActor:

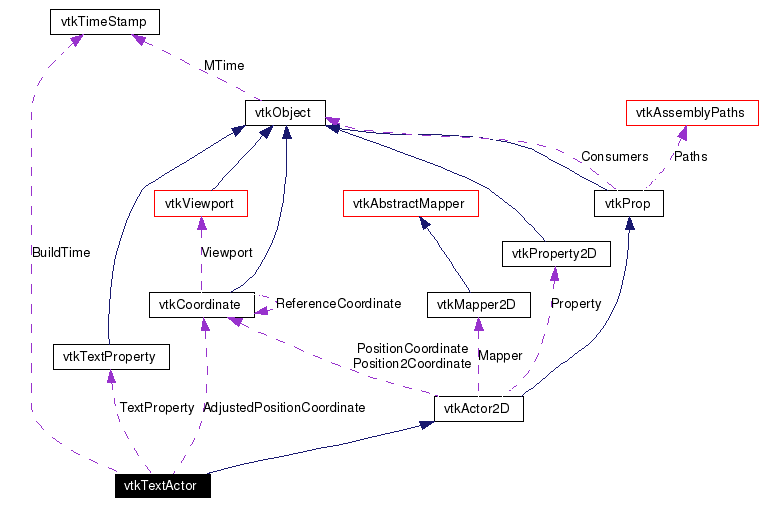

[legend]List of all members.

---

Detailed Description

An actor that displays text. Scaled or unscaled.

vtkTextActor can be used to place text annotation into a window. When ScaledText is false, the text is fixed font and operation is the same as a vtkTextMapper/vtkActor2D pair. When ScaledText is true, the font resizes such that the text fits inside the box defined by the position 1 & 2 coordinates. This class replaces the deprecated vtkScaledTextActor and acts as a convenient wrapper for a vtkTextMapper/vtkActor2D pair. Set the text property/attributes through the vtkTextProperty associated to this actor.

See also:

vtkActor2D vtkTextMapper vtkTextProperty

Examples:

vtkTextActor (Examples)

Tests:

vtkTextActor (Tests)

Definition at line 49 of file vtkTextActor.h.

Public Types
typedef vtkActor2D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	ShallowCopy (vtkProp *prop)
virtual void	SetNonLinearFontScale (double exponent, int target)
void	SetMapper (vtkTextMapper *mapper)
void	SetInput (const char *inputString)
char *	GetInput ()
virtual void	SetMinimumSize (int, int)
void	SetMinimumSize (int[2])
virtual int *	GetMinimumSize ()
virtual void	GetMinimumSize (int &, int &)
virtual void	GetMinimumSize (int[2])
virtual void	SetMaximumLineHeight (float)
virtual float	GetMaximumLineHeight ()
virtual void	SetScaledText (int)
virtual int	GetScaledText ()
virtual void	ScaledTextOn ()
virtual void	ScaledTextOff ()
virtual void	SetAlignmentPoint (int)
virtual int	GetAlignmentPoint ()
vtkCoordinate *	GetActualPositionCoordinate (void)
virtual void	SetTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetTextProperty ()
virtual void	ReleaseGraphicsResources (vtkWindow *)
int	RenderOpaqueGeometry (vtkViewport *viewport)
int	RenderTranslucentGeometry (vtkViewport *)
int	RenderOverlay (vtkViewport *viewport)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkTextActor *	SafeDownCast (vtkObject *o)
static vtkTextActor *	New ()
Protected Member Functions
void	SetMapper (vtkMapper2D *mapper)
	vtkTextActor ()
	~vtkTextActor ()
Protected Attributes
int	MinimumSize [2]
float	MaximumLineHeight
double	FontScaleExponent
double	FontScaleTarget
int	ScaledText
int	AlignmentPoint
vtkCoordinate *	AdjustedPositionCoordinate
vtkTextProperty *	TextProperty
vtkTimeStamp	BuildTime
int	LastSize [2]
int	LastOrigin [2]

---

Member Typedef Documentation

typedef vtkActor2D vtkTextActor::Superclass

Reimplemented from vtkActor2D. Reimplemented in vtkScaledTextActor. Definition at line 52 of file vtkTextActor.h.

---

Constructor & Destructor Documentation

vtkTextActor::vtkTextActor (   )  [protected]

vtkTextActor::~vtkTextActor (   )  [protected]

---

Member Function Documentation

virtual const char* vtkTextActor::GetClassName (   )  [virtual]

Reimplemented from vtkActor2D. Reimplemented in vtkScaledTextActor.

static int vtkTextActor::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkActor2D. Reimplemented in vtkScaledTextActor.

virtual int vtkTextActor::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkActor2D. Reimplemented in vtkScaledTextActor.

static vtkTextActor* vtkTextActor::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkActor2D. Reimplemented in vtkScaledTextActor.

void vtkTextActor::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkActor2D. Reimplemented in vtkScaledTextActor.

static vtkTextActor* vtkTextActor::New (   )  [static]

Instantiate object with a rectangle in normaled view coordinates of (0.2,0.85, 0.8, 0.95). Reimplemented from vtkActor2D. Reimplemented in vtkScaledTextActor.

void vtkTextActor::ShallowCopy (  vtkProp *  prop  )  [virtual]

Shallow copy of this text actor. Overloads the virtual vtkProp method. Reimplemented from vtkActor2D.

void vtkTextActor::SetMapper (  vtkTextMapper *  mapper  )

Override the vtkTextMapper that defines the text to be drawn. One will be created by default if none is supplied

void vtkTextActor::SetInput (  const char *  inputString  )

Set the text string to be displayed. "\n" is recognized as a carriage return/linefeed (line separator). Convenience method to the underlying mapper

char* vtkTextActor::GetInput (   )

Override the vtkTextMapper that defines the text to be drawn. One will be created by default if none is supplied

virtual void vtkTextActor::SetMinimumSize (  int  , int  )  [virtual]

Set/Get the minimum size in pixels for this actor. Defaults to 10,10. Not valid when ScaledText = false

void vtkTextActor::SetMinimumSize (  int  [2]  )

Set/Get the minimum size in pixels for this actor. Defaults to 10,10. Not valid when ScaledText = false

virtual int* vtkTextActor::GetMinimumSize (   )  [virtual]

Set/Get the minimum size in pixels for this actor. Defaults to 10,10. Not valid when ScaledText = false

virtual void vtkTextActor::GetMinimumSize (  int &  , int &  )  [virtual]

Set/Get the minimum size in pixels for this actor. Defaults to 10,10. Not valid when ScaledText = false

virtual void vtkTextActor::GetMinimumSize (  int  [2]  )  [virtual]

Set/Get the minimum size in pixels for this actor. Defaults to 10,10. Not valid when ScaledText = false

virtual void vtkTextActor::SetMaximumLineHeight (  float   )  [virtual]

Set/Get the maximum height of a line of text as a percentage of the vertical area allocated to this scaled text actor. Defaults to 1.0. Not valid when ScaledText = false

virtual float vtkTextActor::GetMaximumLineHeight (   )  [virtual]

Set/Get the maximum height of a line of text as a percentage of the vertical area allocated to this scaled text actor. Defaults to 1.0. Not valid when ScaledText = false

virtual void vtkTextActor::SetScaledText (  int   )  [virtual]

Turn on or off the ScaledText option. When text is scaled, the bounding rectangle is used to fit the text When ScaledText is off, the text is rendered at a fixed font size

virtual int vtkTextActor::GetScaledText (   )  [virtual]

Turn on or off the ScaledText option. When text is scaled, the bounding rectangle is used to fit the text When ScaledText is off, the text is rendered at a fixed font size

virtual void vtkTextActor::ScaledTextOn (   )  [virtual]

Turn on or off the ScaledText option. When text is scaled, the bounding rectangle is used to fit the text When ScaledText is off, the text is rendered at a fixed font size

virtual void vtkTextActor::ScaledTextOff (   )  [virtual]

Turn on or off the ScaledText option. When text is scaled, the bounding rectangle is used to fit the text When ScaledText is off, the text is rendered at a fixed font size

virtual void vtkTextActor::SetAlignmentPoint (  int   )  [virtual]

Set/Get the Alignment point for unscaled (fixed fontsize) text if zero (default), the text aligns itself to the bottom left corner (which is defined by the PositionCoordinate) otherwise the text aligns itself to corner/midpoint or centre 6 7 8 Otherwise the text aligns itself to corner/midpoint 3 4 5 or centre of the box defined by the position 1 & 2 0 1 2 coordinates according to the diagram on the left.

virtual int vtkTextActor::GetAlignmentPoint (   )  [virtual]

Set/Get the Alignment point for unscaled (fixed fontsize) text if zero (default), the text aligns itself to the bottom left corner (which is defined by the PositionCoordinate) otherwise the text aligns itself to corner/midpoint or centre 6 7 8 Otherwise the text aligns itself to corner/midpoint 3 4 5 or centre of the box defined by the position 1 & 2 0 1 2 coordinates according to the diagram on the left.

vtkCoordinate* vtkTextActor::GetActualPositionCoordinate (  void   )  [inline, virtual]

Return the actual vtkCoordinate reference that the mapper should use to position the actor. This is used internally by the mappers and should be overridden in specialized subclasses and otherwise ignored. Reimplemented from vtkActor2D. Definition at line 115 of file vtkTextActor.h.

virtual void vtkTextActor::SetTextProperty (  vtkTextProperty *  p  )  [virtual]

Set/Get the text property.

virtual vtkTextProperty* vtkTextActor::GetTextProperty (   )  [virtual]

Set/Get the text property.

virtual void vtkTextActor::SetNonLinearFontScale (  double  exponent, int  target )  [virtual]

Enable non-linear scaling of font sizes. This is useful in combination with scaled text. With small windows you want to use the entire scaled text area. With larger windows you want to reduce the font size some so that the entire area is not used. These values modify the computed font size as follows: newFontSize = pow(FontSize,exponent)*pow(target,1.0 - exponent) typically exponent should be around 0.7 and target should be around 10

virtual void vtkTextActor::ReleaseGraphicsResources (  vtkWindow *   )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkActor2D.

int vtkTextActor::RenderOpaqueGeometry (  vtkViewport *  viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the text actor to the screen. Reimplemented from vtkActor2D.

int vtkTextActor::RenderTranslucentGeometry (  vtkViewport *   )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkActor2D. Definition at line 146 of file vtkTextActor.h.

int vtkTextActor::RenderOverlay (  vtkViewport *  viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkActor2D.

void vtkTextActor::SetMapper (  vtkMapper2D *  mapper  )  [protected, virtual]

Hide access methods which use superclass vtkMapper2D and not vtkTextMapper Reimplemented from vtkActor2D.

---

Member Data Documentation

int vtkTextActor::MinimumSize[2] [protected]

Definition at line 159 of file vtkTextActor.h.

float vtkTextActor::MaximumLineHeight [protected]

Definition at line 160 of file vtkTextActor.h.

double vtkTextActor::FontScaleExponent [protected]

Definition at line 161 of file vtkTextActor.h.

double vtkTextActor::FontScaleTarget [protected]

Definition at line 162 of file vtkTextActor.h.

int vtkTextActor::ScaledText [protected]

Definition at line 163 of file vtkTextActor.h.

int vtkTextActor::AlignmentPoint [protected]

Definition at line 164 of file vtkTextActor.h.

vtkCoordinate* vtkTextActor::AdjustedPositionCoordinate [protected]

Definition at line 166 of file vtkTextActor.h.

vtkTextProperty* vtkTextActor::TextProperty [protected]

Definition at line 167 of file vtkTextActor.h.

vtkTimeStamp vtkTextActor::BuildTime [protected]

Definition at line 169 of file vtkTextActor.h.

int vtkTextActor::LastSize[2] [protected]

Definition at line 170 of file vtkTextActor.h.

int vtkTextActor::LastOrigin[2] [protected]

Definition at line 171 of file vtkTextActor.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkTextActor.h

---
