vtkTextMapper Class Reference

#include <vtkTextMapper.h>

Inheritance diagram for vtkTextMapper:

Inheritance graph
[legend]

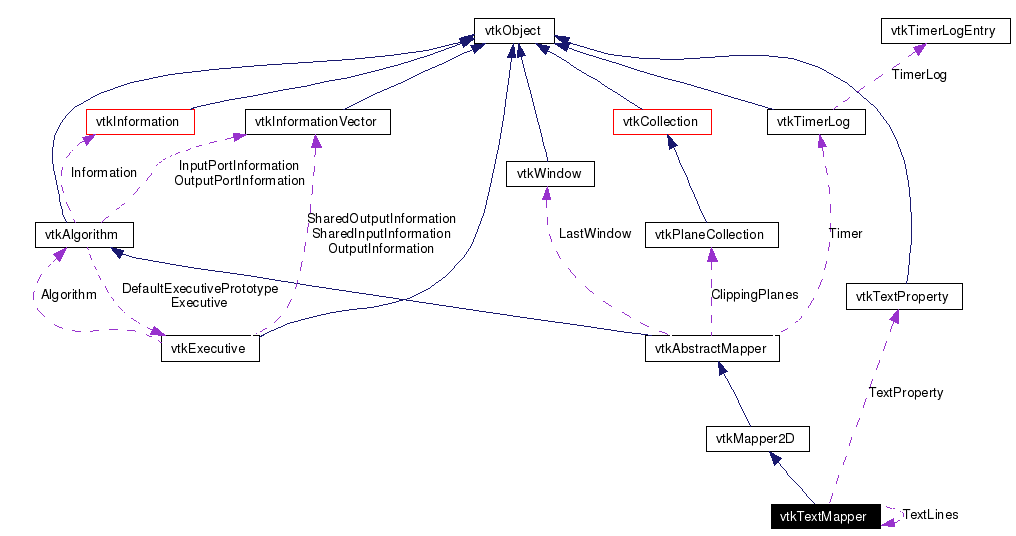

Collaboration diagram for vtkTextMapper:

Collaboration graph
[legend]
List of all members.

Detailed Description

2D text annotation

vtkTextMapper provides 2D text annotation support for vtk. It is a vtkMapper2D that can be associated with a vtkActor2D and placed into a vtkRenderer.

To use vtkTextMapper, specify an input text string.

See also:
vtkMapper2D vtkActor2D vtkLegendBoxActor vtkCaptionActor2D vtkVectorText vtkTextProperty
Examples:
vtkTextMapper (Examples)
Tests:
vtkTextMapper (Tests)

Definition at line 43 of file vtkTextMapper.h.
virtual void GetSize (vtkViewport *, int size[2])
virtual int GetWidth (vtkViewport *v)
virtual int GetHeight (vtkViewport *v)
static vtkTextMapperNew ()

Public Types

typedef vtkMapper2D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int GetNumberOfLines ()
void ShallowCopy (vtkTextMapper *tm)
virtual void SetInput (const char *inputString)
virtual char * GetInput ()
virtual void SetTextProperty (vtkTextProperty *p)
virtual vtkTextPropertyGetTextProperty ()
int GetNumberOfLines (const char *input)
virtual int SetConstrainedFontSize (vtkViewport *, int targetWidth, int targetHeight)
virtual int GetSystemFontSize (int size)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkTextMapperSafeDownCast (vtkObject *o)
static int SetMultipleConstrainedFontSize (vtkViewport *, int targetWidth, int targetHeight, vtkTextMapper **mappers, int nbOfMappers, int *maxResultingSize)

Protected Member Functions

 vtkTextMapper ()
 ~vtkTextMapper ()
char * NextLine (const char *input, int lineNum)
void GetMultiLineSize (vtkViewport *viewport, int size[2])
void RenderOverlayMultipleLines (vtkViewport *viewport, vtkActor2D *actor)

Protected Attributes

char * Input
vtkTextPropertyTextProperty
int LineSize
int NumberOfLines
int NumberOfLinesAllocated
vtkTextMapper ** TextLines


Member Typedef Documentation

typedef vtkMapper2D vtkTextMapper::Superclass


Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

Definition at line 46 of file vtkTextMapper.h.


Constructor & Destructor Documentation

vtkTextMapper::vtkTextMapper  )  [protected]


vtkTextMapper::~vtkTextMapper  )  [protected]



Member Function Documentation

virtual const char* vtkTextMapper::GetClassName  )  [virtual]


Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

static int vtkTextMapper::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

virtual int vtkTextMapper::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

static vtkTextMapper* vtkTextMapper::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

void vtkTextMapper::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMapper2D.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

static vtkTextMapper* vtkTextMapper::New  )  [static]


Creates a new text mapper.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

virtual void vtkTextMapper::GetSize vtkViewport ,
int  size[2]
[inline, virtual]


Return the size[2]/width/height of the rectangle required to draw this mapper (in pixels).

Reimplemented in vtkMesaFreeTypeTextMapper, and vtkOpenGLFreeTypeTextMapper.

Definition at line 55 of file vtkTextMapper.h.

virtual int vtkTextMapper::GetWidth vtkViewport v  )  [virtual]


Return the size[2]/width/height of the rectangle required to draw this mapper (in pixels).

virtual int vtkTextMapper::GetHeight vtkViewport v  )  [virtual]


Return the size[2]/width/height of the rectangle required to draw this mapper (in pixels).

virtual void vtkTextMapper::SetInput const char *  inputString  )  [virtual]


Set the input text string to the mapper. The mapper recognizes "\n" as a carriage return/linefeed (line separator).

virtual char* vtkTextMapper::GetInput  )  [virtual]


Set the input text string to the mapper. The mapper recognizes "\n" as a carriage return/linefeed (line separator).

virtual void vtkTextMapper::SetTextProperty vtkTextProperty p  )  [virtual]


Set/Get the text property.

virtual vtkTextProperty* vtkTextMapper::GetTextProperty  )  [virtual]


Set/Get the text property.

virtual int vtkTextMapper::GetNumberOfLines  )  [virtual]


void vtkTextMapper::ShallowCopy vtkTextMapper tm  )


Shallow copy of an actor.

int vtkTextMapper::GetNumberOfLines const char *  input  )


Determine the number of lines in the Input string (delimited by "\n").

virtual int vtkTextMapper::SetConstrainedFontSize vtkViewport ,
int  targetWidth,
int  targetHeight
[virtual]


Set and return the font size required to make this mapper fit in a given target rectangle (width * height, in pixels).

static int vtkTextMapper::SetMultipleConstrainedFontSize vtkViewport ,
int  targetWidth,
int  targetHeight,
vtkTextMapper **  mappers,
int  nbOfMappers,
int *  maxResultingSize
[static]


Set and return the font size required to make each element of an array of mappers fit in a given rectangle (width * height, in pixels). This font size is the smallest size that was required to fit the largest mapper in this constraint. The resulting maximum area of the mappers is also returned.

virtual int vtkTextMapper::GetSystemFontSize int  size  )  [inline, virtual]


Get the available system font size matching a font size.

Definition at line 104 of file vtkTextMapper.h.

char* vtkTextMapper::NextLine const char *  input,
int  lineNum
[protected]


void vtkTextMapper::GetMultiLineSize vtkViewport viewport,
int  size[2]
[protected]


void vtkTextMapper::RenderOverlayMultipleLines vtkViewport viewport,
vtkActor2D actor
[protected]



Member Data Documentation

char* vtkTextMapper::Input [protected]


Definition at line 112 of file vtkTextMapper.h.

vtkTextProperty* vtkTextMapper::TextProperty [protected]


Definition at line 113 of file vtkTextMapper.h.

int vtkTextMapper::LineSize [protected]


Definition at line 115 of file vtkTextMapper.h.

int vtkTextMapper::NumberOfLines [protected]


Definition at line 116 of file vtkTextMapper.h.

int vtkTextMapper::NumberOfLinesAllocated [protected]


Definition at line 117 of file vtkTextMapper.h.

vtkTextMapper** vtkTextMapper::TextLines [protected]


Definition at line 119 of file vtkTextMapper.h.


The documentation for this class was generated from the following file:
