vtkBiQuadraticQuadraticWedge Class Reference

#include <vtkBiQuadraticQuadraticWedge.h>

Inheritance diagram for vtkBiQuadraticQuadraticWedge:

[legend]

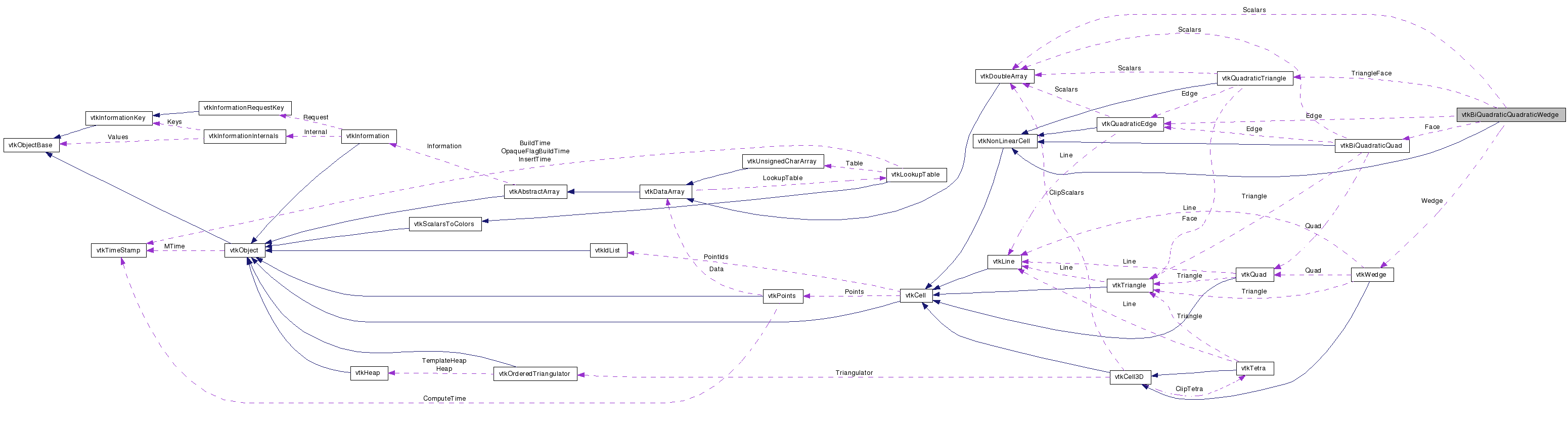

Collaboration diagram for vtkBiQuadraticQuadraticWedge:

[legend]

List of all members.

Detailed Description

cell represents a parabolic, 18-node isoparametric wedge

vtkBiQuadraticQuadraticWedge is a concrete implementation of vtkNonLinearCell to represent a three-dimensional, 18-node isoparametric biquadratic wedge. The interpolation is the standard finite element, biquadratic-quadratic isoparametric shape function plus the linear functions. The cell includes a mid-edge node. The ordering of the 18 points defining the cell is point ids (0-5,6-15, 16-18) where point ids 0-5 are the six corner vertices of the wedge; followed by nine midedge nodes (6-15) and 3 center-face nodes. Note that these midedge nodes correspond lie on the edges defined by (0,1), (1,2), (2,0), (3,4), (4,5), (5,3), (0,3), (1,4), (2,5), and the center-face nodes are lieing in quads 16-(0,1,4,3), 17-(1,2,5,4) and (2,0,3,5).

See also:: vtkQuadraticEdge vtkQuadraticTriangle vtkQuadraticTetra vtkQuadraticHexahedron vtkQuadraticQuad vtkQuadraticPyramid

Thanks:: Thanks to Soeren Gebbert who developed this class and integrated it into VTK 5.0.

Tests:: vtkBiQuadraticQuadraticWedge (Tests)

Definition at line 54 of file vtkBiQuadraticQuadraticWedge.h.


static void	InterpolationFunctions (double pcoords[3], double weights[15])
static void	InterpolationDerivs (double pcoords[3], double derivs[45])
static int *	GetEdgeArray (int edgeId)
static int *	GetFaceArray (int faceId)
virtual void	InterpolateFunctions (double pcoords[3], double weights[15])
virtual void	InterpolateDerivs (double pcoords[3], double derivs[45])
Public Types
typedef vtkNonLinearCell	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void	Contour (double value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
int	EvaluatePosition (double x[3], double closestPoint, int &subId, double pcoords[3], double &dist2, double weights)
void	EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, double pcoords[3], double values, int dim, double derivs)
virtual double *	GetParametricCoords ()
int	GetParametricCenter (double pcoords[3])
void	JacobianInverse (double pcoords[3], double **inverse, double derivs[45])

int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int edgeId)
vtkCell *	GetFace (int faceId)

void	Clip (double value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray tetras, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)

int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
Static Public Member Functions
static vtkBiQuadraticQuadraticWedge *	New ()
static int	IsTypeOf (const char *type)
static vtkBiQuadraticQuadraticWedge *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBiQuadraticQuadraticWedge ()
	~vtkBiQuadraticQuadraticWedge ()
Protected Attributes
vtkQuadraticEdge *	Edge
vtkQuadraticTriangle *	TriangleFace
vtkBiQuadraticQuad *	Face
vtkWedge *	Wedge
vtkDoubleArray *	Scalars

Member Typedef Documentation

typedef vtkNonLinearCell vtkBiQuadraticQuadraticWedge::Superclass

Reimplemented from vtkNonLinearCell.

Definition at line 58 of file vtkBiQuadraticQuadraticWedge.h.

Constructor & Destructor Documentation

vtkBiQuadraticQuadraticWedge::vtkBiQuadraticQuadraticWedge ( ) [protected]

vtkBiQuadraticQuadraticWedge::~vtkBiQuadraticQuadraticWedge ( ) [protected]

Member Function Documentation

static vtkBiQuadraticQuadraticWedge* vtkBiQuadraticQuadraticWedge::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBiQuadraticQuadraticWedge::GetClassName ( ) [virtual]

Reimplemented from vtkNonLinearCell.

static int vtkBiQuadraticQuadraticWedge::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkNonLinearCell.

virtual int vtkBiQuadraticQuadraticWedge::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkNonLinearCell.

static vtkBiQuadraticQuadraticWedge* vtkBiQuadraticQuadraticWedge::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkNonLinearCell.

void vtkBiQuadraticQuadraticWedge::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkNonLinearCell.

int vtkBiQuadraticQuadraticWedge::GetCellType ( ) [inline, virtual]
