vtkCell3D Class Reference

#include <vtkCell3D.h>

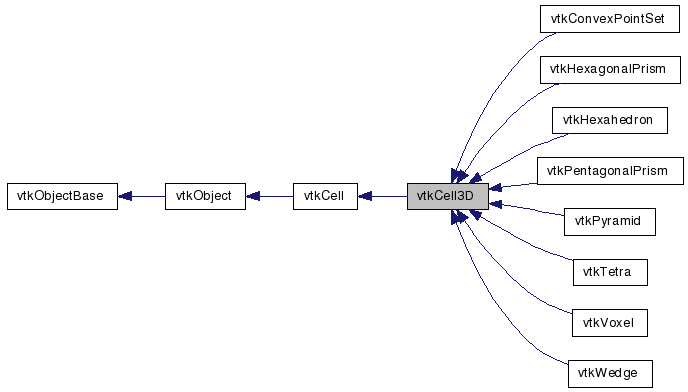

Inheritance diagram for vtkCell3D:

Inheritance graph
[legend]

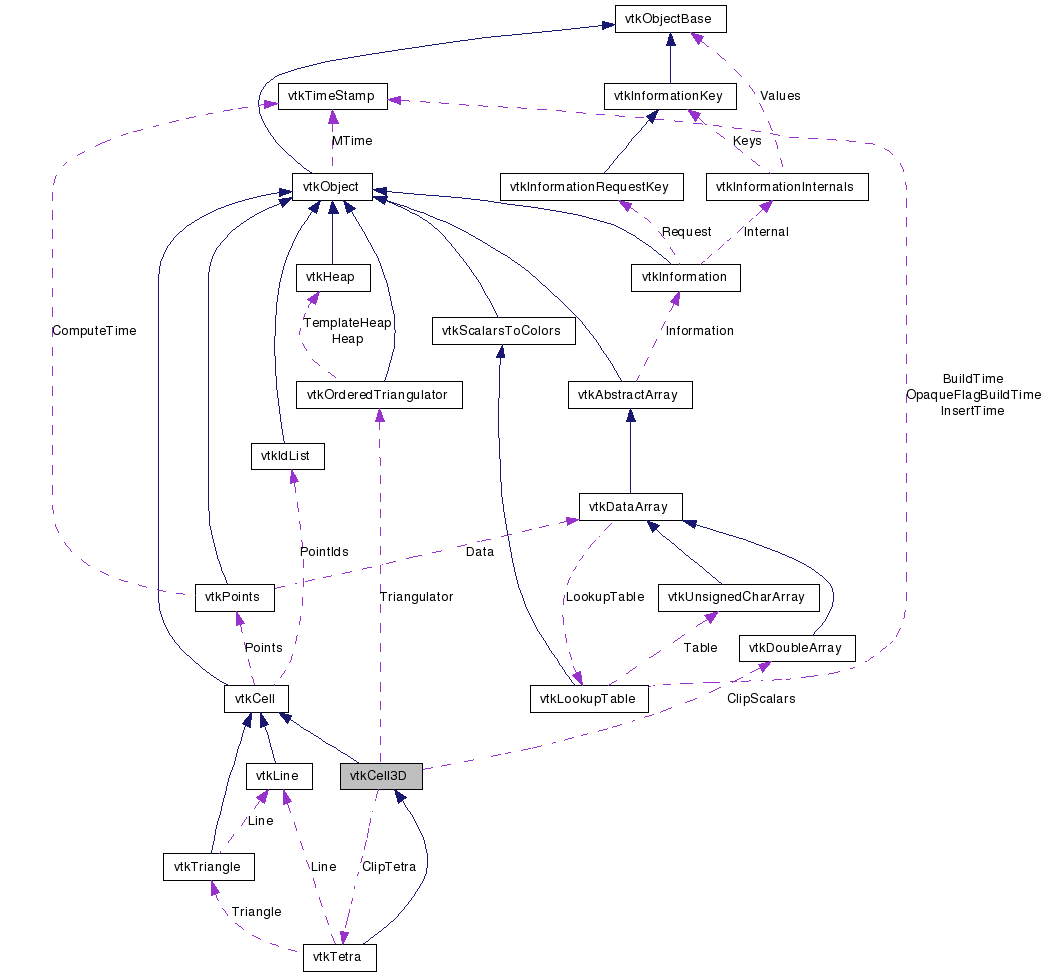

Collaboration diagram for vtkCell3D:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract class to specify 3D cell interface

vtkCell3D is an abstract class that extends the interfaces for 3D data cells, and implements methods needed to satisfy the vtkCell API. The 3D cells include hexehedra, tetrahedra, wedge, pyramid, and voxel.

See also:
vtkTetra vtkHexahedron vtkVoxel vtkWedge vtkPyramid

Definition at line 36 of file vtkCell3D.h.


Public Types

typedef vtkCell Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void GetEdgePoints (int edgeId, int *&pts)=0
virtual void GetFacePoints (int faceId, int *&pts)=0
void Contour (double value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd)
virtual int GetCellDimension ()
virtual void Clip (double value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *connectivity, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)
virtual void SetMergeTolerance (double)
virtual double GetMergeTolerance ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCell3DSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkCell3D ()
 ~vtkCell3D ()

Protected Attributes

vtkOrderedTriangulatorTriangulator
double MergeTolerance
vtkTetraClipTetra
vtkDoubleArrayClipScalars

Member Typedef Documentation

Reimplemented from vtkCell.

Reimplemented in vtkConvexPointSet, vtkHexagonalPrism, vtkHexahedron, vtkPentagonalPrism, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

Definition at line 39 of file vtkCell3D.h.


Constructor & Destructor Documentation

vtkCell3D::vtkCell3D (  )  [protected]

vtkCell3D::~vtkCell3D (  )  [protected]


Member Function Documentation

virtual const char* vtkCell3D::GetClassName (  )  [virtual]

static int vtkCell3D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

Reimplemented in vtkConvexPointSet, vtkHexagonalPrism, vtkHexahedron, vtkPentagonalPrism, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

virtual int vtkCell3D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

Reimplemented in vtkConvexPointSet, vtkHexagonalPrism, vtkHexahedron, vtkPentagonalPrism, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

static vtkCell3D* vtkCell3D::SafeDownCast ( vtkObject o  )  [static]

void vtkCell3D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell.

Reimplemented in vtkConvexPointSet, vtkHexagonalPrism, vtkHexahedron, vtkPentagonalPrism, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

virtual void vtkCell3D::GetEdgePoints ( int  edgeId,
int *&  pts
) [pure virtual]

Get the pair of vertices that define an edge. The method returns the number of vertices, along with an array of vertices. Note that the vertices are 0-offset; that is, they refer to the ids of the cell, not the point ids of the mesh that the cell belongs to. The edgeId must range between 0<=edgeId<this->GetNumberOfEdges().

Implemented in vtkHexagonalPrism, vtkHexahedron, vtkPentagonalPrism, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

virtual void vtkCell3D::GetFacePoints ( int  faceId,
int *&  pts
) [pure virtual]

Get the list of vertices that define a face. The list is terminated with a negative number. Note that the vertices are 0-offset; that is, they refer to the ids of the cell, not the point ids of the mesh that the cell belongs to. The faceId must range between 0<=faceId<this->GetNumberOfFaces().

Implemented in vtkHexagonalPrism, vtkHexahedron, vtkPentagonalPrism, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

void vtkCell3D::Contour ( double  value,
vtkDataArray cellScalars,
vtkPointLocator locator,
vtkCellArray verts,
vtkCellArray lines,
vtkCellArray polys,
vtkPointData inPd,
vtkPointData outPd,
vtkCellData inCd,
vtkIdType  cellId,
vtkCellData outCd
) [virtual]

Generate contouring primitives. The scalar list cellScalars are scalar values at each cell point. The point locator is essentially a points list that merges points as they are inserted (i.e., prevents duplicates). Contouring primitives can be vertices, lines, or polygons. It is possible to interpolate point data along the edge by providing input and output point data - if outPd is NULL, then no interpolation is performed. Also, if the output cell data is non-NULL, the cell data from the contoured cell is passed to the generated contouring primitives. (Note: the CopyAllocate() method must be invoked on both the output cell and point data. The cellId refers to the cell from which the cell data is copied.)

Implements vtkCell.

Reimplemented in vtkConvexPointSet, vtkHexahedron, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

virtual void vtkCell3D::Clip ( double  value,
vtkDataArray cellScalars,
vtkPointLocator locator,
vtkCellArray connectivity,
vtkPointData inPd,
vtkPointData outPd,
vtkCellData inCd,
vtkIdType  cellId,
vtkCellData outCd,
int  insideOut
) [virtual]

Cut (or clip) the cell based on the input cellScalars and the specified value. The output of the clip operation will be one or more cells of the same topological dimension as the original cell. The flag insideOut controls what part of the cell is considered inside - normally cell points whose scalar value is greater than "value" are considered inside. If insideOut is on, this is reversed. Also, if the output cell data is non-NULL, the cell data from the clipped cell is passed to the generated contouring primitives. (Note: the CopyAllocate() method must be invoked on both the output cell and point data. The cellId refers to the cell from which the cell data is copied.) (Satisfies vtkCell API.)

Implements vtkCell.

Reimplemented in vtkConvexPointSet, and vtkTetra.

virtual int vtkCell3D::GetCellDimension (  )  [inline, virtual]

The topological dimension of the cell. (Satisfies vtkCell API.)

Implements vtkCell.

Reimplemented in vtkHexagonalPrism, vtkPentagonalPrism, vtkPyramid, vtkVoxel, and vtkWedge.

Definition at line 82 of file vtkCell3D.h.

virtual void vtkCell3D::SetMergeTolerance ( double   )  [virtual]

Set the tolerance for merging clip intersection points that are near the vertices of cells. This tolerance is used to prevent the generation of degenerate tetrahedra during clipping.

virtual double vtkCell3D::GetMergeTolerance (  )  [virtual]

Set the tolerance for merging clip intersection points that are near the vertices of cells. This tolerance is used to prevent the generation of degenerate tetrahedra during clipping.


Member Data Documentation

Definition at line 96 of file vtkCell3D.h.

double vtkCell3D::MergeTolerance [protected]

Definition at line 97 of file vtkCell3D.h.

Definition at line 100 of file vtkCell3D.h.

Definition at line 101 of file vtkCell3D.h.
