vtkPolyVertex Class Reference

#include <vtkPolyVertex.h>

Inheritance diagram for vtkPolyVertex:

[legend]

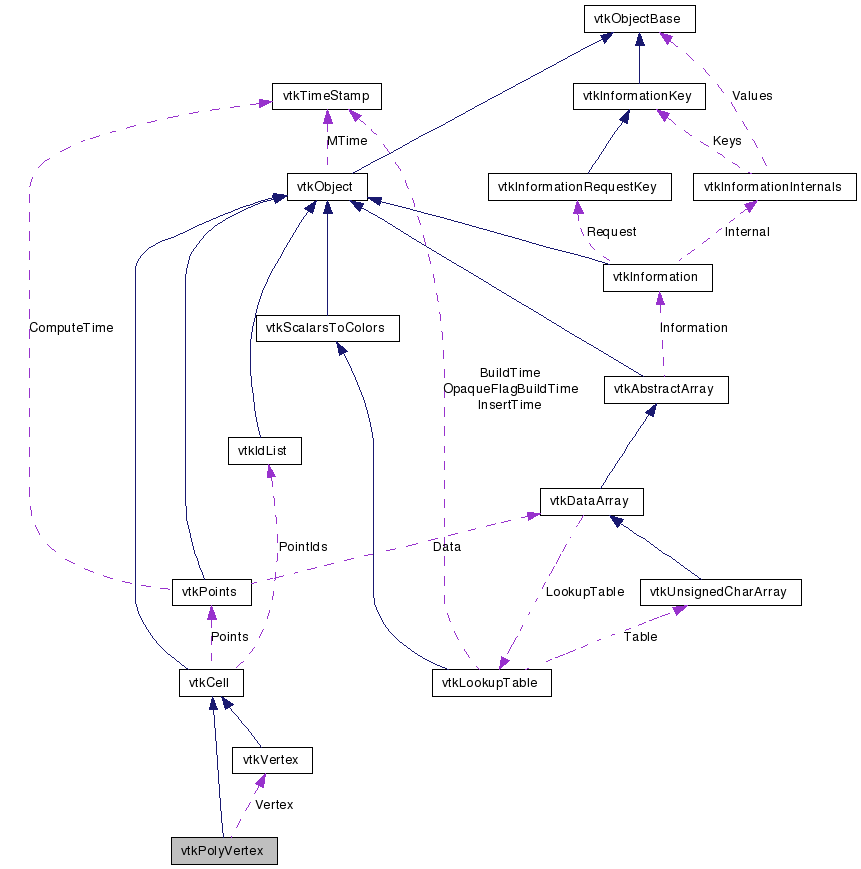

Collaboration diagram for vtkPolyVertex:

[legend]

List of all members.

Detailed Description

cell represents a set of 0D vertices

vtkPolyVertex is a concrete implementation of vtkCell to represent a set of 3D vertices.

Tests:: vtkPolyVertex (Tests)

Definition at line 32 of file vtkPolyVertex.h.


Public Types
typedef vtkCell	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetParametricCenter (double pcoords[3])

int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int vtkNotUsed(edgeId))
vtkCell *	GetFace (int vtkNotUsed(faceId))
int	CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void	Contour (double value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
void	Clip (double value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)
int	EvaluatePosition (double x[3], double closestPoint, int &subId, double pcoords[3], double &dist2, double weights)
void	EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, double pcoords[3], double values, int dim, double derivs)
int	IsPrimaryCell ()

virtual void	InterpolateFunctions (double pcoords[3], double *weights)
virtual void	InterpolateDerivs (double pcoords[3], double *derivs)
Static Public Member Functions
static vtkPolyVertex *	New ()
static int	IsTypeOf (const char *type)
static vtkPolyVertex *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPolyVertex ()
	~vtkPolyVertex ()
Protected Attributes
vtkVertex *	Vertex

Member Typedef Documentation

typedef vtkCell vtkPolyVertex::Superclass

Reimplemented from vtkCell.

Definition at line 36 of file vtkPolyVertex.h.

Constructor & Destructor Documentation

vtkPolyVertex::vtkPolyVertex ( ) [protected]

vtkPolyVertex::~vtkPolyVertex ( ) [protected]

Member Function Documentation

static vtkPolyVertex* vtkPolyVertex::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPolyVertex::GetClassName ( ) [virtual]

Reimplemented from vtkCell.

static int vtkPolyVertex::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

virtual int vtkPolyVertex::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

static vtkPolyVertex* vtkPolyVertex::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkCell.

void vtkPolyVertex::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell.

int vtkPolyVertex::GetCellType ( ) [inline, virtual]
