vtkRenderedGraphRepresentation Class Reference

#include <vtkRenderedGraphRepresentation.h>

Inheritance diagram for vtkRenderedGraphRepresentation:

Inheritance graph
[legend]

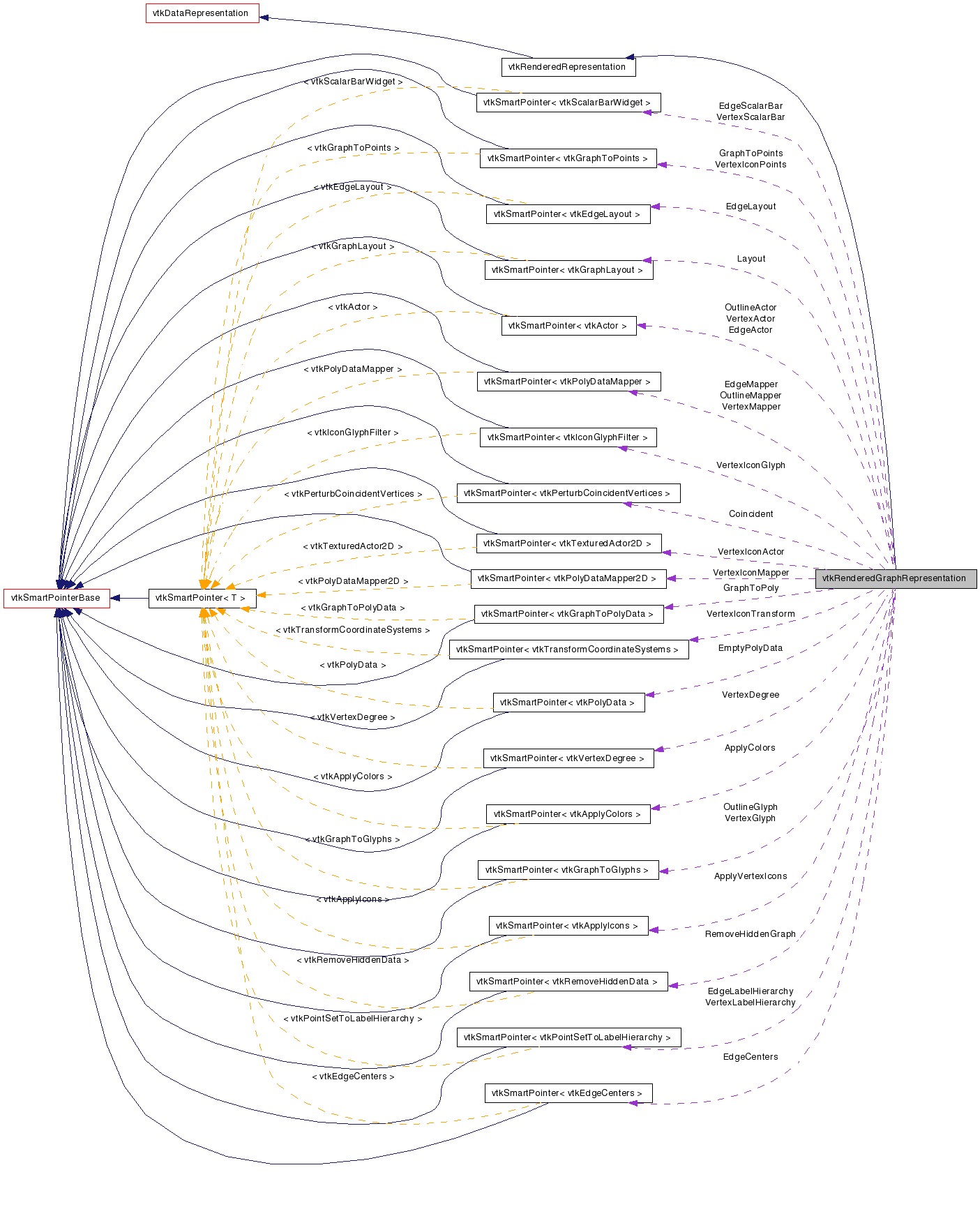

Collaboration diagram for vtkRenderedGraphRepresentation:

Collaboration graph
[legend]

List of all members.


Detailed Description

Examples:
vtkRenderedGraphRepresentation (Examples)
Tests:
vtkRenderedGraphRepresentation (Tests)

Definition at line 68 of file vtkRenderedGraphRepresentation.h.


Public Types

typedef vtkRenderedRepresentation Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetVertexLabelArrayName (const char *name)
virtual const char * GetVertexLabelArrayName ()
virtual void SetVertexLabelPriorityArrayName (const char *name)
virtual const char * GetVertexLabelPriorityArrayName ()
virtual void SetVertexLabelVisibility (bool b)
virtual bool GetVertexLabelVisibility ()
virtual void VertexLabelVisibilityOn ()
virtual void VertexLabelVisibilityOff ()
virtual void SetVertexLabelTextProperty (vtkTextProperty *p)
virtual vtkTextPropertyGetVertexLabelTextProperty ()
virtual void SetVertexHoverArrayName (const char *)
virtual char * GetVertexHoverArrayName ()
virtual void SetEdgeLabelArrayName (const char *name)
virtual const char * GetEdgeLabelArrayName ()
virtual void SetEdgeLabelPriorityArrayName (const char *name)
virtual const char * GetEdgeLabelPriorityArrayName ()
virtual void SetEdgeLabelVisibility (bool b)
virtual bool GetEdgeLabelVisibility ()
virtual void EdgeLabelVisibilityOn ()
virtual void EdgeLabelVisibilityOff ()
virtual void SetEdgeLabelTextProperty (vtkTextProperty *p)
virtual vtkTextPropertyGetEdgeLabelTextProperty ()
virtual void SetEdgeHoverArrayName (const char *)
virtual char * GetEdgeHoverArrayName ()
virtual void SetVertexIconArrayName (const char *name)
virtual const char * GetVertexIconArrayName ()
virtual void SetVertexIconPriorityArrayName (const char *name)
virtual const char * GetVertexIconPriorityArrayName ()
virtual void SetVertexIconVisibility (bool b)
virtual bool GetVertexIconVisibility ()
virtual void VertexIconVisibilityOn ()
virtual void VertexIconVisibilityOff ()
virtual void AddVertexIconType (const char *name, int type)
virtual void ClearVertexIconTypes ()
virtual void SetUseVertexIconTypeMap (bool b)
virtual bool GetUseVertexIconTypeMap ()
virtual void UseVertexIconTypeMapOn ()
virtual void UseVertexIconTypeMapOff ()
virtual void SetVertexIconAlignment (int align)
virtual int GetVertexIconAlignment ()
virtual void SetVertexSelectedIcon (int icon)
virtual int GetVertexSelectedIcon ()
virtual void SetEdgeIconArrayName (const char *name)
virtual const char * GetEdgeIconArrayName ()
virtual void SetEdgeIconPriorityArrayName (const char *name)
virtual const char * GetEdgeIconPriorityArrayName ()
virtual void SetEdgeIconVisibility (bool b)
virtual bool GetEdgeIconVisibility ()
virtual void EdgeIconVisibilityOn ()
virtual void EdgeIconVisibilityOff ()
virtual void AddEdgeIconType (const char *name, int type)
virtual void ClearEdgeIconTypes ()
virtual void SetUseEdgeIconTypeMap (bool b)
virtual bool GetUseEdgeIconTypeMap ()
virtual void UseEdgeIconTypeMapOn ()
virtual void UseEdgeIconTypeMapOff ()
virtual void SetEdgeIconAlignment (int align)
virtual int GetEdgeIconAlignment ()
virtual void SetColorVerticesByArray (bool b)
virtual bool GetColorVerticesByArray ()
virtual void ColorVerticesByArrayOn ()
virtual void ColorVerticesByArrayOff ()
virtual void SetVertexColorArrayName (const char *name)
virtual const char * GetVertexColorArrayName ()
virtual void SetColorEdgesByArray (bool b)
virtual bool GetColorEdgesByArray ()
virtual void ColorEdgesByArrayOn ()
virtual void ColorEdgesByArrayOff ()
virtual void SetEdgeColorArrayName (const char *name)
virtual const char * GetEdgeColorArrayName ()
virtual void SetEnableVerticesByArray (bool b)
virtual bool GetEnableVerticesByArray ()
virtual void EnableVerticesByArrayOn ()
virtual void EnableVerticesByArrayOff ()
virtual void SetEnabledVerticesArrayName (const char *name)
virtual const char * GetEnabledVerticesArrayName ()
virtual void SetEnableEdgesByArray (bool b)
virtual bool GetEnableEdgesByArray ()
virtual void EnableEdgesByArrayOn ()
virtual void EnableEdgesByArrayOff ()
virtual void SetEnabledEdgesArrayName (const char *name)
virtual const char * GetEnabledEdgesArrayName ()
virtual void SetEdgeVisibility (bool b)
virtual bool GetEdgeVisibility ()
virtual void EdgeVisibilityOn ()
virtual void EdgeVisibilityOff ()
virtual void SetEdgeLayoutStrategyToGeo (double explodeFactor=0.2)
virtual void ApplyViewTheme (vtkViewTheme *theme)
virtual bool IsLayoutComplete ()
virtual void UpdateLayout ()
void ComputeSelectedGraphBounds (double bounds[6])
virtual void SetHideVertexLabelsOnInteraction (bool)
virtual bool GetHideVertexLabelsOnInteraction ()
virtual void HideVertexLabelsOnInteractionOn ()
virtual void HideVertexLabelsOnInteractionOff ()
virtual void SetHideEdgeLabelsOnInteraction (bool)
virtual bool GetHideEdgeLabelsOnInteraction ()
virtual void HideEdgeLabelsOnInteractionOn ()
virtual void HideEdgeLabelsOnInteractionOff ()
virtual void SetVertexIconSelectionMode (int mode)
virtual int GetVertexIconSelectionMode ()
virtual void SetVertexIconSelectionModeToSelectedIcon ()
virtual void SetVertexIconSelectionModeToSelectedOffset ()
virtual void SetVertexIconSelectionModeToAnnotationIcon ()
virtual void SetVertexIconSelectionModeToIgnoreSelection ()
virtual void SetLayoutStrategy (vtkGraphLayoutStrategy *strategy)
virtual vtkGraphLayoutStrategyGetLayoutStrategy ()
virtual void SetLayoutStrategy (const char *name)
virtual char * GetLayoutStrategyName ()
void SetLayoutStrategyToRandom ()
void SetLayoutStrategyToForceDirected ()
void SetLayoutStrategyToSimple2D ()
void SetLayoutStrategyToClustering2D ()
void SetLayoutStrategyToCommunity2D ()
void SetLayoutStrategyToFast2D ()
void SetLayoutStrategyToPassThrough ()
void SetLayoutStrategyToCircular ()
void SetLayoutStrategyToTree ()
void SetLayoutStrategyToCosmicTree ()
void SetLayoutStrategyToCone ()
void SetLayoutStrategyToSpanTree ()
virtual void SetLayoutStrategyToAssignCoordinates (const char *xarr, const char *yarr=0, const char *zarr=0)
virtual void SetLayoutStrategyToTree (bool radial, double angle=90, double leafSpacing=0.9, double logSpacing=1.0)
virtual void SetLayoutStrategyToCosmicTree (const char *nodeSizeArrayName, bool sizeLeafNodesOnly=true, int layoutDepth=0, vtkIdType layoutRoot=-1)
virtual void SetEdgeLayoutStrategy (vtkEdgeLayoutStrategy *strategy)
virtual vtkEdgeLayoutStrategyGetEdgeLayoutStrategy ()
void SetEdgeLayoutStrategyToArcParallel ()
void SetEdgeLayoutStrategyToPassThrough ()
virtual void SetEdgeLayoutStrategy (const char *name)
virtual char * GetEdgeLayoutStrategyName ()
virtual void SetGlyphType (int type)
virtual int GetGlyphType ()
virtual void SetScaling (bool b)
virtual bool GetScaling ()
virtual void ScalingOn ()
virtual void ScalingOff ()
virtual void SetScalingArrayName (const char *name)
virtual const char * GetScalingArrayName ()
virtual void SetVertexScalarBarVisibility (bool b)
virtual bool GetVertexScalarBarVisibility ()
virtual void SetEdgeScalarBarVisibility (bool b)
virtual bool GetEdgeScalarBarVisibility ()

Static Public Member Functions

static
vtkRenderedGraphRepresentation
New ()
static int IsTypeOf (const char *type)
static
vtkRenderedGraphRepresentation
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkRenderedGraphRepresentation ()
 ~vtkRenderedGraphRepresentation ()
virtual void PrepareForRendering (vtkRenderView *view)
virtual vtkSelectionConvertSelection (vtkView *view, vtkSelection *sel)
virtual vtkUnicodeString GetHoverTextInternal (vtkSelection *sel)
virtual void SetVertexColorArrayNameInternal (const char *)
virtual char * GetVertexColorArrayNameInternal ()
virtual void SetEdgeColorArrayNameInternal (const char *)
virtual char * GetEdgeColorArrayNameInternal ()
virtual void SetScalingArrayNameInternal (const char *)
virtual char * GetScalingArrayNameInternal ()
virtual void SetLayoutStrategyName (const char *)
virtual void SetEdgeLayoutStrategyName (const char *)
virtual bool AddToView (vtkView *view)
virtual bool RemoveFromView (vtkView *view)
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

char * VertexHoverArrayName
char * EdgeHoverArrayName
char * VertexColorArrayNameInternal
char * EdgeColorArrayNameInternal
char * ScalingArrayNameInternal
char * LayoutStrategyName
char * EdgeLayoutStrategyName
bool HideVertexLabelsOnInteraction
bool HideEdgeLabelsOnInteraction
vtkSmartPointer< vtkApplyColorsApplyColors
vtkSmartPointer< vtkVertexDegreeVertexDegree
vtkSmartPointer< vtkPolyDataEmptyPolyData
vtkSmartPointer< vtkEdgeCentersEdgeCenters
vtkSmartPointer< vtkGraphToPointsGraphToPoints
vtkSmartPointer
< vtkPointSetToLabelHierarchy
VertexLabelHierarchy
vtkSmartPointer
< vtkPointSetToLabelHierarchy
EdgeLabelHierarchy
vtkSmartPointer< vtkGraphLayoutLayout
vtkSmartPointer
< vtkPerturbCoincidentVertices
Coincident
vtkSmartPointer< vtkEdgeLayoutEdgeLayout
vtkSmartPointer
< vtkGraphToPolyData
GraphToPoly
vtkSmartPointer
< vtkPolyDataMapper
EdgeMapper
vtkSmartPointer< vtkActorEdgeActor
vtkSmartPointer< vtkGraphToGlyphsVertexGlyph
vtkSmartPointer
< vtkPolyDataMapper
VertexMapper
vtkSmartPointer< vtkActorVertexActor
vtkSmartPointer< vtkGraphToGlyphsOutlineGlyph
vtkSmartPointer
< vtkPolyDataMapper
OutlineMapper
vtkSmartPointer< vtkActorOutlineActor
vtkSmartPointer
< vtkScalarBarWidget
VertexScalarBar
vtkSmartPointer
< vtkScalarBarWidget
EdgeScalarBar
vtkSmartPointer
< vtkRemoveHiddenData
RemoveHiddenGraph
vtkSmartPointer< vtkApplyIconsApplyVertexIcons
vtkSmartPointer< vtkGraphToPointsVertexIconPoints
vtkSmartPointer
< vtkTransformCoordinateSystems
VertexIconTransform
vtkSmartPointer
< vtkIconGlyphFilter
VertexIconGlyph
vtkSmartPointer
< vtkPolyDataMapper2D
VertexIconMapper
vtkSmartPointer
< vtkTexturedActor2D
VertexIconActor

Member Typedef Documentation

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

Definition at line 72 of file vtkRenderedGraphRepresentation.h.


Constructor & Destructor Documentation

vtkRenderedGraphRepresentation::vtkRenderedGraphRepresentation (  )  [protected]

vtkRenderedGraphRepresentation::~vtkRenderedGraphRepresentation (  )  [protected]


Member Function Documentation

static vtkRenderedGraphRepresentation* vtkRenderedGraphRepresentation::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual const char* vtkRenderedGraphRepresentation::GetClassName (  )  [virtual]

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

static int vtkRenderedGraphRepresentation::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual int vtkRenderedGraphRepresentation::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

static vtkRenderedGraphRepresentation* vtkRenderedGraphRepresentation::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

void vtkRenderedGraphRepresentation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::SetVertexLabelArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexLabelArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexLabelPriorityArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexLabelPriorityArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexLabelVisibility ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetVertexLabelVisibility (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::VertexLabelVisibilityOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::VertexLabelVisibilityOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexLabelTextProperty ( vtkTextProperty p  )  [virtual]

virtual vtkTextProperty* vtkRenderedGraphRepresentation::GetVertexLabelTextProperty (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexHoverArrayName ( const char *   )  [virtual]

virtual char* vtkRenderedGraphRepresentation::GetVertexHoverArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetHideVertexLabelsOnInteraction ( bool   )  [virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual bool vtkRenderedGraphRepresentation::GetHideVertexLabelsOnInteraction (  )  [virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideVertexLabelsOnInteractionOn (  )  [virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideVertexLabelsOnInteractionOff (  )  [virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeLabelArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelPriorityArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeLabelPriorityArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelVisibility ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetEdgeLabelVisibility (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EdgeLabelVisibilityOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EdgeLabelVisibilityOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelTextProperty ( vtkTextProperty p  )  [virtual]

virtual vtkTextProperty* vtkRenderedGraphRepresentation::GetEdgeLabelTextProperty (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeHoverArrayName ( const char *   )  [virtual]

virtual char* vtkRenderedGraphRepresentation::GetEdgeHoverArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetHideEdgeLabelsOnInteraction ( bool   )  [virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual bool vtkRenderedGraphRepresentation::GetHideEdgeLabelsOnInteraction (  )  [virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideEdgeLabelsOnInteractionOn (  )  [virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideEdgeLabelsOnInteractionOff (  )  [virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::SetVertexIconArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexIconArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconPriorityArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexIconPriorityArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconVisibility ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetVertexIconVisibility (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::VertexIconVisibilityOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::VertexIconVisibilityOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::AddVertexIconType ( const char *  name,
int  type
) [virtual]

virtual void vtkRenderedGraphRepresentation::ClearVertexIconTypes (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetUseVertexIconTypeMap ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetUseVertexIconTypeMap (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::UseVertexIconTypeMapOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::UseVertexIconTypeMapOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconAlignment ( int  align  )  [virtual]

virtual int vtkRenderedGraphRepresentation::GetVertexIconAlignment (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexSelectedIcon ( int  icon  )  [virtual]

virtual int vtkRenderedGraphRepresentation::GetVertexSelectedIcon (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionMode ( int  mode  )  [virtual]

Set the mode to one of

The default is IGNORE_SELECTION.

virtual int vtkRenderedGraphRepresentation::GetVertexIconSelectionMode (  )  [virtual]

Set the mode to one of

The default is IGNORE_SELECTION.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToSelectedIcon (  )  [inline, virtual]

Set the mode to one of

The default is IGNORE_SELECTION.

Definition at line 147 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToSelectedOffset (  )  [inline, virtual]

Set the mode to one of

The default is IGNORE_SELECTION.

Definition at line 149 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToAnnotationIcon (  )  [inline, virtual]

Set the mode to one of

The default is IGNORE_SELECTION.

Definition at line 151 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToIgnoreSelection (  )  [inline, virtual]

Set the mode to one of

The default is IGNORE_SELECTION.

Definition at line 153 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetEdgeIconArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeIconArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeIconPriorityArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeIconPriorityArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeIconVisibility ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetEdgeIconVisibility (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EdgeIconVisibilityOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EdgeIconVisibilityOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::AddEdgeIconType ( const char *  name,
int  type
) [virtual]

virtual void vtkRenderedGraphRepresentation::ClearEdgeIconTypes (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetUseEdgeIconTypeMap ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetUseEdgeIconTypeMap (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::UseEdgeIconTypeMapOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::UseEdgeIconTypeMapOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeIconAlignment ( int  align  )  [virtual]

virtual int vtkRenderedGraphRepresentation::GetEdgeIconAlignment (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetColorVerticesByArray ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetColorVerticesByArray (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::ColorVerticesByArrayOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::ColorVerticesByArrayOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexColorArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexColorArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetColorEdgesByArray ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetColorEdgesByArray (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::ColorEdgesByArrayOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::ColorEdgesByArrayOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeColorArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeColorArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEnableVerticesByArray ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetEnableVerticesByArray (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EnableVerticesByArrayOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EnableVerticesByArrayOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEnabledVerticesArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEnabledVerticesArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEnableEdgesByArray ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetEnableEdgesByArray (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EnableEdgesByArrayOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EnableEdgesByArrayOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEnabledEdgesArrayName ( const char *  name  )  [virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEnabledEdgesArrayName (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeVisibility ( bool  b  )  [virtual]

virtual bool vtkRenderedGraphRepresentation::GetEdgeVisibility (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EdgeVisibilityOn (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::EdgeVisibilityOff (  )  [virtual]

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategy ( vtkGraphLayoutStrategy strategy  )  [virtual]

Set/get the graph layout strategy.

virtual vtkGraphLayoutStrategy* vtkRenderedGraphRepresentation::GetLayoutStrategy (  )  [virtual]

Set/get the graph layout strategy.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategy ( const char *  name  )  [virtual]

Get/set the layout strategy by name.

virtual char* vtkRenderedGraphRepresentation::GetLayoutStrategyName (  )  [virtual]

Get/set the layout strategy by name.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToRandom (  )  [inline]

Set predefined layout strategies.

Definition at line 232 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToForceDirected (  )  [inline]

Set predefined layout strategies.

Definition at line 234 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToSimple2D (  )  [inline]

Set predefined layout strategies.

Definition at line 236 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToClustering2D (  )  [inline]

Set predefined layout strategies.

Definition at line 238 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCommunity2D (  )  [inline]

Set predefined layout strategies.

Definition at line 240 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToFast2D (  )  [inline]

Set predefined layout strategies.

Definition at line 242 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToPassThrough (  )  [inline]

Set predefined layout strategies.

Definition at line 244 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCircular (  )  [inline]

Set predefined layout strategies.

Definition at line 246 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToTree (  )  [inline]

Set predefined layout strategies.

Definition at line 248 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCosmicTree (  )  [inline]

Set predefined layout strategies.

Definition at line 250 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCone (  )  [inline]

Set predefined layout strategies.

Definition at line 252 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToSpanTree (  )  [inline]

Set predefined layout strategies.

Definition at line 254 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyToAssignCoordinates ( const char *  xarr,
const char *  yarr = 0,
const char *  zarr = 0
) [virtual]

Set the layout strategy to use coordinates from arrays. The x array must be specified. The y and z arrays are optional.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyToTree ( bool  radial,
double  angle = 90,
double  leafSpacing = 0.9,
double  logSpacing = 1.0
) [virtual]

Set the layout strategy to a tree layout. Radial indicates whether to do a radial or standard top-down tree layout. The angle parameter is the angular distance spanned by the tree. Leaf spacing is a value from 0 to 1 indicating how much of the radial layout should be allocated to leaf nodes (as opposed to between tree branches). The log spacing value is a non-negative value where > 1 will create expanding levels, < 1 will create contracting levels, and = 1 makes all levels the same size. See vtkTreeLayoutStrategy for more information.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyToCosmicTree ( const char *  nodeSizeArrayName,
bool  sizeLeafNodesOnly = true,
int  layoutDepth = 0,
vtkIdType  layoutRoot = -1
) [virtual]

Set the layout strategy to a cosmic tree layout. nodeSizeArrayName is the array used to size the circles (default is NULL, which makes leaf nodes the same size). sizeLeafNodesOnly only uses the leaf node sizes, and computes the parent size as the sum of the child sizes (default true). layoutDepth stops layout at a certain depth (default is 0, which does the entire tree). layoutRoot is the vertex that will be considered the root node of the layout (default is -1, which will use the tree's root). See vtkCosmicTreeLayoutStrategy for more information.

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategy ( vtkEdgeLayoutStrategy strategy  )  [virtual]

Set/get the graph layout strategy.

virtual vtkEdgeLayoutStrategy* vtkRenderedGraphRepresentation::GetEdgeLayoutStrategy (  )  [virtual]

Set/get the graph layout strategy.

void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyToArcParallel (  )  [inline]

Set/get the graph layout strategy.

Definition at line 306 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyToPassThrough (  )  [inline]

Set/get the graph layout strategy.

Definition at line 308 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyToGeo ( double  explodeFactor = 0.2  )  [virtual]

Set the edge layout strategy to a geospatial arced strategy appropriate for vtkGeoView.

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategy ( const char *  name  )  [virtual]

Set the edge layout strategy by name.

virtual char* vtkRenderedGraphRepresentation::GetEdgeLayoutStrategyName (  )  [virtual]

Set the edge layout strategy by name.

virtual void vtkRenderedGraphRepresentation::ApplyViewTheme ( vtkViewTheme theme  )  [virtual]

Apply a theme to this representation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::SetGlyphType ( int  type  )  [virtual]

Set the graph vertex glyph type.

virtual int vtkRenderedGraphRepresentation::GetGlyphType (  )  [virtual]

Set the graph vertex glyph type.

virtual void vtkRenderedGraphRepresentation::SetScaling ( bool  b  )  [virtual]

Set whether to scale vertex glyphs.

virtual bool vtkRenderedGraphRepresentation::GetScaling (  )  [virtual]

Set whether to scale vertex glyphs.

virtual void vtkRenderedGraphRepresentation::ScalingOn (  )  [virtual]

Set whether to scale vertex glyphs.

virtual void vtkRenderedGraphRepresentation::ScalingOff (  )  [virtual]

Set whether to scale vertex glyphs.

virtual void vtkRenderedGraphRepresentation::SetScalingArrayName ( const char *  name  )  [virtual]

Set the glyph scaling array name.

virtual const char* vtkRenderedGraphRepresentation::GetScalingArrayName (  )  [virtual]

Set the glyph scaling array name.

virtual void vtkRenderedGraphRepresentation::SetVertexScalarBarVisibility ( bool  b  )  [virtual]

Vertex/edge scalar bar visibility.

virtual bool vtkRenderedGraphRepresentation::GetVertexScalarBarVisibility (  )  [virtual]

Vertex/edge scalar bar visibility.

virtual void vtkRenderedGraphRepresentation::SetEdgeScalarBarVisibility ( bool  b  )  [virtual]

Vertex/edge scalar bar visibility.

virtual bool vtkRenderedGraphRepresentation::GetEdgeScalarBarVisibility (  )  [virtual]

Vertex/edge scalar bar visibility.

virtual bool vtkRenderedGraphRepresentation::IsLayoutComplete (  )  [virtual]

Whether the current graph layout is complete.

virtual void vtkRenderedGraphRepresentation::UpdateLayout (  )  [virtual]

Performs another iteration on the graph layout.

void vtkRenderedGraphRepresentation::ComputeSelectedGraphBounds ( double  bounds[6]  )

Compute the bounding box of the selected subgraph.

virtual bool vtkRenderedGraphRepresentation::AddToView ( vtkView view  )  [protected, virtual]

Called by the view to add/remove this representation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual bool vtkRenderedGraphRepresentation::RemoveFromView ( vtkView view  )  [protected, virtual]

Called by the view to add/remove this representation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::PrepareForRendering ( vtkRenderView view  )  [protected, virtual]

The view will call this method before every render. Representations may add their own pre-render logic here.

Reimplemented from vtkRenderedRepresentation.

virtual vtkSelection* vtkRenderedGraphRepresentation::ConvertSelection ( vtkView view,
vtkSelection selection
) [protected, virtual]

Convert the selection to a type appropriate for sharing with other representations through vtkAnnotationLink, possibly using the view. For the superclass, we just return the same selection. Subclasses may do something more fancy, like convert the selection from a frustrum to a list of pedigree ids. If the selection cannot be applied to this representation, return NULL.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual vtkUnicodeString vtkRenderedGraphRepresentation::GetHoverTextInternal ( vtkSelection  )  [protected, virtual]

Subclasses may override this method to generate the hover text.

Reimplemented from vtkRenderedRepresentation.

virtual int vtkRenderedGraphRepresentation::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

Connect inputs to internal pipeline.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::SetVertexColorArrayNameInternal ( const char *   )  [protected, virtual]

virtual char* vtkRenderedGraphRepresentation::GetVertexColorArrayNameInternal (  )  [protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeColorArrayNameInternal ( const char *   )  [protected, virtual]

virtual char* vtkRenderedGraphRepresentation::GetEdgeColorArrayNameInternal (  )  [protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetScalingArrayNameInternal ( const char *   )  [protected, virtual]

virtual char* vtkRenderedGraphRepresentation::GetScalingArrayNameInternal (  )  [protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyName ( const char *   )  [protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyName ( const char *   )  [protected, virtual]


Member Data Documentation

Internal filter classes.

Definition at line 393 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 394 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 395 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 396 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 397 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 398 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 399 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 400 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 401 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 402 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 403 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 404 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 405 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 406 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 407 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 408 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 409 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 410 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 411 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 412 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 413 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 414 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 415 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 416 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 417 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 418 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 419 of file vtkRenderedGraphRepresentation.h.

Internal filter classes.

Definition at line 420 of file vtkRenderedGraphRepresentation.h.

Definition at line 424 of file vtkRenderedGraphRepresentation.h.

Definition at line 425 of file vtkRenderedGraphRepresentation.h.

Definition at line 428 of file vtkRenderedGraphRepresentation.h.

Definition at line 432 of file vtkRenderedGraphRepresentation.h.

Definition at line 436 of file vtkRenderedGraphRepresentation.h.

Definition at line 439 of file vtkRenderedGraphRepresentation.h.

Definition at line 441 of file vtkRenderedGraphRepresentation.h.

Definition at line 443 of file vtkRenderedGraphRepresentation.h.

Definition at line 444 of file vtkRenderedGraphRepresentation.h.


The documentation for this class was generated from the following file:

Generated on Mon Sep 27 18:47:15 2010 for VTK by  doxygen 1.5.6
