vtkRenderedHierarchyRepresentation Class Reference

#include <vtkRenderedHierarchyRepresentation.h>

Inheritance diagram for vtkRenderedHierarchyRepresentation:

[legend]

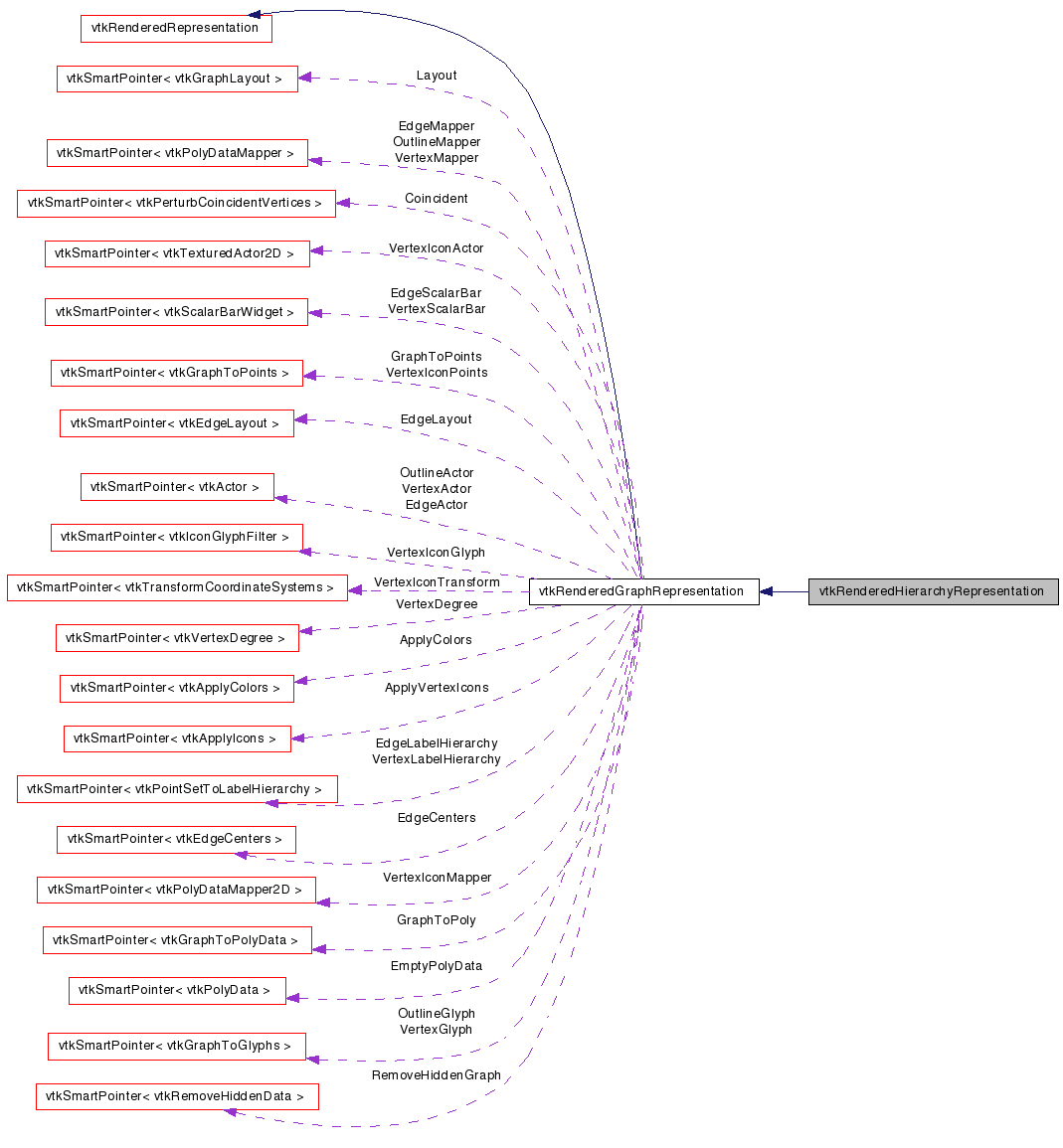

Collaboration diagram for vtkRenderedHierarchyRepresentation:

[legend]

List of all members.

Detailed Description

Definition at line 30 of file vtkRenderedHierarchyRepresentation.h.


Public Types
typedef vtkRenderedGraphRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetGraphEdgeLabelVisibility (bool vis)
virtual void	SetGraphEdgeLabelVisibility (bool vis, int idx)
virtual bool	GetGraphEdgeLabelVisibility ()
virtual bool	GetGraphEdgeLabelVisibility (int idx)
virtual void	GraphEdgeLabelVisibilityOn ()
virtual void	GraphEdgeLabelVisibilityOff ()
virtual void	SetGraphEdgeColorArrayName (const char *name)
virtual void	SetGraphEdgeColorArrayName (const char *name, int idx)
virtual const char *	GetGraphEdgeColorArrayName ()
virtual const char *	GetGraphEdgeColorArrayName (int idx)
virtual void	SetColorGraphEdgesByArray (bool vis)
virtual void	SetColorGraphEdgesByArray (bool vis, int idx)
virtual bool	GetColorGraphEdgesByArray ()
virtual bool	GetColorGraphEdgesByArray (int idx)
virtual void	ColorGraphEdgesByArrayOn ()
virtual void	ColorGraphEdgesByArrayOff ()
virtual void	SetGraphEdgeColorToSplineFraction ()
virtual void	SetGraphEdgeColorToSplineFraction (int idx)
virtual void	SetGraphVisibility (bool vis)
virtual void	SetGraphVisibility (bool vis, int idx)
virtual bool	GetGraphVisibility ()
virtual bool	GetGraphVisibility (int idx)
virtual void	GraphVisibilityOn ()
virtual void	GraphVisibilityOff ()
virtual void	SetBundlingStrength (double strength)
virtual void	SetBundlingStrength (double strength, int idx)
virtual double	GetBundlingStrength ()
virtual double	GetBundlingStrength (int idx)
virtual void	SetGraphEdgeLabelFontSize (int size)
virtual void	SetGraphEdgeLabelFontSize (int size, int idx)
virtual int	GetGraphEdgeLabelFontSize ()
virtual int	GetGraphEdgeLabelFontSize (int idx)

*virtual void	SetGraphEdgeLabelArrayName (const char *name)
virtual void	SetGraphEdgeLabelArrayName (const char *name, int idx)
virtual const char *	GetGraphEdgeLabelArrayName ()
virtual const char *	GetGraphEdgeLabelArrayName (int idx)
Static Public Member Functions
static vtkRenderedHierarchyRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkRenderedHierarchyRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRenderedHierarchyRepresentation ()
	~vtkRenderedHierarchyRepresentation ()
bool	ValidIndex (int idx)
virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection sel)
virtual int	FillInputPortInformation (int port, vtkInformation *info)
virtual void	ApplyViewTheme (vtkViewTheme *theme)

virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)

virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
Internals *	Implementation

Member Typedef Documentation

typedef vtkRenderedGraphRepresentation vtkRenderedHierarchyRepresentation::Superclass

Reimplemented from vtkRenderedGraphRepresentation.

Definition at line 34 of file vtkRenderedHierarchyRepresentation.h.

Constructor & Destructor Documentation

vtkRenderedHierarchyRepresentation::vtkRenderedHierarchyRepresentation ( ) [protected]

vtkRenderedHierarchyRepresentation::~vtkRenderedHierarchyRepresentation ( ) [protected]

Member Function Documentation

static vtkRenderedHierarchyRepresentation* vtkRenderedHierarchyRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRenderedGraphRepresentation.

virtual const char* vtkRenderedHierarchyRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkRenderedGraphRepresentation.

static int vtkRenderedHierarchyRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedGraphRepresentation.

virtual int vtkRenderedHierarchyRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedGraphRepresentation.

static vtkRenderedHierarchyRepresentation* vtkRenderedHierarchyRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkRenderedGraphRepresentation.

void vtkRenderedHierarchyRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderedGraphRepresentation.

* virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeLabelArrayName ( const char * name ) [inline, virtual]

Definition at line 39 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeLabelArrayName	(	const char *	name,
		int	idx
	)			`[virtual]`

virtual const char* vtkRenderedHierarchyRepresentation::GetGraphEdgeLabelArrayName ( ) [inline, virtual]

Definition at line 42 of file vtkRenderedHierarchyRepresentation.h.

virtual const char* vtkRenderedHierarchyRepresentation::GetGraphEdgeLabelArrayName ( int idx ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeLabelVisibility ( bool vis ) [inline, virtual]

Definition at line 47 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeLabelVisibility	(	bool	vis,
		int	idx
	)			`[virtual]`

virtual bool vtkRenderedHierarchyRepresentation::GetGraphEdgeLabelVisibility ( ) [inline, virtual]

Definition at line 50 of file vtkRenderedHierarchyRepresentation.h.

virtual bool vtkRenderedHierarchyRepresentation::GetGraphEdgeLabelVisibility ( int idx ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::GraphEdgeLabelVisibilityOn ( ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::GraphEdgeLabelVisibilityOff ( ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeColorArrayName ( const char * name ) [inline, virtual]

Definition at line 55 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeColorArrayName	(	const char *	name,
		int	idx
	)			`[virtual]`

virtual const char* vtkRenderedHierarchyRepresentation::GetGraphEdgeColorArrayName ( ) [inline, virtual]

Definition at line 58 of file vtkRenderedHierarchyRepresentation.h.

virtual const char* vtkRenderedHierarchyRepresentation::GetGraphEdgeColorArrayName ( int idx ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::SetColorGraphEdgesByArray ( bool vis ) [inline, virtual]

Definition at line 62 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetColorGraphEdgesByArray	(	bool	vis,
		int	idx
	)			`[virtual]`

virtual bool vtkRenderedHierarchyRepresentation::GetColorGraphEdgesByArray ( ) [inline, virtual]

Definition at line 65 of file vtkRenderedHierarchyRepresentation.h.

virtual bool vtkRenderedHierarchyRepresentation::GetColorGraphEdgesByArray ( int idx ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::ColorGraphEdgesByArrayOn ( ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::ColorGraphEdgesByArrayOff ( ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeColorToSplineFraction ( ) [inline, virtual]

Definition at line 70 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeColorToSplineFraction ( int idx ) [inline, virtual]

Definition at line 72 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetGraphVisibility ( bool vis ) [inline, virtual]

Definition at line 75 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetGraphVisibility	(	bool	vis,
		int	idx
	)			`[virtual]`

virtual bool vtkRenderedHierarchyRepresentation::GetGraphVisibility ( ) [inline, virtual]

Definition at line 78 of file vtkRenderedHierarchyRepresentation.h.

virtual bool vtkRenderedHierarchyRepresentation::GetGraphVisibility ( int idx ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::GraphVisibilityOn ( ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::GraphVisibilityOff ( ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::SetBundlingStrength ( double strength ) [inline, virtual]

Definition at line 83 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetBundlingStrength	(	double	strength,
		int	idx
	)			`[virtual]`

virtual double vtkRenderedHierarchyRepresentation::GetBundlingStrength ( ) [inline, virtual]

Definition at line 86 of file vtkRenderedHierarchyRepresentation.h.

virtual double vtkRenderedHierarchyRepresentation::GetBundlingStrength ( int idx ) [virtual]

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeLabelFontSize ( int size ) [inline, virtual]

Definition at line 90 of file vtkRenderedHierarchyRepresentation.h.

virtual void vtkRenderedHierarchyRepresentation::SetGraphEdgeLabelFontSize	(	int	size,
		int	idx
	)			`[virtual]`

virtual int vtkRenderedHierarchyRepresentation::GetGraphEdgeLabelFontSize ( ) [inline, virtual]

Definition at line 93 of file vtkRenderedHierarchyRepresentation.h.

virtual int vtkRenderedHierarchyRepresentation::GetGraphEdgeLabelFontSize ( int idx ) [virtual]

virtual bool vtkRenderedHierarchyRepresentation::AddToView ( vtkView * view ) [protected, virtual]

Called by the view to add/remove this representation.

Reimplemented from vtkRenderedGraphRepresentation.

virtual bool vtkRenderedHierarchyRepresentation::RemoveFromView ( vtkView * view ) [protected, virtual]

Called by the view to add/remove this representation.

Reimplemented from vtkRenderedGraphRepresentation.

bool vtkRenderedHierarchyRepresentation::ValidIndex ( int idx ) [protected]

Whether idx is a valid graph index.

virtual vtkSelection* vtkRenderedHierarchyRepresentation::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			`[protected, virtual]`

Convert the selection to a type appropriate for sharing with other representations through vtkAnnotationLink, possibly using the view. For the superclass, we just return the same selection. Subclasses may do something more fancy, like convert the selection from a frustrum to a list of pedigree ids. If the selection cannot be applied to this representation, return NULL.

Reimplemented from vtkRenderedGraphRepresentation.

virtual int vtkRenderedHierarchyRepresentation::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPassInputTypeAlgorithm.

virtual int vtkRenderedHierarchyRepresentation::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
