vtkPassInputTypeAlgorithm Class Reference

#include <vtkPassInputTypeAlgorithm.h>

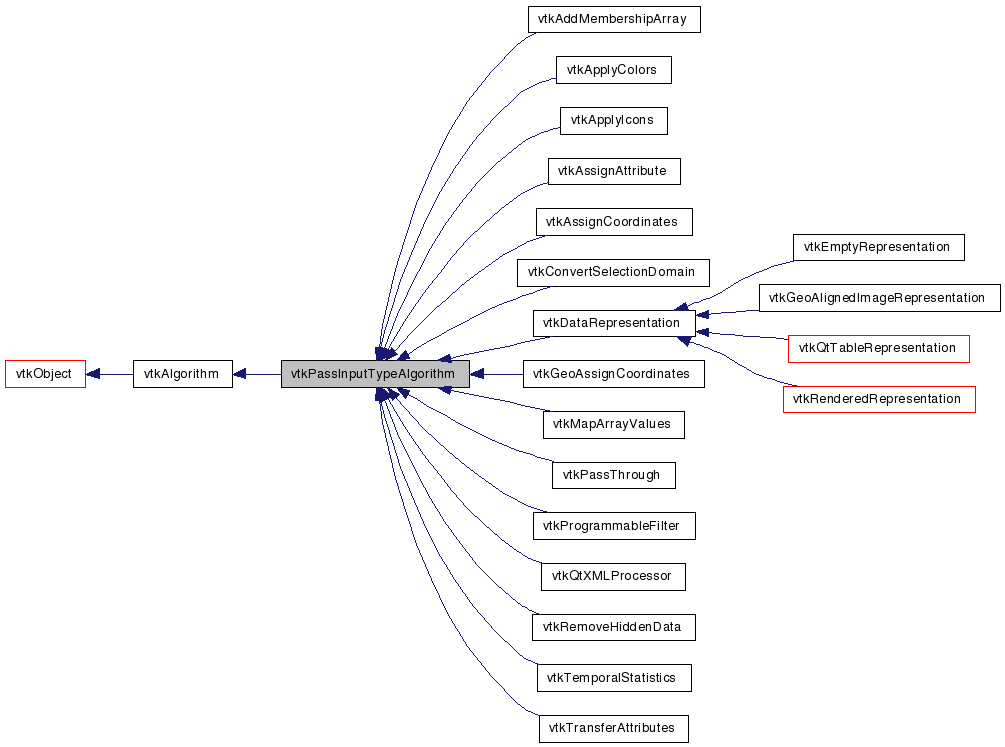

Inheritance diagram for vtkPassInputTypeAlgorithm:

Inheritance graph
[legend]

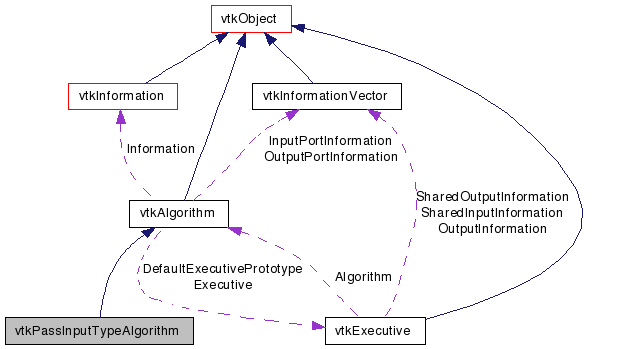

Collaboration diagram for vtkPassInputTypeAlgorithm:

Collaboration graph
[legend]

List of all members.


Detailed Description

Superclass for algorithms that produce output of the same type as input.

vtkPassInputTypeAlgorithm is a convenience class to make writing algorithms easier. It is also designed to help transition old algorithms to the new pipeline architecture. Ther are some assumptions and defaults made by this class you should be aware of. This class defaults such that your filter will have one input port and one output port. If that is not the case simply change it with SetNumberOfInputPorts etc. See this classes contstructor for the default. This class also provides a FillInputPortInfo method that by default says that all inputs will be DataObject. If that isn't the case then please override this method in your subclass. This class breaks out the downstream requests into seperate functions such as RequestDataObject RequestData and RequestInformation. The default implementation of RequestDataObject will create an output data of the same type as the input.

Definition at line 48 of file vtkPassInputTypeAlgorithm.h.


Public Types

typedef vtkAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkPolyDataGetPolyDataOutput ()
vtkStructuredPointsGetStructuredPointsOutput ()
vtkImageDataGetImageDataOutput ()
vtkStructuredGridGetStructuredGridOutput ()
vtkUnstructuredGridGetUnstructuredGridOutput ()
vtkRectilinearGridGetRectilinearGridOutput ()
vtkTableGetTableOutput ()
vtkGraphGetGraphOutput ()
vtkDataObjectGetInput ()
vtkDataObjectGetOutput ()
vtkDataObjectGetOutput (int)
void SetInput (vtkDataObject *)
void SetInput (int, vtkDataObject *)
void AddInput (vtkDataObject *)
void AddInput (int, vtkDataObject *)
virtual int ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Static Public Member Functions

static vtkPassInputTypeAlgorithmNew ()
static int IsTypeOf (const char *type)
static vtkPassInputTypeAlgorithmSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPassInputTypeAlgorithm ()
 ~vtkPassInputTypeAlgorithm ()
virtual int FillOutputPortInformation (int port, vtkInformation *info)
virtual int FillInputPortInformation (int port, vtkInformation *info)
vtkDataObjectGetInput (int port)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestDataObject (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Member Typedef Documentation


Constructor & Destructor Documentation

vtkPassInputTypeAlgorithm::vtkPassInputTypeAlgorithm (  )  [protected]

vtkPassInputTypeAlgorithm::~vtkPassInputTypeAlgorithm (  )  [inline, protected]

Definition at line 119 of file vtkPassInputTypeAlgorithm.h.


Member Function Documentation

static vtkPassInputTypeAlgorithm* vtkPassInputTypeAlgorithm::New (  )  [static]

virtual const char* vtkPassInputTypeAlgorithm::GetClassName (  )  [virtual]

static int vtkPassInputTypeAlgorithm::IsTypeOf ( const char *  name  )  [static]

virtual int vtkPassInputTypeAlgorithm::IsA ( const char *  name  )  [virtual]

static vtkPassInputTypeAlgorithm* vtkPassInputTypeAlgorithm::SafeDownCast ( vtkObject o  )  [static]

void vtkPassInputTypeAlgorithm::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

vtkDataObject* vtkPassInputTypeAlgorithm::GetOutput (  )

Get the output data object for a port on this algorithm.

vtkDataObject* vtkPassInputTypeAlgorithm::GetOutput ( int   )

Get the output data object for a port on this algorithm.

vtkPolyData* vtkPassInputTypeAlgorithm::GetPolyDataOutput (  )

Get the output as vtkPolyData.

vtkStructuredPoints* vtkPassInputTypeAlgorithm::GetStructuredPointsOutput (  )

Get the output as vtkStructuredPoints.

vtkImageData* vtkPassInputTypeAlgorithm::GetImageDataOutput (  )

Get the output as vtkStructuredPoints.

vtkStructuredGrid* vtkPassInputTypeAlgorithm::GetStructuredGridOutput (  )

Get the output as vtkStructuredGrid.

vtkUnstructuredGrid* vtkPassInputTypeAlgorithm::GetUnstructuredGridOutput (  )

Get the output as vtkUnstructuredGrid.

vtkRectilinearGrid* vtkPassInputTypeAlgorithm::GetRectilinearGridOutput (  )

Get the output as vtkRectilinearGrid.

vtkTable* vtkPassInputTypeAlgorithm::GetTableOutput (  )

Get the output as vtkTable.

vtkGraph* vtkPassInputTypeAlgorithm::GetGraphOutput (  )

Get the output as vtkGraph.

vtkDataObject* vtkPassInputTypeAlgorithm::GetInput (  )

Get the input data object. This method is not recommended for use, but lots of old style filters use it.

void vtkPassInputTypeAlgorithm::SetInput ( vtkDataObject  )

Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.

void vtkPassInputTypeAlgorithm::SetInput ( int  ,
vtkDataObject
)

Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.

void vtkPassInputTypeAlgorithm::AddInput ( vtkDataObject  )

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

void vtkPassInputTypeAlgorithm::AddInput ( int  ,
vtkDataObject
)

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

virtual int vtkPassInputTypeAlgorithm::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [virtual]

see vtkAlgorithm for details

Reimplemented from vtkAlgorithm.

virtual int vtkPassInputTypeAlgorithm::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

This is called within ProcessRequest when a request asks for Information. Typically an algorithm provides whatever lightweight information about its output that it can here without doing any lengthy computations. This happens in the first pass of the pipeline execution.

Reimplemented in vtkAssignAttribute, and vtkTemporalStatistics.

Definition at line 127 of file vtkPassInputTypeAlgorithm.h.

virtual int vtkPassInputTypeAlgorithm::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

This is called within ProcessRequest when each filter in the pipeline decides what portion of its input is needed to create the portion of its output that the downstream filter asks for. This happens during the second pass in the pipeline execution process.

Reimplemented in vtkTemporalStatistics.

Definition at line 137 of file vtkPassInputTypeAlgorithm.h.

virtual int vtkPassInputTypeAlgorithm::RequestDataObject ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called within ProcessRequest to when a request asks the algorithm to create empty output data objects. This typically happens early on in the execution of the pipeline. The default behavior is to create an output DataSet of the same type as the input for each output port. This method can be overridden to change the output data type of an algorithm. This happens in the third pass of the pipeline execution.

Reimplemented in vtkTemporalStatistics.

virtual int vtkPassInputTypeAlgorithm::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

virtual int vtkPassInputTypeAlgorithm::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkQtXMLProcessor, and vtkConvertSelectionDomain.

virtual int vtkPassInputTypeAlgorithm::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkGeoAssignCoordinates, vtkAssignAttribute, vtkProgrammableFilter, vtkTemporalStatistics, vtkAddMembershipArray, vtkApplyColors, vtkApplyIcons, vtkAssignCoordinates, vtkPassThrough, vtkRemoveHiddenData, vtkTransferAttributes, vtkMapArrayValues, vtkConvertSelectionDomain, vtkParallelCoordinatesRepresentation, vtkRenderedHierarchyRepresentation, and vtkRenderedTreeAreaRepresentation.

vtkDataObject* vtkPassInputTypeAlgorithm::GetInput ( int  port  )  [protected]


The documentation for this class was generated from the following file:
