vtkLegendBoxActor Class Reference

draw symbols with text. More...

#include <vtkLegendBoxActor.h>

Inheritance diagram for vtkLegendBoxActor:

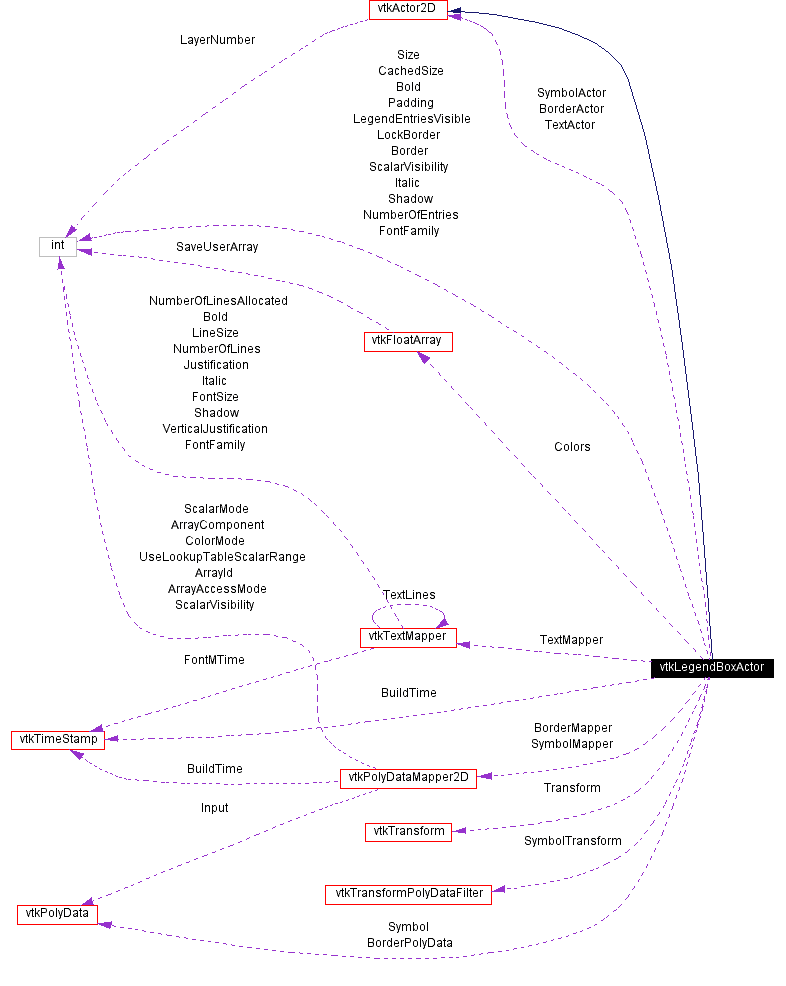

[legend]Collaboration diagram for vtkLegendBoxActor:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	ShallowCopy (vtkProp *prop)
virtual void	ReleaseGraphicsResources (vtkWindow *)
void	SetNumberOfEntries (int num)
int	GetNumberOfEntries ()
void	SetEntry (int i, vtkPolyData *symbol, const char *string, float color[3])
void	SetEntrySymbol (int i, vtkPolyData *symbol)
void	SetEntryString (int i, const char *string)
void	SetEntryColor (int i, float color[3])
void	SetEntryColor (int i, float r, float g, float b)
vtkPolyData *	GetEntrySymbol (int i)
const char *	GetEntryString (int i)
float *	GetEntryColor (int i)
virtual void	SetBold (int)
virtual int	GetBold ()
virtual void	BoldOn ()
virtual void	BoldOff ()
virtual void	SetItalic (int)
virtual int	GetItalic ()
virtual void	ItalicOn ()
virtual void	ItalicOff ()
virtual void	SetShadow (int)
virtual int	GetShadow ()
virtual void	ShadowOn ()
virtual void	ShadowOff ()
virtual void	SetFontFamily (int)
virtual int	GetFontFamily ()
void	SetFontFamilyToArial ()
void	SetFontFamilyToCourier ()
void	SetFontFamilyToTimes ()
virtual void	SetBorder (int)
virtual int	GetBorder ()
virtual void	BorderOn ()
virtual void	BorderOff ()
virtual void	SetLockBorder (int)
virtual int	GetLockBorder ()
virtual void	LockBorderOn ()
virtual void	LockBorderOff ()
virtual void	SetPadding (int)
virtual int	GetPadding ()
virtual void	SetScalarVisibility (int)
virtual int	GetScalarVisibility ()
virtual void	ScalarVisibilityOn ()
virtual void	ScalarVisibilityOff ()
int	RenderOpaqueGeometry (vtkViewport *viewport)
int	RenderTranslucentGeometry (vtkViewport *)
int	RenderOverlay (vtkViewport *viewport)
Static Public Methods
int	IsTypeOf (const char *type)
vtkLegendBoxActor *	SafeDownCast (vtkObject *o)
vtkLegendBoxActor *	New ()
Protected Methods
	vtkLegendBoxActor ()
	~vtkLegendBoxActor ()
void	InitializeEntries ()
Protected Attributes
int	Bold
int	Italic
int	Shadow
int	FontFamily
int	Border
int	Padding
int	LockBorder
int	ScalarVisibility
int	NumberOfEntries
int	Size
vtkFloatArray *	Colors
vtkTextMapper **	TextMapper
vtkActor2D **	TextActor
vtkPolyData **	Symbol
vtkTransform **	Transform
vtkTransformPolyDataFilter **	SymbolTransform
vtkPolyDataMapper2D **	SymbolMapper
vtkActor2D **	SymbolActor
vtkPolyData *	BorderPolyData
vtkPolyDataMapper2D *	BorderMapper
vtkActor2D *	BorderActor
int	LegendEntriesVisible
int	CachedSize [2]
vtkTimeStamp	BuildTime

---

Detailed Description

draw symbols with text.

Date:

2001/10/11 13:37:25

Revision:

1.9

Thanks:

Tim Smith who sponsored and encouraged the development of this class.

vtkLegendBoxActor is used to associate a symbol with a text string. The user specifies a vtkPolyData to use as the symbol, and a string associated with the symbol. The actor can then be placed in the scene in the same way that any other vtkActor2D can be used.

To use this class, you must define the position of the legend box by using the superclasses' vtkActor2D::Position coordinate and Position2 coordinate. Then define the set of symbols and text strings that make up the menu box (as well as properties such as font). The class will scale the symbols and text to fit in the legend box defined by (Position,Position2). Optional features like turning on a border line and setting the spacing between the border and the symbols/text can also be set.

See also:

vtkXYPlotActor vtkActor2D vtkGlyphSource2D

Definition at line 79 of file vtkLegendBoxActor.h.

---

Constructor & Destructor Documentation

vtkLegendBoxActor::vtkLegendBoxActor (    )  [protected]

vtkLegendBoxActor::~vtkLegendBoxActor (    )  [protected]

---

Member Function Documentation

virtual const char* vtkLegendBoxActor::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor2D.

int vtkLegendBoxActor::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor2D.

virtual int vtkLegendBoxActor::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor2D.

vtkLegendBoxActor* vtkLegendBoxActor::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor2D.

void vtkLegendBoxActor::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkActor2D.

vtkLegendBoxActor* vtkLegendBoxActor::New (    )  [static]

Instantiate object with a rectangle in normaled view coordinates of (0.2,0.85, 0.8, 0.95). Reimplemented from vtkActor2D.

void vtkLegendBoxActor::SetNumberOfEntries (  int    num )

Specify the number of entries in the legend box.

int vtkLegendBoxActor::GetNumberOfEntries (    )  [inline]

Specify the number of entries in the legend box. Definition at line 92 of file vtkLegendBoxActor.h.

void vtkLegendBoxActor::SetEntry (  int    i, vtkPolyData *    symbol, const char *    string, float    color[3] )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntrySymbol (  int    i, vtkPolyData *    symbol )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryString (  int    i, const char *    string )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryColor (  int    i, float    color[3] )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

void vtkLegendBoxActor::SetEntryColor (  int    i, float    r, float    g, float    b )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

vtkPolyData* vtkLegendBoxActor::GetEntrySymbol (  int    i )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

const char* vtkLegendBoxActor::GetEntryString (  int    i )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

float* vtkLegendBoxActor::GetEntryColor (  int    i )

Add an entry to the legend box. You must supply a vtkPolyData to be used as a symbol (it can be NULL) and a text string (which also can be NULL). The vtkPolyData is assumed to be defined in the x-y plane, and the text is assumed to be a single line in height. Note that when this method is invoked previous entries are deleted. Also supply a text string and optionally a color. (If a color is not specified, then the entry color is the same as this actor's color.) (Note: use the set methods when you use SetNumberOfEntries().)

virtual void vtkLegendBoxActor::SetBold (  int    )  [virtual]

Enable/Disable bolding legend entries.

virtual int vtkLegendBoxActor::GetBold (    )  [virtual]

Enable/Disable bolding legend entries.

virtual void vtkLegendBoxActor::BoldOn (    )  [virtual]

Enable/Disable bolding legend entries.

virtual void vtkLegendBoxActor::BoldOff (    )  [virtual]

Enable/Disable bolding legend entries.

virtual void vtkLegendBoxActor::SetItalic (  int    )  [virtual]

Enable/Disable italicizing legend entries.

virtual int vtkLegendBoxActor::GetItalic (    )  [virtual]

Enable/Disable italicizing legend entries.

virtual void vtkLegendBoxActor::ItalicOn (    )  [virtual]

Enable/Disable italicizing legend entries.

virtual void vtkLegendBoxActor::ItalicOff (    )  [virtual]

Enable/Disable italicizing legend entries.

virtual void vtkLegendBoxActor::SetShadow (  int    )  [virtual]

Enable/Disable creating shadows on the legend entries. Shadows make the text easier to read.

virtual int vtkLegendBoxActor::GetShadow (    )  [virtual]

Enable/Disable creating shadows on the legend entries. Shadows make the text easier to read.

virtual void vtkLegendBoxActor::ShadowOn (    )  [virtual]

Enable/Disable creating shadows on the legend entries. Shadows make the text easier to read.

virtual void vtkLegendBoxActor::ShadowOff (    )  [virtual]

Enable/Disable creating shadows on the legend entries. Shadows make the text easier to read.

virtual void vtkLegendBoxActor::SetFontFamily (  int    )  [virtual]

Set/Get the font family for the legend entries. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES).

virtual int vtkLegendBoxActor::GetFontFamily (    )  [virtual]

Set/Get the font family for the legend entries. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES).

void vtkLegendBoxActor::SetFontFamilyToArial (    )  [inline]

Set/Get the font family for the legend entries. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES). Definition at line 143 of file vtkLegendBoxActor.h.

void vtkLegendBoxActor::SetFontFamilyToCourier (    )  [inline]

Set/Get the font family for the legend entries. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES). Definition at line 144 of file vtkLegendBoxActor.h.

void vtkLegendBoxActor::SetFontFamilyToTimes (    )  [inline]

Set/Get the font family for the legend entries. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES). Definition at line 145 of file vtkLegendBoxActor.h.

virtual void vtkLegendBoxActor::SetBorder (  int    )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual int vtkLegendBoxActor::GetBorder (    )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::BorderOn (    )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::BorderOff (    )  [virtual]

Set/Get the flag that controls whether a border will be drawn around the legend box.

virtual void vtkLegendBoxActor::SetLockBorder (  int    )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual int vtkLegendBoxActor::GetLockBorder (    )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::LockBorderOn (    )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::LockBorderOff (    )  [virtual]

Set/Get the flag that controls whether the border and legend placement is locked into the rectangle defined by (Position,Position2). If off, then the legend box will adjust its size so that the border fits nicely around the text and symbols. (The ivar is off by default.) Note: the legend box is guaranteed to lie within the original border definition.

virtual void vtkLegendBoxActor::SetPadding (  int    )  [virtual]

Set/Get the padding between the legend entries and the border. The value is specified in pixels.

virtual int vtkLegendBoxActor::GetPadding (    )  [virtual]

Set/Get the padding between the legend entries and the border. The value is specified in pixels.

virtual void vtkLegendBoxActor::SetScalarVisibility (  int    )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual int vtkLegendBoxActor::GetScalarVisibility (    )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual void vtkLegendBoxActor::ScalarVisibilityOn (    )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

virtual void vtkLegendBoxActor::ScalarVisibilityOff (    )  [virtual]

Turn on/off flag to control whether the symbol's scalar data is used to color the symbol. If off, the color of the vtkLegendBoxActor is used.

void vtkLegendBoxActor::ShallowCopy (  vtkProp *    prop )  [virtual]

Shallow copy of this scaled text actor. Overloads the virtual vtkProp method. Reimplemented from vtkActor2D.

virtual void vtkLegendBoxActor::ReleaseGraphicsResources (  vtkWindow *    )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkActor2D.

int vtkLegendBoxActor::RenderOpaqueGeometry (  vtkViewport *    viewport )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen. Reimplemented from vtkActor2D.

int vtkLegendBoxActor::RenderTranslucentGeometry (  vtkViewport *    viewport )  [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen. Reimplemented from vtkActor2D. Definition at line 200 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::RenderOverlay (  vtkViewport *    viewport )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the legend box to the screen. Reimplemented from vtkActor2D.

void vtkLegendBoxActor::InitializeEntries (    )  [protected]

---

Member Data Documentation

int vtkLegendBoxActor::Bold [protected]

Definition at line 211 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Italic [protected]

Definition at line 212 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Shadow [protected]

Definition at line 213 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::FontFamily [protected]

Definition at line 214 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Border [protected]

Definition at line 215 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Padding [protected]

Definition at line 216 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::LockBorder [protected]

Definition at line 217 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::ScalarVisibility [protected]

Definition at line 218 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::NumberOfEntries [protected]

Definition at line 221 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::Size [protected]

Definition at line 222 of file vtkLegendBoxActor.h.

vtkFloatArray* vtkLegendBoxActor::Colors [protected]

Definition at line 223 of file vtkLegendBoxActor.h.

vtkTextMapper** vtkLegendBoxActor::TextMapper [protected]

Definition at line 224 of file vtkLegendBoxActor.h.

vtkActor2D** vtkLegendBoxActor::TextActor [protected]

Definition at line 225 of file vtkLegendBoxActor.h.

vtkPolyData** vtkLegendBoxActor::Symbol [protected]

Definition at line 226 of file vtkLegendBoxActor.h.

vtkTransform** vtkLegendBoxActor::Transform [protected]

Definition at line 227 of file vtkLegendBoxActor.h.

vtkTransformPolyDataFilter** vtkLegendBoxActor::SymbolTransform [protected]

Definition at line 228 of file vtkLegendBoxActor.h.

vtkPolyDataMapper2D** vtkLegendBoxActor::SymbolMapper [protected]

Definition at line 229 of file vtkLegendBoxActor.h.

vtkActor2D** vtkLegendBoxActor::SymbolActor [protected]

Definition at line 230 of file vtkLegendBoxActor.h.

vtkPolyData* vtkLegendBoxActor::BorderPolyData [protected]

Definition at line 231 of file vtkLegendBoxActor.h.

vtkPolyDataMapper2D* vtkLegendBoxActor::BorderMapper [protected]

Definition at line 232 of file vtkLegendBoxActor.h.

vtkActor2D* vtkLegendBoxActor::BorderActor [protected]

Definition at line 233 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::LegendEntriesVisible [protected]

Definition at line 236 of file vtkLegendBoxActor.h.

int vtkLegendBoxActor::CachedSize[2] [protected]

Definition at line 237 of file vtkLegendBoxActor.h.

vtkTimeStamp vtkLegendBoxActor::BuildTime [protected]

Definition at line 238 of file vtkLegendBoxActor.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkLegendBoxActor.h

---
