vtkCompositeManager Class Reference

An object to composite multiple render windows. More...

#include <vtkCompositeManager.h>

Inheritance diagram for vtkCompositeManager:

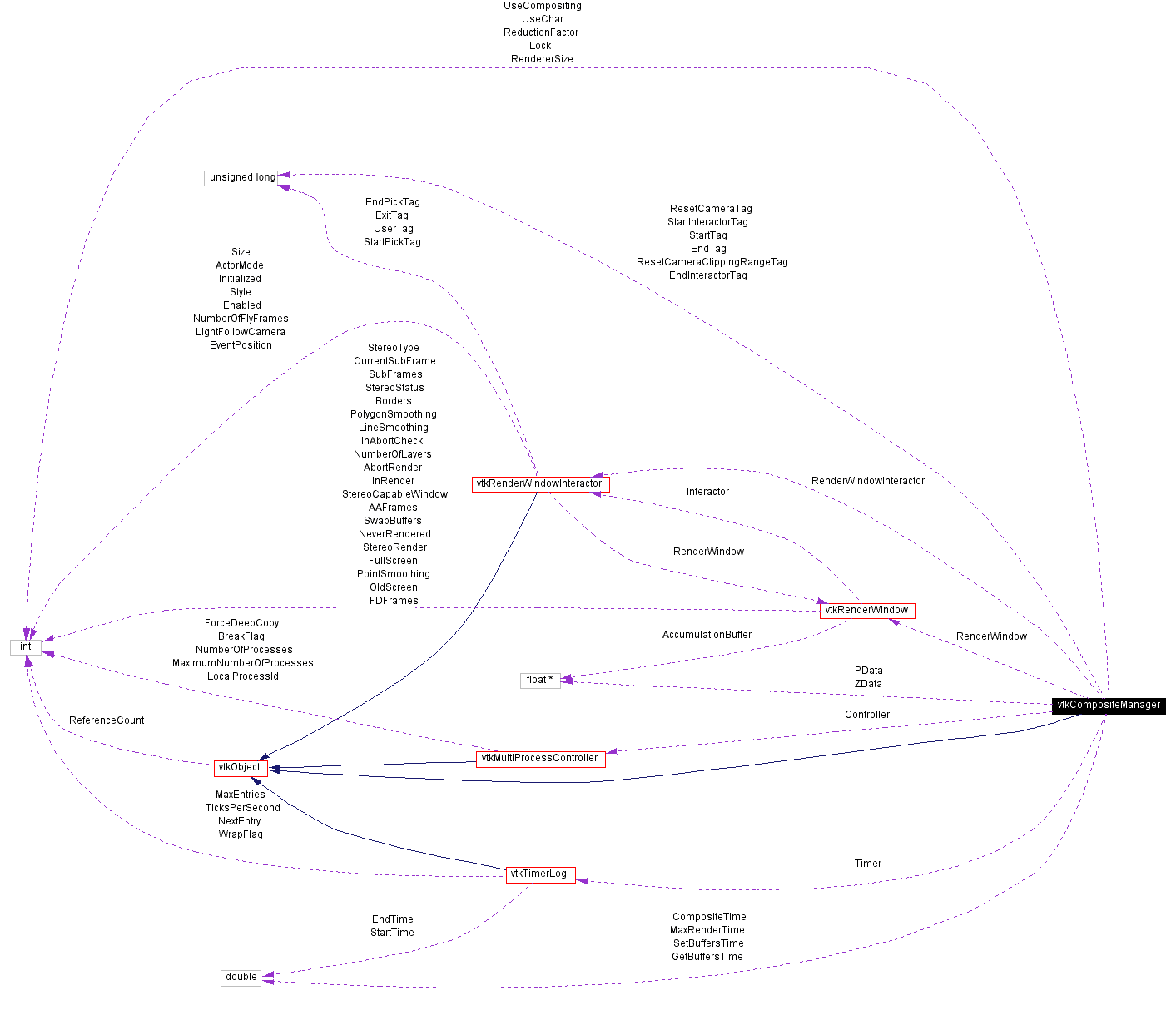

[legend]Collaboration diagram for vtkCompositeManager:

[legend]List of all members.

Public Types
enum	Tags {   RENDER_RMI_TAG = 12721, COMPUTE_VISIBLE_PROP_BOUNDS_RMI_TAG = 56563, WIN_INFO_TAG = 22134, REN_INFO_TAG = 22135,   BOUNDS_TAG = 94135 }
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	InitializePieces ()
void	InitializeOffScreen ()
void	InitializeRMIs ()
float	GetZ (int x, int y)
virtual vtkRenderWindow *	GetRenderWindow ()
void	SetRenderWindow (vtkRenderWindow *renWin)
void	StartInteractor ()
void	ExitInteractor ()
void	StartRender ()
void	EndRender ()
void	RenderRMI ()
void	ResetCamera (vtkRenderer *ren)
void	ResetCameraClippingRange (vtkRenderer *ren)
void	ComputeVisiblePropBoundsRMI ()
void	SetReductionFactor (int factor)
virtual int	GetReductionFactor ()
virtual void	SetUseChar (int)
virtual int	GetUseChar ()
virtual void	UseCharOn ()
virtual void	UseCharOff ()
virtual void	SetUseCompositing (int)
virtual int	GetUseCompositing ()
virtual void	UseCompositingOn ()
virtual void	UseCompositingOff ()
virtual double	GetGetBuffersTime ()
virtual double	GetSetBuffersTime ()
virtual double	GetCompositeTime ()
virtual double	GetMaxRenderTime ()
virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()
virtual void	CheckForAbortRender ()
virtual int	CheckForAbortComposite ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkCompositeManager *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkCompositeManager ()
	~vtkCompositeManager ()
	vtkCompositeManager (const vtkCompositeManager &)
void	operator= (const vtkCompositeManager &)
virtual void	CompositeBuffer (int width, int height, int useCharFlag, void *pBuf, float *zBuf, void *pTmp, float *zTmp)=0
void	Composite ()
virtual void	ComputeVisiblePropBounds (vtkRenderer *ren, float bounds[6])
void	SetRendererSize (int x, int y)
float *	MagnifyBuffer (float *localPdata, int windowSize[2])
void	SetRenderWindowInteractor (vtkRenderWindowInteractor *iren)
Protected Attributes
vtkRenderWindow *	RenderWindow
vtkRenderWindowInteractor *	RenderWindowInteractor
vtkMultiProcessController *	Controller
unsigned long	StartInteractorTag
unsigned long	EndInteractorTag
unsigned long	StartTag
unsigned long	EndTag
unsigned long	ResetCameraTag
unsigned long	ResetCameraClippingRangeTag
int	UseChar
int	UseCompositing
float *	PData
float *	ZData
int	RendererSize [2]
int	ReductionFactor
int	Lock
double	GetBuffersTime
double	SetBuffersTime
double	CompositeTime
double	MaxRenderTime
vtkTimerLog *	Timer

---

Detailed Description

An object to composite multiple render windows.

Date:

2001/10/31 16:36:11

Revision:

1.2

vtkCompositeManager operates in multiple processes. Each compositer has a render window. They use vtkMultiProcessControllers to comunicate the color and depth buffer to process 0's render window. Subclass implementation may not handle transparency well.

Attention:

You should set up the renders and render window interactor before setting the compositers render window. We set up observers on the renderer, An have no easy way of knowing when the renderers change. We could create AddRenderer and RemoveRenderer events ...

See also:

vtkMultiProcessController vtkRenderWindow vtkTreeComposite.

Definition at line 70 of file vtkCompositeManager.h.

---

Member Enumeration Documentation

enum vtkCompositeManager::Tags

Enumeration values: RENDER_RMI_TAG  COMPUTE_VISIBLE_PROP_BOUNDS_RMI_TAG  WIN_INFO_TAG  REN_INFO_TAG  BOUNDS_TAG  Definition at line 155 of file vtkCompositeManager.h.

---

Constructor & Destructor Documentation

vtkCompositeManager::vtkCompositeManager (    )  [protected]

vtkCompositeManager::~vtkCompositeManager (    )  [protected]

vtkCompositeManager::vtkCompositeManager (  const vtkCompositeManager &    )  [protected]

---

Member Function Documentation

virtual const char* vtkCompositeManager::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkTreeComposite.

int vtkCompositeManager::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkTreeComposite.

virtual int vtkCompositeManager::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkTreeComposite.

vtkCompositeManager* vtkCompositeManager::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkTreeComposite.

void vtkCompositeManager::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkObject. Reimplemented in vtkTreeComposite.

virtual vtkRenderWindow* vtkCompositeManager::GetRenderWindow (    )  [virtual]

Set/Get the RenderWindow to use for compositing. We add a start and end observer to the window.

void vtkCompositeManager::SetRenderWindow (  vtkRenderWindow *    renWin )

Set/Get the RenderWindow to use for compositing. We add a start and end observer to the window.

void vtkCompositeManager::InitializePieces (    )

This method sets the piece and number of pieces for each actor with a polydata mapper. My other option is to do it every render, but that would force a partioning scheme.

void vtkCompositeManager::InitializeOffScreen (    )

turn off screen rendering on for the

void vtkCompositeManager::StartInteractor (    )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::ExitInteractor (    )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::StartRender (    )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::EndRender (    )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::RenderRMI (    )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::ResetCamera (  vtkRenderer *    ren )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::ResetCameraClippingRange (  vtkRenderer *    ren )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::ComputeVisiblePropBoundsRMI (    )

Callbacks that initialize and finish the compositing.

void vtkCompositeManager::InitializeRMIs (    )

If the user wants to handle the event loop, then they must call this method to initialize the RMIs.

void vtkCompositeManager::SetReductionFactor (  int    factor )

The reduction facor makes the transfered images smaller to decrease the render time. The final image is pixel replicated to be the original size. This option can be used by an interactor style to help get desired frame rates. The factor only needs to be set on process 0. Call SetRenderWindow before calling SetReductionFactor.

virtual int vtkCompositeManager::GetReductionFactor (    )  [virtual]

The reduction facor makes the transfered images smaller to decrease the render time. The final image is pixel replicated to be the original size. This option can be used by an interactor style to help get desired frame rates. The factor only needs to be set on process 0. Call SetRenderWindow before calling SetReductionFactor.

virtual void vtkCompositeManager::SetUseChar (  int    )  [virtual]

This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char.

virtual int vtkCompositeManager::GetUseChar (    )  [virtual]

This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char.

virtual void vtkCompositeManager::UseCharOn (    )  [virtual]

This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char.

virtual void vtkCompositeManager::UseCharOff (    )  [virtual]

This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char.

virtual void vtkCompositeManager::SetUseCompositing (  int    )  [virtual]

This flag turns the compositer on or off.

virtual int vtkCompositeManager::GetUseCompositing (    )  [virtual]

This flag turns the compositer on or off.

virtual void vtkCompositeManager::UseCompositingOn (    )  [virtual]

This flag turns the compositer on or off.

virtual void vtkCompositeManager::UseCompositingOff (    )  [virtual]

This flag turns the compositer on or off.

virtual double vtkCompositeManager::GetGetBuffersTime (    )  [virtual]

Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step.

virtual double vtkCompositeManager::GetSetBuffersTime (    )  [virtual]

Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step.

virtual double vtkCompositeManager::GetCompositeTime (    )  [virtual]

Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step.

virtual double vtkCompositeManager::GetMaxRenderTime (    )  [virtual]

Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step.

float vtkCompositeManager::GetZ (  int    x, int    y )

Get the value of the z buffer at a position.

virtual void vtkCompositeManager::SetController (  vtkMultiProcessController *    )  [virtual]

Set/Get the controller use in compositing (set to the global controller by default) If not using the default, this must be called before any other methods.

virtual vtkMultiProcessController* vtkCompositeManager::GetController (    )  [virtual]

Set/Get the controller use in compositing (set to the global controller by default) If not using the default, this must be called before any other methods.

virtual void vtkCompositeManager::CheckForAbortRender (    )  [inline, virtual]

Used by call backs. Not intended to be called by the user. Empty methods that can be used by the subclass to interupt a parallel render. Definition at line 167 of file vtkCompositeManager.h.

virtual int vtkCompositeManager::CheckForAbortComposite (    )  [inline, virtual]

Used by call backs. Not intended to be called by the user. Empty methods that can be used by the subclass to interupt a parallel render. Definition at line 168 of file vtkCompositeManager.h.

void vtkCompositeManager::operator= (  const vtkCompositeManager &    )  [protected]

virtual void vtkCompositeManager::CompositeBuffer (  int    width, int    height, int    useCharFlag, void *    pBuf, float *    zBuf, void *    pTmp, float *    zTmp )  [protected, pure virtual]

Reimplemented in vtkTreeComposite.

void vtkCompositeManager::Composite (    )  [protected]

virtual void vtkCompositeManager::ComputeVisiblePropBounds (  vtkRenderer *    ren, float    bounds[6] )  [protected, virtual]

void vtkCompositeManager::SetRendererSize (  int    x, int    y )  [protected]

float* vtkCompositeManager::MagnifyBuffer (  float *    localPdata, int    windowSize[2] )  [protected]

void vtkCompositeManager::SetRenderWindowInteractor (  vtkRenderWindowInteractor *    iren )  [protected]

---

Member Data Documentation

vtkRenderWindow* vtkCompositeManager::RenderWindow [protected]

Definition at line 188 of file vtkCompositeManager.h.

vtkRenderWindowInteractor* vtkCompositeManager::RenderWindowInteractor [protected]

Definition at line 189 of file vtkCompositeManager.h.

vtkMultiProcessController* vtkCompositeManager::Controller [protected]

Definition at line 190 of file vtkCompositeManager.h.

unsigned long vtkCompositeManager::StartInteractorTag [protected]

Definition at line 192 of file vtkCompositeManager.h.

unsigned long vtkCompositeManager::EndInteractorTag [protected]

Definition at line 193 of file vtkCompositeManager.h.

unsigned long vtkCompositeManager::StartTag [protected]

Definition at line 194 of file vtkCompositeManager.h.

unsigned long vtkCompositeManager::EndTag [protected]

Definition at line 195 of file vtkCompositeManager.h.

unsigned long vtkCompositeManager::ResetCameraTag [protected]

Definition at line 196 of file vtkCompositeManager.h.

unsigned long vtkCompositeManager::ResetCameraClippingRangeTag [protected]

Definition at line 197 of file vtkCompositeManager.h.

int vtkCompositeManager::UseChar [protected]

Definition at line 198 of file vtkCompositeManager.h.

int vtkCompositeManager::UseCompositing [protected]

Definition at line 199 of file vtkCompositeManager.h.

float* vtkCompositeManager::PData [protected]

Definition at line 207 of file vtkCompositeManager.h.

float* vtkCompositeManager::ZData [protected]

Definition at line 208 of file vtkCompositeManager.h.

int vtkCompositeManager::RendererSize[2] [protected]

Definition at line 209 of file vtkCompositeManager.h.

int vtkCompositeManager::ReductionFactor [protected]

Definition at line 212 of file vtkCompositeManager.h.

int vtkCompositeManager::Lock [protected]

Definition at line 219 of file vtkCompositeManager.h.

double vtkCompositeManager::GetBuffersTime [protected]

Definition at line 221 of file vtkCompositeManager.h.

double vtkCompositeManager::SetBuffersTime [protected]

Definition at line 222 of file vtkCompositeManager.h.

double vtkCompositeManager::CompositeTime [protected]

Definition at line 223 of file vtkCompositeManager.h.

double vtkCompositeManager::MaxRenderTime [protected]

Definition at line 224 of file vtkCompositeManager.h.

vtkTimerLog* vtkCompositeManager::Timer [protected]

Definition at line 227 of file vtkCompositeManager.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkCompositeManager.h

---
