vtkQuartzImageMapper Class Reference

2D image display support for Quartz windows. More...

#include <vtkQuartzImageMapper.h>

Inheritance diagram for vtkQuartzImageMapper:

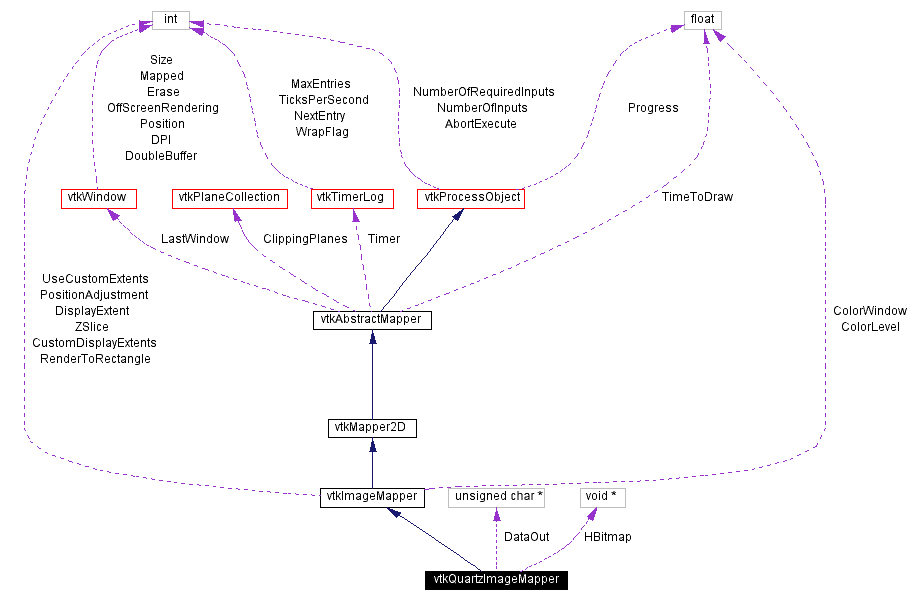

[legend]Collaboration diagram for vtkQuartzImageMapper:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	RenderOverlay (vtkViewport *viewport, vtkActor2D *actor)
void	RenderData (vtkViewport *viewport, vtkImageData *data, vtkActor2D *actor)
Static Public Methods
vtkQuartzImageMapper *	New ()
int	IsTypeOf (const char *type)
vtkQuartzImageMapper *	SafeDownCast (vtkObject *o)
Public Attributes
unsigned char *	DataOut
void *	HBitmap
Protected Methods
	vtkQuartzImageMapper ()
	~vtkQuartzImageMapper ()

---

Detailed Description

2D image display support for Quartz windows.

Date:

2001/11/13 14:17:27

Revision:

1.4

Thanks:

Thanks to Matt Turek who developed this class.

vtkQuartzImageMapper is a concrete subclass of vtkImageMapper that renders images under Quartz.

See also:

vtkImageMapper

Definition at line 62 of file vtkQuartzImageMapper.h.

---

Constructor & Destructor Documentation

vtkQuartzImageMapper::vtkQuartzImageMapper (    )  [protected]

vtkQuartzImageMapper::~vtkQuartzImageMapper (    )  [protected]

---

Member Function Documentation

vtkQuartzImageMapper* vtkQuartzImageMapper::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageMapper.

virtual const char* vtkQuartzImageMapper::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMapper.

int vtkQuartzImageMapper::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMapper.

virtual int vtkQuartzImageMapper::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMapper.

vtkQuartzImageMapper* vtkQuartzImageMapper::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageMapper.

void vtkQuartzImageMapper::RenderOverlay (  vtkViewport *    viewport, vtkActor2D *    actor )  [inline, virtual]

Handle the render method. Reimplemented from vtkMapper2D. Definition at line 70 of file vtkQuartzImageMapper.h.

void vtkQuartzImageMapper::RenderData (  vtkViewport *    viewport, vtkImageData *    data, vtkActor2D *    actor )  [virtual]

Called by the Render function in vtkImageMapper. Actually draws the image to the screen. Reimplemented from vtkImageMapper.

---

Member Data Documentation

unsigned char* vtkQuartzImageMapper::DataOut

Definition at line 81 of file vtkQuartzImageMapper.h.

void* vtkQuartzImageMapper::HBitmap

Definition at line 82 of file vtkQuartzImageMapper.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkQuartzImageMapper.h

---
