vtkImageMapper Class Reference

2D image display. More...

#include <vtkImageMapper.h>

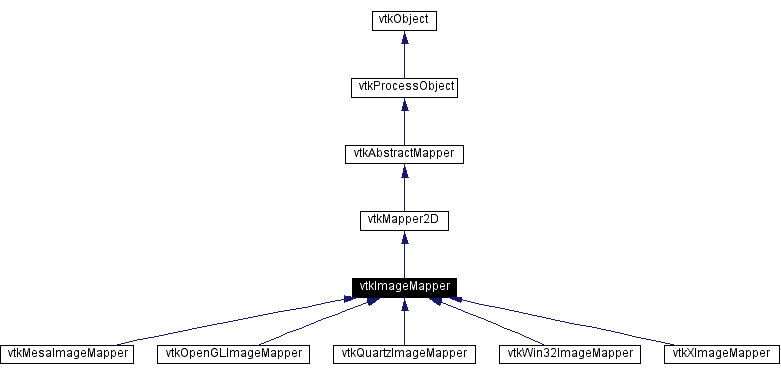

Inheritance diagram for vtkImageMapper:

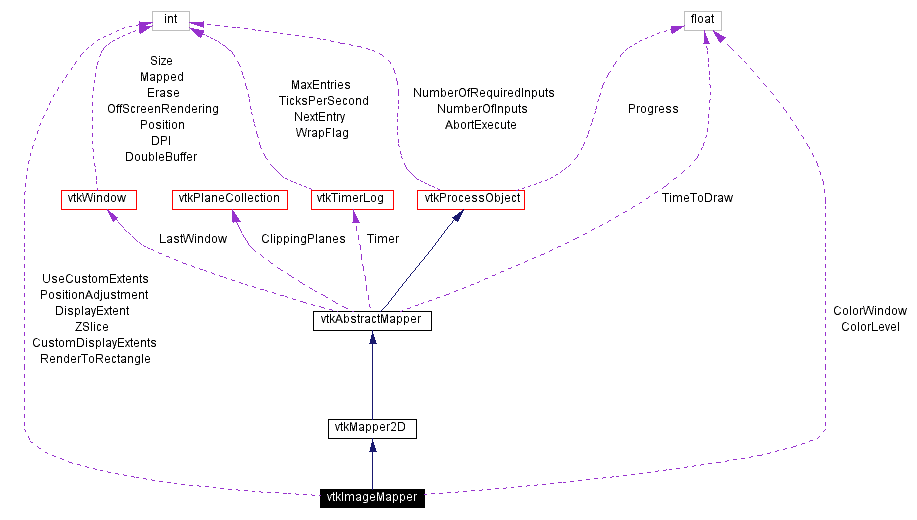

[legend]Collaboration diagram for vtkImageMapper:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long int	GetMTime ()
void	RenderStart (vtkViewport *viewport, vtkActor2D *actor)
virtual void	RenderData (vtkViewport *, vtkImageData *, vtkActor2D *)=0
virtual void	SetColorWindow (float)
virtual float	GetColorWindow ()
virtual void	SetColorLevel (float)
virtual float	GetColorLevel ()
virtual void	SetZSlice (int)
virtual int	GetZSlice ()
int	GetWholeZMin ()
int	GetWholeZMax ()
float	GetColorShift ()
float	GetColorScale ()
virtual void	SetInput (vtkImageData *input)
vtkImageData *	GetInput ()
virtual void	SetRenderToRectangle (int)
virtual int	GetRenderToRectangle ()
virtual void	RenderToRectangleOn ()
virtual void	RenderToRectangleOff ()
virtual void	SetUseCustomExtents (int)
virtual int	GetUseCustomExtents ()
virtual void	UseCustomExtentsOn ()
virtual void	UseCustomExtentsOff ()
virtual void	SetCustomDisplayExtents (int data[])
virtual int *	GetCustomDisplayExtents ()
virtual void	GetCustomDisplayExtents (int data[4])
Static Public Methods
int	IsTypeOf (const char *type)
vtkImageMapper *	SafeDownCast (vtkObject *o)
vtkImageMapper *	New ()
Public Attributes
int	DisplayExtent [6]
Protected Methods
	vtkImageMapper ()
	~vtkImageMapper ()
Protected Attributes
float	ColorWindow
float	ColorLevel
int	PositionAdjustment [2]
int	ZSlice
int	UseCustomExtents
int	CustomDisplayExtents [4]
int	RenderToRectangle

---

Detailed Description

2D image display.

Date:

2001/10/11 13:38:09

Revision:

1.28

Thanks:

Thanks to Matt Turek who developed this class.

vtkImageMapper provides 2D image display support for vtk. It is a Mapper2D subclass that can be associated with an Actor2D and placed within a RenderWindow or ImageWindow.

See also:

vtkMapper2D vtkActor2D

Tests:

vtkImageMapper (Tests)

Definition at line 68 of file vtkImageMapper.h.

---

Constructor & Destructor Documentation

vtkImageMapper::vtkImageMapper (    )  [protected]

vtkImageMapper::~vtkImageMapper (    )  [protected]

---

Member Function Documentation

virtual const char* vtkImageMapper::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper2D. Reimplemented in vtkMesaImageMapper, vtkOpenGLImageMapper, vtkQuartzImageMapper, vtkWin32ImageMapper, and vtkXImageMapper.

int vtkImageMapper::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper2D. Reimplemented in vtkMesaImageMapper, vtkOpenGLImageMapper, vtkQuartzImageMapper, vtkWin32ImageMapper, and vtkXImageMapper.

virtual int vtkImageMapper::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper2D. Reimplemented in vtkMesaImageMapper, vtkOpenGLImageMapper, vtkQuartzImageMapper, vtkWin32ImageMapper, and vtkXImageMapper.

vtkImageMapper* vtkImageMapper::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper2D. Reimplemented in vtkMesaImageMapper, vtkOpenGLImageMapper, vtkQuartzImageMapper, vtkWin32ImageMapper, and vtkXImageMapper.

vtkImageMapper* vtkImageMapper::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkMapper2D. Reimplemented in vtkMesaImageMapper, vtkOpenGLImageMapper, vtkQuartzImageMapper, vtkWin32ImageMapper, and vtkXImageMapper.

void vtkImageMapper::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkMapper2D. Reimplemented in vtkWin32ImageMapper, and vtkXImageMapper.

unsigned long int vtkImageMapper::GetMTime (    )  [virtual]

Override Modifiedtime as we have added a lookuptable Reimplemented from vtkAbstractMapper. Reimplemented in vtkWin32ImageMapper.

virtual void vtkImageMapper::SetColorWindow (  float    )  [virtual]

Set/Get the window value for window/level

virtual float vtkImageMapper::GetColorWindow (    )  [virtual]

Set/Get the window value for window/level

virtual void vtkImageMapper::SetColorLevel (  float    )  [virtual]

Set/Get the level value for window/level

virtual float vtkImageMapper::GetColorLevel (    )  [virtual]

Set/Get the level value for window/level

virtual void vtkImageMapper::SetZSlice (  int    )  [virtual]

Set/Get the current slice number. The axis Z in ZSlice does not necessarily have any relation to the z axis of the data on disk. It is simply the axis orthogonal to the x,y, display plane. GetWholeZMax and Min are convenience methods for obtaining the number of slices that can be displayed. Again the number of slices is in reference to the display z axis, which is not necessarily the z axis on disk. (due to reformatting etc)

virtual int vtkImageMapper::GetZSlice (    )  [virtual]

Set/Get the current slice number. The axis Z in ZSlice does not necessarily have any relation to the z axis of the data on disk. It is simply the axis orthogonal to the x,y, display plane. GetWholeZMax and Min are convenience methods for obtaining the number of slices that can be displayed. Again the number of slices is in reference to the display z axis, which is not necessarily the z axis on disk. (due to reformatting etc)

int vtkImageMapper::GetWholeZMin (    )

Set/Get the current slice number. The axis Z in ZSlice does not necessarily have any relation to the z axis of the data on disk. It is simply the axis orthogonal to the x,y, display plane. GetWholeZMax and Min are convenience methods for obtaining the number of slices that can be displayed. Again the number of slices is in reference to the display z axis, which is not necessarily the z axis on disk. (due to reformatting etc)

int vtkImageMapper::GetWholeZMax (    )

Set/Get the current slice number. The axis Z in ZSlice does not necessarily have any relation to the z axis of the data on disk. It is simply the axis orthogonal to the x,y, display plane. GetWholeZMax and Min are convenience methods for obtaining the number of slices that can be displayed. Again the number of slices is in reference to the display z axis, which is not necessarily the z axis on disk. (due to reformatting etc)

void vtkImageMapper::RenderStart (  vtkViewport *    viewport, vtkActor2D *    actor )

Draw the image to the screen. Referenced by vtkOpenGLImageMapper::RenderOpaqueGeometry(), vtkMesaImageMapper::RenderOpaqueGeometry(), vtkXImageMapper::RenderOverlay(), vtkWin32ImageMapper::RenderOverlay(), and vtkQuartzImageMapper::RenderOverlay().

virtual void vtkImageMapper::RenderData (  vtkViewport *    viewport, vtkImageData *    data, vtkActor2D *    actor )  [pure virtual]

Function called by Render to actually draw the image to to the screen Reimplemented in vtkMesaImageMapper, vtkOpenGLImageMapper, vtkQuartzImageMapper, vtkWin32ImageMapper, and vtkXImageMapper.

float vtkImageMapper::GetColorShift (    )

Methods used internally for performing the Window/Level mapping.

float vtkImageMapper::GetColorScale (    )

Methods used internally for performing the Window/Level mapping.

virtual void vtkImageMapper::SetInput (  vtkImageData *    input )  [virtual]

Set the Input of a filter.

vtkImageData* vtkImageMapper::GetInput (    )

Set the Input of a filter.

virtual void vtkImageMapper::SetRenderToRectangle (  int    )  [virtual]

If RenderToRectangle is set (by default not), then the imagemapper will render the image into the rectangle supplied by the Actor2D's PositionCoordinate and Position2Coordinate

virtual int vtkImageMapper::GetRenderToRectangle (    )  [virtual]

If RenderToRectangle is set (by default not), then the imagemapper will render the image into the rectangle supplied by the Actor2D's PositionCoordinate and Position2Coordinate

virtual void vtkImageMapper::RenderToRectangleOn (    )  [virtual]

If RenderToRectangle is set (by default not), then the imagemapper will render the image into the rectangle supplied by the Actor2D's PositionCoordinate and Position2Coordinate

virtual void vtkImageMapper::RenderToRectangleOff (    )  [virtual]

If RenderToRectangle is set (by default not), then the imagemapper will render the image into the rectangle supplied by the Actor2D's PositionCoordinate and Position2Coordinate

virtual void vtkImageMapper::SetUseCustomExtents (  int    )  [virtual]

Usually, the entire image is displayed, if UseCustomExtents is set (by default not), then the region supplied in the CustomDisplayExtents is used in preference. Note that the Custom extents are x,y only and the zslice is still applied

virtual int vtkImageMapper::GetUseCustomExtents (    )  [virtual]

Usually, the entire image is displayed, if UseCustomExtents is set (by default not), then the region supplied in the CustomDisplayExtents is used in preference. Note that the Custom extents are x,y only and the zslice is still applied

virtual void vtkImageMapper::UseCustomExtentsOn (    )  [virtual]

Usually, the entire image is displayed, if UseCustomExtents is set (by default not), then the region supplied in the CustomDisplayExtents is used in preference. Note that the Custom extents are x,y only and the zslice is still applied

virtual void vtkImageMapper::UseCustomExtentsOff (    )  [virtual]

Usually, the entire image is displayed, if UseCustomExtents is set (by default not), then the region supplied in the CustomDisplayExtents is used in preference. Note that the Custom extents are x,y only and the zslice is still applied

virtual void vtkImageMapper::SetCustomDisplayExtents (  int    data[] )  [virtual]

The image extents which should be displayed with UseCustomExtents Note that the Custom extents are x,y only and the zslice is still applied

virtual int* vtkImageMapper::GetCustomDisplayExtents (    )  [virtual]

The image extents which should be displayed with UseCustomExtents Note that the Custom extents are x,y only and the zslice is still applied

virtual void vtkImageMapper::GetCustomDisplayExtents (  int    data[4] )  [virtual]

The image extents which should be displayed with UseCustomExtents Note that the Custom extents are x,y only and the zslice is still applied

---

Member Data Documentation

int vtkImageMapper::DisplayExtent[6]

Definition at line 117 of file vtkImageMapper.h.

float vtkImageMapper::ColorWindow [protected]

Definition at line 156 of file vtkImageMapper.h.

float vtkImageMapper::ColorLevel [protected]

Definition at line 157 of file vtkImageMapper.h.

int vtkImageMapper::PositionAdjustment[2] [protected]

Definition at line 159 of file vtkImageMapper.h.

int vtkImageMapper::ZSlice [protected]

Definition at line 160 of file vtkImageMapper.h.

int vtkImageMapper::UseCustomExtents [protected]

Definition at line 161 of file vtkImageMapper.h.

int vtkImageMapper::CustomDisplayExtents[4] [protected]

Definition at line 162 of file vtkImageMapper.h.

int vtkImageMapper::RenderToRectangle [protected]

Definition at line 163 of file vtkImageMapper.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkImageMapper.h

---
