vtkAbstractMapper3D Class Reference
#include <vtkAbstractMapper3D.h>

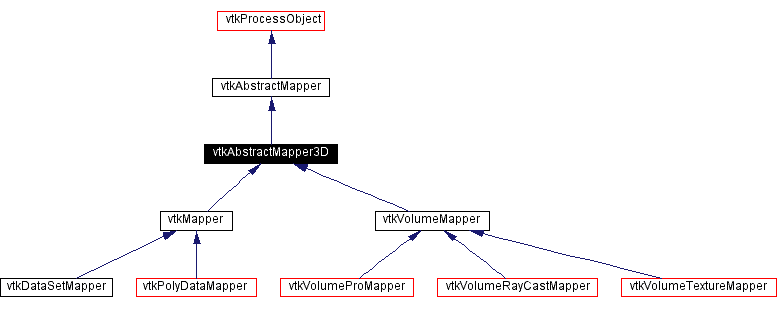

Inheritance diagram for vtkAbstractMapper3D:
Detailed Description
abstract class specifies interface to map 3D data
- Date:
- 2002/01/22 15:38:26
- Revision:
- 1.18
vtkAbstractMapper3D is an abstract class to specify interface between 3D data and graphics primitives or software rendering techniques. Subclasses of vtkAbstractMapper3D can be used for rendering geometry or rendering volumetric data.
This class also defines an API to support hardware clipping planes (at most six planes can be defined). It also provides geometric data about the input data it maps, such as the bounding box and center.
- Created by:
-
- Schroeder, Will
- CVS contributions (if > 5%):
-
- Schroeder, Will (57%)
- Biddiscombe, John (17%)
- Lorensen, Bill (15%)
- Avila, Lisa (5%)
Definition at line 56 of file vtkAbstractMapper3D.h.
Public Types | |
| typedef vtkAbstractMapper | Superclass |
Public Methods | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| virtual float * | GetBounds ()=0 |
| virtual void | GetBounds (float bounds[6]) |
| float * | GetCenter () |
| float | GetLength () |
| virtual int | IsARayCastMapper () |
| virtual int | IsARenderIntoImageMapper () |
| virtual void | Update ()=0 |
Static Public Methods | |
| int | IsTypeOf (const char *type) |
| vtkAbstractMapper3D * | SafeDownCast (vtkObject *o) |
Protected Methods | |
| vtkAbstractMapper3D () | |
| ~vtkAbstractMapper3D () | |
Protected Attributes | |
| float | Bounds [6] |
| float | Center [3] |
Member Typedef Documentation
|
Constructor & Destructor Documentation
|
|
|
|
|
Definition at line 89 of file vtkAbstractMapper3D.h. |
Member Function Documentation
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkAbstractMapper. Reimplemented in vtkDataSetMapper, vtkMapper, vtkMesaPolyDataMapper, vtkMesaVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLPolyDataMapper, vtkOpenGLVolumeProVG500Mapper, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeRayCastMapper, vtkOpenGLVolumeTextureMapper2D, vtkPolyDataMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVG500Mapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeTextureMapper, and vtkVolumeTextureMapper2D. |
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkAbstractMapper. Reimplemented in vtkDataSetMapper, vtkMapper, vtkMesaPolyDataMapper, vtkMesaVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLPolyDataMapper, vtkOpenGLVolumeProVG500Mapper, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeRayCastMapper, vtkOpenGLVolumeTextureMapper2D, vtkPolyDataMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVG500Mapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeTextureMapper, and vtkVolumeTextureMapper2D. |
|
|
||||||||||||
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkAbstractMapper. Reimplemented in vtkDataSetMapper, vtkMapper, vtkMesaPolyDataMapper, vtkMesaVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOpenGLPolyDataMapper, vtkOpenGLVolumeProVG500Mapper, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeRayCastMapper, vtkOpenGLVolumeTextureMapper2D, vtkPolyDataMapper, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProVG500Mapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastMapper, vtkVolumeTextureMapper, and vtkVolumeTextureMapper2D. |
|
|
Return bounding box (array of six floats) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax). Implemented in vtkMapper, vtkPolyDataMapper, and vtkVolumeMapper. Referenced by vtkVolumeMapper::GetBounds(), and vtkMapper::GetBounds(). |
|
|
Get the bounds for this mapper as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). Reimplemented in vtkMapper, vtkPolyDataMapper, and vtkVolumeMapper. |
|
|
Return the Center of this mapper's data. |
|
|
Return the diagonal length of this mappers bounding box. |
|
|
Is this a ray cast mapper? A subclass would return 1 if the ray caster is needed to generate an image from this mapper. Definition at line 77 of file vtkAbstractMapper3D.h. |
|
|
Is this a "render into image" mapper? A subclass would return 1 if the mapper produces an image by rendering into a software image buffer. Definition at line 82 of file vtkAbstractMapper3D.h. |
|
|
Update the network connected to this mapper. Implemented in vtkMapper, vtkPolyDataMapper, vtkVolumeMapper, and vtkVolumeTextureMapper. |
Member Data Documentation
|
|
Definition at line 91 of file vtkAbstractMapper3D.h. |
|
|
Definition at line 92 of file vtkAbstractMapper3D.h. |
The documentation for this class was generated from the following file:
- Rendering/vtkAbstractMapper3D.h
