vtkFixedPointVolumeRayCastMapper Class Reference

#include <vtkFixedPointVolumeRayCastMapper.h>

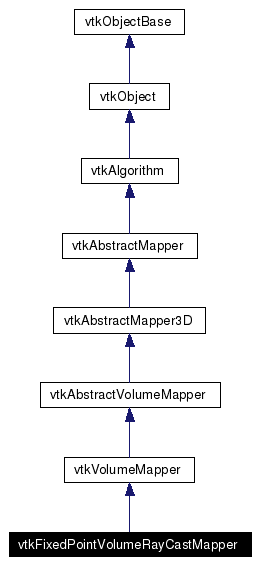

Inheritance diagram for vtkFixedPointVolumeRayCastMapper:

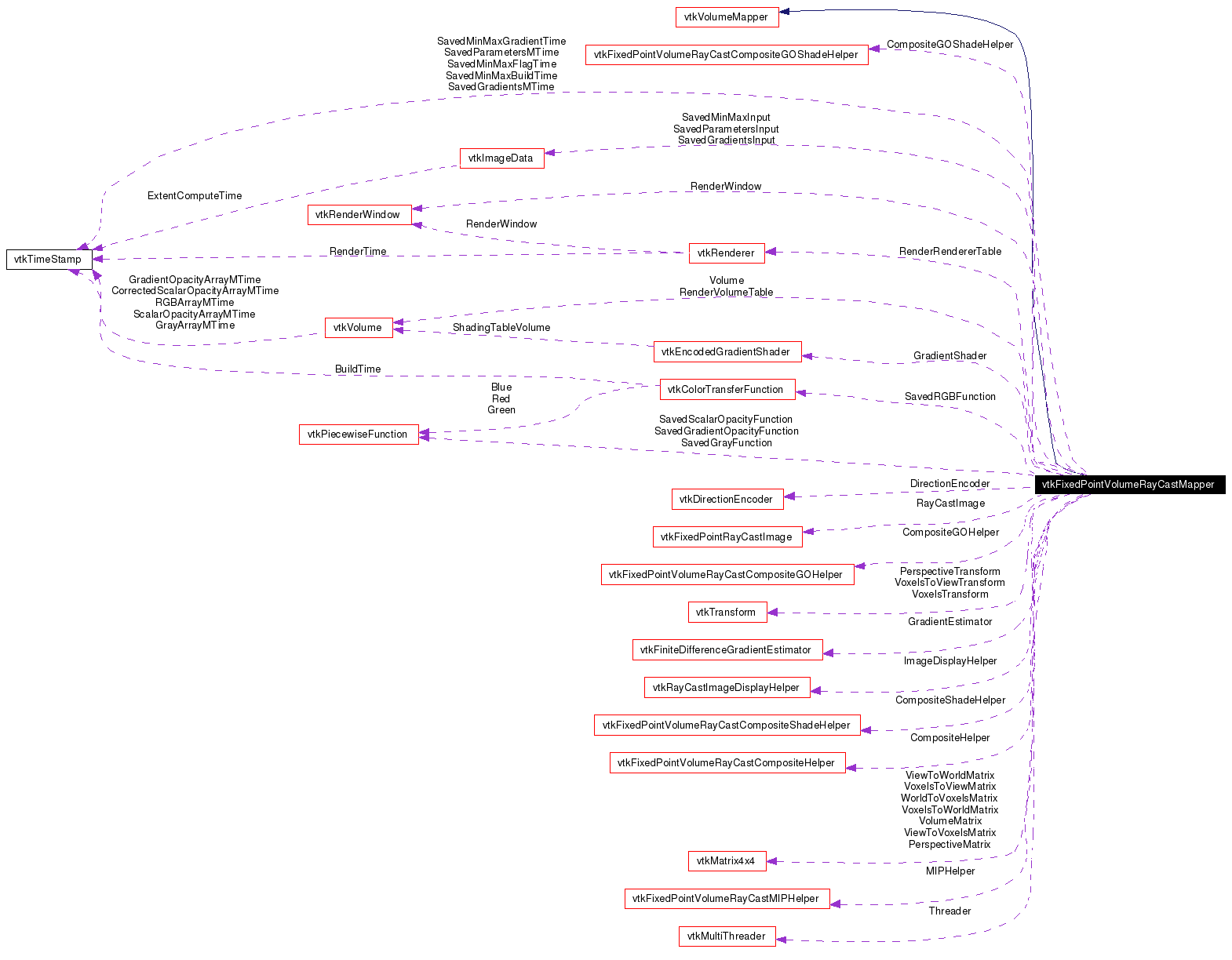

[legend]Collaboration diagram for vtkFixedPointVolumeRayCastMapper:

[legend]List of all members.

---

Detailed Description

A fixed point mapper for volumes.

This is a software ray caster for rendering volumes in vtkImageData. It works with all input data types and up to four components. It performs composite or MIP rendering, and can be intermixed with geometric data. Space leaping is used to speed up the rendering process. In addition, calculation are performed in 15 bit fixed point precision. This mapper is threaded, and will interleave scan lines across processors.

This mapper is a good replacement for vtkVolumeRayCastMapper EXCEPT:

• it does not do isosurface ray casting
• it does only interpolate before classify compositing
• it does only maximum scalar value MIP

The vtkVolumeRayCastMapper CANNOT be used in these instances when a vtkFixedPointVolumeRayCastMapper can be used:

• if the data is not unsigned char or unsigned short
• if the data has more than one component

This mapper handles all data type from unsigned char through double. However, some of the internal calcultions are performed in float and therefore even the full float range may cause problems for this mapper (both in scalar data values and in spacing between samples).

Space leaping is performed by creating a sub-sampled volume. 4x4x4 cells in the original volume are represented by a min, max, and combined gradient and flag value. The min max volume has three unsigned shorts per 4x4x4 group of cells from the original volume - one reprenting the minumum scalar index (the scalar value adjusted to fit in the 15 bit range), the maximum scalar index, and a third unsigned short which is both the maximum gradient opacity in the neighborhood (an unsigned char) and the flag that is filled in for the current lookup tables to indicate whether this region can be skipped.

See also:

vtkVolumeMapper

Events:

vtkCommand::StartEvent vtkCommand::ProgressEvent vtkCommand::EndEvent

Tests:

vtkFixedPointVolumeRayCastMapper (Tests)

Definition at line 95 of file vtkFixedPointVolumeRayCastMapper.h.

Public Types
typedef vtkVolumeMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	Render (vtkRenderer *, vtkVolume *)
unsigned int	ToFixedPointPosition (float val)
void	ToFixedPointPosition (float in[3], unsigned int out[3])
unsigned int	ToFixedPointDirection (float dir)
void	ToFixedPointDirection (float in[3], unsigned int out[3])
void	FixedPointIncrement (unsigned int position[3], unsigned int increment[3])
void	GetFloatTripleFromPointer (float v[3], float *ptr)
void	GetUIntTripleFromPointer (unsigned int v[3], unsigned int *ptr)
void	ShiftVectorDown (unsigned int in[3], unsigned int out[3])
int	CheckMinMaxVolumeFlag (unsigned int pos[3], int c)
int	CheckMIPMinMaxVolumeFlag (unsigned int pos[3], int c, unsigned short maxIdx)
void	LookupColorUC (unsigned short *colorTable, unsigned short *scalarOpacityTable, unsigned short index, unsigned char color[4])
void	LookupDependentColorUC (unsigned short *colorTable, unsigned short *scalarOpacityTable, unsigned short index[4], int components, unsigned char color[4])
void	LookupAndCombineIndependentColorsUC (unsigned short *colorTable[4], unsigned short *scalarOpacityTable[4], unsigned short index[4], float weights[4], int components, unsigned char color[4])
int	CheckIfCropped (unsigned int pos[3])
virtual vtkRenderWindow *	GetRenderWindow ()
virtual vtkFixedPointVolumeRayCastMIPHelper *	GetMIPHelper ()
virtual vtkFixedPointVolumeRayCastCompositeHelper *	GetCompositeHelper ()
virtual vtkFixedPointVolumeRayCastCompositeGOHelper *	GetCompositeGOHelper ()
virtual vtkFixedPointVolumeRayCastCompositeGOShadeHelper *	GetCompositeGOShadeHelper ()
virtual vtkFixedPointVolumeRayCastCompositeShadeHelper *	GetCompositeShadeHelper ()
virtual float *	GetTableShift ()
virtual void	GetTableShift (float data[4])
virtual float *	GetTableScale ()
virtual void	GetTableScale (float data[4])
virtual int	GetShadingRequired ()
virtual int	GetGradientOpacityRequired ()
int *	GetRowBounds ()
unsigned short *	GetColorTable (int c)
unsigned short *	GetScalarOpacityTable (int c)
unsigned short *	GetGradientOpacityTable (int c)
vtkVolume *	GetVolume ()
unsigned short **	GetGradientNormal ()
unsigned char **	GetGradientMagnitude ()
unsigned short *	GetDiffuseShadingTable (int c)
unsigned short *	GetSpecularShadingTable (int c)
void	ComputeRayInfo (int x, int y, unsigned int pos[3], unsigned int dir[3], unsigned int *numSteps)
void	InitializeRayInfo (vtkVolume *vol)
int	PerImageInitialization (vtkRenderer *, vtkVolume *, int, double *, double *, int *)
void	PerVolumeInitialization (vtkRenderer *, vtkVolume *)
void	PerSubVolumeInitialization (vtkRenderer *, vtkVolume *, int)
void	RenderSubVolume ()
void	DisplayRenderedImage (vtkRenderer *, vtkVolume *)
void	AbortRender ()
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetSampleDistance (float)
virtual float	GetSampleDistance ()
virtual void	SetInteractiveSampleDistance (float)
virtual float	GetInteractiveSampleDistance ()
virtual void	SetImageSampleDistance (float)
virtual float	GetImageSampleDistance ()
virtual void	SetMinimumImageSampleDistance (float)
virtual float	GetMinimumImageSampleDistance ()
virtual void	SetMaximumImageSampleDistance (float)
virtual float	GetMaximumImageSampleDistance ()
virtual void	SetAutoAdjustSampleDistances (int)
virtual int	GetAutoAdjustSampleDistances ()
virtual void	AutoAdjustSampleDistancesOn ()
virtual void	AutoAdjustSampleDistancesOff ()
void	SetNumberOfThreads (int num)
int	GetNumberOfThreads ()
virtual void	SetIntermixIntersectingGeometry (int)
virtual int	GetIntermixIntersectingGeometry ()
virtual void	IntermixIntersectingGeometryOn ()
virtual void	IntermixIntersectingGeometryOff ()
float	ComputeRequiredImageSampleDistance (float desiredTime, vtkRenderer *ren)
float	ComputeRequiredImageSampleDistance (float desiredTime, vtkRenderer *ren, vtkVolume *vol)
int	ShouldUseNearestNeighborInterpolation (vtkVolume *vol)
void	SetRayCastImage (vtkFixedPointRayCastImage *)
virtual vtkFixedPointRayCastImage *	GetRayCastImage ()
Static Public Member Functions
static vtkFixedPointVolumeRayCastMapper *	New ()
static int	IsTypeOf (const char *type)
static vtkFixedPointVolumeRayCastMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkFixedPointVolumeRayCastMapper ()
	~vtkFixedPointVolumeRayCastMapper ()
void	ComputeMatrices (double volumeOrigin[3], double volumeSpacing[3], int volumeExtent[6], vtkRenderer *ren, vtkVolume *vol)
int	ComputeRowBounds (vtkRenderer *ren, int imageFlag, int rowBoundsFlag, int volumeExtent[6])
void	CaptureZBuffer (vtkRenderer *ren)
void	StoreRenderTime (vtkRenderer *ren, vtkVolume *vol, float t)
float	RetrieveRenderTime (vtkRenderer *ren, vtkVolume *vol)
float	RetrieveRenderTime (vtkRenderer *ren)
int	ClipRayAgainstVolume (float rayStart[3], float rayEnd[3], float rayDirection[3], double bounds[6])
int	UpdateColorTable (vtkVolume *vol)
int	UpdateGradients (vtkVolume *vol)
int	UpdateShadingTable (vtkRenderer *ren, vtkVolume *vol)
void	UpdateCroppingRegions ()
void	ComputeGradients (vtkVolume *vol)
int	ClipRayAgainstClippingPlanes (float rayStart[3], float rayEnd[3], int numClippingPlanes, float *clippingPlanes)
float	GetZBufferValue (int x, int y)
void	UpdateMinMaxVolume (vtkVolume *vol)
void	FillInMaxGradientMagnitudes (int fullDim[3], int smallDim[3])
Protected Attributes
vtkRayCastImageDisplayHelper *	ImageDisplayHelper
float	SampleDistance
float	InteractiveSampleDistance
float	ImageSampleDistance
float	MinimumImageSampleDistance
float	MaximumImageSampleDistance
int	AutoAdjustSampleDistances
float	OldSampleDistance
float	OldImageSampleDistance
vtkMultiThreader *	Threader
vtkMatrix4x4 *	PerspectiveMatrix
vtkMatrix4x4 *	ViewToWorldMatrix
vtkMatrix4x4 *	ViewToVoxelsMatrix
vtkMatrix4x4 *	VoxelsToViewMatrix
vtkMatrix4x4 *	WorldToVoxelsMatrix
vtkMatrix4x4 *	VoxelsToWorldMatrix
vtkMatrix4x4 *	VolumeMatrix
vtkTransform *	PerspectiveTransform
vtkTransform *	VoxelsTransform
vtkTransform *	VoxelsToViewTransform
vtkFixedPointRayCastImage *	RayCastImage
int *	RowBounds
int *	OldRowBounds
float *	RenderTimeTable
vtkVolume **	RenderVolumeTable
vtkRenderer **	RenderRendererTable
int	RenderTableSize
int	RenderTableEntries
int	IntermixIntersectingGeometry
float	MinimumViewDistance
vtkColorTransferFunction *	SavedRGBFunction [4]
vtkPiecewiseFunction *	SavedGrayFunction [4]
vtkPiecewiseFunction *	SavedScalarOpacityFunction [4]
vtkPiecewiseFunction *	SavedGradientOpacityFunction [4]
int	SavedColorChannels [4]
float	SavedScalarOpacityDistance [4]
int	SavedBlendMode
vtkImageData *	SavedParametersInput
vtkTimeStamp	SavedParametersMTime
vtkImageData *	SavedGradientsInput
vtkTimeStamp	SavedGradientsMTime
float	SavedSampleDistance
unsigned short	ColorTable [4][32768 *3]
unsigned short	ScalarOpacityTable [4][32768]
unsigned short	GradientOpacityTable [4][256]
int	TableSize [4]
float	TableScale [4]
float	TableShift [4]
float	GradientMagnitudeScale [4]
float	GradientMagnitudeShift [4]
unsigned short **	GradientNormal
unsigned char **	GradientMagnitude
unsigned short *	ContiguousGradientNormal
unsigned char *	ContiguousGradientMagnitude
int	NumberOfGradientSlices
vtkDirectionEncoder *	DirectionEncoder
vtkEncodedGradientShader *	GradientShader
vtkFiniteDifferenceGradientEstimator *	GradientEstimator
unsigned short	DiffuseShadingTable [4][65536 *3]
unsigned short	SpecularShadingTable [4][65536 *3]
int	ShadingRequired
int	GradientOpacityRequired
vtkRenderWindow *	RenderWindow
vtkVolume *	Volume
unsigned int	FixedPointCroppingRegionPlanes [6]
unsigned int	CroppingRegionMask [27]
vtkFixedPointVolumeRayCastMIPHelper *	MIPHelper
vtkFixedPointVolumeRayCastCompositeHelper *	CompositeHelper
vtkFixedPointVolumeRayCastCompositeGOHelper *	CompositeGOHelper
vtkFixedPointVolumeRayCastCompositeShadeHelper *	CompositeShadeHelper
vtkFixedPointVolumeRayCastCompositeGOShadeHelper *	CompositeGOShadeHelper
float	ViewToVoxelsArray [16]
float	WorldToVoxelsArray [16]
float	VoxelsToWorldArray [16]
double	CroppingBounds [6]
int	NumTransformedClippingPlanes
float *	TransformedClippingPlanes
double	SavedSpacing [3]
unsigned short *	MinMaxVolume
int	MinMaxVolumeSize [4]
vtkImageData *	SavedMinMaxInput
vtkTimeStamp	SavedMinMaxBuildTime
vtkTimeStamp	SavedMinMaxGradientTime
vtkTimeStamp	SavedMinMaxFlagTime
Friends
VTK_THREAD_RETURN_TYPE	FixedPointVolumeRayCastMapper_CastRays (void *arg)

---

Member Typedef Documentation

typedef vtkVolumeMapper vtkFixedPointVolumeRayCastMapper::Superclass

Reimplemented from vtkVolumeMapper. Definition at line 99 of file vtkFixedPointVolumeRayCastMapper.h.

---

Constructor & Destructor Documentation

vtkFixedPointVolumeRayCastMapper::vtkFixedPointVolumeRayCastMapper (   )  [protected]

vtkFixedPointVolumeRayCastMapper::~vtkFixedPointVolumeRayCastMapper (   )  [protected]

---

Member Function Documentation

static vtkFixedPointVolumeRayCastMapper* vtkFixedPointVolumeRayCastMapper::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkFixedPointVolumeRayCastMapper::GetClassName (   )  [virtual]

Reimplemented from vtkVolumeMapper.

static int vtkFixedPointVolumeRayCastMapper::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkVolumeMapper.

virtual int vtkFixedPointVolumeRayCastMapper::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkVolumeMapper.

static vtkFixedPointVolumeRayCastMapper* vtkFixedPointVolumeRayCastMapper::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkVolumeMapper.

void vtkFixedPointVolumeRayCastMapper::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkVolumeMapper.

virtual void vtkFixedPointVolumeRayCastMapper::SetSampleDistance (  float   )  [virtual]

Set/Get the distance between samples used for rendering when AutoAdjustSampleDistances is off, or when this mapper has more than 1 second allocated to it for rendering.

virtual float vtkFixedPointVolumeRayCastMapper::GetSampleDistance (   )  [virtual]

virtual void vtkFixedPointVolumeRayCastMapper::SetInteractiveSampleDistance (  float   )  [virtual]

Set/Get the distance between samples when interactive rendering is happening. In this case, interactive is defined as this volume mapper having less than 1 second allocated for rendering. When AutoAdjustSampleDistance is On, and the allocated render time is less than 1 second, then this InteractiveSampleDistance will be used instead of the SampleDistance above.

virtual float vtkFixedPointVolumeRayCastMapper::GetInteractiveSampleDistance (   )  [virtual]

Set/Get the distance between samples when interactive rendering is happening. In this case, interactive is defined as this volume mapper having less than 1 second allocated for rendering. When AutoAdjustSampleDistance is On, and the allocated render time is less than 1 second, then this InteractiveSampleDistance will be used instead of the SampleDistance above.

virtual void vtkFixedPointVolumeRayCastMapper::SetImageSampleDistance (  float   )  [virtual]

Sampling distance in the XY image dimensions. Default value of 1 meaning 1 ray cast per pixel. If set to 0.5, 4 rays will be cast per pixel. If set to 2.0, 1 ray will be cast for every 4 (2 by 2) pixels. This value will be adjusted to meet a desired frame rate when AutoAdjustSampleDistances is on.

virtual float vtkFixedPointVolumeRayCastMapper::GetImageSampleDistance (   )  [virtual]

Sampling distance in the XY image dimensions. Default value of 1 meaning 1 ray cast per pixel. If set to 0.5, 4 rays will be cast per pixel. If set to 2.0, 1 ray will be cast for every 4 (2 by 2) pixels. This value will be adjusted to meet a desired frame rate when AutoAdjustSampleDistances is on.

virtual void vtkFixedPointVolumeRayCastMapper::SetMinimumImageSampleDistance (  float   )  [virtual]

This is the minimum image sample distance allow when the image sample distance is being automatically adjusted.

virtual float vtkFixedPointVolumeRayCastMapper::GetMinimumImageSampleDistance (   )  [virtual]

This is the minimum image sample distance allow when the image sample distance is being automatically adjusted.

virtual void vtkFixedPointVolumeRayCastMapper::SetMaximumImageSampleDistance (  float   )  [virtual]

This is the maximum image sample distance allow when the image sample distance is being automatically adjusted.

virtual float vtkFixedPointVolumeRayCastMapper::GetMaximumImageSampleDistance (   )  [virtual]

This is the maximum image sample distance allow when the image sample distance is being automatically adjusted.

virtual void vtkFixedPointVolumeRayCastMapper::SetAutoAdjustSampleDistances (  int   )  [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance and the SampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use). If this is an interactive render (more than 1 frame per second) the SampleDistance will be increased, otherwise it will not be altered (a binary decision, as opposed to the ImageSampleDistance which will vary continuously).

virtual int vtkFixedPointVolumeRayCastMapper::GetAutoAdjustSampleDistances (   )  [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance and the SampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use). If this is an interactive render (more than 1 frame per second) the SampleDistance will be increased, otherwise it will not be altered (a binary decision, as opposed to the ImageSampleDistance which will vary continuously).

virtual void vtkFixedPointVolumeRayCastMapper::AutoAdjustSampleDistancesOn (   )  [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance and the SampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use). If this is an interactive render (more than 1 frame per second) the SampleDistance will be increased, otherwise it will not be altered (a binary decision, as opposed to the ImageSampleDistance which will vary continuously).

virtual void vtkFixedPointVolumeRayCastMapper::AutoAdjustSampleDistancesOff (   )  [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance and the SampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use). If this is an interactive render (more than 1 frame per second) the SampleDistance will be increased, otherwise it will not be altered (a binary decision, as opposed to the ImageSampleDistance which will vary continuously).

void vtkFixedPointVolumeRayCastMapper::SetNumberOfThreads (  int  num  )

Set/Get the number of threads to use. This by default is equal to the number of available processors detected.

int vtkFixedPointVolumeRayCastMapper::GetNumberOfThreads (   )

Set/Get the number of threads to use. This by default is equal to the number of available processors detected.

virtual void vtkFixedPointVolumeRayCastMapper::SetIntermixIntersectingGeometry (  int   )  [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual int vtkFixedPointVolumeRayCastMapper::GetIntermixIntersectingGeometry (   )  [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual void vtkFixedPointVolumeRayCastMapper::IntermixIntersectingGeometryOn (   )  [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual void vtkFixedPointVolumeRayCastMapper::IntermixIntersectingGeometryOff (   )  [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

float vtkFixedPointVolumeRayCastMapper::ComputeRequiredImageSampleDistance (  float  desiredTime, vtkRenderer *  ren )

What is the image sample distance required to achieve the desired time? A version of this method is provided that does not require the volume argument since if you are using an LODProp3D you may not know this information. If you use this version you must be certain that the ray cast mapper is only used for one volume (and not shared among multiple volumes)

float vtkFixedPointVolumeRayCastMapper::ComputeRequiredImageSampleDistance (  float  desiredTime, vtkRenderer *  ren, vtkVolume *  vol )

What is the image sample distance required to achieve the desired time? A version of this method is provided that does not require the volume argument since if you are using an LODProp3D you may not know this information. If you use this version you must be certain that the ray cast mapper is only used for one volume (and not shared among multiple volumes)

void vtkFixedPointVolumeRayCastMapper::Render (  vtkRenderer *  , vtkVolume *  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Initialize rendering for this volume. Implements vtkVolumeMapper.

unsigned int vtkFixedPointVolumeRayCastMapper::ToFixedPointPosition (  float  val  )  [inline]

Definition at line 453 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SCALE.

void vtkFixedPointVolumeRayCastMapper::ToFixedPointPosition (  float  in[3], unsigned int  out[3] )  [inline]

Definition at line 458 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SCALE.

unsigned int vtkFixedPointVolumeRayCastMapper::ToFixedPointDirection (  float  dir  )  [inline]

Definition at line 465 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SCALE.

void vtkFixedPointVolumeRayCastMapper::ToFixedPointDirection (  float  in[3], unsigned int  out[3] )  [inline]

Definition at line 472 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SCALE.

void vtkFixedPointVolumeRayCastMapper::FixedPointIncrement (  unsigned int  position[3], unsigned int  increment[3] )  [inline]

Definition at line 488 of file vtkFixedPointVolumeRayCastMapper.h.

void vtkFixedPointVolumeRayCastMapper::GetFloatTripleFromPointer (  float  v[3], float *  ptr )  [inline]

Definition at line 517 of file vtkFixedPointVolumeRayCastMapper.h.

void vtkFixedPointVolumeRayCastMapper::GetUIntTripleFromPointer (  unsigned int  v[3], unsigned int *  ptr )  [inline]

Definition at line 524 of file vtkFixedPointVolumeRayCastMapper.h.

void vtkFixedPointVolumeRayCastMapper::ShiftVectorDown (  unsigned int  in[3], unsigned int  out[3] )  [inline]

Definition at line 531 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SHIFT.

int vtkFixedPointVolumeRayCastMapper::CheckMinMaxVolumeFlag (  unsigned int  pos[3], int  c )  [inline]

Definition at line 539 of file vtkFixedPointVolumeRayCastMapper.h. References MinMaxVolumeSize.

int vtkFixedPointVolumeRayCastMapper::CheckMIPMinMaxVolumeFlag (  unsigned int  pos[3], int  c, unsigned short  maxIdx )  [inline]

Definition at line 550 of file vtkFixedPointVolumeRayCastMapper.h. References MinMaxVolumeSize.

void vtkFixedPointVolumeRayCastMapper::LookupColorUC (  unsigned short *  colorTable, unsigned short *  scalarOpacityTable, unsigned short  index, unsigned char  color[4] )  [inline]

Definition at line 569 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SHIFT.

void vtkFixedPointVolumeRayCastMapper::LookupDependentColorUC (  unsigned short *  colorTable, unsigned short *  scalarOpacityTable, unsigned short  index[4], int  components, unsigned char  color[4] )  [inline]

Definition at line 584 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SHIFT.

void vtkFixedPointVolumeRayCastMapper::LookupAndCombineIndependentColorsUC (  unsigned short *  colorTable[4], unsigned short *  scalarOpacityTable[4], unsigned short  index[4], float  weights[4], int  components, unsigned char  color[4] )  [inline]

Definition at line 614 of file vtkFixedPointVolumeRayCastMapper.h. References VTKKW_FP_SHIFT.

int vtkFixedPointVolumeRayCastMapper::CheckIfCropped (  unsigned int  pos[3]  )  [inline]

Definition at line 639 of file vtkFixedPointVolumeRayCastMapper.h. References vtkVolumeMapper::CroppingRegionFlags, and CroppingRegionMask.

virtual vtkRenderWindow* vtkFixedPointVolumeRayCastMapper::GetRenderWindow (   )  [virtual]

virtual vtkFixedPointVolumeRayCastMIPHelper* vtkFixedPointVolumeRayCastMapper::GetMIPHelper (   )  [virtual]

virtual vtkFixedPointVolumeRayCastCompositeHelper* vtkFixedPointVolumeRayCastMapper::GetCompositeHelper (   )  [virtual]

virtual vtkFixedPointVolumeRayCastCompositeGOHelper* vtkFixedPointVolumeRayCastMapper::GetCompositeGOHelper (   )  [virtual]

virtual vtkFixedPointVolumeRayCastCompositeGOShadeHelper* vtkFixedPointVolumeRayCastMapper::GetCompositeGOShadeHelper (   )  [virtual]

virtual vtkFixedPointVolumeRayCastCompositeShadeHelper* vtkFixedPointVolumeRayCastMapper::GetCompositeShadeHelper (   )  [virtual]

virtual float* vtkFixedPointVolumeRayCastMapper::GetTableShift (   )  [virtual]

virtual void vtkFixedPointVolumeRayCastMapper::GetTableShift (  float  data[4]  )  [virtual]

virtual float* vtkFixedPointVolumeRayCastMapper::GetTableScale (   )  [virtual]

virtual void vtkFixedPointVolumeRayCastMapper::GetTableScale (  float  data[4]  )  [virtual]

virtual int vtkFixedPointVolumeRayCastMapper::GetShadingRequired (   )  [virtual]

virtual int vtkFixedPointVolumeRayCastMapper::GetGradientOpacityRequired (   )  [virtual]

int* vtkFixedPointVolumeRayCastMapper::GetRowBounds (   )  [inline]

Definition at line 234 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short* vtkFixedPointVolumeRayCastMapper::GetColorTable (  int  c  )  [inline]

Definition at line 235 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short* vtkFixedPointVolumeRayCastMapper::GetScalarOpacityTable (  int  c  )  [inline]

Definition at line 236 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short* vtkFixedPointVolumeRayCastMapper::GetGradientOpacityTable (  int  c  )  [inline]

Definition at line 237 of file vtkFixedPointVolumeRayCastMapper.h.

vtkVolume* vtkFixedPointVolumeRayCastMapper::GetVolume (   )  [inline]

Definition at line 238 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short** vtkFixedPointVolumeRayCastMapper::GetGradientNormal (   )  [inline]

Definition at line 239 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned char** vtkFixedPointVolumeRayCastMapper::GetGradientMagnitude (   )  [inline]

Definition at line 240 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short* vtkFixedPointVolumeRayCastMapper::GetDiffuseShadingTable (  int  c  )  [inline]

Definition at line 241 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short* vtkFixedPointVolumeRayCastMapper::GetSpecularShadingTable (  int  c  )  [inline]

Definition at line 242 of file vtkFixedPointVolumeRayCastMapper.h.

void vtkFixedPointVolumeRayCastMapper::ComputeRayInfo (  int  x, int  y, unsigned int  pos[3], unsigned int  dir[3], unsigned int *  numSteps )

void vtkFixedPointVolumeRayCastMapper::InitializeRayInfo (  vtkVolume *  vol  )

int vtkFixedPointVolumeRayCastMapper::ShouldUseNearestNeighborInterpolation (  vtkVolume *  vol  )

void vtkFixedPointVolumeRayCastMapper::SetRayCastImage (  vtkFixedPointRayCastImage *   )

Set / Get the underlying image object. One will be automatically created - only need to set it when using from an AMR mapper which renders multiple times into the same image.

virtual vtkFixedPointRayCastImage* vtkFixedPointVolumeRayCastMapper::GetRayCastImage (   )  [virtual]

int vtkFixedPointVolumeRayCastMapper::PerImageInitialization (  vtkRenderer *  , vtkVolume *  , int  , double *  , double *  , int *  )

void vtkFixedPointVolumeRayCastMapper::PerVolumeInitialization (  vtkRenderer *  , vtkVolume *  )

void vtkFixedPointVolumeRayCastMapper::PerSubVolumeInitialization (  vtkRenderer *  , vtkVolume *  , int  )

void vtkFixedPointVolumeRayCastMapper::RenderSubVolume (   )

void vtkFixedPointVolumeRayCastMapper::DisplayRenderedImage (  vtkRenderer *  , vtkVolume *  )

void vtkFixedPointVolumeRayCastMapper::AbortRender (   )

void vtkFixedPointVolumeRayCastMapper::ComputeMatrices (  double  volumeOrigin[3], double  volumeSpacing[3], int  volumeExtent[6], vtkRenderer *  ren, vtkVolume *  vol )  [protected]

int vtkFixedPointVolumeRayCastMapper::ComputeRowBounds (  vtkRenderer *  ren, int  imageFlag, int  rowBoundsFlag, int  volumeExtent[6] )  [protected]

void vtkFixedPointVolumeRayCastMapper::CaptureZBuffer (  vtkRenderer *  ren  )  [protected]

void vtkFixedPointVolumeRayCastMapper::StoreRenderTime (  vtkRenderer *  ren, vtkVolume *  vol, float  t )  [protected]

float vtkFixedPointVolumeRayCastMapper::RetrieveRenderTime (  vtkRenderer *  ren, vtkVolume *  vol )  [protected]

float vtkFixedPointVolumeRayCastMapper::RetrieveRenderTime (  vtkRenderer *  ren  )  [protected]

int vtkFixedPointVolumeRayCastMapper::ClipRayAgainstVolume (  float  rayStart[3], float  rayEnd[3], float  rayDirection[3], double  bounds[6] )  [protected]

int vtkFixedPointVolumeRayCastMapper::UpdateColorTable (  vtkVolume *  vol  )  [protected]

int vtkFixedPointVolumeRayCastMapper::UpdateGradients (  vtkVolume *  vol  )  [protected]

int vtkFixedPointVolumeRayCastMapper::UpdateShadingTable (  vtkRenderer *  ren, vtkVolume *  vol )  [protected]

void vtkFixedPointVolumeRayCastMapper::UpdateCroppingRegions (   )  [protected]

void vtkFixedPointVolumeRayCastMapper::ComputeGradients (  vtkVolume *  vol  )  [protected]

int vtkFixedPointVolumeRayCastMapper::ClipRayAgainstClippingPlanes (  float  rayStart[3], float  rayEnd[3], int  numClippingPlanes, float *  clippingPlanes )  [protected]

float vtkFixedPointVolumeRayCastMapper::GetZBufferValue (  int  x, int  y )  [protected]

void vtkFixedPointVolumeRayCastMapper::UpdateMinMaxVolume (  vtkVolume *  vol  )  [protected]

void vtkFixedPointVolumeRayCastMapper::FillInMaxGradientMagnitudes (  int  fullDim[3], int  smallDim[3] )  [protected]

---

Friends And Related Function Documentation

VTK_THREAD_RETURN_TYPE FixedPointVolumeRayCastMapper_CastRays (  void *  arg  )  [friend]

---

Member Data Documentation

vtkRayCastImageDisplayHelper* vtkFixedPointVolumeRayCastMapper::ImageDisplayHelper [protected]

Definition at line 275 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::SampleDistance [protected]

Definition at line 278 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::InteractiveSampleDistance [protected]

Definition at line 279 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::ImageSampleDistance [protected]

Definition at line 282 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::MinimumImageSampleDistance [protected]

Definition at line 283 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::MaximumImageSampleDistance [protected]

Definition at line 284 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::AutoAdjustSampleDistances [protected]

Definition at line 285 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::OldSampleDistance [protected]

Definition at line 288 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::OldImageSampleDistance [protected]

Definition at line 289 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMultiThreader* vtkFixedPointVolumeRayCastMapper::Threader [protected]

Definition at line 307 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMatrix4x4* vtkFixedPointVolumeRayCastMapper::PerspectiveMatrix [protected]

Definition at line 309 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMatrix4x4* vtkFixedPointVolumeRayCastMapper::ViewToWorldMatrix [protected]

Definition at line 310 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMatrix4x4* vtkFixedPointVolumeRayCastMapper::ViewToVoxelsMatrix [protected]

Definition at line 311 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMatrix4x4* vtkFixedPointVolumeRayCastMapper::VoxelsToViewMatrix [protected]

Definition at line 312 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMatrix4x4* vtkFixedPointVolumeRayCastMapper::WorldToVoxelsMatrix [protected]

Definition at line 313 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMatrix4x4* vtkFixedPointVolumeRayCastMapper::VoxelsToWorldMatrix [protected]

Definition at line 314 of file vtkFixedPointVolumeRayCastMapper.h.

vtkMatrix4x4* vtkFixedPointVolumeRayCastMapper::VolumeMatrix [protected]

Definition at line 316 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTransform* vtkFixedPointVolumeRayCastMapper::PerspectiveTransform [protected]

Definition at line 318 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTransform* vtkFixedPointVolumeRayCastMapper::VoxelsTransform [protected]

Definition at line 319 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTransform* vtkFixedPointVolumeRayCastMapper::VoxelsToViewTransform [protected]

Definition at line 320 of file vtkFixedPointVolumeRayCastMapper.h.

vtkFixedPointRayCastImage* vtkFixedPointVolumeRayCastMapper::RayCastImage [protected]

Definition at line 323 of file vtkFixedPointVolumeRayCastMapper.h.

int* vtkFixedPointVolumeRayCastMapper::RowBounds [protected]

Definition at line 325 of file vtkFixedPointVolumeRayCastMapper.h.

int* vtkFixedPointVolumeRayCastMapper::OldRowBounds [protected]

Definition at line 326 of file vtkFixedPointVolumeRayCastMapper.h.

float* vtkFixedPointVolumeRayCastMapper::RenderTimeTable [protected]

Definition at line 328 of file vtkFixedPointVolumeRayCastMapper.h.

vtkVolume** vtkFixedPointVolumeRayCastMapper::RenderVolumeTable [protected]

Definition at line 329 of file vtkFixedPointVolumeRayCastMapper.h.

vtkRenderer** vtkFixedPointVolumeRayCastMapper::RenderRendererTable [protected]

Definition at line 330 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::RenderTableSize [protected]

Definition at line 331 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::RenderTableEntries [protected]

Definition at line 332 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::IntermixIntersectingGeometry [protected]

Definition at line 338 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::MinimumViewDistance [protected]

Definition at line 340 of file vtkFixedPointVolumeRayCastMapper.h.

vtkColorTransferFunction* vtkFixedPointVolumeRayCastMapper::SavedRGBFunction[4] [protected]

Definition at line 342 of file vtkFixedPointVolumeRayCastMapper.h.

vtkPiecewiseFunction* vtkFixedPointVolumeRayCastMapper::SavedGrayFunction[4] [protected]

Definition at line 343 of file vtkFixedPointVolumeRayCastMapper.h.

vtkPiecewiseFunction* vtkFixedPointVolumeRayCastMapper::SavedScalarOpacityFunction[4] [protected]

Definition at line 344 of file vtkFixedPointVolumeRayCastMapper.h.

vtkPiecewiseFunction* vtkFixedPointVolumeRayCastMapper::SavedGradientOpacityFunction[4] [protected]

Definition at line 345 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::SavedColorChannels[4] [protected]

Definition at line 346 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::SavedScalarOpacityDistance[4] [protected]

Definition at line 347 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::SavedBlendMode [protected]

Definition at line 348 of file vtkFixedPointVolumeRayCastMapper.h.

vtkImageData* vtkFixedPointVolumeRayCastMapper::SavedParametersInput [protected]

Definition at line 349 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTimeStamp vtkFixedPointVolumeRayCastMapper::SavedParametersMTime [protected]

Definition at line 350 of file vtkFixedPointVolumeRayCastMapper.h.

vtkImageData* vtkFixedPointVolumeRayCastMapper::SavedGradientsInput [protected]

Definition at line 352 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTimeStamp vtkFixedPointVolumeRayCastMapper::SavedGradientsMTime [protected]

Definition at line 353 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::SavedSampleDistance [protected]

Definition at line 355 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short vtkFixedPointVolumeRayCastMapper::ColorTable[4][32768 *3] [protected]

Definition at line 358 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short vtkFixedPointVolumeRayCastMapper::ScalarOpacityTable[4][32768] [protected]

Definition at line 359 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short vtkFixedPointVolumeRayCastMapper::GradientOpacityTable[4][256] [protected]

Definition at line 360 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::TableSize[4] [protected]

Definition at line 361 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::TableScale[4] [protected]

Definition at line 362 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::TableShift[4] [protected]

Definition at line 363 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::GradientMagnitudeScale[4] [protected]

Definition at line 365 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::GradientMagnitudeShift[4] [protected]

Definition at line 366 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short** vtkFixedPointVolumeRayCastMapper::GradientNormal [protected]

Definition at line 368 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned char** vtkFixedPointVolumeRayCastMapper::GradientMagnitude [protected]

Definition at line 369 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short* vtkFixedPointVolumeRayCastMapper::ContiguousGradientNormal [protected]

Definition at line 370 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned char* vtkFixedPointVolumeRayCastMapper::ContiguousGradientMagnitude [protected]

Definition at line 371 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::NumberOfGradientSlices [protected]

Definition at line 373 of file vtkFixedPointVolumeRayCastMapper.h.

vtkDirectionEncoder* vtkFixedPointVolumeRayCastMapper::DirectionEncoder [protected]

Definition at line 375 of file vtkFixedPointVolumeRayCastMapper.h.

vtkEncodedGradientShader* vtkFixedPointVolumeRayCastMapper::GradientShader [protected]

Definition at line 377 of file vtkFixedPointVolumeRayCastMapper.h.

vtkFiniteDifferenceGradientEstimator* vtkFixedPointVolumeRayCastMapper::GradientEstimator [protected]

Definition at line 379 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short vtkFixedPointVolumeRayCastMapper::DiffuseShadingTable[4][65536 *3] [protected]

Definition at line 381 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short vtkFixedPointVolumeRayCastMapper::SpecularShadingTable[4][65536 *3] [protected]

Definition at line 382 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::ShadingRequired [protected]

Definition at line 384 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::GradientOpacityRequired [protected]

Definition at line 385 of file vtkFixedPointVolumeRayCastMapper.h.

vtkRenderWindow* vtkFixedPointVolumeRayCastMapper::RenderWindow [protected]

Definition at line 387 of file vtkFixedPointVolumeRayCastMapper.h.

vtkVolume* vtkFixedPointVolumeRayCastMapper::Volume [protected]

Definition at line 388 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned int vtkFixedPointVolumeRayCastMapper::FixedPointCroppingRegionPlanes[6] [protected]

Definition at line 408 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned int vtkFixedPointVolumeRayCastMapper::CroppingRegionMask[27] [protected]

Definition at line 409 of file vtkFixedPointVolumeRayCastMapper.h. Referenced by CheckIfCropped().

vtkFixedPointVolumeRayCastMIPHelper* vtkFixedPointVolumeRayCastMapper::MIPHelper [protected]

Definition at line 416 of file vtkFixedPointVolumeRayCastMapper.h.

vtkFixedPointVolumeRayCastCompositeHelper* vtkFixedPointVolumeRayCastMapper::CompositeHelper [protected]

Definition at line 417 of file vtkFixedPointVolumeRayCastMapper.h.

vtkFixedPointVolumeRayCastCompositeGOHelper* vtkFixedPointVolumeRayCastMapper::CompositeGOHelper [protected]

Definition at line 418 of file vtkFixedPointVolumeRayCastMapper.h.

vtkFixedPointVolumeRayCastCompositeShadeHelper* vtkFixedPointVolumeRayCastMapper::CompositeShadeHelper [protected]

Definition at line 419 of file vtkFixedPointVolumeRayCastMapper.h.

vtkFixedPointVolumeRayCastCompositeGOShadeHelper* vtkFixedPointVolumeRayCastMapper::CompositeGOShadeHelper [protected]

Definition at line 420 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::ViewToVoxelsArray[16] [protected]

Definition at line 423 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::WorldToVoxelsArray[16] [protected]

Definition at line 424 of file vtkFixedPointVolumeRayCastMapper.h.

float vtkFixedPointVolumeRayCastMapper::VoxelsToWorldArray[16] [protected]

Definition at line 425 of file vtkFixedPointVolumeRayCastMapper.h.

double vtkFixedPointVolumeRayCastMapper::CroppingBounds[6] [protected]

Definition at line 427 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::NumTransformedClippingPlanes [protected]

Definition at line 429 of file vtkFixedPointVolumeRayCastMapper.h.

float* vtkFixedPointVolumeRayCastMapper::TransformedClippingPlanes [protected]

Definition at line 430 of file vtkFixedPointVolumeRayCastMapper.h.

double vtkFixedPointVolumeRayCastMapper::SavedSpacing[3] [protected]

Definition at line 432 of file vtkFixedPointVolumeRayCastMapper.h.

unsigned short* vtkFixedPointVolumeRayCastMapper::MinMaxVolume [protected]

Definition at line 436 of file vtkFixedPointVolumeRayCastMapper.h.

int vtkFixedPointVolumeRayCastMapper::MinMaxVolumeSize[4] [protected]

Definition at line 437 of file vtkFixedPointVolumeRayCastMapper.h. Referenced by CheckMinMaxVolumeFlag(), and CheckMIPMinMaxVolumeFlag().

vtkImageData* vtkFixedPointVolumeRayCastMapper::SavedMinMaxInput [protected]

Definition at line 438 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTimeStamp vtkFixedPointVolumeRayCastMapper::SavedMinMaxBuildTime [protected]

Definition at line 439 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTimeStamp vtkFixedPointVolumeRayCastMapper::SavedMinMaxGradientTime [protected]

Definition at line 440 of file vtkFixedPointVolumeRayCastMapper.h.

vtkTimeStamp vtkFixedPointVolumeRayCastMapper::SavedMinMaxFlagTime [protected]

Definition at line 441 of file vtkFixedPointVolumeRayCastMapper.h.

---

The documentation for this class was generated from the following file:

• dox/VolumeRendering/vtkFixedPointVolumeRayCastMapper.h

---
