vtkTextActor3D Class Reference

#include <vtkTextActor3D.h>

Inheritance diagram for vtkTextActor3D:

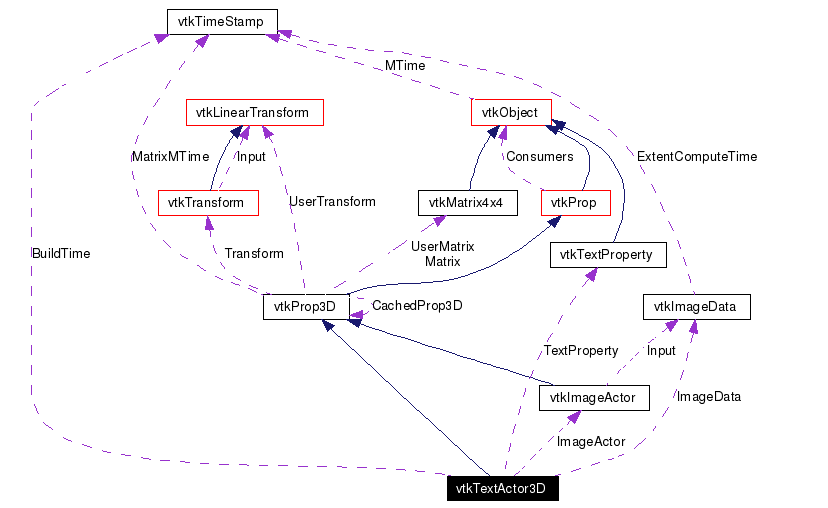

[legend]Collaboration diagram for vtkTextActor3D:

[legend]List of all members.

---

Detailed Description

An actor that displays text.

The input text is rendered into a buffer, which in turn is used as a texture applied onto a quad (a vtkImageActor is used under the hood).

Warning:

This class is experimental at the moment.

• The orientation is not optimized, the quad should be oriented, not the text itself when it is rendered in the buffer (we end up with excessively big textures for 45 degrees angles). This will be fixed first.
• No checking is done at the moment regarding hardware texture size limits.
• Alignment is not supported (soon).
• Multiline is not supported.
• Need to fix angle out of 0<->360

See also:

vtkProp3D

Tests:

vtkTextActor3D (Tests)

Definition at line 47 of file vtkTextActor3D.h.

Public Types
typedef vtkProp3D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	ShallowCopy (vtkProp *prop)
virtual double *	GetBounds ()
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInput (const char *)
virtual char *	GetInput ()
virtual void	SetTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetTextProperty ()
virtual void	ReleaseGraphicsResources (vtkWindow *)
int	RenderOpaqueGeometry (vtkViewport *viewport)
int	RenderTranslucentGeometry (vtkViewport *viewport)
int	RenderOverlay (vtkViewport *viewport)
Static Public Member Functions
static vtkTextActor3D *	New ()
static int	IsTypeOf (const char *type)
static vtkTextActor3D *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTextActor3D ()
	~vtkTextActor3D ()
virtual int	UpdateImageActor ()
Protected Attributes
char *	Input
vtkImageActor *	ImageActor
vtkImageData *	ImageData
vtkTextProperty *	TextProperty
vtkTimeStamp	BuildTime

---

Member Typedef Documentation

typedef vtkProp3D vtkTextActor3D::Superclass

Reimplemented from vtkProp3D. Definition at line 51 of file vtkTextActor3D.h.

---

Constructor & Destructor Documentation

vtkTextActor3D::vtkTextActor3D (   )  [protected]

vtkTextActor3D::~vtkTextActor3D (   )  [protected]

---

Member Function Documentation

static vtkTextActor3D* vtkTextActor3D::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkTextActor3D::GetClassName (   )  [virtual]

Reimplemented from vtkProp3D.

static int vtkTextActor3D::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkProp3D.

virtual int vtkTextActor3D::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkProp3D.

static vtkTextActor3D* vtkTextActor3D::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkProp3D.

void vtkTextActor3D::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProp3D.

virtual void vtkTextActor3D::SetInput (  const char *   )  [virtual]

Set the text string to be displayed.

virtual char* vtkTextActor3D::GetInput (   )  [virtual]

virtual void vtkTextActor3D::SetTextProperty (  vtkTextProperty *  p  )  [virtual]

Set/Get the text property.

virtual vtkTextProperty* vtkTextActor3D::GetTextProperty (   )  [virtual]

Set/Get the text property.

void vtkTextActor3D::ShallowCopy (  vtkProp *  prop  )  [virtual]

Shallow copy of this text actor. Overloads the virtual vtkProp method. Reimplemented from vtkProp3D.

virtual double* vtkTextActor3D::GetBounds (   )  [virtual]

Get the bounds for this Prop3D as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). Implements vtkProp3D.

virtual void vtkTextActor3D::ReleaseGraphicsResources (  vtkWindow *   )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkProp.

int vtkTextActor3D::RenderOpaqueGeometry (  vtkViewport *  viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the text actor to the screen. Reimplemented from vtkProp.

int vtkTextActor3D::RenderTranslucentGeometry (  vtkViewport *  viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkProp.

int vtkTextActor3D::RenderOverlay (  vtkViewport *  viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkProp.

virtual int vtkTextActor3D::UpdateImageActor (   )  [protected, virtual]

---

Member Data Documentation

char* vtkTextActor3D::Input [protected]

Definition at line 94 of file vtkTextActor3D.h.

vtkImageActor* vtkTextActor3D::ImageActor [protected]

Definition at line 96 of file vtkTextActor3D.h.

vtkImageData* vtkTextActor3D::ImageData [protected]

Definition at line 97 of file vtkTextActor3D.h.

vtkTextProperty* vtkTextActor3D::TextProperty [protected]

Definition at line 98 of file vtkTextActor3D.h.

vtkTimeStamp vtkTextActor3D::BuildTime [protected]

Definition at line 100 of file vtkTextActor3D.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkTextActor3D.h

---
