vtkSplineFilter Class Reference

#include <vtkSplineFilter.h>

Inheritance diagram for vtkSplineFilter:

[legend]

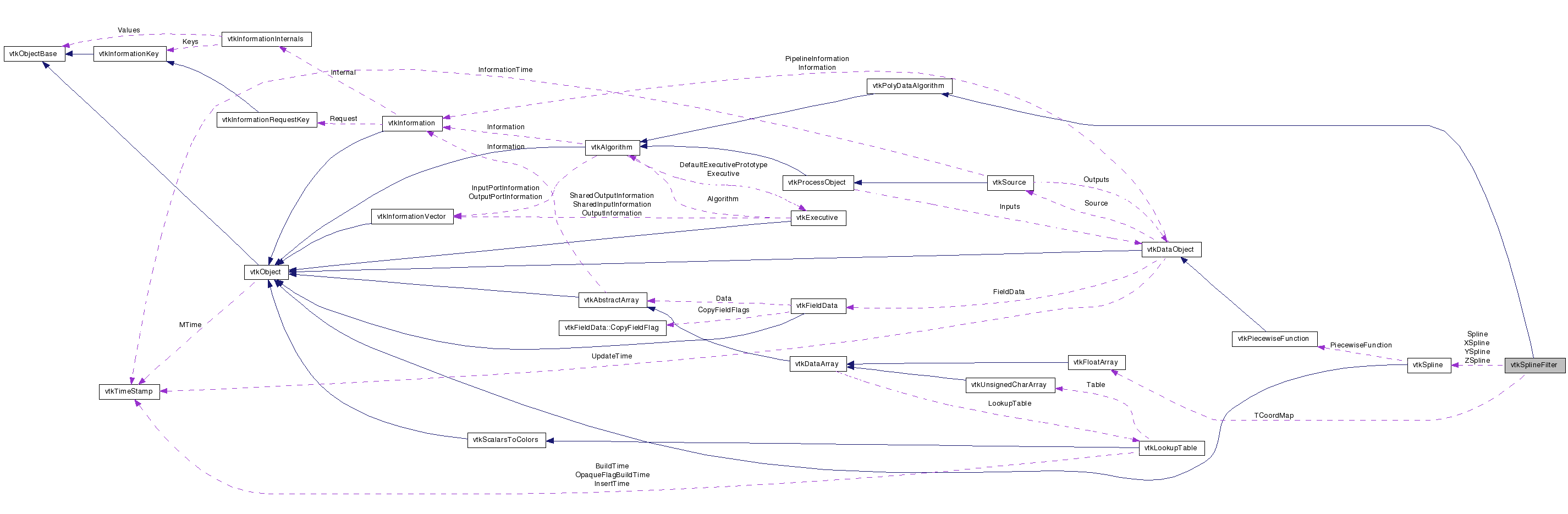

Collaboration diagram for vtkSplineFilter:

[legend]

List of all members.

Detailed Description

generate uniformly subdivided polylines from a set of input polyline using a vtkSpline

vtkSplineFilter is a filter that generates an output polylines from an input set of polylines. The polylines are uniformly subdivided and produced with the help of a vtkSpline class that the user can specify (by default a vtkCardinalSpline is used). The number of subdivisions of the line can be controlled in several ways. The user can either specify the number of subdivisions or a length of each subdivision can be provided (and the class will figure out how many subdivisions is required over the whole polyline). The maximum number of subdivisions can also be set.

The output of this filter is a polyline per input polyline (or line). New points and texture coordinates are created. Point data is interpolated and cell data passed on. Any polylines with less than two points, or who have coincident points, are ignored.

See also:: vtkRibbonFilter vtkTubeFilter

Tests:: vtkSplineFilter (Tests)

Definition at line 59 of file vtkSplineFilter.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetMaximumNumberOfSubdivisions (int)
virtual int	GetMaximumNumberOfSubdivisions ()

virtual void	SetSubdivide (int)
virtual int	GetSubdivide ()
void	SetSubdivideToSpecified ()
void	SetSubdivideToLength ()
const char *	GetSubdivideAsString ()

virtual void	SetNumberOfSubdivisions (int)
virtual int	GetNumberOfSubdivisions ()

virtual void	SetLength (double)
virtual double	GetLength ()

virtual void	SetSpline (vtkSpline *)
virtual vtkSpline *	GetSpline ()

virtual void	SetGenerateTCoords (int)
virtual int	GetGenerateTCoords ()
void	SetGenerateTCoordsToOff ()
void	SetGenerateTCoordsToNormalizedLength ()
void	SetGenerateTCoordsToUseLength ()
void	SetGenerateTCoordsToUseScalars ()
const char *	GetGenerateTCoordsAsString ()

virtual void	SetTextureLength (double)
virtual double	GetTextureLength ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkSplineFilter *	SafeDownCast (vtkObject *o)
static vtkSplineFilter *	New ()
Protected Member Functions
	vtkSplineFilter ()
	~vtkSplineFilter ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
int	GeneratePoints (vtkIdType offset, vtkIdType npts, vtkIdType pts, vtkPoints inPts, vtkPoints newPts, vtkPointData pd, vtkPointData outPD, int genTCoords, vtkFloatArray newTCoords)
void	GenerateLine (vtkIdType offset, vtkIdType numGenPts, vtkIdType inCellId, vtkCellData cd, vtkCellData outCD, vtkCellArray *newLines)
Protected Attributes
int	MaximumNumberOfSubdivisions
int	Subdivide
int	NumberOfSubdivisions
double	Length
vtkSpline *	Spline
vtkSpline *	XSpline
vtkSpline *	YSpline
vtkSpline *	ZSpline
int	GenerateTCoords
double	TextureLength
vtkFloatArray *	TCoordMap

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkSplineFilter::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 62 of file vtkSplineFilter.h.

Constructor & Destructor Documentation

vtkSplineFilter::vtkSplineFilter ( ) [protected]

vtkSplineFilter::~vtkSplineFilter ( ) [protected]

Member Function Documentation

virtual const char* vtkSplineFilter::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkSplineFilter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkSplineFilter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkSplineFilter* vtkSplineFilter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkSplineFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkSplineFilter* vtkSplineFilter::New ( ) [static]

Construct the class with no limit on the number of subdivisions and using an instance of vtkCardinalSpline to perform interpolation.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkSplineFilter::SetMaximumNumberOfSubdivisions ( int ) [virtual]

Set the maximum number of subdivisions that are created for each polyline.

virtual int vtkSplineFilter::GetMaximumNumberOfSubdivisions ( ) [virtual]

Set the maximum number of subdivisions that are created for each polyline.

virtual void vtkSplineFilter::SetSubdivide ( int ) [virtual]

Specify how the number of subdivisions is determined.

virtual int vtkSplineFilter::GetSubdivide ( ) [virtual]

Specify how the number of subdivisions is determined.

void vtkSplineFilter::SetSubdivideToSpecified ( ) [inline]

Specify how the number of subdivisions is determined.

Definition at line 80 of file vtkSplineFilter.h.

void vtkSplineFilter::SetSubdivideToLength ( ) [inline]

Specify how the number of subdivisions is determined.

Definition at line 82 of file vtkSplineFilter.h.

const char* vtkSplineFilter::GetSubdivideAsString ( )

Specify how the number of subdivisions is determined.

virtual void vtkSplineFilter::SetNumberOfSubdivisions ( int ) [virtual]

Set the number of subdivisions that are created for the polyline. This method only has effect if Subdivisions is set to SetSubdivisionsToSpecify().

virtual int vtkSplineFilter::GetNumberOfSubdivisions ( ) [virtual]

Set the number of subdivisions that are created for the polyline. This method only has effect if Subdivisions is set to SetSubdivisionsToSpecify().

virtual void vtkSplineFilter::SetLength ( double ) [virtual]

Control the number of subdivisions that are created for the polyline based on an absolute length. The length of the spline is divided by this length to determine the number of subdivisions.

virtual double vtkSplineFilter::GetLength ( ) [virtual]

Control the number of subdivisions that are created for the polyline based on an absolute length. The length of the spline is divided by this length to determine the number of subdivisions.

virtual void vtkSplineFilter::SetSpline ( vtkSpline * ) [virtual]

Specify an instance of vtkSpline to use to perform the interpolation.

virtual vtkSpline* vtkSplineFilter::GetSpline ( ) [virtual]

Specify an instance of vtkSpline to use to perform the interpolation.

virtual void vtkSplineFilter::SetGenerateTCoords ( int ) [virtual]
