vtkTubeFilter Class Reference

#include <vtkTubeFilter.h>

Inheritance diagram for vtkTubeFilter:

Inheritance graph
[legend]

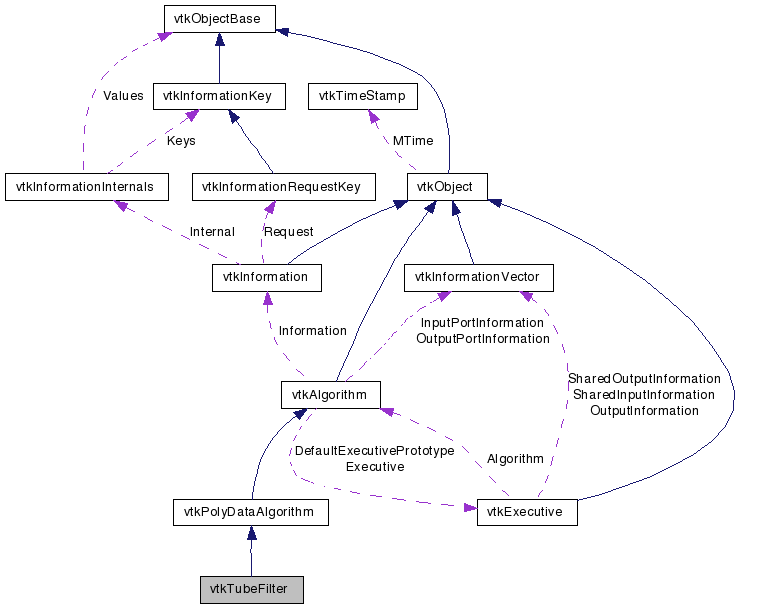

Collaboration diagram for vtkTubeFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

filter that generates tubes around lines

vtkTubeFilter is a filter that generates a tube around each input line. The tubes are made up of triangle strips and rotate around the tube with the rotation of the line normals. (If no normals are present, they are computed automatically.) The radius of the tube can be set to vary with scalar or vector value. If the radius varies with scalar value the radius is linearly adjusted. If the radius varies with vector value, a mass flux preserving variation is used. The number of sides for the tube also can be specified. You can also specify which of the sides are visible. This is useful for generating interesting striping effects. Other options include the ability to cap the tube and generate texture coordinates. Texture coordinates can be used with an associated texture map to create interesting effects such as marking the tube with stripes corresponding to length or time.

This filter is typically used to create thick or dramatic lines. Another common use is to combine this filter with vtkStreamLine to generate streamtubes.

Warning:
The number of tube sides must be greater than 3. If you wish to use fewer sides (i.e., a ribbon), use vtkRibbonFilter.

The input line must not have duplicate points, or normals at points that are parallel to the incoming/outgoing line segments. (Duplicate points can be removed with vtkCleanPolyData.) If a line does not meet this criteria, then that line is not tubed.

See also:
vtkRibbonFilter vtkStreamLine
Thanks:
Michael Finch for absolute scalar radius
Tests:
vtkTubeFilter (Tests)

Definition at line 78 of file vtkTubeFilter.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetRadius (double)
virtual double GetRadius ()
virtual void SetVaryRadius (int)
virtual int GetVaryRadius ()
void SetVaryRadiusToVaryRadiusOff ()
void SetVaryRadiusToVaryRadiusByScalar ()
void SetVaryRadiusToVaryRadiusByVector ()
void SetVaryRadiusToVaryRadiusByAbsoluteScalar ()
const char * GetVaryRadiusAsString ()
virtual void SetNumberOfSides (int)
virtual int GetNumberOfSides ()
virtual void SetRadiusFactor (double)
virtual double GetRadiusFactor ()
virtual void SetDefaultNormal (double, double, double)
virtual void SetDefaultNormal (double[3])
virtual double * GetDefaultNormal ()
virtual void GetDefaultNormal (double data[3])
virtual void SetUseDefaultNormal (int)
virtual int GetUseDefaultNormal ()
virtual void UseDefaultNormalOn ()
virtual void UseDefaultNormalOff ()
virtual void SetSidesShareVertices (int)
virtual int GetSidesShareVertices ()
virtual void SidesShareVerticesOn ()
virtual void SidesShareVerticesOff ()
virtual void SetCapping (int)
virtual int GetCapping ()
virtual void CappingOn ()
virtual void CappingOff ()
virtual void SetOnRatio (int)
virtual int GetOnRatio ()
virtual void SetOffset (int)
virtual int GetOffset ()
virtual void SetGenerateTCoords (int)
virtual int GetGenerateTCoords ()
void SetGenerateTCoordsToOff ()
void SetGenerateTCoordsToNormalizedLength ()
void SetGenerateTCoordsToUseLength ()
void SetGenerateTCoordsToUseScalars ()
const char * GetGenerateTCoordsAsString ()
virtual void SetTextureLength (double)
virtual double GetTextureLength ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkTubeFilterSafeDownCast (vtkObject *o)
static vtkTubeFilterNew ()

Protected Member Functions

 vtkTubeFilter ()
 ~vtkTubeFilter ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int GeneratePoints (vtkIdType offset, vtkIdType npts, vtkIdType *pts, vtkPoints *inPts, vtkPoints *newPts, vtkPointData *pd, vtkPointData *outPD, vtkFloatArray *newNormals, vtkDataArray *inScalars, double range[2], vtkDataArray *inVectors, double maxNorm, vtkDataArray *inNormals)
void GenerateStrips (vtkIdType offset, vtkIdType npts, vtkIdType *pts, vtkIdType inCellId, vtkCellData *cd, vtkCellData *outCD, vtkCellArray *newStrips)
void GenerateTextureCoords (vtkIdType offset, vtkIdType npts, vtkIdType *pts, vtkPoints *inPts, vtkDataArray *inScalars, vtkFloatArray *newTCoords)
vtkIdType ComputeOffset (vtkIdType offset, vtkIdType npts)

Protected Attributes

double Radius
int VaryRadius
int NumberOfSides
double RadiusFactor
double DefaultNormal [3]
int UseDefaultNormal
int SidesShareVertices
int Capping
int OnRatio
int Offset
int GenerateTCoords
double TextureLength
double Theta

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 81 of file vtkTubeFilter.h.


Constructor & Destructor Documentation

vtkTubeFilter::vtkTubeFilter (  )  [protected]

vtkTubeFilter::~vtkTubeFilter (  )  [inline, protected]

Definition at line 201 of file vtkTubeFilter.h.


Member Function Documentation

virtual const char* vtkTubeFilter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkTubeFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkTubeFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkTubeFilter* vtkTubeFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkTubeFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkTubeFilter* vtkTubeFilter::New (  )  [static]

Construct object with radius 0.5, radius variation turned off, the number of sides set to 3, and radius factor of 10.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkTubeFilter::SetRadius ( double   )  [virtual]

Set the minimum tube radius (minimum because the tube radius may vary).

virtual double vtkTubeFilter::GetRadius (  )  [virtual]

Set the minimum tube radius (minimum because the tube radius may vary).

virtual void vtkTubeFilter::SetVaryRadius ( int   )  [virtual]

Turn on/off the variation of tube radius with scalar value.

virtual int vtkTubeFilter::GetVaryRadius (  )  [virtual]

Turn on/off the variation of tube radius with scalar value.

void vtkTubeFilter::SetVaryRadiusToVaryRadiusOff (  )  [inline]

Turn on/off the variation of tube radius with scalar value.

Definition at line 100 of file vtkTubeFilter.h.

void vtkTubeFilter::SetVaryRadiusToVaryRadiusByScalar (  )  [inline]

Turn on/off the variation of tube radius with scalar value.

Definition at line 102 of file vtkTubeFilter.h.

void vtkTubeFilter::SetVaryRadiusToVaryRadiusByVector (  )  [inline]

Turn on/off the variation of tube radius with scalar value.

Definition at line 104 of file vtkTubeFilter.h.

void vtkTubeFilter::SetVaryRadiusToVaryRadiusByAbsoluteScalar (  )  [inline]

Turn on/off the variation of tube radius with scalar value.

Definition at line 106 of file vtkTubeFilter.h.

const char* vtkTubeFilter::GetVaryRadiusAsString (  )

Turn on/off the variation of tube radius with scalar value.

virtual void vtkTubeFilter::SetNumberOfSides ( int   )  [virtual]

Set the number of sides for the tube. At a minimum, number of sides is 3.

virtual int vtkTubeFilter::GetNumberOfSides (  )  [virtual]

Set the number of sides for the tube. At a minimum, number of sides is 3.

virtual void vtkTubeFilter::SetRadiusFactor ( double   )  [virtual]

Set the maximum tube radius in terms of a multiple of the minimum radius.

virtual double vtkTubeFilter::GetRadiusFactor (  )  [virtual]

Set the maximum tube radius in terms of a multiple of the minimum radius.

virtual void vtkTubeFilter::SetDefaultNormal ( double  ,
double  ,
double
) [virtual]

Set the default normal to use if no normals are supplied, and the DefaultNormalOn is set.

virtual void vtkTubeFilter::SetDefaultNormal ( double  [3]  )  [virtual]

Set the default normal to use if no normals are supplied, and the DefaultNormalOn is set.

virtual double* vtkTubeFilter::GetDefaultNormal (  )  [virtual]

Set the default normal to use if no normals are supplied, and the DefaultNormalOn is set.

virtual void vtkTubeFilter::GetDefaultNormal ( double  data[3]  )  [virtual]

Set the default normal to use if no normals are supplied, and the DefaultNormalOn is set.

virtual void vtkTubeFilter::SetUseDefaultNormal ( int   )  [virtual]

Set a boolean to control whether to use default normals. DefaultNormalOn is set.

virtual int vtkTubeFilter::GetUseDefaultNormal (  )  [virtual]

Set a boolean to control whether to use default normals. DefaultNormalOn is set.

virtual void vtkTubeFilter::UseDefaultNormalOn (  )  [virtual]

Set a boolean to control whether to use default normals. DefaultNormalOn is set.

virtual void vtkTubeFilter::UseDefaultNormalOff (  )  [virtual]

Set a boolean to control whether to use default normals. DefaultNormalOn is set.

virtual void vtkTubeFilter::SetSidesShareVertices ( int   )  [virtual]

Set a boolean to control whether tube sides should share vertices. This creates independent strips, with constant normals so the tube is always faceted in appearance.

virtual int vtkTubeFilter::GetSidesShareVertices (  )  [virtual]

Set a boolean to control whether tube sides should share vertices. This creates independent strips, with constant normals so the tube is always faceted in appearance.

virtual void vtkTubeFilter::SidesShareVerticesOn (  )  [virtual]

Set a boolean to control whether tube sides should share vertices. This creates independent strips, with constant normals so the tube is always faceted in appearance.

virtual void vtkTubeFilter::SidesShareVerticesOff (  )  [virtual]

Set a boolean to control whether tube sides should share vertices. This creates independent strips, with constant normals so the tube is always faceted in appearance.

virtual void vtkTubeFilter::SetCapping ( int   )  [virtual]

Turn on/off whether to cap the ends with polygons.

virtual int vtkTubeFilter::GetCapping (  )  [virtual]

Turn on/off whether to cap the ends with polygons.

virtual void vtkTubeFilter::CappingOn (  )  [virtual]

Turn on/off whether to cap the ends with polygons.

virtual void vtkTubeFilter::CappingOff (  )  [virtual]

Turn on/off whether to cap the ends with polygons.

virtual void vtkTubeFilter::SetOnRatio ( int   )  [virtual]

Control the striping of the tubes. If OnRatio is greater than 1, then every nth tube side is turned on, beginning with the Offset side.

virtual int vtkTubeFilter::GetOnRatio (  )  [virtual]

Control the striping of the tubes. If OnRatio is greater than 1, then every nth tube side is turned on, beginning with the Offset side.

virtual void vtkTubeFilter::SetOffset ( int   )  [virtual]

Control the striping of the tubes. The offset sets the first tube side that is visible. Offset is generally used with OnRatio to create nifty striping effects.

virtual int vtkTubeFilter::GetOffset (  )  [virtual]

Control the striping of the tubes. The offset sets the first tube side that is visible. Offset is generally used with OnRatio to create nifty striping effects.

virtual void vtkTubeFilter::SetGenerateTCoords ( int   )  [virtual]

Control whether and how texture coordinates are produced. This is useful for striping the tube with length textures, etc. If you use scalars to create the texture, the scalars are assumed to be monotonically increasing (or decreasing).

virtual int vtkTubeFilter::GetGenerateTCoords (  )  [virtual]

Control whether and how texture coordinates are produced. This is useful for striping the tube with length textures, etc. If you use scalars to create the texture, the scalars are assumed to be monotonically increasing (or decreasing).

void vtkTubeFilter::SetGenerateTCoordsToOff (  )  [inline]

Control whether and how texture coordinates are produced. This is useful for striping the tube with length textures, etc. If you use scalars to create the texture, the scalars are assumed to be monotonically increasing (or decreasing).

Definition at line 179 of file vtkTubeFilter.h.

void vtkTubeFilter::SetGenerateTCoordsToNormalizedLength (  )  [inline]

Control whether and how texture coordinates are produced. This is useful for striping the tube with length textures, etc. If you use scalars to create the texture, the scalars are assumed to be monotonically increasing (or decreasing).

Definition at line 181 of file vtkTubeFilter.h.

void vtkTubeFilter::SetGenerateTCoordsToUseLength (  )  [inline]

Control whether and how texture coordinates are produced. This is useful for striping the tube with length textures, etc. If you use scalars to create the texture, the scalars are assumed to be monotonically increasing (or decreasing).

Definition at line 183 of file vtkTubeFilter.h.

void vtkTubeFilter::SetGenerateTCoordsToUseScalars (  )  [inline]

Control whether and how texture coordinates are produced. This is useful for striping the tube with length textures, etc. If you use scalars to create the texture, the scalars are assumed to be monotonically increasing (or decreasing).

Definition at line 185 of file vtkTubeFilter.h.

const char* vtkTubeFilter::GetGenerateTCoordsAsString (  )

Control whether and how texture coordinates are produced. This is useful for striping the tube with length textures, etc. If you use scalars to create the texture, the scalars are assumed to be monotonically increasing (or decreasing).

virtual void vtkTubeFilter::SetTextureLength ( double   )  [virtual]

Control the conversion of units during the texture coordinates calculation. The TextureLength indicates what length (whether calculated from scalars or length) is mapped to the [0,1) texture space.

virtual double vtkTubeFilter::GetTextureLength (  )  [virtual]

Control the conversion of units during the texture coordinates calculation. The TextureLength indicates what length (whether calculated from scalars or length) is mapped to the [0,1) texture space.

int vtkTubeFilter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkTubeFilter::GeneratePoints ( vtkIdType  offset,
vtkIdType  npts,
vtkIdType pts,
vtkPoints inPts,
vtkPoints newPts,
vtkPointData pd,
vtkPointData outPD,
vtkFloatArray newNormals,
vtkDataArray inScalars,
double  range[2],
vtkDataArray inVectors,
double  maxNorm,
vtkDataArray inNormals
) [protected]

void vtkTubeFilter::GenerateStrips ( vtkIdType  offset,
vtkIdType  npts,
vtkIdType pts,
vtkIdType  inCellId,
vtkCellData cd,
vtkCellData outCD,
vtkCellArray newStrips
) [protected]

void vtkTubeFilter::GenerateTextureCoords ( vtkIdType  offset,
vtkIdType  npts,
vtkIdType pts,
vtkPoints inPts,
vtkDataArray inScalars,
vtkFloatArray newTCoords
) [protected]

vtkIdType vtkTubeFilter::ComputeOffset ( vtkIdType  offset,
vtkIdType  npts
) [protected]


Member Data Documentation

double vtkTubeFilter::Radius [protected]

Definition at line 206 of file vtkTubeFilter.h.

int vtkTubeFilter::VaryRadius [protected]

Definition at line 207 of file vtkTubeFilter.h.

Definition at line 208 of file vtkTubeFilter.h.

double vtkTubeFilter::RadiusFactor [protected]

Definition at line 209 of file vtkTubeFilter.h.

double vtkTubeFilter::DefaultNormal[3] [protected]

Definition at line 210 of file vtkTubeFilter.h.

Definition at line 211 of file vtkTubeFilter.h.

Definition at line 212 of file vtkTubeFilter.h.

int vtkTubeFilter::Capping [protected]

Definition at line 213 of file vtkTubeFilter.h.

int vtkTubeFilter::OnRatio [protected]

Definition at line 214 of file vtkTubeFilter.h.

int vtkTubeFilter::Offset [protected]

Definition at line 215 of file vtkTubeFilter.h.

Definition at line 216 of file vtkTubeFilter.h.

double vtkTubeFilter::TextureLength [protected]

Definition at line 217 of file vtkTubeFilter.h.

double vtkTubeFilter::Theta [protected]

Definition at line 235 of file vtkTubeFilter.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:42:06 2009 for VTK by  doxygen 1.5.6
