common/vtkSetGet.h File Reference

#include "vtkSystemIncludes.h"
#include <math.h>

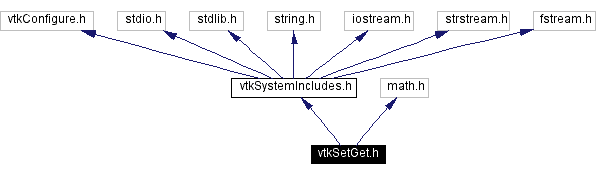

Include dependency graph for vtkSetGet.h:

Include dependency graph

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Go to the source code of this file.

Defines

#define VTK_LARGE_FLOAT   1.0e+38F
#define VTK_LARGE_INTEGER   2147483647
#define VTK_VOID   0
#define VTK_BIT   1
#define VTK_CHAR   2
#define VTK_UNSIGNED_CHAR   3
#define VTK_SHORT   4
#define VTK_UNSIGNED_SHORT   5
#define VTK_INT   6
#define VTK_UNSIGNED_INT   7
#define VTK_LONG   8
#define VTK_UNSIGNED_LONG   9
#define VTK_FLOAT   10
#define VTK_DOUBLE   11
#define VTK_BIT_MIN   0
#define VTK_BIT_MAX   1
#define VTK_CHAR_MIN   -128
#define VTK_CHAR_MAX   127
#define VTK_UNSIGNED_CHAR_MIN   0
#define VTK_UNSIGNED_CHAR_MAX   255
#define VTK_SHORT_MIN   -32768
#define VTK_SHORT_MAX   32767
#define VTK_UNSIGNED_SHORT_MIN   0
#define VTK_UNSIGNED_SHORT_MAX   65535
#define VTK_INT_MIN   (-VTK_LARGE_INTEGER-1)
#define VTK_INT_MAX   VTK_LARGE_INTEGER
#define VTK_UNSIGNED_INT_MIN   0
#define VTK_UNSIGNED_INT_MAX   4294967295UL
#define VTK_LONG_MIN   (-VTK_LARGE_INTEGER-1)
#define VTK_LONG_MAX   VTK_LARGE_INTEGER
#define VTK_UNSIGNED_LONG_MIN   0
#define VTK_UNSIGNED_LONG_MAX   4294967295UL
#define VTK_FLOAT_MIN   -VTK_LARGE_FLOAT
#define VTK_FLOAT_MAX   VTK_LARGE_FLOAT
#define VTK_DOUBLE_MIN   -1.0e+99L
#define VTK_DOUBLE_MAX   1.0e+99L
#define VTK_POLY_DATA   0
#define VTK_STRUCTURED_POINTS   1
#define VTK_STRUCTURED_GRID   2
#define VTK_RECTILINEAR_GRID   3
#define VTK_UNSTRUCTURED_GRID   4
#define VTK_PIECEWISE_FUNCTION   5
#define VTK_IMAGE_DATA   6
#define VTK_DATA_OBJECT   7
#define VTK_DATA_SET   8
#define vtkImageScalarTypeNameMacro(type)
#define vtkSetMacro(name, type)
#define vtkGetMacro(name, type)
#define vtkSetStringMacro(name)
#define vtkGetStringMacro(name)
#define vtkSetClampMacro(name, type, min, max)
#define vtkSetObjectMacro(name, type)
#define vtkSetReferenceCountedObjectMacro(name, type)
#define vtkGetObjectMacro(name, type)
#define vtkBooleanMacro(name, type)
#define vtkSetVector2Macro(name, type)
#define vtkGetVector2Macro(name, type)
#define vtkSetVector3Macro(name, type)
#define vtkGetVector3Macro(name, type)
#define vtkSetVector4Macro(name, type)
#define vtkGetVector4Macro(name, type)
#define vtkSetVector6Macro(name, type)
#define vtkGetVector6Macro(name, type)
#define vtkSetVectorMacro(name, type, count)
#define vtkGetVectorMacro(name, type, count)
#define vtkGenericWarningMacro(x)
#define vtkDebugMacro(x)
#define vtkWarningMacro(x)
#define vtkErrorMacro(x)
#define vtkNotUsed(x)
#define vtkWorldCoordinateMacro(name)
#define vtkViewportCoordinateMacro(name)
#define vtkTypeMacro(thisClass, superclass)
#define vtkTemplateMacro3(func, arg1, arg2, arg3)
#define vtkTemplateMacro4(func, arg1, arg2, arg3, arg4)
#define vtkTemplateMacro5(func, arg1, arg2, arg3, arg4, arg5)
#define vtkTemplateMacro6(func, arg1, arg2, arg3, arg4, arg5, arg6)
#define vtkTemplateMacro7(func, arg1, arg2, arg3, arg4, arg5, arg6, arg7)
#define vtkTemplateMacro8(func, arg1, arg2, arg3, arg4, arg5, arg6, arg7, arg8)
#define vtkTemplateMacro9(func, arg1, arg2, arg3, arg4, arg5, arg6, arg7, arg8, arg9)
#define vtkTemplateMacro10(func, arg1, arg2, arg3, arg4, arg5, arg6, arg7, arg8, arg9, arg10)
#define VTK_LEGACY_METHOD(oldMethod, versionStringMadeLegacy)

Functions

VTK_EXPORT void vtkOutputWindowDisplayText (const char *)


Define Documentation

#define VTK_LARGE_FLOAT   1.0e+38F


Definition at line 61 of file vtkSetGet.h.

#define VTK_LARGE_INTEGER   2147483647


Definition at line 62 of file vtkSetGet.h.

#define VTK_VOID   0


Definition at line 65 of file vtkSetGet.h.

#define VTK_BIT   1


Definition at line 66 of file vtkSetGet.h.

#define VTK_CHAR   2


Definition at line 67 of file vtkSetGet.h.

#define VTK_UNSIGNED_CHAR   3


Definition at line 68 of file vtkSetGet.h.

#define VTK_SHORT   4


Definition at line 69 of file vtkSetGet.h.

#define VTK_UNSIGNED_SHORT   5


Definition at line 70 of file vtkSetGet.h.

#define VTK_INT   6


Definition at line 71 of file vtkSetGet.h.

#define VTK_UNSIGNED_INT   7


Definition at line 72 of file vtkSetGet.h.

#define VTK_LONG   8


Definition at line 73 of file vtkSetGet.h.

#define VTK_UNSIGNED_LONG   9


Definition at line 74 of file vtkSetGet.h.

#define VTK_FLOAT   10


Definition at line 75 of file vtkSetGet.h.

#define VTK_DOUBLE   11


Definition at line 76 of file vtkSetGet.h.

#define VTK_BIT_MIN   0


Definition at line 79 of file vtkSetGet.h.

#define VTK_BIT_MAX   1


Definition at line 80 of file vtkSetGet.h.

#define VTK_CHAR_MIN   -128


Definition at line 81 of file vtkSetGet.h.

#define VTK_CHAR_MAX   127


Definition at line 82 of file vtkSetGet.h.

#define VTK_UNSIGNED_CHAR_MIN   0


Definition at line 83 of file vtkSetGet.h.

#define VTK_UNSIGNED_CHAR_MAX   255


Definition at line 84 of file vtkSetGet.h.

#define VTK_SHORT_MIN   -32768


Definition at line 85 of file vtkSetGet.h.

#define VTK_SHORT_MAX   32767


Definition at line 86 of file vtkSetGet.h.

#define VTK_UNSIGNED_SHORT_MIN   0


Definition at line 87 of file vtkSetGet.h.

#define VTK_UNSIGNED_SHORT_MAX   65535


Definition at line 88 of file vtkSetGet.h.

#define VTK_INT_MIN   (-VTK_LARGE_INTEGER-1)


Definition at line 89 of file vtkSetGet.h.

#define VTK_INT_MAX   VTK_LARGE_INTEGER


Definition at line 90 of file vtkSetGet.h.

#define VTK_UNSIGNED_INT_MIN   0


Definition at line 91 of file vtkSetGet.h.

#define VTK_UNSIGNED_INT_MAX   4294967295UL


Definition at line 92 of file vtkSetGet.h.

#define VTK_LONG_MIN   (-VTK_LARGE_INTEGER-1)


Definition at line 93 of file vtkSetGet.h.

#define VTK_LONG_MAX   VTK_LARGE_INTEGER


Definition at line 94 of file vtkSetGet.h.

#define VTK_UNSIGNED_LONG_MIN   0


Definition at line 95 of file vtkSetGet.h.

#define VTK_UNSIGNED_LONG_MAX   4294967295UL


Definition at line 96 of file vtkSetGet.h.

#define VTK_FLOAT_MIN   -VTK_LARGE_FLOAT


Definition at line 97 of file vtkSetGet.h.

#define VTK_FLOAT_MAX   VTK_LARGE_FLOAT


Definition at line 98 of file vtkSetGet.h.

#define VTK_DOUBLE_MIN   -1.0e+99L


Definition at line 99 of file vtkSetGet.h.

#define VTK_DOUBLE_MAX   1.0e+99L


Definition at line 100 of file vtkSetGet.h.

#define VTK_POLY_DATA   0


Definition at line 103 of file vtkSetGet.h.

#define VTK_STRUCTURED_POINTS   1


Definition at line 104 of file vtkSetGet.h.

#define VTK_STRUCTURED_GRID   2


Definition at line 105 of file vtkSetGet.h.

#define VTK_RECTILINEAR_GRID   3


Definition at line 106 of file vtkSetGet.h.

#define VTK_UNSTRUCTURED_GRID   4


Definition at line 107 of file vtkSetGet.h.

#define VTK_PIECEWISE_FUNCTION   5


Definition at line 108 of file vtkSetGet.h.

#define VTK_IMAGE_DATA   6


Definition at line 109 of file vtkSetGet.h.

#define VTK_DATA_OBJECT   7


Definition at line 110 of file vtkSetGet.h.

#define VTK_DATA_SET   8


Definition at line 111 of file vtkSetGet.h.

#define vtkImageScalarTypeNameMacro type


Value:

(((type) == VTK_VOID) ? "void" : \
(((type) == VTK_FLOAT) ? "float" : \
(((type) == VTK_INT) ? "int" : \
(((type) == VTK_SHORT) ? "short" : \
(((type) == VTK_UNSIGNED_SHORT) ? "unsigned short" : \
(((type) == VTK_UNSIGNED_CHAR) ? "unsigned char" : \
"Undefined"))))))

Definition at line 114 of file vtkSetGet.h.

Referenced by vtkImageImport::GetDataScalarTypeAsString(), and vtkImageGridSource::GetDataScalarTypeAsString().

#define vtkSetMacro name,
type


Value:

virtual void Set##name (type _arg) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " #name " to " << _arg); \
  if (this->name != _arg) \
    { \
    this->name = _arg; \
    this->Modified(); \
    } \
  }

Definition at line 127 of file vtkSetGet.h.

#define vtkGetMacro name,
type


Value:

virtual type Get##name () { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " of " << this->name ); \
  return this->name; \
  }

Definition at line 141 of file vtkSetGet.h.

Referenced by vtkImageReslice::GetBackgroundLevel().

#define vtkSetStringMacro name


Value:

virtual void Set##name (const char* _arg) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to " << _arg ); \
  if ( this->name && _arg && (!strcmp(this->name,_arg))) { return;} \
  if (this->name) { delete [] this->name; } \
  if (_arg) \
    { \
    this->name = new char[strlen(_arg)+1]; \
    strcpy(this->name,_arg); \
    } \
   else \
    { \
    this->name = NULL; \
    } \
  this->Modified(); \
  }

Definition at line 152 of file vtkSetGet.h.

#define vtkGetStringMacro name


Value:

virtual char* Get##name () { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " of " << this->name); \
  return this->name; \
  }

Definition at line 174 of file vtkSetGet.h.

#define vtkSetClampMacro name,
type,
min,
max


Value:

virtual void Set##name (type _arg) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to " << _arg ); \
  if (this->name != (_arg<min?min:(_arg>max?max:_arg))) \
    { \
    this->name = (_arg<min?min:(_arg>max?max:_arg)); \
    this->Modified(); \
    } \
  }

Definition at line 185 of file vtkSetGet.h.

Referenced by vtkImageReslice::GetBackgroundLevel().

#define vtkSetObjectMacro name,
type


Value:

virtual void Set##name (type* _arg) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to " << _arg ); \
  if (this->name != _arg) \
    { \
    if (this->name != NULL) { this->name->UnRegister(this); }\
    this->name = _arg; \
    if (this->name != NULL) { this->name->Register(this); } \
    this->Modified(); \
    } \
  }

Definition at line 200 of file vtkSetGet.h.

#define vtkSetReferenceCountedObjectMacro name,
type


Value:

virtual void Set##name (type* _arg) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to " << _arg ); \
  if (this->name != _arg) \
    { \
    if (this->name != NULL) { this->name->UnRegister(this); }\
    this->name = _arg; \
    if (this->name != NULL) { this->name->Register(this); } \
    this->Modified(); \
    } \
  }

Definition at line 216 of file vtkSetGet.h.

#define vtkGetObjectMacro name,
type


Value:

virtual type *Get##name () \
  { \
      vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " #name " address " << this->name ); \
  return this->name; \
  }

Definition at line 232 of file vtkSetGet.h.

#define vtkBooleanMacro name,
type


Value:

virtual void name##On () { this->Set##name((type)1);}; \
virtual void name##Off () { this->Set##name((type)0);}

Definition at line 243 of file vtkSetGet.h.

Referenced by vtkImageReslice::GetBackgroundLevel().

#define vtkSetVector2Macro name,
type


Value:

virtual void Set##name (type _arg1, type _arg2) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to (" << _arg1 << "," << _arg2 << ")"); \
  if ((this->name[0] != _arg1)||(this->name[1] != _arg2)) \
    { \
    this->Modified(); \
    this->name[0] = _arg1; \
    this->name[1] = _arg2; \
    } \
  }; \
void Set##name (type _arg[2]) \
  { \
  this->Set##name (_arg[0], _arg[1]); \
  }

Definition at line 253 of file vtkSetGet.h.

#define vtkGetVector2Macro name,
type


Value:

virtual type *Get##name () \
{ \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " pointer " << this->name); \
  return this->name; \
} \
virtual void Get##name (type &_arg1, type &_arg2) \
  { \
    _arg1 = this->name[0]; \
    _arg2 = this->name[1]; \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " = (" << _arg1 << "," << _arg2 << ")"); \
  }; \
virtual void Get##name (type _arg[2]) \
  { \
  this->Get##name (_arg[0], _arg[1]);\
  }

Definition at line 269 of file vtkSetGet.h.

#define vtkSetVector3Macro name,
type


Value:

virtual void Set##name (type _arg1, type _arg2, type _arg3) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to (" << _arg1 << "," << _arg2 << "," << _arg3 << ")"); \
  if ((this->name[0] != _arg1)||(this->name[1] != _arg2)||(this->name[2] != _arg3)) \
    { \
    this->Modified(); \
    this->name[0] = _arg1; \
    this->name[1] = _arg2; \
    this->name[2] = _arg3; \
    } \
  }; \
virtual void Set##name (type _arg[3]) \
  { \
  this->Set##name (_arg[0], _arg[1], _arg[2]);\
  }

Definition at line 286 of file vtkSetGet.h.

Referenced by vtkImageReslice::GetBackgroundLevel().

#define vtkGetVector3Macro name,
type


Value:

virtual type *Get##name () \
{ \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " pointer " << this->name); \
  return this->name; \
} \
virtual void Get##name (type &_arg1, type &_arg2, type &_arg3) \
  { \
    _arg1 = this->name[0]; \
    _arg2 = this->name[1]; \
    _arg3 = this->name[2]; \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " = (" << _arg1 << "," << _arg2 << "," << _arg3 << ")"); \
  }; \
virtual void Get##name (type _arg[3]) \
  { \
  this->Get##name (_arg[0], _arg[1], _arg[2]);\
  }

Definition at line 303 of file vtkSetGet.h.

Referenced by vtkImageReslice::GetBackgroundLevel().

#define vtkSetVector4Macro name,
type


Value:

virtual void Set##name (type _arg1, type _arg2, type _arg3, type _arg4) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to (" << _arg1 << "," << _arg2 << "," << _arg3 << "," << _arg4 << ")"); \
  if ((this->name[0] != _arg1)||(this->name[1] != _arg2)||(this->name[2] != _arg3)||(this->name[3] != _arg4)) \
    { \
    this->Modified(); \
    this->name[0] = _arg1; \
    this->name[1] = _arg2; \
    this->name[2] = _arg3; \
    this->name[3] = _arg4; \
    } \
  }; \
virtual void Set##name (type _arg[4]) \
  { \
  this->Set##name (_arg[0], _arg[1], _arg[2], _arg[3]);\
  }

Definition at line 321 of file vtkSetGet.h.

#define vtkGetVector4Macro name,
type


Value:

virtual type *Get##name () \
{ \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " pointer " << this->name); \
  return this->name; \
} \
virtual void Get##name (type &_arg1, type &_arg2, type &_arg3, type &_arg4) \
  { \
    _arg1 = this->name[0]; \
    _arg2 = this->name[1]; \
    _arg3 = this->name[2]; \
    _arg4 = this->name[3]; \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " = (" << _arg1 << "," << _arg2 << "," << _arg3 << "," << _arg4 << ")"); \
  }; \
virtual void Get##name (type _arg[4]) \
  { \
  this->Get##name (_arg[0], _arg[1], _arg[2], _arg[3]);\
  }

Definition at line 340 of file vtkSetGet.h.

#define vtkSetVector6Macro name,
type


Value:

virtual void Set##name (type _arg1, type _arg2, type _arg3, type _arg4, type _arg5, type _arg6) \
  { \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): setting " << #name " to (" << _arg1 << "," << _arg2 << "," << _arg3 << "," << _arg4 << "," << _arg5 << "," << _arg6 << ")"); \
  if ((this->name[0] != _arg1)||(this->name[1] != _arg2)||(this->name[2] != _arg3)||(this->name[3] != _arg4)||(this->name[4] != _arg5)||(this->name[5] != _arg6)) \
    { \
    this->Modified(); \
    this->name[0] = _arg1; \
    this->name[1] = _arg2; \
    this->name[2] = _arg3; \
    this->name[3] = _arg4; \
    this->name[4] = _arg5; \
    this->name[5] = _arg6; \
    } \
  }; \
virtual void Set##name (type _arg[6]) \
  { \
  this->Set##name (_arg[0], _arg[1], _arg[2], _arg[3], _arg[4], _arg[5]);\
  }

Definition at line 359 of file vtkSetGet.h.

Referenced by vtkImageReslice::GetBackgroundLevel().

#define vtkGetVector6Macro name,
type


Value:

virtual type *Get##name () \
{ \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " pointer " << this->name); \
  return this->name; \
} \
virtual void Get##name (type &_arg1, type &_arg2, type &_arg3, type &_arg4, type &_arg5, type &_arg6) \
  { \
    _arg1 = this->name[0]; \
    _arg2 = this->name[1]; \
    _arg3 = this->name[2]; \
    _arg4 = this->name[3]; \
    _arg5 = this->name[4]; \
    _arg6 = this->name[5]; \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " = (" << _arg1 << "," << _arg2 << "," << _arg3 << "," << _arg4 << "," << _arg5 <<"," << _arg6 << ")"); \
  }; \
virtual void Get##name (type _arg[6]) \
  { \
  this->Get##name (_arg[0], _arg[1], _arg[2], _arg[3], _arg[4], _arg[5]);\
  }

Definition at line 379 of file vtkSetGet.h.

Referenced by vtkImageReslice::GetBackgroundLevel().

#define vtkSetVectorMacro name,
type,
count


Value:

virtual void Set##name(type data[]) \
{ \
  int i; \
  for (i=0; i<count; i++) { if ( data[i] != this->name[i] ) { break; }} \
  if ( i < count ) \
    { \
    this->Modified(); \
    for (i=0; i<count; i++) { this->name[i] = data[i]; }\
    } \
}

Definition at line 405 of file vtkSetGet.h.

#define vtkGetVectorMacro name,
type,
count


Value:

virtual type *Get##name () \
{ \
  vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " << #name " pointer " << this->name); \
  return this->name; \
} \
virtual void Get##name (type data[count]) \
{ \
  for (int i=0; i<count; i++) { data[i] = this->name[i]; }\
}

Definition at line 423 of file vtkSetGet.h.

#define vtkGenericWarningMacro


Value:

{ if (vtkObject::GetGlobalWarningDisplay()) { \
      char *vtkmsgbuff; ostrstream vtkmsg; \
      vtkmsg << "Generic Warning: In " __FILE__ ", line " << __LINE__ << "\n" x \
      << "\n\n" << ends; \
      vtkmsgbuff = vtkmsg.str(); \
      vtkOutputWindowDisplayText(vtkmsgbuff);\
      vtkmsg.rdbuf()->freeze(0);}}

Definition at line 446 of file vtkSetGet.h.

#define vtkDebugMacro


Value:

{ if (this->Debug && vtkObject::GetGlobalWarningDisplay()) \
    { char *vtkmsgbuff; \
      ostrstream vtkmsg; \
      vtkmsg << "Debug: In " __FILE__ ", line " << __LINE__ << "\n" << this->GetClassName() << " (" << this << "): " x  << "\n\n" << ends; \
      vtkmsgbuff = vtkmsg.str(); \
      vtkOutputWindowDisplayText(vtkmsgbuff);\
      vtkmsg.rdbuf()->freeze(0);}}

Definition at line 462 of file vtkSetGet.h.

Referenced by vtkWin32ImageWindow::GetGenericDisplayId(), and vtkWin32ImageWindow::SetDisplayId().

#define vtkWarningMacro


Value:

{ if (vtkObject::GetGlobalWarningDisplay()) { \
      char *vtkmsgbuff; \
      ostrstream vtkmsg; \
      vtkmsg << "Warning: In " __FILE__ ", line " << __LINE__ << "\n" << this->GetClassName() << " (" << this << "): " x << "\n\n" << ends; \
      vtkmsgbuff = vtkmsg.str(); \
      vtkOutputWindowDisplayText(vtkmsgbuff);\
      vtkmsg.rdbuf()->freeze(0);}}

Definition at line 475 of file vtkSetGet.h.

Referenced by vtkPicker::GetActors(), vtkAbstractTransform::Identity(), vtkMatrixToLinearTransform::SetMatrix(), and vtkMatrixToHomogeneousTransform::SetMatrix().

#define vtkErrorMacro


Value:

{ if (vtkObject::GetGlobalWarningDisplay()) {char *vtkmsgbuff; \
      ostrstream vtkmsg; \
      vtkmsg << "ERROR: In " __FILE__ ", line " << __LINE__ << "\n" << this->GetClassName() << " (" << this << "): " x << "\n\n" << ends; \
      vtkmsgbuff = vtkmsg.str(); \
      vtkOutputWindowDisplayText(vtkmsgbuff);\
      vtkmsg.rdbuf()->freeze(0); vtkObject::BreakOnError();}}

Definition at line 488 of file vtkSetGet.h.

Referenced by vtkTensor::AddComponent(), vtkImageIterateFilter::ComputeInputUpdateExtent(), vtkImager::Erase(), vtkProgrammableAttributeDataFilter::ExecuteMethodArg(), vtkTensor::GetColumn(), vtkImageToImageFilter::GetInputMemoryLimit(), vtkAppendFilter::InputList(), vtkImageMultipleInputFilter::LegacyHack(), vtkMultiProcessController::RemoveRMI(), vtkTensor::SetComponent(), vtkFloatVectors::SetData(), vtkFloatTensors::SetData(), vtkFloatTCoords::SetData(), vtkFloatScalars::SetData(), vtkFloatPoints::SetData(), vtkFloatNormals::SetData(), vtkFloatVectors::SetDataType(), vtkFloatTensors::SetDataType(), vtkFloatTCoords::SetDataType(), vtkFloatScalars::SetDataType(), vtkFloatPoints::SetDataType(), vtkFloatNormals::SetDataType(), vtkImageToImageFilter::SetInputMemoryLimit(), vtkDataObject::SetUpdateExtent(), vtkImageWindow::SetWindowInfo(), and vtkInterpolateDataSetAttributes::T().

#define vtkNotUsed


Definition at line 504 of file vtkSetGet.h.

#define vtkWorldCoordinateMacro name


Value:

virtual vtkCoordinate *Get##name##Coordinate () \
{ \
    vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " #name "Coordinate address " << this->name##Coordinate ); \
    return this->name##Coordinate; \
} \
virtual void Set##name(float x[3]) {this->Set##name(x[0],x[1],x[2]);}; \
virtual void Set##name(float x, float y, float z) \
{ \
    this->name##Coordinate->SetCoordinateSystem(VTK_WORLD); \
    this->name##Coordinate->SetValue(x,y,z); \
} \
virtual float *Get##name() \
{ \
    return this->name##Coordinate->GetValue(); \
}

Definition at line 506 of file vtkSetGet.h.

#define vtkViewportCoordinateMacro name


Value:

virtual vtkCoordinate *Get##name##Coordinate () \
{ \
    vtkDebugMacro(<< this->GetClassName() << " (" << this << "): returning " #name "Coordinate address " << this->name##Coordinate ); \
    return this->name##Coordinate; \
} \
virtual void Set##name(float x[2]) {this->Set##name(x[0],x[1]);}; \
virtual void Set##name(float x, float y) \
{ \
    this->name##Coordinate->SetCoordinateSystem(VTK_VIEWPORT); \
    this->name##Coordinate->SetValue(x,y); \
} \
virtual float *Get##name() \
{ \
    return this->name##Coordinate->GetValue(); \
}

Definition at line 523 of file vtkSetGet.h.

#define vtkTypeMacro thisClass,
superclass


Value:

virtual const char *GetClassName() {return #thisClass;};\
static int IsTypeOf(const char *type) \
{ \
  if ( !strcmp(#thisClass,type) ) \
    { \
    return 1; \
    } \
  return superclass::IsTypeOf(type); \
} \
virtual int IsA(const char *type) \
{ \
  return this->thisClass::IsTypeOf(type); \
} \
static thisClass* SafeDownCast(vtkObject *o) \
{ \
  if ( o && o->IsA(#thisClass) ) \
    { \
    return (thisClass *)o; \
    } \
  return NULL;\
}

Definition at line 543 of file vtkSetGet.h.

#define vtkTemplateMacro3 func,
arg1,
arg2,
arg3


Definition at line 571 of file vtkSetGet.h.

#define vtkTemplateMacro4 func,
arg1,
arg2,
arg3,
arg4


Definition at line 613 of file vtkSetGet.h.

#define vtkTemplateMacro5 func,
arg1,
arg2,
arg3,
arg4,
arg5


Definition at line 655 of file vtkSetGet.h.

#define vtkTemplateMacro6 func,
arg1,
arg2,
arg3,
arg4,
arg5,
arg6


Definition at line 697 of file vtkSetGet.h.

#define vtkTemplateMacro7 func,
arg1,
arg2,
arg3,
arg4,
arg5,
arg6,
arg7


Definition at line 739 of file vtkSetGet.h.

#define vtkTemplateMacro8 func,
arg1,
arg2,
arg3,
arg4,
arg5,
arg6,
arg7,
arg8


Definition at line 781 of file vtkSetGet.h.

#define vtkTemplateMacro9 func,
arg1,
arg2,
arg3,
arg4,
arg5,
arg6,
arg7,
arg8,
arg9


Definition at line 823 of file vtkSetGet.h.

#define vtkTemplateMacro10 func,
arg1,
arg2,
arg3,
arg4,
arg5,
arg6,
arg7,
arg8,
arg9,
arg10


Definition at line 865 of file vtkSetGet.h.

#define VTK_LEGACY_METHOD oldMethod,
versionStringMadeLegacy


Definition at line 916 of file vtkSetGet.h.

Referenced by vtkImplicitBoolean::AddFunction(), vtkProgrammableAttributeDataFilter::AddInput(), vtkAppendFilter::AddInput(), vtkVoxel::CellBoundary(), vtkVertex::CellBoundary(), vtkTriangleStrip::CellBoundary(), vtkTriangle::CellBoundary(), vtkTetra::CellBoundary(), vtkQuad::CellBoundary(), vtkPolyVertex::CellBoundary(), vtkPolyLine::CellBoundary(), vtkPolygon::CellBoundary(), vtkPixel::CellBoundary(), vtkLine::CellBoundary(), vtkHexahedron::CellBoundary(), vtkEmptyCell::CellBoundary(), vtkImageSource::ComputeRequiredInputUpdateExtent(), vtkTransform::Concatenate(), vtkVoidArray::DeepCopy(), vtkUnsignedShortArray::DeepCopy(), vtkUnsignedLongArray::DeepCopy(), vtkUnsignedIntArray::DeepCopy(), vtkUnsignedCharArray::DeepCopy(), vtkShortArray::DeepCopy(), vtkLongArray::DeepCopy(), vtkIntArray::DeepCopy(), vtkGenericCell::DeepCopy(), vtkFloatArray::DeepCopy(), vtkFieldData::DeepCopy(), vtkDoubleArray::DeepCopy(), vtkDataSetAttributes::DeepCopy(), vtkDataArray::DeepCopy(), vtkCharArray::DeepCopy(), vtkCell::DeepCopy(), vtkBitArray::DeepCopy(), vtkAttributeData::DeepCopy(), vtkImageToImageFilter::ExecuteImageInformation(), vtkImageMultipleInputFilter::ExecuteImageInformation(), vtkPolyData::GetCellEdgeNeighbors(), vtkDataSet::GetCellNeighbors(), vtkUnstructuredGrid::GetCellPoints(), vtkStructuredGrid::GetCellPoints(), vtkStructuredData::GetCellPoints(), vtkRectilinearGrid::GetCellPoints(), vtkPolyData::GetCellPoints(), vtkImageData::GetCellPoints(), vtkDataSet::GetCellPoints(), vtkCamera::GetCompositePerspectiveTransform(), vtkDataSet::GetDataSetType(), vtkFieldData::GetField(), vtkTransform::GetInverse(), vtkProp3D::GetMatrix(), vtkFollower::GetMatrix(), vtkProp::GetMatrixPointer(), vtkHomogeneousTransform::GetMatrixPointer(), vtkPolyDataConnectivityFilter::GetMaxRecursionDepth(), vtkConnectivityFilter::GetMaxRecursionDepth(), vtkScalarTree::GetNextCell(), vtkNormals::GetNormals(), vtkTransform::GetOrientation(), vtkCamera::GetPerspectiveTransform(), vtkUnstructuredGrid::GetPointCells(), vtkStructuredGrid::GetPointCells(), vtkStructuredData::GetPointCells(), vtkRectilinearGrid::GetPointCells(), vtkPolyData::GetPointCells(), vtkImageData::GetPointCells(), vtkDataSet::GetPointCells(), vtkPoints::GetPoints(), vtkTransform::GetPosition(), vtkScalars::GetScalars(), vtkTransform::GetScale(), vtkTCoords::GetTCoords(), vtkTensors::GetTensor(), vtkTensors::GetTensors(), vtkTransform::GetTranspose(), vtkColorTransferFunction::GetValue(), vtkVectors::GetVectors(), vtkCamera::GetViewTransform(), vtkImageData::GetVoxelGradient(), vtkDelaunay3D::InitPointInsertion(), vtkUnstructuredGrid::InsertNextCell(), vtkPolyData::InsertNextCell(), vtkDelaunay3D::InsertPoint(), vtkImageSource::InterceptCacheUpdate(), vtkTransform::Multiply4x4(), vtkTransform::MultiplyNormals(), vtkTransform::MultiplyPoints(), vtkTransform::MultiplyVectors(), vtkImplicitBoolean::RemoveFunction(), vtkProgrammableAttributeDataFilter::RemoveInput(), vtkAppendFilter::RemoveInput(), vtkInteractorStyleSwitch::SetActorModeToActor(), vtkInteractorStyleSwitch::SetActorModeToCamera(), vtkActor::SetBackfaceProperty(), vtkExtractVectorComponents::SetInput(), vtkImageAppendComponents::SetInput1(), vtkImageAppendComponents::SetInput2(), vtkMarchingSquares::SetLocator(), vtkMarchingCubes::SetLocator(), vtkMarchingContourFilter::SetLocator(), vtkUGFacetReader::SetLocator(), vtkSTLReader::SetLocator(), vtkMCubesReader::SetLocator(), vtkGeometryFilter::SetLocator(), vtkExtractEdges::SetLocator(), vtkDelaunay3D::SetLocator(), vtkCutter::SetLocator(), vtkContourGrid::SetLocator(), vtkContourFilter::SetLocator(), vtkClipVolume::SetLocator(), vtkClipPolyData::SetLocator(), vtkTransform::SetMatrix(), vtkPolyDataConnectivityFilter::SetMaxRecursionDepth(), vtkConnectivityFilter::SetMaxRecursionDepth(), vtkActor::SetProperty(), vtkImageMandelbrotSource::SetSample(), vtkInteractorStyleSwitch::SetTrackballModeToJoystick(), vtkInteractorStyleSwitch::SetTrackballModeToTrackball(), vtkGenericCell::ShallowCopy(), vtkFieldData::ShallowCopy(), vtkDataSetAttributes::ShallowCopy(), vtkCell::ShallowCopy(), vtkAttributeData::ShallowCopy(), vtkTransform::Transpose(), vtkVoxel::Triangulate(), vtkVertex::Triangulate(), vtkTriangleStrip::Triangulate(), vtkTriangle::Triangulate(), vtkTetra::Triangulate(), vtkQuad::Triangulate(), vtkPolyVertex::Triangulate(), vtkPolyLine::Triangulate(), vtkPolygon::Triangulate(), vtkPixel::Triangulate(), vtkLine::Triangulate(), vtkHexahedron::Triangulate(), vtkEmptyCell::Triangulate(), vtkImageData::UpdateAndReturnData(), and vtkImageToImageFilter::UpdateImageInformation().


Function Documentation

VTK_EXPORT void vtkOutputWindowDisplayText const char *



Generated on Wed Nov 21 12:36:43 2001 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
