vtkWin32ImageMapper Class Reference

(obsolete) 2D image display support for Microsoft windows. More...

#include <vtkWin32ImageMapper.h>

Inheritance diagram for vtkWin32ImageMapper:

Inheritance graph
[legend]

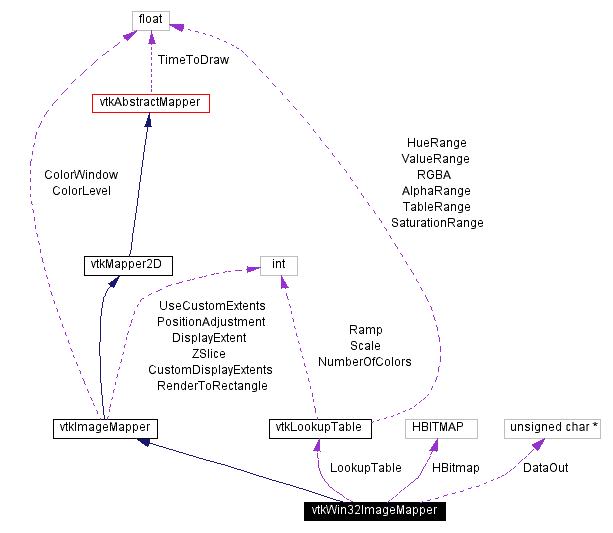

Collaboration diagram for vtkWin32ImageMapper:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
unsigned long int GetMTime ()
void PrintSelf (ostream &os, vtkIndent indent)
void RenderOverlay (vtkViewport *viewport, vtkActor2D *actor)
void RenderData (vtkViewport *viewport, vtkImageData *data, vtkActor2D *actor)
virtual void SetLookupTable (vtkLookupTable *)
virtual vtkLookupTableGetLookupTable ()

Static Public Methods

vtkWin32ImageMapper * New ()
int IsTypeOf (const char *type)
vtkWin32ImageMapper * SafeDownCast (vtkObject *o)
void GenerateBitmapData (vtkImageData *data, void *inptr, unsigned char *DataOut, int dim, int DisplayExtent[6], float cwindow, float clevel, float cshift, float cscale, vtkLookupTable *lut)
HBITMAP CreateBitmapObject (HBITMAP oldBitmap, BITMAPINFO &dataHeader, HDC windowDC, unsigned char *&DataOut, vtkImageData *data, int width, int height)

Public Attributes

unsigned char * DataOut
HBITMAP HBitmap

Protected Methods

 vtkWin32ImageMapper ()
 ~vtkWin32ImageMapper ()

Protected Attributes

vtkLookupTableLookupTable

Detailed Description

(obsolete) 2D image display support for Microsoft windows.

Date:
2001/11/13 14:17:34
Revision:
1.21
Thanks:
Thanks to Matt Turek who developed this class.
vtkWin32ImageMapper is a concrete subclass of vtkImageMapper that renders images under Microsoft windows.

See also:
vtkImageMapper

Definition at line 64 of file vtkWin32ImageMapper.h.


Constructor & Destructor Documentation

vtkWin32ImageMapper::vtkWin32ImageMapper   [protected]


vtkWin32ImageMapper::~vtkWin32ImageMapper   [protected]



Member Function Documentation

vtkWin32ImageMapper* vtkWin32ImageMapper::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageMapper.

virtual const char* vtkWin32ImageMapper::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageMapper.

int vtkWin32ImageMapper::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageMapper.

virtual int vtkWin32ImageMapper::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageMapper.

vtkWin32ImageMapper* vtkWin32ImageMapper::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageMapper.

void vtkWin32ImageMapper::RenderOverlay vtkViewport   viewport,
vtkActor2D   actor
[inline, virtual]


Handle the render method.

Reimplemented from vtkMapper2D.

Definition at line 72 of file vtkWin32ImageMapper.h.

void vtkWin32ImageMapper::RenderData vtkViewport   viewport,
vtkImageData   data,
vtkActor2D   actor
[virtual]


Called by the Render function in vtkImageMapper. Actually draws the image to the screen.

Reimplemented from vtkImageMapper.

unsigned long int vtkWin32ImageMapper::GetMTime   [virtual]


Compute modified time including lookuptable

Reimplemented from vtkImageMapper.

void vtkWin32ImageMapper::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


standard Printself routine

Reimplemented from vtkImageMapper.

virtual void vtkWin32ImageMapper::SetLookupTable vtkLookupTable   [virtual]


The ImageMappers convert ImageData into a greyscale image when a single scalar component is present. If a lookuptable is supplied, values are mapped through the lookuptable to generate a colour image. If the number of scalar components is greater then one, the lookuptable is ignored. If the lookuptable is NULL, a default greyscale image is generated. Users should ensure that the range of the lookuptable is {0,255} for full colour effects

virtual vtkLookupTable* vtkWin32ImageMapper::GetLookupTable   [virtual]


The ImageMappers convert ImageData into a greyscale image when a single scalar component is present. If a lookuptable is supplied, values are mapped through the lookuptable to generate a colour image. If the number of scalar components is greater then one, the lookuptable is ignored. If the lookuptable is NULL, a default greyscale image is generated. Users should ensure that the range of the lookuptable is {0,255} for full colour effects

HBITMAP vtkWin32ImageMapper::CreateBitmapObject HBITMAP    oldBitmap,
BITMAPINFO &    dataHeader,
HDC    windowDC,
unsigned char *&    DataOut,
vtkImageData   data,
int    width,
int    height
[static]


CreateBitmapObject and GenerateBitmapData are utility functions which allow one to hook into the display routines and provide the user with an easy way of converting an ImageData object into a windows bitmap object. They are also used internally by the mapper and should not be modified or used standalone alone without caution.

void vtkWin32ImageMapper::GenerateBitmapData vtkImageData   data,
void *    inptr,
unsigned char *    DataOut,
int    dim,
int    DisplayExtent[6],
float    cwindow,
float    clevel,
float    cshift,
float    cscale,
vtkLookupTable   lut
[static]



Member Data Documentation

unsigned char* vtkWin32ImageMapper::DataOut


Definition at line 117 of file vtkWin32ImageMapper.h.

HBITMAP vtkWin32ImageMapper::HBitmap


Definition at line 118 of file vtkWin32ImageMapper.h.

vtkLookupTable* vtkWin32ImageMapper::LookupTable [protected]


Definition at line 121 of file vtkWin32ImageMapper.h.


The documentation for this class was generated from the following file:
