vtkImageViewer2 Class Reference

#include <vtkImageViewer2.h>

Inheritance diagram for vtkImageViewer2:

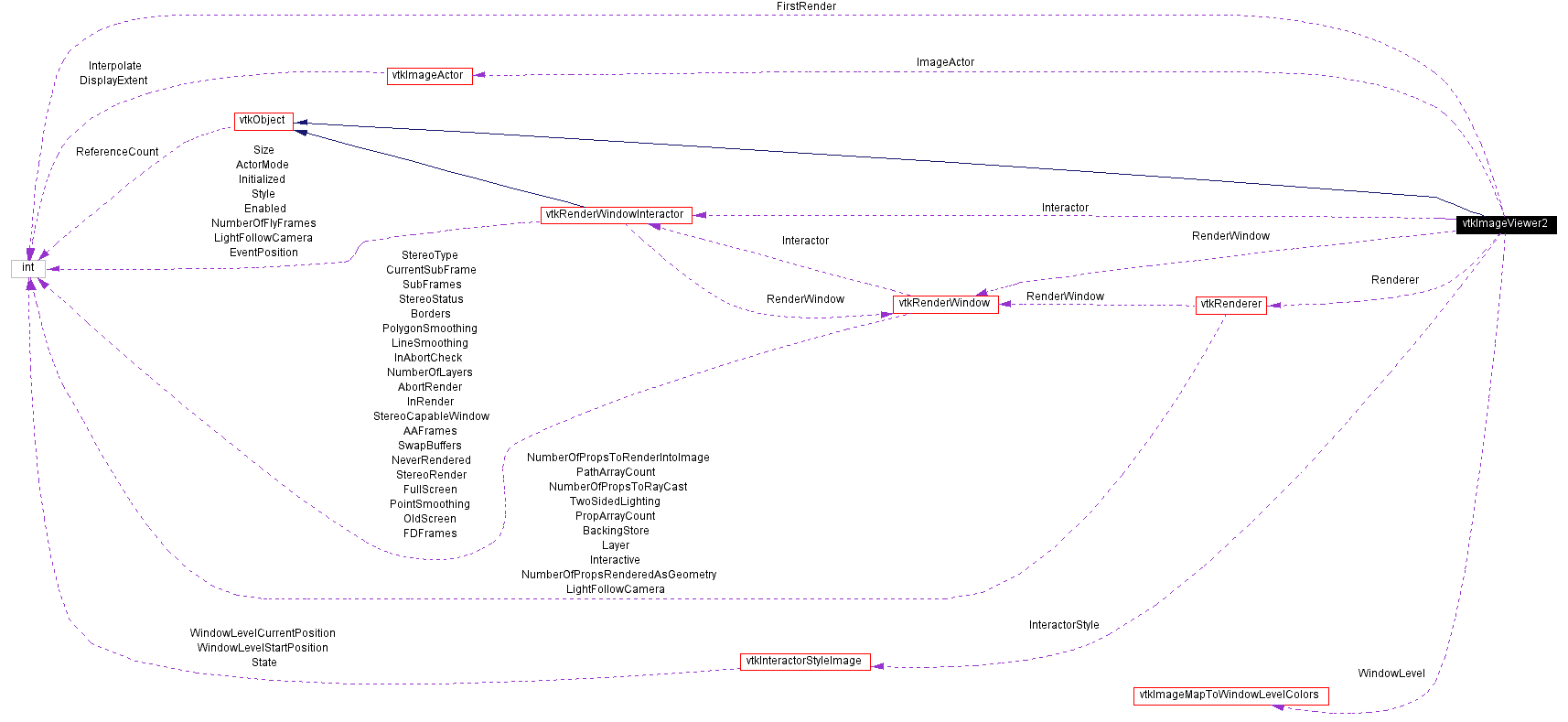

[legend]Collaboration diagram for vtkImageViewer2:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
char *	GetWindowName ()
virtual void	Render (void)
void	SetupInteractor (vtkRenderWindowInteractor *)
void	SetInput (vtkImageData *in)
vtkImageData *	GetInput ()
int	GetWholeZMin ()
int	GetWholeZMax ()
int	GetZSlice ()
void	SetZSlice (int s)
float	GetColorWindow ()
float	GetColorLevel ()
void	SetColorWindow (float s)
void	SetColorLevel (float s)
void	SetDisplayId (void *a)
void	SetWindowId (void *a)
void	SetParentId (void *a)
int *	GetPosition ()
void	SetPosition (int a, int b)
virtual void	SetPosition (int a[2])
int *	GetSize ()
void	SetSize (int a, int b)
virtual void	SetSize (int a[2])
virtual vtkRenderWindow *	GetRenderWindow ()
virtual vtkRenderer *	GetRenderer ()
virtual vtkImageActor *	GetImageActor ()
virtual vtkImageMapToWindowLevelColors *	GetWindowLevel ()
Static Public Methods
vtkImageViewer2 *	New ()
int	IsTypeOf (const char *type)
vtkImageViewer2 *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageViewer2 ()
	~vtkImageViewer2 ()
Protected Attributes
vtkImageMapToWindowLevelColors *	WindowLevel
vtkRenderWindow *	RenderWindow
vtkRenderer *	Renderer
vtkImageActor *	ImageActor
int	FirstRender
vtkRenderWindowInteractor *	Interactor
vtkInteractorStyleImage *	InteractorStyle

---

Constructor & Destructor Documentation

vtkImageViewer2::vtkImageViewer2 (    )  [protected]

vtkImageViewer2::~vtkImageViewer2 (    )  [protected]

---

Member Function Documentation

vtkImageViewer2* vtkImageViewer2::New (    )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkImageViewer2::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

int vtkImageViewer2::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

virtual int vtkImageViewer2::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

vtkImageViewer2* vtkImageViewer2::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

void vtkImageViewer2::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkObject.

char* vtkImageViewer2::GetWindowName (    )  [inline]

Get name of rendering window Definition at line 76 of file vtkImageViewer2.h.

virtual void vtkImageViewer2::Render (  void    )  [virtual]

Render the resulting image.

void vtkImageViewer2::SetInput (  vtkImageData *    in )  [inline]

Set/Get the input to the viewer. Definition at line 83 of file vtkImageViewer2.h.

vtkImageData* vtkImageViewer2::GetInput (    )  [inline]

Set/Get the input to the viewer. Definition at line 84 of file vtkImageViewer2.h.

int vtkImageViewer2::GetWholeZMin (    )  [inline]

What is the possible Min/ Max z slices available. Definition at line 89 of file vtkImageViewer2.h.

int vtkImageViewer2::GetWholeZMax (    )  [inline]

What is the possible Min/ Max z slices available. Definition at line 90 of file vtkImageViewer2.h.

int vtkImageViewer2::GetZSlice (    )  [inline]

Set/Get the current Z Slice to display Definition at line 95 of file vtkImageViewer2.h.

void vtkImageViewer2::SetZSlice (  int    s )  [inline]

Set/Get the current Z Slice to display Definition at line 96 of file vtkImageViewer2.h.

float vtkImageViewer2::GetColorWindow (    )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 101 of file vtkImageViewer2.h.

float vtkImageViewer2::GetColorLevel (    )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 102 of file vtkImageViewer2.h.

void vtkImageViewer2::SetColorWindow (  float    s )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 103 of file vtkImageViewer2.h.

void vtkImageViewer2::SetColorLevel (  float    s )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 104 of file vtkImageViewer2.h.

void vtkImageViewer2::SetDisplayId (  void *    a )  [inline]

These are here for using a tk window. Definition at line 109 of file vtkImageViewer2.h.

void vtkImageViewer2::SetWindowId (  void *    a )  [inline]

These are here for using a tk window. Definition at line 110 of file vtkImageViewer2.h.

void vtkImageViewer2::SetParentId (  void *    a )  [inline]

These are here for using a tk window. Definition at line 111 of file vtkImageViewer2.h.

int* vtkImageViewer2::GetPosition (    )  [inline]

Set/Get the position in screen coordinates of the rendering window. Definition at line 116 of file vtkImageViewer2.h.

void vtkImageViewer2::SetPosition (  int    a, int    b )  [inline]

Set/Get the position in screen coordinates of the rendering window. Definition at line 117 of file vtkImageViewer2.h.

virtual void vtkImageViewer2::SetPosition (  int    a[2] )  [virtual]

Set/Get the position in screen coordinates of the rendering window.

int* vtkImageViewer2::GetSize (    )  [inline]

Set/Get the size of the window in screen coordinates. Definition at line 123 of file vtkImageViewer2.h.

void vtkImageViewer2::SetSize (  int    a, int    b )  [inline]

Set/Get the size of the window in screen coordinates. Definition at line 124 of file vtkImageViewer2.h.

virtual void vtkImageViewer2::SetSize (  int    a[2] )  [virtual]

Set/Get the size of the window in screen coordinates.

virtual vtkRenderWindow* vtkImageViewer2::GetRenderWindow (    )  [virtual]

Get the internal Window Imager and Mapper

virtual vtkRenderer* vtkImageViewer2::GetRenderer (    )  [virtual]

Get the internal Window Imager and Mapper

virtual vtkImageActor* vtkImageViewer2::GetImageActor (    )  [virtual]

Get the internal Window Imager and Mapper

virtual vtkImageMapToWindowLevelColors* vtkImageViewer2::GetWindowLevel (    )  [virtual]

Get the internal Window Imager and Mapper

void vtkImageViewer2::SetupInteractor (  vtkRenderWindowInteractor *    )

Create and attach an interactor for this window

---

Member Data Documentation

vtkImageMapToWindowLevelColors* vtkImageViewer2::WindowLevel [protected]

Definition at line 143 of file vtkImageViewer2.h.

vtkRenderWindow* vtkImageViewer2::RenderWindow [protected]

Definition at line 144 of file vtkImageViewer2.h.

vtkRenderer* vtkImageViewer2::Renderer [protected]

Definition at line 145 of file vtkImageViewer2.h.

vtkImageActor* vtkImageViewer2::ImageActor [protected]

Definition at line 146 of file vtkImageViewer2.h.

int vtkImageViewer2::FirstRender [protected]

Definition at line 147 of file vtkImageViewer2.h.

vtkRenderWindowInteractor* vtkImageViewer2::Interactor [protected]

Definition at line 148 of file vtkImageViewer2.h.

vtkInteractorStyleImage* vtkImageViewer2::InteractorStyle [protected]

Definition at line 149 of file vtkImageViewer2.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkImageViewer2.h

---
