vtkImagePlaneWidget Class Reference

#include <vtkImagePlaneWidget.h>

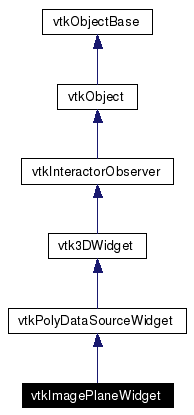

Inheritance diagram for vtkImagePlaneWidget:

Inheritance graph
[legend]

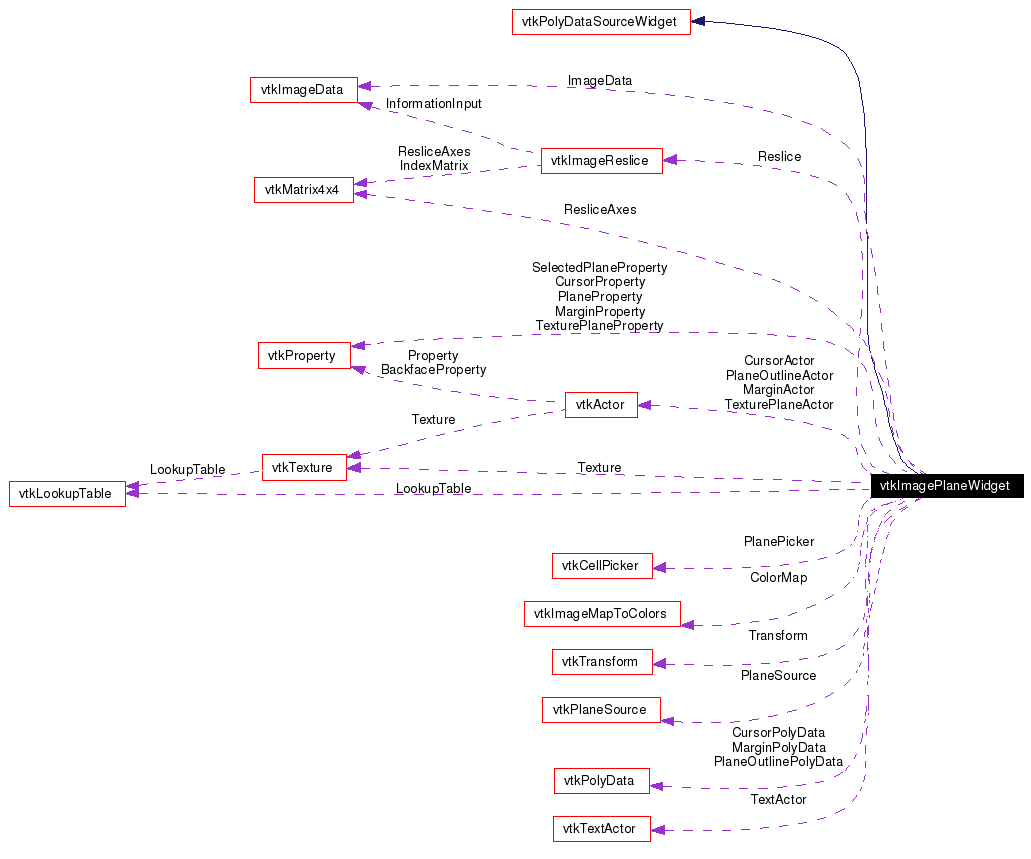

Collaboration diagram for vtkImagePlaneWidget:

Collaboration graph
[legend]
List of all members.

Detailed Description

3D widget for reslicing image data

This 3D widget defines a plane that can be interactively placed in an image volume. A nice feature of the object is that the vtkImagePlaneWidget, like any 3D widget, will work with the current interactor style. That is, if vtkImagePlaneWidget does not handle an event, then all other registered observers (including the interactor style) have an opportunity to process the event. Otherwise, the vtkImagePlaneWidget will terminate the processing of the event that it handles.

The core functionality of the widget is provided by a vtkImageReslice object which passes its output onto a texture mapping pipeline for fast slicing through volumetric data. See the key methods: GenerateTexturePlane() and UpdatePlane() for implementation details.

To use this object, just invoke SetInteractor() with the argument of the method a vtkRenderWindowInteractor. You may also wish to invoke "PlaceWidget()" to initially position the widget. If the "i" key (for "interactor") is pressed, the vtkImagePlaneWidget will appear. (See superclass documentation for information about changing this behavior.)

Selecting the widget with the middle mouse button with and without holding the shift or control keys enables complex reslicing capablilites. To facilitate use, a set of 'margins' (left, right, top, bottom) are shown as a set of plane-axes aligned lines, the properties of which can be changed as a group. Without keyboard modifiers: selecting in the middle of the margins enables translation of the plane along its normal. Selecting one of the corners within the margins enables spinning around the plane's normal at its center. Selecting within a margin allows rotating about the center of the plane around an axis aligned with the margin (i.e., selecting left margin enables rotating around the plane's local y-prime axis). With control key modifier: margin selection enables edge translation (i.e., a constrained form of scaling). Selecting within the margins enables translation of the entire plane. With shift key modifier: uniform plane scaling is enabled. Moving the mouse up enlarges the plane while downward movement shrinks it.

Window-level is achieved by using the right mouse button. The left mouse button can be used to query the underlying image data with a snap-to cross-hair cursor. Currently, the nearest point in the input image data to the mouse cursor generates the cross-hairs. With oblique slicing, this behaviour may appear unsatisfactory. Text display of window-level and image coordinates/data values are provided by a text actor/mapper pair. Events that occur outside of the widget (i.e., no part of the widget is picked) are propagated to any other registered obsevers (such as the interaction style). Turn off the widget by pressing the "i" key again (or invoke the Off() method).

The vtkImagePlaneWidget has several methods that can be used in conjunction with other VTK objects. The GetPolyData() method can be used to get the polygonal representation of the plane and can be used as input for other VTK objects. Typical usage of the widget is to make use of the StartInteractionEvent, InteractionEvent, and EndInteractionEvent events. The InteractionEvent is called on mouse motion; the other two events are called on button down and button up (either left or right button).

Some additional features of this class include the ability to control the properties of the widget. You can set the properties of: the selected and unselected representations of the plane's outline; the text actor via its vtkTextProperty; the cross-hair cursor. In addition there are methods to constrain the plane so that it is aligned along the x-y-z axes. Finally, one can specify the degree of interpolation (vtkImageReslice): nearest neighbour, linear, and cubic.

Thanks:
Thanks to Dean Inglis for developing and contributing this class. Based on the Python SlicePlaneFactory from Atamai, Inc.
Warning:
Note that handles and plane can be picked even when they are "behind" other actors. This is an intended feature and not a bug.
See also:
vtk3DWidget vtkBoxWidget vtkLineWidget vtkPlaneWidget vtkPointWidget vtkPolyDataSourceWidget vtkSphereWidget vtkImplicitPlaneWidget
Events:
vtkCommand::DisableEvent vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent vtkCommand::EnableEvent
Examples:
vtkImagePlaneWidget (Examples)
Tests:
vtkImagePlaneWidget (Tests)

Definition at line 132 of file vtkImagePlaneWidget.h.
enum  { CURSOR_ACTION = 0, SLICE_MOTION_ACTION = 1, WINDOW_LEVEL_ACTION = 2 }
virtual void SetLeftButtonAction (int)
virtual int GetLeftButtonAction ()
virtual void SetMiddleButtonAction (int)
virtual int GetMiddleButtonAction ()
virtual void SetRightButtonAction (int)
virtual int GetRightButtonAction ()
enum  { NO_MODIFIER = 0, SHIFT_MODIFIER = 1, CONTROL_MODIFIER = 2 }
virtual void SetLeftButtonAutoModifier (int)
virtual int GetLeftButtonAutoModifier ()
virtual void SetMiddleButtonAutoModifier (int)
virtual int GetMiddleButtonAutoModifier ()
virtual void SetRightButtonAutoModifier (int)
virtual int GetRightButtonAutoModifier ()

Public Types

typedef vtkPolyDataSourceWidget Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void GetVector1 (double v1[3])
void GetVector2 (double v2[3])
int GetSliceIndex ()
void SetSliceIndex (int index)
double GetSlicePosition ()
void GetPolyData (vtkPolyData *pd)
vtkPolyDataAlgorithmGetPolyDataAlgorithm ()
void UpdatePlacement (void)
int GetCursorData (double xyzv[4])
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetEnabled (int)
virtual void PlaceWidget (double bounds[6])
void PlaceWidget ()
void PlaceWidget (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
void SetInput (vtkDataSet *input)
void SetOrigin (double x, double y, double z)
void SetOrigin (double xyz[3])
double * GetOrigin ()
void GetOrigin (double xyz[3])
void SetPoint1 (double x, double y, double z)
void SetPoint1 (double xyz[3])
double * GetPoint1 ()
void GetPoint1 (double xyz[3])
void SetPoint2 (double x, double y, double z)
void SetPoint2 (double xyz[3])
double * GetPoint2 ()
void GetPoint2 (double xyz[3])
double * GetCenter ()
void GetCenter (double xyz[3])
double * GetNormal ()
void GetNormal (double xyz[3])
void SetSlicePosition (double position)
void SetResliceInterpolate (int)
virtual int GetResliceInterpolate ()
void SetResliceInterpolateToNearestNeighbour ()
void SetResliceInterpolateToLinear ()
void SetResliceInterpolateToCubic ()
vtkImageDataGetResliceOutput ()
virtual void SetRestrictPlaneToVolume (int)
virtual int GetRestrictPlaneToVolume ()
virtual void RestrictPlaneToVolumeOn ()
virtual void RestrictPlaneToVolumeOff ()
virtual void SetUserControlledLookupTable (int)
virtual int GetUserControlledLookupTable ()
virtual void UserControlledLookupTableOn ()
virtual void UserControlledLookupTableOff ()
virtual void SetTextureInterpolate (int)
virtual int GetTextureInterpolate ()
virtual void TextureInterpolateOn ()
virtual void TextureInterpolateOff ()
virtual void SetTextureVisibility (int)
virtual int GetTextureVisibility ()
virtual void TextureVisibilityOn ()
virtual void TextureVisibilityOff ()
vtkTextureGetTexture ()
virtual vtkImageMapToColorsGetColorMap ()
virtual void SetColorMap (vtkImageMapToColors *)
virtual void SetPlaneProperty (vtkProperty *)
virtual vtkPropertyGetPlaneProperty ()
virtual void SetSelectedPlaneProperty (vtkProperty *)
virtual vtkPropertyGetSelectedPlaneProperty ()
void SetPlaneOrientation (int)
virtual int GetPlaneOrientation ()
void SetPlaneOrientationToXAxes ()
void SetPlaneOrientationToYAxes ()
void SetPlaneOrientationToZAxes ()
void SetPicker (vtkCellPicker *)
virtual void SetLookupTable (vtkLookupTable *)
virtual vtkLookupTableGetLookupTable ()
virtual void SetDisplayText (int)
virtual int GetDisplayText ()
virtual void DisplayTextOn ()
virtual void DisplayTextOff ()
virtual void SetCursorProperty (vtkProperty *)
virtual vtkPropertyGetCursorProperty ()
virtual void SetMarginProperty (vtkProperty *)
virtual vtkPropertyGetMarginProperty ()
void SetTextProperty (vtkTextProperty *tprop)
vtkTextPropertyGetTextProperty ()
virtual void SetTexturePlaneProperty (vtkProperty *)
virtual vtkPropertyGetTexturePlaneProperty ()
void SetWindowLevel (double window, double level)
void GetWindowLevel (double wl[2])
int GetCursorDataStatus ()
virtual double * GetCurrentCursorPosition ()
virtual void GetCurrentCursorPosition (double data[3])
virtual double GetCurrentImageValue ()
virtual void SetUseContinuousCursor (int)
virtual int GetUseContinuousCursor ()
virtual void UseContinuousCursorOn ()
virtual void UseContinuousCursorOff ()
void SetInteraction (int interact)
virtual int GetInteraction ()
virtual void InteractionOn ()
virtual void InteractionOff ()

Static Public Member Functions

static vtkImagePlaneWidgetNew ()
static int IsTypeOf (const char *type)
static vtkImagePlaneWidgetSafeDownCast (vtkObject *o)

Protected Types

enum  { NO_BUTTON = 0, LEFT_BUTTON = 1, MIDDLE_BUTTON = 2, RIGHT_BUTTON = 3 }
enum  WidgetState {
  Start = 0, Cursoring, WindowLevelling, Pushing,
  Spinning, Rotating, Moving, Scaling,
  Outside
}

Protected Member Functions

 vtkImagePlaneWidget ()
 ~vtkImagePlaneWidget ()
void AddObservers ()
virtual void OnMouseMove ()
virtual void OnLeftButtonDown ()
virtual void OnLeftButtonUp ()
virtual void OnMiddleButtonDown ()
virtual void OnMiddleButtonUp ()
virtual void OnRightButtonDown ()
virtual void OnRightButtonUp ()
virtual void StartCursor ()
virtual void StopCursor ()
virtual void StartSliceMotion ()
virtual void StopSliceMotion ()
virtual void StartWindowLevel ()
virtual void StopWindowLevel ()
void HighlightPlane (int highlight)
void GeneratePlaneOutline ()
void BuildRepresentation ()
void WindowLevel (int X, int Y)
void Push (double *p1, double *p2)
void Spin (double *p1, double *p2)
void Rotate (double *p1, double *p2, double *vpn)
void Scale (double *p1, double *p2, int X, int Y)
void Translate (double *p1, double *p2)
vtkLookupTableCreateDefaultLookupTable ()
void CreateDefaultProperties ()
void UpdatePlane ()
void GenerateTexturePlane ()
void GenerateCursor ()
void UpdateCursor (int, int)
void ActivateCursor (int)
int UpdateContinuousCursor (double *q)
int UpdateDiscreteCursor (double *q)
void GenerateText ()
void ManageTextDisplay ()
void ActivateText (int)
void AdjustState ()
void GenerateMargins ()
void UpdateMargins ()
void ActivateMargins (int)

Static Protected Member Functions

static void ProcessEvents (vtkObject *object, unsigned long event, void *clientdata, void *calldata)

Protected Attributes

int TextureVisibility
int LeftButtonAction
int MiddleButtonAction
int RightButtonAction
int LeftButtonAutoModifier
int MiddleButtonAutoModifier
int RightButtonAutoModifier
int LastButtonPressed
int State
int Interaction
int PlaneOrientation
int RestrictPlaneToVolume
double OriginalWindow
double OriginalLevel
double CurrentWindow
double CurrentLevel
int ResliceInterpolate
int TextureInterpolate
int UserControlledLookupTable
int DisplayText
vtkPlaneSourcePlaneSource
vtkPolyDataPlaneOutlinePolyData
vtkActorPlaneOutlineActor
vtkCellPickerPlanePicker
vtkImageDataImageData
vtkImageResliceReslice
vtkMatrix4x4ResliceAxes
vtkTransformTransform
vtkActorTexturePlaneActor
vtkImageMapToColorsColorMap
vtkTextureTexture
vtkLookupTableLookupTable
vtkPropertyPlaneProperty
vtkPropertySelectedPlaneProperty
vtkPropertyCursorProperty
vtkPropertyMarginProperty
vtkPropertyTexturePlaneProperty
vtkPolyDataCursorPolyData
vtkActorCursorActor
double CurrentCursorPosition [3]
double CurrentImageValue
int UseContinuousCursor
vtkTextActorTextActor
char TextBuff [128]
double RotateAxis [3]
double RadiusVector [3]
vtkPolyDataMarginPolyData
vtkActorMarginActor
int MarginSelectMode


Member Typedef Documentation

typedef vtkPolyDataSourceWidget vtkImagePlaneWidget::Superclass


Reimplemented from vtkPolyDataSourceWidget.

Definition at line 138 of file vtkImagePlaneWidget.h.


Member Enumeration Documentation

anonymous enum


Set action associated to buttons. BTX

Enumerator:
CURSOR_ACTION
SLICE_MOTION_ACTION
WINDOW_LEVEL_ACTION

Definition at line 413 of file vtkImagePlaneWidget.h.

anonymous enum


Set the auto-modifiers associated to buttons. This allows users to bind some buttons to actions that are usually triggered by a key modifier. For example, if you do not need cursoring, you can bind the left button action to SLICE_MOTION_ACTION (see above) and the left button auto modifier to CONTROL_MODIFIER: you end up with the left button controling panning without pressing a key. BTX

Enumerator:
NO_MODIFIER
SHIFT_MODIFIER
CONTROL_MODIFIER

Definition at line 435 of file vtkImagePlaneWidget.h.

anonymous enum [protected]


Enumerator:
NO_BUTTON
LEFT_BUTTON
MIDDLE_BUTTON
RIGHT_BUTTON

Definition at line 465 of file vtkImagePlaneWidget.h.

enum vtkImagePlaneWidget::WidgetState [protected]


Enumerator:
Start
Cursoring
WindowLevelling
Pushing
Spinning
Rotating
Moving
Scaling
Outside

Definition at line 477 of file vtkImagePlaneWidget.h.


Constructor & Destructor Documentation

vtkImagePlaneWidget::vtkImagePlaneWidget  )  [protected]


vtkImagePlaneWidget::~vtkImagePlaneWidget  )  [protected]



Member Function Documentation

static vtkImagePlaneWidget* vtkImagePlaneWidget::New  )  [static]


Instantiate the object.

Reimplemented from vtkObject.

virtual const char* vtkImagePlaneWidget::GetClassName  )  [virtual]


Reimplemented from vtkPolyDataSourceWidget.

static int vtkImagePlaneWidget::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSourceWidget.

virtual int vtkImagePlaneWidget::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSourceWidget.

static vtkImagePlaneWidget* vtkImagePlaneWidget::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkPolyDataSourceWidget.

void vtkImagePlaneWidget::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataSourceWidget.

virtual void vtkImagePlaneWidget::SetEnabled int   )  [virtual]


Methods that satisfy the superclass' API.

Reimplemented from vtkInteractorObserver.

virtual void vtkImagePlaneWidget::PlaceWidget double  bounds[6]  )  [virtual]


We have to redeclare this abstract, PlaceWidget() requires it. You HAVE to override this in your concrete child classes. If there's no Prop3D and no Input, your PlaceWidget must make use of the underlying PolyDataSource to do its work.

Implements vtkPolyDataSourceWidget.

void vtkImagePlaneWidget::PlaceWidget  )  [inline, virtual]


Overrides vtk3DWidget PlaceWidget() so that it doesn't complain if there's no Input and no Prop3D.

Reimplemented from vtkPolyDataSourceWidget.

Definition at line 145 of file vtkImagePlaneWidget.h.

void vtkImagePlaneWidget::PlaceWidget double  xmin,
double  xmax,
double  ymin,
double  ymax,
double  zmin,
double  zmax
[inline, virtual]


Convenience method brought over from vtkPlaneWidget.

Reimplemented from vtkPolyDataSourceWidget.

Definition at line 147 of file vtkImagePlaneWidget.h.

void vtkImagePlaneWidget::SetInput vtkDataSet input  )  [virtual]


Set the vtkImageData* input for the vtkImageReslice.

Reimplemented from vtk3DWidget.

void vtkImagePlaneWidget::SetOrigin double  x,
double  y,
double  z


Set/Get the origin of the plane.

void vtkImagePlaneWidget::SetOrigin double  xyz[3]  )


Set the vtkImageData* input for the vtkImageReslice.

double* vtkImagePlaneWidget::GetOrigin  )


Set the vtkImageData* input for the vtkImageReslice.

void vtkImagePlaneWidget::GetOrigin double  xyz[3]  )


Set the vtkImageData* input for the vtkImageReslice.

void vtkImagePlaneWidget::SetPoint1 double  x,
double  y,
double  z


Set/Get the position of the point defining the first axis of the plane.

void vtkImagePlaneWidget::SetPoint1 double  xyz[3]  )


Set/Get the position of the point defining the first axis of the plane.

double* vtkImagePlaneWidget::GetPoint1  )


Set/Get the position of the point defining the first axis of the plane.

void vtkImagePlaneWidget::GetPoint1 double  xyz[3]  )


Set/Get the position of the point defining the first axis of the plane.

void vtkImagePlaneWidget::SetPoint2 double  x,
double  y,
double  z


Set/Get the position of the point defining the second axis of the plane.

void vtkImagePlaneWidget::SetPoint2 double  xyz[3]  )


Set/Get the position of the point defining the second axis of the plane.

double* vtkImagePlaneWidget::GetPoint2  )


Set/Get the position of the point defining the second axis of the plane.

void vtkImagePlaneWidget::GetPoint2 double  xyz[3]  )


Set/Get the position of the point defining the second axis of the plane.

double* vtkImagePlaneWidget::GetCenter  )


Get the center of the plane.

void vtkImagePlaneWidget::GetCenter double  xyz[3]  )


Get the center of the plane.

double* vtkImagePlaneWidget::GetNormal  )


Get the normal to the plane.

void vtkImagePlaneWidget::GetNormal double  xyz[3]  )


Get the normal to the plane.

void vtkImagePlaneWidget::GetVector1 double  v1[3]  )


Get the vector from the plane origin to point1.

void vtkImagePlaneWidget::GetVector2 double  v2[3]  )


Get the vector from the plane origin to point2.

int vtkImagePlaneWidget::GetSliceIndex  )


Get the slice position in terms of the data extent.

void vtkImagePlaneWidget::SetSliceIndex int  index  )


Set the slice position in terms of the data extent.

double vtkImagePlaneWidget::GetSlicePosition  )


Get the position of the slice along its normal.

void vtkImagePlaneWidget::SetSlicePosition double  position  )


Set the position of the slice along its normal.

void vtkImagePlaneWidget::SetResliceInterpolate int   )


Set the interpolation to use when texturing the plane.

virtual int vtkImagePlaneWidget::GetResliceInterpolate  )  [virtual]


Set the position of the slice along its normal.

void vtkImagePlaneWidget::SetResliceInterpolateToNearestNeighbour  )  [inline]


Set the position of the slice along its normal.

Definition at line 215 of file vtkImagePlaneWidget.h.

References VTK_NEAREST_RESLICE.

void vtkImagePlaneWidget::SetResliceInterpolateToLinear  )  [inline]


Set the position of the slice along its normal.

Definition at line 217 of file vtkImagePlaneWidget.h.

References VTK_LINEAR_RESLICE.

void vtkImagePlaneWidget::SetResliceInterpolateToCubic  )  [inline]


Set the position of the slice along its normal.

Definition at line 219 of file vtkImagePlaneWidget.h.

References VTK_CUBIC_RESLICE.

vtkImageData* vtkImagePlaneWidget::GetResliceOutput  )


Convenience method to get the vtkImageReslice output.

virtual void vtkImagePlaneWidget::SetRestrictPlaneToVolume int   )  [virtual]


Make sure that the plane remains within the volume. Default is On.

virtual int vtkImagePlaneWidget::GetRestrictPlaneToVolume  )  [virtual]


Convenience method to get the vtkImageReslice output.

virtual void vtkImagePlaneWidget::RestrictPlaneToVolumeOn  )  [virtual]


Convenience method to get the vtkImageReslice output.

virtual void vtkImagePlaneWidget::RestrictPlaneToVolumeOff  )  [virtual]


Convenience method to get the vtkImageReslice output.

virtual void vtkImagePlaneWidget::SetUserControlledLookupTable int   )  [virtual]


Let the user control the lookup table. NOTE: apply this method BEFORE applying the SetLookupTable method. Default is Off.

virtual int vtkImagePlaneWidget::GetUserControlledLookupTable  )  [virtual]


Let the user control the lookup table. NOTE: apply this method BEFORE applying the SetLookupTable method. Default is Off.

virtual void vtkImagePlaneWidget::UserControlledLookupTableOn  )  [virtual]


Let the user control the lookup table. NOTE: apply this method BEFORE applying the SetLookupTable method. Default is Off.

virtual void vtkImagePlaneWidget::UserControlledLookupTableOff  )  [virtual]


Let the user control the lookup table. NOTE: apply this method BEFORE applying the SetLookupTable method. Default is Off.

virtual void vtkImagePlaneWidget::SetTextureInterpolate int   )  [virtual]


Specify whether to interpolate the texture or not. When off, the reslice interpolation is nearest neighbour regardless of how the interpolation is set through the API. Set before setting the vtkImageData imput. Default is On.

virtual int vtkImagePlaneWidget::GetTextureInterpolate  )  [virtual]


Specify whether to interpolate the texture or not. When off, the reslice interpolation is nearest neighbour regardless of how the interpolation is set through the API. Set before setting the vtkImageData imput. Default is On.

virtual void vtkImagePlaneWidget::TextureInterpolateOn  )  [virtual]


Specify whether to interpolate the texture or not. When off, the reslice interpolation is nearest neighbour regardless of how the interpolation is set through the API. Set before setting the vtkImageData imput. Default is On.

virtual void vtkImagePlaneWidget::TextureInterpolateOff  )  [virtual]


Specify whether to interpolate the texture or not. When off, the reslice interpolation is nearest neighbour regardless of how the interpolation is set through the API. Set before setting the vtkImageData imput. Default is On.

virtual void vtkImagePlaneWidget::SetTextureVisibility int   )  [virtual]


Control the visibility of the actual texture mapped reformatted plane. in some cases you may only want the plane outline for example.

virtual int vtkImagePlaneWidget::GetTextureVisibility  )  [virtual]


Control the visibility of the actual texture mapped reformatted plane. in some cases you may only want the plane outline for example.

virtual void vtkImagePlaneWidget::TextureVisibilityOn  )  [virtual]


Control the visibility of the actual texture mapped reformatted plane. in some cases you may only want the plane outline for example.

virtual void vtkImagePlaneWidget::TextureVisibilityOff  )  [virtual]


Control the visibility of the actual texture mapped reformatted plane. in some cases you may only want the plane outline for example.

void vtkImagePlaneWidget::GetPolyData vtkPolyData pd  )


Grab the polydata (including points) that defines the plane. The polydata consists of (res+1)*(res+1) points, and res*res quadrilateral polygons, where res is the resolution of the plane. These point values are guaranteed to be up-to-date when either the InteractionEvent or EndInteraction events are invoked. The user provides the vtkPolyData and the points and polyplane are added to it.

vtkPolyDataAlgorithm* vtkImagePlaneWidget::GetPolyDataAlgorithm  )  [virtual]


Satisfies superclass API. This returns a pointer to the underlying PolyData. Make changes to this before calling the initial PlaceWidget() to have the initial placement follow suit. Or, make changes after the widget has been initialised and call UpdatePlacement() to realise.

Implements vtkPolyDataSourceWidget.

void vtkImagePlaneWidget::UpdatePlacement void   )  [virtual]


Satisfies superclass API. This will change the state of the widget to match changes that have been made to the underlying PolyDataSource

Implements vtkPolyDataSourceWidget.

vtkTexture* vtkImagePlaneWidget::GetTexture  )


Convenience method to get the texture used by this widget. This can be used in external slice viewers.

virtual vtkImageMapToColors* vtkImagePlaneWidget::GetColorMap  )  [virtual]


Convenience method to get the vtkImageMapToColors filter used by this widget. The user can properly render other transparent actors in a scene by calling the filter's SetOuputFormatToRGB and PassAlphaToOutputOff.

virtual void vtkImagePlaneWidget::SetColorMap vtkImageMapToColors  )  [virtual]


Convenience method to get the texture used by this widget. This can be used in external slice viewers.

virtual void vtkImagePlaneWidget::SetPlaneProperty vtkProperty  )  [virtual]


Set/Get the plane's outline properties. The properties of the plane's outline when selected and unselected can be manipulated.

virtual vtkProperty* vtkImagePlaneWidget::GetPlaneProperty  )  [virtual]


Set/Get the plane's outline properties. The properties of the plane's outline when selected and unselected can be manipulated.

virtual void vtkImagePlaneWidget::SetSelectedPlaneProperty vtkProperty  )  [virtual]


Set/Get the plane's outline properties. The properties of the plane's outline when selected and unselected can be manipulated.

virtual vtkProperty* vtkImagePlaneWidget::GetSelectedPlaneProperty  )  [virtual]


Set/Get the plane's outline properties. The properties of the plane's outline when selected and unselected can be manipulated.

void vtkImagePlaneWidget::SetPlaneOrientation int   )


Convenience method sets the plane orientation normal to the x, y, or z axes. Default is XAxes (0).

virtual int vtkImagePlaneWidget::GetPlaneOrientation  )  [virtual]


Convenience method sets the plane orientation normal to the x, y, or z axes. Default is XAxes (0).

void vtkImagePlaneWidget::SetPlaneOrientationToXAxes  )  [inline]


Convenience method sets the plane orientation normal to the x, y, or z axes. Default is XAxes (0).

Definition at line 306 of file vtkImagePlaneWidget.h.

void vtkImagePlaneWidget::SetPlaneOrientationToYAxes  )  [inline]


Convenience method sets the plane orientation normal to the x, y, or z axes. Default is XAxes (0).

Definition at line 308 of file vtkImagePlaneWidget.h.

void vtkImagePlaneWidget::SetPlaneOrientationToZAxes  )  [inline]


Convenience method sets the plane orientation normal to the x, y, or z axes. Default is XAxes (0).

Definition at line 310 of file vtkImagePlaneWidget.h.

void vtkImagePlaneWidget::SetPicker vtkCellPicker  )


Set the internal picker to one defined by the user. In this way, a set of three orthogonal planes can share the same picker so that picking is performed correctly. The default internal picker can be re-set/allocated by setting to 0 (NULL).

virtual void vtkImagePlaneWidget::SetLookupTable vtkLookupTable  )  [virtual]


Set/Get the internal lookuptable (lut) to one defined by the user, or, alternatively, to the lut of another vtkImgePlaneWidget. In this way, a set of three orthogonal planes can share the same lut so that window-levelling is performed uniformly among planes. The default internal lut can be re- set/allocated by setting to 0 (NULL).

virtual vtkLookupTable* vtkImagePlaneWidget::GetLookupTable  )  [virtual]


Set the internal picker to one defined by the user. In this way, a set of three orthogonal planes can share the same picker so that picking is performed correctly. The default internal picker can be re-set/allocated by setting to 0 (NULL).

virtual void vtkImagePlaneWidget::SetDisplayText int   )  [virtual]


Enable/disable text display of window-level, image coords and values in a render window.

virtual int vtkImagePlaneWidget::GetDisplayText  )  [virtual]


Enable/disable text display of window-level, image coords and values in a render window.

virtual void vtkImagePlaneWidget::DisplayTextOn  )  [virtual]


Enable/disable text display of window-level, image coords and values in a render window.

virtual void vtkImagePlaneWidget::DisplayTextOff  )  [virtual]


Enable/disable text display of window-level, image coords and values in a render window.

virtual void vtkImagePlaneWidget::SetCursorProperty vtkProperty  )  [virtual]


Set the properties of the cross-hair cursor.

virtual vtkProperty* vtkImagePlaneWidget::GetCursorProperty  )  [virtual]


Set the properties of the cross-hair cursor.

virtual void vtkImagePlaneWidget::SetMarginProperty vtkProperty  )  [virtual]


Set the properties of the margins.

virtual vtkProperty* vtkImagePlaneWidget::GetMarginProperty  )  [virtual]


Set the properties of the margins.

void vtkImagePlaneWidget::SetTextProperty vtkTextProperty tprop  )


Set/Get the text property for the image data and window-level annotation.

vtkTextProperty* vtkImagePlaneWidget::GetTextProperty  )


Set/Get the text property for the image data and window-level annotation.

virtual void vtkImagePlaneWidget::SetTexturePlaneProperty vtkProperty  )  [virtual]


Set/Get the property for the resliced image.

virtual vtkProperty* vtkImagePlaneWidget::GetTexturePlaneProperty  )  [virtual]


Set/Get the property for the resliced image.

void vtkImagePlaneWidget::SetWindowLevel double  window,
double  level


Set/Get the current window and level values. Set should only be called after SetInput.

void vtkImagePlaneWidget::GetWindowLevel double  wl[2]  )


Set/Get the current window and level values. Set should only be called after SetInput.

int vtkImagePlaneWidget::GetCursorData double  xyzv[4]  )


Get the image coordinate position and voxel value. Currently only supports single component image data.

int vtkImagePlaneWidget::GetCursorDataStatus  )


Get the status of the cursor data. If this returns 1 the CurrentCursorPosition and CurrentImageValue will have current data. If it returns 0, these values are invalid.

virtual double* vtkImagePlaneWidget::GetCurrentCursorPosition  )  [virtual]


Get the current cursor position. To be used in conjunction with GetCursorDataStatus.

virtual void vtkImagePlaneWidget::GetCurrentCursorPosition double  data[3]  )  [virtual]


Get the status of the cursor data. If this returns 1 the CurrentCursorPosition and CurrentImageValue will have current data. If it returns 0, these values are invalid.

virtual double vtkImagePlaneWidget::GetCurrentImageValue  )  [virtual]


Get the current image value at the current cursor position. To be used in conjunction with GetCursorDataStatus. The value is VTK_DOUBLE_MAX when the data is invalid.

virtual void vtkImagePlaneWidget::SetUseContinuousCursor int   )  [virtual]


Choose between voxel centered or continuous cursor probing. With voxel centered probing, the cursor snaps to the nearest voxel and the reported cursor coordinates are extent based. With continuous probing, voxel data is interpolated using vtkDataSetAttributes' InterpolatePoint method and the reported coordinates are 3D spacial continuous.

virtual int vtkImagePlaneWidget::GetUseContinuousCursor  )  [virtual]


Choose between voxel centered or continuous cursor probing. With voxel centered probing, the cursor snaps to the nearest voxel and the reported cursor coordinates are extent based. With continuous probing, voxel data is interpolated using vtkDataSetAttributes' InterpolatePoint method and the reported coordinates are 3D spacial continuous.

virtual void vtkImagePlaneWidget::UseContinuousCursorOn  )  [virtual]


Choose between voxel centered or continuous cursor probing. With voxel centered probing, the cursor snaps to the nearest voxel and the reported cursor coordinates are extent based. With continuous probing, voxel data is interpolated using vtkDataSetAttributes' InterpolatePoint method and the reported coordinates are 3D spacial continuous.

virtual void vtkImagePlaneWidget::UseContinuousCursorOff  )  [virtual]


Choose between voxel centered or continuous cursor probing. With voxel centered probing, the cursor snaps to the nearest voxel and the reported cursor coordinates are extent based. With continuous probing, voxel data is interpolated using vtkDataSetAttributes' InterpolatePoint method and the reported coordinates are 3D spacial continuous.

void vtkImagePlaneWidget::SetInteraction int  interact  )


Enable/disable mouse interaction so the widget remains on display.

virtual int vtkImagePlaneWidget::GetInteraction  )  [virtual]


Enable/disable mouse interaction so the widget remains on display.

virtual void vtkImagePlaneWidget::InteractionOn  )  [virtual]


Enable/disable mouse interaction so the widget remains on display.

virtual void vtkImagePlaneWidget::InteractionOff  )  [virtual]


Enable/disable mouse interaction so the widget remains on display.

virtual void vtkImagePlaneWidget::SetLeftButtonAction int   )  [virtual]


Set action associated to buttons. BTX

virtual int vtkImagePlaneWidget::GetLeftButtonAction  )  [virtual]


Set action associated to buttons. BTX

virtual void vtkImagePlaneWidget::SetMiddleButtonAction int   )  [virtual]


Set action associated to buttons. BTX

virtual int vtkImagePlaneWidget::GetMiddleButtonAction  )  [virtual]


Set action associated to buttons. BTX

virtual void vtkImagePlaneWidget::SetRightButtonAction int   )  [virtual]


Set action associated to buttons. BTX

virtual int vtkImagePlaneWidget::GetRightButtonAction  )  [virtual]


Set action associated to buttons. BTX

virtual void vtkImagePlaneWidget::SetLeftButtonAutoModifier int   )  [virtual]


Set the auto-modifiers associated to buttons. This allows users to bind some buttons to actions that are usually triggered by a key modifier. For example, if you do not need cursoring, you can bind the left button action to SLICE_MOTION_ACTION (see above) and the left button auto modifier to CONTROL_MODIFIER: you end up with the left button controling panning without pressing a key. BTX

virtual int vtkImagePlaneWidget::GetLeftButtonAutoModifier  )  [virtual]


Set the auto-modifiers associated to buttons. This allows users to bind some buttons to actions that are usually triggered by a key modifier. For example, if you do not need cursoring, you can bind the left button action to SLICE_MOTION_ACTION (see above) and the left button auto modifier to CONTROL_MODIFIER: you end up with the left button controling panning without pressing a key. BTX

virtual void vtkImagePlaneWidget::SetMiddleButtonAutoModifier int   )  [virtual]


Set the auto-modifiers associated to buttons. This allows users to bind some buttons to actions that are usually triggered by a key modifier. For example, if you do not need cursoring, you can bind the left button action to SLICE_MOTION_ACTION (see above) and the left button auto modifier to CONTROL_MODIFIER: you end up with the left button controling panning without pressing a key. BTX

virtual int vtkImagePlaneWidget::GetMiddleButtonAutoModifier  )  [virtual]


Set the auto-modifiers associated to buttons. This allows users to bind some buttons to actions that are usually triggered by a key modifier. For example, if you do not need cursoring, you can bind the left button action to SLICE_MOTION_ACTION (see above) and the left button auto modifier to CONTROL_MODIFIER: you end up with the left button controling panning without pressing a key. BTX

virtual void vtkImagePlaneWidget::SetRightButtonAutoModifier int   )  [virtual]


Set the auto-modifiers associated to buttons. This allows users to bind some buttons to actions that are usually triggered by a key modifier. For example, if you do not need cursoring, you can bind the left button action to SLICE_MOTION_ACTION (see above) and the left button auto modifier to CONTROL_MODIFIER: you end up with the left button controling panning without pressing a key. BTX

virtual int vtkImagePlaneWidget::GetRightButtonAutoModifier  )  [virtual]


Set the auto-modifiers associated to buttons. This allows users to bind some buttons to actions that are usually triggered by a key modifier. For example, if you do not need cursoring, you can bind the left button action to SLICE_MOTION_ACTION (see above) and the left button auto modifier to CONTROL_MODIFIER: you end up with the left button controling panning without pressing a key. BTX

static void vtkImagePlaneWidget::ProcessEvents vtkObject object,
unsigned long  event,
void *  clientdata,
void *  calldata
[static, protected]


Handles the char widget activation event. Also handles the delete event.

Reimplemented from vtkInteractorObserver.

void vtkImagePlaneWidget::AddObservers  )  [protected]


virtual void vtkImagePlaneWidget::OnMouseMove  )  [protected, virtual]


virtual void vtkImagePlaneWidget::OnLeftButtonDown  )  [protected, virtual]


virtual void vtkImagePlaneWidget::OnLeftButtonUp  )  [protected, virtual]


virtual void vtkImagePlaneWidget::OnMiddleButtonDown  )  [protected, virtual]


virtual void vtkImagePlaneWidget::OnMiddleButtonUp  )  [protected, virtual]


virtual void vtkImagePlaneWidget::OnRightButtonDown  )  [protected, virtual]


virtual void vtkImagePlaneWidget::OnRightButtonUp  )  [protected, virtual]


virtual void vtkImagePlaneWidget::StartCursor  )  [protected, virtual]


virtual void vtkImagePlaneWidget::StopCursor  )  [protected, virtual]


virtual void vtkImagePlaneWidget::StartSliceMotion  )  [protected, virtual]


virtual void vtkImagePlaneWidget::StopSliceMotion  )  [protected, virtual]


virtual void vtkImagePlaneWidget::StartWindowLevel  )  [protected, virtual]


virtual void vtkImagePlaneWidget::StopWindowLevel  )  [protected, virtual]


void vtkImagePlaneWidget::HighlightPlane int  highlight  )  [protected]


void vtkImagePlaneWidget::GeneratePlaneOutline  )  [protected]


void vtkImagePlaneWidget::BuildRepresentation  )  [protected]


void vtkImagePlaneWidget::WindowLevel int  X,
int  Y
[protected]


void vtkImagePlaneWidget::Push double *  p1,
double *  p2
[protected]


void vtkImagePlaneWidget::Spin double *  p1,
double *  p2
[protected]


void vtkImagePlaneWidget::Rotate double *  p1,
double *  p2,
double *  vpn
[protected]


void vtkImagePlaneWidget::Scale double *  p1,
double *  p2,
int  X,
int  Y
[protected]


void vtkImagePlaneWidget::Translate double *  p1,
double *  p2
[protected]


vtkLookupTable* vtkImagePlaneWidget::CreateDefaultLookupTable  )  [protected]


void vtkImagePlaneWidget::CreateDefaultProperties  )  [protected]


void vtkImagePlaneWidget::UpdatePlane  )  [protected]


void vtkImagePlaneWidget::GenerateTexturePlane  )  [protected]


void vtkImagePlaneWidget::GenerateCursor  )  [protected]


void vtkImagePlaneWidget::UpdateCursor int  ,
int
[protected]


void vtkImagePlaneWidget::ActivateCursor int   )  [protected]


int vtkImagePlaneWidget::UpdateContinuousCursor double *  q  )  [protected]


int vtkImagePlaneWidget::UpdateDiscreteCursor double *  q  )  [protected]


void vtkImagePlaneWidget::GenerateText  )  [protected]


void vtkImagePlaneWidget::ManageTextDisplay  )  [protected]


void vtkImagePlaneWidget::ActivateText int   )  [protected]


void vtkImagePlaneWidget::AdjustState  )  [protected]


void vtkImagePlaneWidget::GenerateMargins  )  [protected]


void vtkImagePlaneWidget::UpdateMargins  )  [protected]


void vtkImagePlaneWidget::ActivateMargins int   )  [protected]



Member Data Documentation

int vtkImagePlaneWidget::TextureVisibility [protected]


Definition at line 454 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::LeftButtonAction [protected]


Definition at line 456 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::MiddleButtonAction [protected]


Definition at line 457 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::RightButtonAction [protected]


Definition at line 458 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::LeftButtonAutoModifier [protected]


Definition at line 460 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::MiddleButtonAutoModifier [protected]


Definition at line 461 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::RightButtonAutoModifier [protected]


Definition at line 462 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::LastButtonPressed [protected]


Definition at line 473 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::State [protected]


Definition at line 476 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::Interaction [protected]


Definition at line 519 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::PlaneOrientation [protected]


Definition at line 520 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::RestrictPlaneToVolume [protected]


Definition at line 521 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::OriginalWindow [protected]


Definition at line 522 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::OriginalLevel [protected]


Definition at line 523 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::CurrentWindow [protected]


Definition at line 524 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::CurrentLevel [protected]


Definition at line 525 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::ResliceInterpolate [protected]


Definition at line 526 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::TextureInterpolate [protected]


Definition at line 527 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::UserControlledLookupTable [protected]


Definition at line 528 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::DisplayText [protected]


Definition at line 529 of file vtkImagePlaneWidget.h.

vtkPlaneSource* vtkImagePlaneWidget::PlaneSource [protected]


Definition at line 532 of file vtkImagePlaneWidget.h.

vtkPolyData* vtkImagePlaneWidget::PlaneOutlinePolyData [protected]


Definition at line 533 of file vtkImagePlaneWidget.h.

vtkActor* vtkImagePlaneWidget::PlaneOutlineActor [protected]


Definition at line 534 of file vtkImagePlaneWidget.h.

vtkCellPicker* vtkImagePlaneWidget::PlanePicker [protected]


Definition at line 542 of file vtkImagePlaneWidget.h.

vtkImageData* vtkImagePlaneWidget::ImageData [protected]


Definition at line 552 of file vtkImagePlaneWidget.h.

vtkImageReslice* vtkImagePlaneWidget::Reslice [protected]


Definition at line 553 of file vtkImagePlaneWidget.h.

vtkMatrix4x4* vtkImagePlaneWidget::ResliceAxes [protected]


Definition at line 554 of file vtkImagePlaneWidget.h.

vtkTransform* vtkImagePlaneWidget::Transform [protected]


Definition at line 555 of file vtkImagePlaneWidget.h.

vtkActor* vtkImagePlaneWidget::TexturePlaneActor [protected]


Definition at line 556 of file vtkImagePlaneWidget.h.

vtkImageMapToColors* vtkImagePlaneWidget::ColorMap [protected]


Definition at line 557 of file vtkImagePlaneWidget.h.

vtkTexture* vtkImagePlaneWidget::Texture [protected]


Definition at line 558 of file vtkImagePlaneWidget.h.

vtkLookupTable* vtkImagePlaneWidget::LookupTable [protected]


Definition at line 559 of file vtkImagePlaneWidget.h.

vtkProperty* vtkImagePlaneWidget::PlaneProperty [protected]


Definition at line 566 of file vtkImagePlaneWidget.h.

vtkProperty* vtkImagePlaneWidget::SelectedPlaneProperty [protected]


Definition at line 567 of file vtkImagePlaneWidget.h.

vtkProperty* vtkImagePlaneWidget::CursorProperty [protected]


Definition at line 568 of file vtkImagePlaneWidget.h.

vtkProperty* vtkImagePlaneWidget::MarginProperty [protected]


Definition at line 569 of file vtkImagePlaneWidget.h.

vtkProperty* vtkImagePlaneWidget::TexturePlaneProperty [protected]


Definition at line 570 of file vtkImagePlaneWidget.h.

vtkPolyData* vtkImagePlaneWidget::CursorPolyData [protected]


Definition at line 578 of file vtkImagePlaneWidget.h.

vtkActor* vtkImagePlaneWidget::CursorActor [protected]


Definition at line 579 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::CurrentCursorPosition[3] [protected]


Definition at line 580 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::CurrentImageValue [protected]


Definition at line 581 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::UseContinuousCursor [protected]


Definition at line 587 of file vtkImagePlaneWidget.h.

vtkTextActor* vtkImagePlaneWidget::TextActor [protected]


Definition at line 590 of file vtkImagePlaneWidget.h.

char vtkImagePlaneWidget::TextBuff[128] [protected]


Definition at line 591 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::RotateAxis[3] [protected]


Definition at line 597 of file vtkImagePlaneWidget.h.

double vtkImagePlaneWidget::RadiusVector[3] [protected]


Definition at line 598 of file vtkImagePlaneWidget.h.

vtkPolyData* vtkImagePlaneWidget::MarginPolyData [protected]


Definition at line 602 of file vtkImagePlaneWidget.h.

vtkActor* vtkImagePlaneWidget::MarginActor [protected]


Definition at line 603 of file vtkImagePlaneWidget.h.

int vtkImagePlaneWidget::MarginSelectMode [protected]


Definition at line 604 of file vtkImagePlaneWidget.h.


The documentation for this class was generated from the following file:
Generated on Mon Jan 21 23:52:18 2008 for VTK by  doxygen 1.4.3-20050530
