vtkXYPlotActor Class Reference

#include <vtkXYPlotActor.h>

Inheritance diagram for vtkXYPlotActor:

[legend]Collaboration diagram for vtkXYPlotActor:

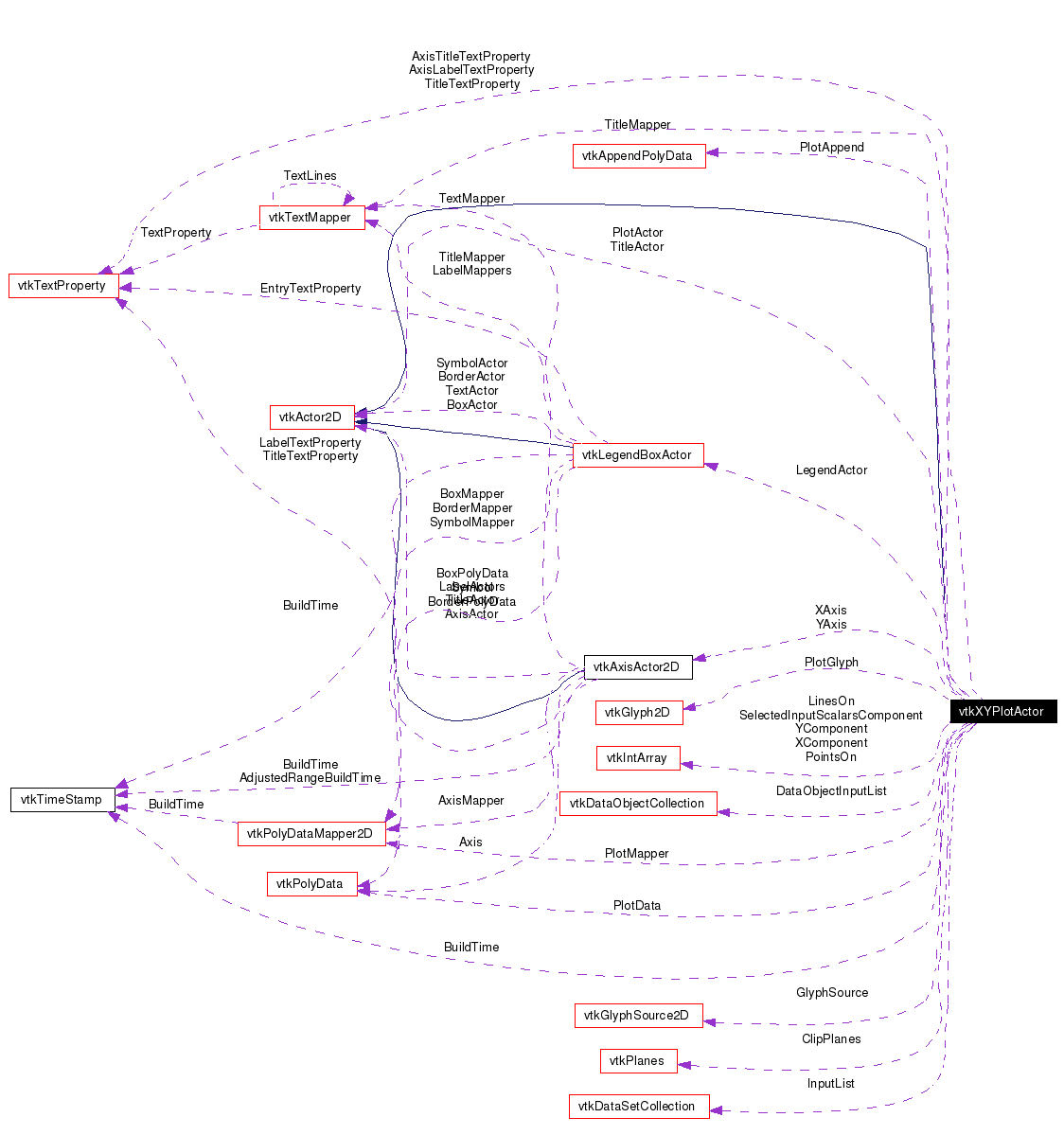

[legend]List of all members.

---

Detailed Description

generate an x-y plot from input dataset(s) or field data

vtkXYPlotActor creates an x-y plot of data from one or more input data sets or field data. The class plots dataset scalar values (y-axis) against the points (x-axis). The x-axis values are generated by taking the point ids, computing a cumulative arc length, or a normalized arc length. More than one input data set can be specified to generate multiple plots. Alternatively, if field data is supplied as input, the class plots one component against another. (The user must specify which component to use as the x-axis and which for the y-axis.)

To use this class to plot dataset(s), you must specify one or more input datasets containing scalar and point data. You'll probably also want to invoke a method to control how the point coordinates are converted into x values (by default point ids are used).

To use this class to plot field data, you must specify one or more input data objects with its associated field data. You'll also want to specify which component to use as the x-axis and which to use as the y-axis. Note that when plotting field data, the x and y values are used directly (i.e., there are no options to normalize the components).

Once you've set up the plot, you'll want to position it. The PositionCoordinate defines the lower-left location of the x-y plot (specified in normalized viewport coordinates) and the Position2Coordinate define the upper-right corner. (Note: the Position2Coordinate is relative to PositionCoordinate, so you can move the vtkXYPlotActor around the viewport by setting just the PositionCoordinate.) The combination of the two position coordinates specifies a rectangle in which the plot will lie.

Optional features include the ability to specify axes labels, label format and plot title. You can also manually specify the x and y plot ranges (by default they are computed automatically). The Border instance variable is used to create space between the boundary of the plot window (specified by PositionCoordinate and Position2Coordinate) and the plot itself.

The font property of the plot title can be modified through the TitleTextProperty attribute. The font property of the axes titles and labels can be modified through the AxisTitleTextProperty and AxisLabelTextProperty attributes. You may also use the GetXAxisActor2D or GetYAxisActor2D methods to access each individual axis actor to modify their font properties. In the same way, the GetLegendBoxActor method can be used to access the legend box actor to modify its font properties.

There are several advanced features as well. You can assign per curve properties (such as color and a plot symbol). (Note that each input dataset and/or data object creates a single curve.) Another option is to add a plot legend that graphically indicates the correspondance between the curve, curve symbols, and the data source. You can also exchange the x and y axes if you prefer you plot orientation that way.

Warning:

If you are interested in plotting something other than scalar data, you can use the vtk data shuffling filters (e.g., vtkAttributeDataToFieldDataFilter and vtkFieldDataToAttributeDataFilter) to convert the data into scalar data and/or points.

See also:

vtkActor2D vtkTextMapper vtkScalarBarActor vtkAxisActor2D vtkCubeAxesActor2D vtkAttributeDataToFieldDataFilter vtkFieldDataToAttributeDataFilter vtkTextProperty

Examples:

vtkXYPlotActor (Examples)

Tests:

vtkXYPlotActor (Tests)

Definition at line 116 of file vtkXYPlotActor.h.

void	AddInput (vtkDataSet *in, const char *arrayName, int component)
void	AddInput (vtkDataSet *in)
static vtkXYPlotActor *	New ()
Public Types
typedef vtkActor2D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	RemoveAllInputs ()
void	AddDataObjectInput (vtkDataObject *in)
void	SetPlotColor (int i, double r, double g, double b)
void	SetPlotColor (int i, const double color[3])
double *	GetPlotColor (int i)
void	SetPlotSymbol (int i, vtkPolyData *input)
vtkPolyData *	GetPlotSymbol (int i)
void	SetPlotLabel (int i, const char *label)
const char *	GetPlotLabel (int i)
virtual int	GetPlotCurvePoints ()
virtual void	SetPlotCurvePoints (int)
virtual void	PlotCurvePointsOn ()
virtual void	PlotCurvePointsOff ()
virtual int	GetPlotCurveLines ()
virtual void	SetPlotCurveLines (int)
virtual void	PlotCurveLinesOn ()
virtual void	PlotCurveLinesOff ()
void	SetPlotLines (int i, int)
int	GetPlotLines (int i)
void	SetPlotPoints (int i, int)
int	IsInPlot (vtkViewport *viewport, double u, double v)
unsigned long	GetMTime ()
void	ReleaseGraphicsResources (vtkWindow *)
void	RemoveInput (vtkDataSet *in, const char *arrayName, int component)
void	RemoveInput (vtkDataSet *in)
vtkDataSetCollection *	GetInputList ()
void	SetPointComponent (int i, int comp)
int	GetPointComponent (int i)
virtual void	SetXValues (int)
virtual int	GetXValues ()
void	SetXValuesToIndex ()
void	SetXValuesToArcLength ()
void	SetXValuesToNormalizedArcLength ()
void	SetXValuesToValue ()
const char *	GetXValuesAsString ()
void	RemoveDataObjectInput (vtkDataObject *in)
vtkDataObjectCollection *	GetDataObjectInputList ()
virtual void	SetDataObjectPlotMode (int)
virtual int	GetDataObjectPlotMode ()
void	SetDataObjectPlotModeToRows ()
void	SetDataObjectPlotModeToColumns ()
const char *	GetDataObjectPlotModeAsString ()
void	SetDataObjectXComponent (int i, int comp)
int	GetDataObjectXComponent (int i)
void	SetDataObjectYComponent (int i, int comp)
int	GetDataObjectYComponent (int i)
int	GetPlotPoints (int i)
virtual void	SetExchangeAxes (int)
virtual int	GetExchangeAxes ()
virtual void	ExchangeAxesOn ()
virtual void	ExchangeAxesOff ()
virtual void	SetReverseXAxis (int)
virtual int	GetReverseXAxis ()
virtual void	ReverseXAxisOn ()
virtual void	ReverseXAxisOff ()
virtual void	SetReverseYAxis (int)
virtual int	GetReverseYAxis ()
virtual void	ReverseYAxisOn ()
virtual void	ReverseYAxisOff ()
virtual vtkLegendBoxActor *	GetLegendActor ()
virtual vtkGlyphSource2D *	GetGlyphSource ()
virtual void	SetTitle (const char *)
virtual char *	GetTitle ()
virtual void	SetXTitle (const char *)
virtual char *	GetXTitle ()
virtual void	SetYTitle (const char *)
virtual char *	GetYTitle ()
vtkAxisActor2D *	GetXAxisActor2D ()
vtkAxisActor2D *	GetYAxisActor2D ()
virtual void	SetXRange (double, double)
void	SetXRange (double[2])
virtual double *	GetXRange ()
virtual void	GetXRange (double data[2])
virtual void	SetYRange (double, double)
void	SetYRange (double[2])
virtual double *	GetYRange ()
virtual void	GetYRange (double data[2])
void	SetPlotRange (double xmin, double ymin, double xmax, double ymax)
virtual void	SetNumberOfXLabels (int)
virtual int	GetNumberOfXLabels ()
virtual void	SetNumberOfYLabels (int)
virtual int	GetNumberOfYLabels ()
void	SetNumberOfLabels (int num)
virtual void	SetLegend (int)
virtual int	GetLegend ()
virtual void	LegendOn ()
virtual void	LegendOff ()
virtual void	SetLegendPosition (double, double)
void	SetLegendPosition (double[2])
virtual double *	GetLegendPosition ()
virtual void	GetLegendPosition (double &, double &)
virtual void	GetLegendPosition (double[2])
virtual void	SetLegendPosition2 (double, double)
void	SetLegendPosition2 (double[2])
virtual double *	GetLegendPosition2 ()
virtual void	GetLegendPosition2 (double &, double &)
virtual void	GetLegendPosition2 (double[2])
virtual void	SetTitleTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetTitleTextProperty ()
virtual void	SetAxisTitleTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetAxisTitleTextProperty ()
virtual void	SetAxisLabelTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetAxisLabelTextProperty ()
virtual void	SetLogx (int)
virtual int	GetLogx ()
virtual void	LogxOn ()
virtual void	LogxOff ()
virtual void	SetLabelFormat (const char *_arg)
virtual char *	GetLabelFormat ()
virtual void	SetBorder (int)
virtual int	GetBorder ()
virtual int	GetPlotPoints ()
virtual void	SetPlotPoints (int)
virtual void	PlotPointsOn ()
virtual void	PlotPointsOff ()
virtual int	GetPlotLines ()
virtual void	SetPlotLines (int)
virtual void	PlotLinesOn ()
virtual void	PlotLinesOff ()
virtual void	SetGlyphSize (double)
virtual double	GetGlyphSize ()
void	ViewportToPlotCoordinate (vtkViewport *viewport, double &u, double &v)
void	ViewportToPlotCoordinate (vtkViewport *viewport)
virtual void	SetPlotCoordinate (double, double)
void	SetPlotCoordinate (double[2])
virtual double *	GetPlotCoordinate ()
virtual void	GetPlotCoordinate (double &, double &)
virtual void	GetPlotCoordinate (double[2])
void	PlotToViewportCoordinate (vtkViewport *viewport, double &u, double &v)
void	PlotToViewportCoordinate (vtkViewport *viewport)
virtual void	SetViewportCoordinate (double, double)
void	SetViewportCoordinate (double[2])
virtual double *	GetViewportCoordinate ()
virtual void	GetViewportCoordinate (double &, double &)
virtual void	GetViewportCoordinate (double[2])
void	PrintAsCSV (ostream &os)
int	RenderOpaqueGeometry (vtkViewport *)
int	RenderOverlay (vtkViewport *)
int	RenderTranslucentGeometry (vtkViewport *)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXYPlotActor *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkXYPlotActor ()
	~vtkXYPlotActor ()
void	InitializeEntries ()
void	ComputeXRange (double range[2], double *lengths)
void	ComputeYRange (double range[2])
void	ComputeDORange (double xrange[2], double yrange[2], double *lengths)
virtual void	CreatePlotData (int *pos, int *pos2, double xRange[2], double yRange[2], double *norms, int numDS, int numDO)
void	PlaceAxes (vtkViewport *viewport, int *size, int pos[2], int pos2[2])
void	GenerateClipPlanes (int *pos, int *pos2)
double	ComputeGlyphScale (int i, int *pos, int *pos2)
void	ClipPlotData (int *pos, int *pos2, vtkPolyData *pd)
double *	TransformPoint (int pos[2], int pos2[2], double x[3], double xNew[3])
Protected Attributes
vtkDataSetCollection *	InputList
char **	SelectedInputScalars
vtkIntArray *	SelectedInputScalarsComponent
vtkDataObjectCollection *	DataObjectInputList
char *	Title
char *	XTitle
char *	YTitle
int	XValues
int	NumberOfXLabels
int	NumberOfYLabels
int	Logx
char *	LabelFormat
double	XRange [2]
double	YRange [2]
double	XComputedRange [2]
double	YComputedRange [2]
int	Border
int	PlotLines
int	PlotPoints
int	PlotCurveLines
int	PlotCurvePoints
int	ExchangeAxes
int	ReverseXAxis
int	ReverseYAxis
vtkTextMapper *	TitleMapper
vtkActor2D *	TitleActor
vtkTextProperty *	TitleTextProperty
vtkAxisActor2D *	XAxis
vtkAxisActor2D *	YAxis
vtkTextProperty *	AxisTitleTextProperty
vtkTextProperty *	AxisLabelTextProperty
double	ViewportCoordinate [2]
double	PlotCoordinate [2]
int	DataObjectPlotMode
vtkIntArray *	XComponent
vtkIntArray *	YComponent
vtkIntArray *	LinesOn
vtkIntArray *	PointsOn
int	NumberOfInputs
vtkPolyData **	PlotData
vtkGlyph2D **	PlotGlyph
vtkAppendPolyData **	PlotAppend
vtkPolyDataMapper2D **	PlotMapper
vtkActor2D **	PlotActor
int	Legend
double	LegendPosition [2]
double	LegendPosition2 [2]
vtkLegendBoxActor *	LegendActor
vtkGlyphSource2D *	GlyphSource
vtkPlanes *	ClipPlanes
double	GlyphSize
int	CachedSize [2]
vtkTimeStamp	BuildTime

---

Member Typedef Documentation

typedef vtkActor2D vtkXYPlotActor::Superclass

Reimplemented from vtkActor2D. Definition at line 119 of file vtkXYPlotActor.h.

---

Constructor & Destructor Documentation

vtkXYPlotActor::vtkXYPlotActor (   )  [protected]

vtkXYPlotActor::~vtkXYPlotActor (   )  [protected]

---

Member Function Documentation

virtual const char* vtkXYPlotActor::GetClassName (   )  [virtual]

Reimplemented from vtkActor2D.

static int vtkXYPlotActor::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkActor2D.

virtual int vtkXYPlotActor::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkActor2D.

static vtkXYPlotActor* vtkXYPlotActor::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkActor2D.

void vtkXYPlotActor::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkActor2D.

static vtkXYPlotActor* vtkXYPlotActor::New (   )  [static]

Instantiate object with autorange computation; bold, italic, and shadows on; arial font family; the number of labels set to 5 for the x and y axes; a label format of "%-#6.3g"; and x coordinates computed from point ids. Reimplemented from vtkActor2D.

void vtkXYPlotActor::AddInput (  vtkDataSet *  in, const char *  arrayName, int  component )

Add a dataset to the list of data to append. The array name specifies which point array to plot. If the array name is NULL, then the default scalars are used. The array can have multiple components, but only the first component is ploted.

void vtkXYPlotActor::AddInput (  vtkDataSet *  in  )  [inline]

Add a dataset to the list of data to append. The array name specifies which point array to plot. If the array name is NULL, then the default scalars are used. The array can have multiple components, but only the first component is ploted. Definition at line 139 of file vtkXYPlotActor.h.

void vtkXYPlotActor::RemoveInput (  vtkDataSet *  in, const char *  arrayName, int  component )

Remove a dataset from the list of data to append.

void vtkXYPlotActor::RemoveInput (  vtkDataSet *  in  )  [inline]

Remove a dataset from the list of data to append. Definition at line 145 of file vtkXYPlotActor.h.

void vtkXYPlotActor::RemoveAllInputs (   )

This removes all of the data set inputs, but does not change the data object inputs.

vtkDataSetCollection* vtkXYPlotActor::GetInputList (   )  [inline]

Return the list of inputs to this filter. Definition at line 153 of file vtkXYPlotActor.h.

void vtkXYPlotActor::SetPointComponent (  int  i, int  comp )

If plotting points by value, which component to use to determine the value. This sets a value per each input dataset (i.e., the ith dataset).

int vtkXYPlotActor::GetPointComponent (  int  i  )

Return the list of inputs to this filter.

virtual void vtkXYPlotActor::SetXValues (  int   )  [virtual]

Specify how the independent (x) variable is computed from the points. The independent variable can be the scalar/point index (i.e., point id), the accumulated arc length along the points, the normalized arc length, or by component value. If plotting datasets (e.g., points), the value that is used is specified by the PointComponent ivar. (Note: these methods also control how field data is plotted. Field data is usually plotted by value or index, if plotting length 1-dimensional length measures are used.)

virtual int vtkXYPlotActor::GetXValues (   )  [virtual]

Specify how the independent (x) variable is computed from the points. The independent variable can be the scalar/point index (i.e., point id), the accumulated arc length along the points, the normalized arc length, or by component value. If plotting datasets (e.g., points), the value that is used is specified by the PointComponent ivar. (Note: these methods also control how field data is plotted. Field data is usually plotted by value or index, if plotting length 1-dimensional length measures are used.)

void vtkXYPlotActor::SetXValuesToIndex (   )  [inline]

Specify how the independent (x) variable is computed from the points. The independent variable can be the scalar/point index (i.e., point id), the accumulated arc length along the points, the normalized arc length, or by component value. If plotting datasets (e.g., points), the value that is used is specified by the PointComponent ivar. (Note: these methods also control how field data is plotted. Field data is usually plotted by value or index, if plotting length 1-dimensional length measures are used.) Definition at line 175 of file vtkXYPlotActor.h. References VTK_XYPLOT_INDEX.

void vtkXYPlotActor::SetXValuesToArcLength (   )  [inline]

Specify how the independent (x) variable is computed from the points. The independent variable can be the scalar/point index (i.e., point id), the accumulated arc length along the points, the normalized arc length, or by component value. If plotting datasets (e.g., points), the value that is used is specified by the PointComponent ivar. (Note: these methods also control how field data is plotted. Field data is usually plotted by value or index, if plotting length 1-dimensional length measures are used.) Definition at line 176 of file vtkXYPlotActor.h. References VTK_XYPLOT_ARC_LENGTH.

void vtkXYPlotActor::SetXValuesToNormalizedArcLength (   )  [inline]

Specify how the independent (x) variable is computed from the points. The independent variable can be the scalar/point index (i.e., point id), the accumulated arc length along the points, the normalized arc length, or by component value. If plotting datasets (e.g., points), the value that is used is specified by the PointComponent ivar. (Note: these methods also control how field data is plotted. Field data is usually plotted by value or index, if plotting length 1-dimensional length measures are used.) Definition at line 177 of file vtkXYPlotActor.h. References VTK_XYPLOT_NORMALIZED_ARC_LENGTH.

void vtkXYPlotActor::SetXValuesToValue (   )  [inline]

Specify how the independent (x) variable is computed from the points. The independent variable can be the scalar/point index (i.e., point id), the accumulated arc length along the points, the normalized arc length, or by component value. If plotting datasets (e.g., points), the value that is used is specified by the PointComponent ivar. (Note: these methods also control how field data is plotted. Field data is usually plotted by value or index, if plotting length 1-dimensional length measures are used.) Definition at line 179 of file vtkXYPlotActor.h. References VTK_XYPLOT_VALUE.

const char* vtkXYPlotActor::GetXValuesAsString (   )

Specify how the independent (x) variable is computed from the points. The independent variable can be the scalar/point index (i.e., point id), the accumulated arc length along the points, the normalized arc length, or by component value. If plotting datasets (e.g., points), the value that is used is specified by the PointComponent ivar. (Note: these methods also control how field data is plotted. Field data is usually plotted by value or index, if plotting length 1-dimensional length measures are used.)

void vtkXYPlotActor::AddDataObjectInput (  vtkDataObject *  in  )

Add a dataset to the list of data to append.

void vtkXYPlotActor::RemoveDataObjectInput (  vtkDataObject *  in  )

Remove a dataset from the list of data to append.

vtkDataObjectCollection* vtkXYPlotActor::GetDataObjectInputList (   )  [inline]

Return the list of inputs to this filter. Definition at line 196 of file vtkXYPlotActor.h.

virtual void vtkXYPlotActor::SetDataObjectPlotMode (  int   )  [virtual]

Indicate whether to plot rows or columns. If plotting rows, then the dependent variables is taken from a specified row, versus rows (y).

virtual int vtkXYPlotActor::GetDataObjectPlotMode (   )  [virtual]

Indicate whether to plot rows or columns. If plotting rows, then the dependent variables is taken from a specified row, versus rows (y).

void vtkXYPlotActor::SetDataObjectPlotModeToRows (   )  [inline]

Indicate whether to plot rows or columns. If plotting rows, then the dependent variables is taken from a specified row, versus rows (y). Definition at line 205 of file vtkXYPlotActor.h. References VTK_XYPLOT_ROW.

void vtkXYPlotActor::SetDataObjectPlotModeToColumns (   )  [inline]

Indicate whether to plot rows or columns. If plotting rows, then the dependent variables is taken from a specified row, versus rows (y). Definition at line 207 of file vtkXYPlotActor.h. References VTK_XYPLOT_COLUMN.

const char* vtkXYPlotActor::GetDataObjectPlotModeAsString (   )

Indicate whether to plot rows or columns. If plotting rows, then the dependent variables is taken from a specified row, versus rows (y).

void vtkXYPlotActor::SetDataObjectXComponent (  int  i, int  comp )

Specify which component of the input data object to use as the independent variable for the ith input data object. (This ivar is ignored if plotting the index.) Note that the value is interpreted differently depending on DataObjectPlotMode. If the mode is Rows, then the value of DataObjectXComponent is the row number; otherwise it's the column number.

int vtkXYPlotActor::GetDataObjectXComponent (  int  i  )

Specify which component of the input data object to use as the independent variable for the ith input data object. (This ivar is ignored if plotting the index.) Note that the value is interpreted differently depending on DataObjectPlotMode. If the mode is Rows, then the value of DataObjectXComponent is the row number; otherwise it's the column number.

void vtkXYPlotActor::SetDataObjectYComponent (  int  i, int  comp )

Specify which component of the input data object to use as the dependent variable for the ith input data object. (This ivar is ignored if plotting the index.) Note that the value is interpreted differently depending on DataObjectPlotMode. If the mode is Rows, then the value of DataObjectYComponent is the row number; otherwise it's the column number.

int vtkXYPlotActor::GetDataObjectYComponent (  int  i  )

Specify which component of the input data object to use as the dependent variable for the ith input data object. (This ivar is ignored if plotting the index.) Note that the value is interpreted differently depending on DataObjectPlotMode. If the mode is Rows, then the value of DataObjectYComponent is the row number; otherwise it's the column number.

void vtkXYPlotActor::SetPlotColor (  int  i, double  r, double  g, double  b )

void vtkXYPlotActor::SetPlotColor (  int  i, const double  color[3] )  [inline]

Definition at line 241 of file vtkXYPlotActor.h.

double* vtkXYPlotActor::GetPlotColor (  int  i  )

void vtkXYPlotActor::SetPlotSymbol (  int  i, vtkPolyData *  input )

vtkPolyData* vtkXYPlotActor::GetPlotSymbol (  int  i  )

void vtkXYPlotActor::SetPlotLabel (  int  i, const char *  label )

const char* vtkXYPlotActor::GetPlotLabel (  int  i  )

virtual int vtkXYPlotActor::GetPlotCurvePoints (   )  [virtual]

virtual void vtkXYPlotActor::SetPlotCurvePoints (  int   )  [virtual]

virtual void vtkXYPlotActor::PlotCurvePointsOn (   )  [virtual]

virtual void vtkXYPlotActor::PlotCurvePointsOff (   )  [virtual]

virtual int vtkXYPlotActor::GetPlotCurveLines (   )  [virtual]

virtual void vtkXYPlotActor::SetPlotCurveLines (  int   )  [virtual]

virtual void vtkXYPlotActor::PlotCurveLinesOn (   )  [virtual]

virtual void vtkXYPlotActor::PlotCurveLinesOff (   )  [virtual]

void vtkXYPlotActor::SetPlotLines (  int  i, int  )

int vtkXYPlotActor::GetPlotLines (  int  i  )

void vtkXYPlotActor::SetPlotPoints (  int  i, int  )

int vtkXYPlotActor::GetPlotPoints (  int  i  )

virtual void vtkXYPlotActor::SetExchangeAxes (  int   )  [virtual]

Enable/Disable exchange of the x-y axes (i.e., what was x becomes y, and vice-versa). Exchanging axes affects the labeling as well.

virtual int vtkXYPlotActor::GetExchangeAxes (   )  [virtual]

virtual void vtkXYPlotActor::ExchangeAxesOn (   )  [virtual]

virtual void vtkXYPlotActor::ExchangeAxesOff (   )  [virtual]

virtual void vtkXYPlotActor::SetReverseXAxis (  int   )  [virtual]

Normally the x-axis is plotted from minimum to maximum. Setting this instance variable causes the x-axis to be plotted from maximum to minimum. Note that boolean always applies to the x-axis even if ExchangeAxes is set.

virtual int vtkXYPlotActor::GetReverseXAxis (   )  [virtual]

Normally the x-axis is plotted from minimum to maximum. Setting this instance variable causes the x-axis to be plotted from maximum to minimum. Note that boolean always applies to the x-axis even if ExchangeAxes is set.

virtual void vtkXYPlotActor::ReverseXAxisOn (   )  [virtual]

Normally the x-axis is plotted from minimum to maximum. Setting this instance variable causes the x-axis to be plotted from maximum to minimum. Note that boolean always applies to the x-axis even if ExchangeAxes is set.

virtual void vtkXYPlotActor::ReverseXAxisOff (   )  [virtual]

Normally the x-axis is plotted from minimum to maximum. Setting this instance variable causes the x-axis to be plotted from maximum to minimum. Note that boolean always applies to the x-axis even if ExchangeAxes is set.

virtual void vtkXYPlotActor::SetReverseYAxis (  int   )  [virtual]

Normally the y-axis is plotted from minimum to maximum. Setting this instance variable causes the y-axis to be plotted from maximum to minimum. Note that boolean always applies to the y-axis even if ExchangeAxes is set.

virtual int vtkXYPlotActor::GetReverseYAxis (   )  [virtual]

Normally the y-axis is plotted from minimum to maximum. Setting this instance variable causes the y-axis to be plotted from maximum to minimum. Note that boolean always applies to the y-axis even if ExchangeAxes is set.

virtual void vtkXYPlotActor::ReverseYAxisOn (   )  [virtual]

Normally the y-axis is plotted from minimum to maximum. Setting this instance variable causes the y-axis to be plotted from maximum to minimum. Note that boolean always applies to the y-axis even if ExchangeAxes is set.

virtual void vtkXYPlotActor::ReverseYAxisOff (   )  [virtual]

Normally the y-axis is plotted from minimum to maximum. Setting this instance variable causes the y-axis to be plotted from maximum to minimum. Note that boolean always applies to the y-axis even if ExchangeAxes is set.

virtual vtkLegendBoxActor* vtkXYPlotActor::GetLegendActor (   )  [virtual]

Retrieve handles to the legend box and glyph source. This is useful if you would like to change the default behavior of the legend box or glyph source. For example, the default glyph can be changed from a line to a vertex plus line, etc.)

virtual vtkGlyphSource2D* vtkXYPlotActor::GetGlyphSource (   )  [virtual]

Retrieve handles to the legend box and glyph source. This is useful if you would like to change the default behavior of the legend box or glyph source. For example, the default glyph can be changed from a line to a vertex plus line, etc.)

virtual void vtkXYPlotActor::SetTitle (  const char *   )  [virtual]

Set/Get the title of the x-y plot, and the title along the x and y axes.

virtual char* vtkXYPlotActor::GetTitle (   )  [virtual]

Set/Get the title of the x-y plot, and the title along the x and y axes.

virtual void vtkXYPlotActor::SetXTitle (  const char *   )  [virtual]

Set/Get the title of the x-y plot, and the title along the x and y axes.

virtual char* vtkXYPlotActor::GetXTitle (   )  [virtual]

Set/Get the title of the x-y plot, and the title along the x and y axes.

virtual void vtkXYPlotActor::SetYTitle (  const char *   )  [virtual]

Set/Get the title of the x-y plot, and the title along the x and y axes.

virtual char* vtkXYPlotActor::GetYTitle (   )  [virtual]

Set/Get the title of the x-y plot, and the title along the x and y axes.

vtkAxisActor2D* vtkXYPlotActor::GetXAxisActor2D (   )  [inline]

Retrieve handles to the X and Y axis (so that you can set their text properties for example) Definition at line 318 of file vtkXYPlotActor.h.

vtkAxisActor2D* vtkXYPlotActor::GetYAxisActor2D (   )  [inline]

Retrieve handles to the X and Y axis (so that you can set their text properties for example) Definition at line 320 of file vtkXYPlotActor.h.

virtual void vtkXYPlotActor::SetXRange (  double  , double  )  [virtual]

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

void vtkXYPlotActor::SetXRange (  double  [2]  )

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

virtual double* vtkXYPlotActor::GetXRange (   )  [virtual]

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

virtual void vtkXYPlotActor::GetXRange (  double  data[2]  )  [virtual]

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

virtual void vtkXYPlotActor::SetYRange (  double  , double  )  [virtual]

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

void vtkXYPlotActor::SetYRange (  double  [2]  )

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

virtual double* vtkXYPlotActor::GetYRange (   )  [virtual]

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

virtual void vtkXYPlotActor::GetYRange (  double  data[2]  )  [virtual]

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH).

void vtkXYPlotActor::SetPlotRange (  double  xmin, double  ymin, double  xmax, double  ymax )  [inline]

Set the plot range (range of independent and dependent variables) to plot. Data outside of the range will be clipped. If the plot range of either the x or y variables is set to (v1,v2), where v1 == v2, then the range will be computed automatically. Note that the x-range values should be consistent with the way the independent variable is created (via INDEX, DISTANCE, or ARC_LENGTH). Definition at line 335 of file vtkXYPlotActor.h.

virtual void vtkXYPlotActor::SetNumberOfXLabels (  int   )  [virtual]

Set/Get the number of annotation labels to show along the x and y axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data. The convenience method SetNumberOfLables() sets the number of x and y labels to the same value.

virtual int vtkXYPlotActor::GetNumberOfXLabels (   )  [virtual]

Set/Get the number of annotation labels to show along the x and y axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data. The convenience method SetNumberOfLables() sets the number of x and y labels to the same value.

virtual void vtkXYPlotActor::SetNumberOfYLabels (  int   )  [virtual]

Set/Get the number of annotation labels to show along the x and y axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data. The convenience method SetNumberOfLables() sets the number of x and y labels to the same value.

virtual int vtkXYPlotActor::GetNumberOfYLabels (   )  [virtual]

Set/Get the number of annotation labels to show along the x and y axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data. The convenience method SetNumberOfLables() sets the number of x and y labels to the same value.

void vtkXYPlotActor::SetNumberOfLabels (  int  num  )  [inline]

Set/Get the number of annotation labels to show along the x and y axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data. The convenience method SetNumberOfLables() sets the number of x and y labels to the same value. Definition at line 349 of file vtkXYPlotActor.h.

virtual void vtkXYPlotActor::SetLegend (  int   )  [virtual]

Enable/Disable the creation of a legend. If on, the legend labels will be created automatically unless the per plot legend symbol has been set.

virtual int vtkXYPlotActor::GetLegend (   )  [virtual]

Enable/Disable the creation of a legend. If on, the legend labels will be created automatically unless the per plot legend symbol has been set.

virtual void vtkXYPlotActor::LegendOn (   )  [virtual]

Enable/Disable the creation of a legend. If on, the legend labels will be created automatically unless the per plot legend symbol has been set.

virtual void vtkXYPlotActor::LegendOff (   )  [virtual]

Enable/Disable the creation of a legend. If on, the legend labels will be created automatically unless the per plot legend symbol has been set.

virtual void vtkXYPlotActor::SetLegendPosition (  double  , double  )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

void vtkXYPlotActor::SetLegendPosition (  double  [2]  )

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual double* vtkXYPlotActor::GetLegendPosition (   )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual void vtkXYPlotActor::GetLegendPosition (  double &  , double &  )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual void vtkXYPlotActor::GetLegendPosition (  double  [2]  )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual void vtkXYPlotActor::SetLegendPosition2 (  double  , double  )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

void vtkXYPlotActor::SetLegendPosition2 (  double  [2]  )

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual double* vtkXYPlotActor::GetLegendPosition2 (   )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual void vtkXYPlotActor::GetLegendPosition2 (  double &  , double &  )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual void vtkXYPlotActor::GetLegendPosition2 (  double  [2]  )  [virtual]

Use these methods to control the position of the legend. The variables LegendPosition and LegendPosition2 define the lower-left and upper-right position of the legend. The coordinates are expressed as normalized values with respect to the rectangle defined by PositionCoordinate and Position2Coordinate. Note that LegendPosition2 is relative to LegendPosition.

virtual void vtkXYPlotActor::SetTitleTextProperty (  vtkTextProperty *  p  )  [virtual]

Set/Get the title text property.

virtual vtkTextProperty* vtkXYPlotActor::GetTitleTextProperty (   )  [virtual]

Set/Get the title text property.

virtual void vtkXYPlotActor::SetAxisTitleTextProperty (  vtkTextProperty *  p  )  [virtual]

Set/Get the title text property of all axes. Note that each axis can be controlled individually through the GetX/YAxisActor2D() methods.

virtual vtkTextProperty* vtkXYPlotActor::GetAxisTitleTextProperty (   )  [virtual]

Set/Get the title text property of all axes. Note that each axis can be controlled individually through the GetX/YAxisActor2D() methods.

virtual void vtkXYPlotActor::SetAxisLabelTextProperty (  vtkTextProperty *  p  )  [virtual]

Set/Get the labels text property of all axes. Note that each axis can be controlled individually through the GetX/YAxisActor2D() methods.

virtual vtkTextProperty* vtkXYPlotActor::GetAxisLabelTextProperty (   )  [virtual]

Set/Get the labels text property of all axes. Note that each axis can be controlled individually through the GetX/YAxisActor2D() methods.

virtual void vtkXYPlotActor::SetLogx (  int   )  [virtual]

Enable/Disable plotting of Log of x-values.

virtual int vtkXYPlotActor::GetLogx (   )  [virtual]

Enable/Disable plotting of Log of x-values.

virtual void vtkXYPlotActor::LogxOn (   )  [virtual]

Enable/Disable plotting of Log of x-values.

virtual void vtkXYPlotActor::LogxOff (   )  [virtual]

Enable/Disable plotting of Log of x-values.

virtual void vtkXYPlotActor::SetLabelFormat (  const char *  _arg  )  [virtual]

Set/Get the format with which to print the labels on the scalar bar.

virtual char* vtkXYPlotActor::GetLabelFormat (   )  [virtual]

Set/Get the format with which to print the labels on the scalar bar.

virtual void vtkXYPlotActor::SetBorder (  int   )  [virtual]

Set/Get the spacing between the plot window and the plot. The value is specified in pixels.

virtual int vtkXYPlotActor::GetBorder (   )  [virtual]

Set/Get the spacing between the plot window and the plot. The value is specified in pixels.

virtual int vtkXYPlotActor::GetPlotPoints (   )  [virtual]

Set/Get whether the points are rendered. The point size can be set in the property object. This is a global flag which affects the plot only if per curve symbols are not defined.

virtual void vtkXYPlotActor::SetPlotPoints (  int   )  [virtual]

Set/Get whether the points are rendered. The point size can be set in the property object. This is a global flag which affects the plot only if per curve symbols are not defined.

virtual void vtkXYPlotActor::PlotPointsOn (   )  [virtual]

Set/Get whether the points are rendered. The point size can be set in the property object. This is a global flag which affects the plot only if per curve symbols are not defined.

virtual void vtkXYPlotActor::PlotPointsOff (   )  [virtual]

Set/Get whether the points are rendered. The point size can be set in the property object. This is a global flag which affects the plot only if per curve symbols are not defined.

virtual int vtkXYPlotActor::GetPlotLines (   )  [virtual]

Set/Get whether the lines are rendered. The line width can be set in the property object.

virtual void vtkXYPlotActor::SetPlotLines (  int   )  [virtual]

Set/Get whether the lines are rendered. The line width can be set in the property object.

virtual void vtkXYPlotActor::PlotLinesOn (   )  [virtual]

Set/Get whether the lines are rendered. The line width can be set in the property object.

virtual void vtkXYPlotActor::PlotLinesOff (   )  [virtual]

Set/Get whether the lines are rendered. The line width can be set in the property object.

virtual void vtkXYPlotActor::SetGlyphSize (  double   )  [virtual]

Set/Get the factor that controls how big glyphs are in the plot. The number is expressed as a fraction of the length of the diagonal of the plot bounding box.

virtual double vtkXYPlotActor::GetGlyphSize (   )  [virtual]

Set/Get the factor that controls how big glyphs are in the plot. The number is expressed as a fraction of the length of the diagonal of the plot bounding box.

void vtkXYPlotActor::ViewportToPlotCoordinate (  vtkViewport *  viewport, double &  u, double &  v )

Given a position within the viewport used by the plot, return the the plot coordinates (XAxis value, YAxis value)

void vtkXYPlotActor::ViewportToPlotCoordinate (  vtkViewport *  viewport  )

An alternate form of ViewportToPlotCoordinate() above. This method inputs the viewport coordinate pair (defined by the ivar ViewportCoordinate)and then stores them in the ivar PlotCoordinate.

virtual void vtkXYPlotActor::SetPlotCoordinate (  double  , double  )  [virtual]

Given a position within the viewport used by the plot, return the the plot coordinates (XAxis value, YAxis value)

void vtkXYPlotActor::SetPlotCoordinate (  double  [2]  )

Given a position within the viewport used by the plot, return the the plot coordinates (XAxis value, YAxis value)

virtual double* vtkXYPlotActor::GetPlotCoordinate (   )  [virtual]

Given a position within the viewport used by the plot, return the the plot coordinates (XAxis value, YAxis value)

virtual void vtkXYPlotActor::GetPlotCoordinate (  double &  , double &  )  [virtual]

Given a position within the viewport used by the plot, return the the plot coordinates (XAxis value, YAxis value)

virtual void vtkXYPlotActor::GetPlotCoordinate (  double  [2]  )  [virtual]

Given a position within the viewport used by the plot, return the the plot coordinates (XAxis value, YAxis value)

void vtkXYPlotActor::PlotToViewportCoordinate (  vtkViewport *  viewport, double &  u, double &  v )

Given a plot coordinate, return the viewpoint position

void vtkXYPlotActor::PlotToViewportCoordinate (  vtkViewport *  viewport  )

An alternate form of PlotToViewportCoordinate() above. This method inputs the plot coordinate pair (defined in the ivar PlotCoordinate) and then stores them in the ivar ViewportCoordinate. (This method can be wrapped.)

virtual void vtkXYPlotActor::SetViewportCoordinate (  double  , double  )  [virtual]

Given a plot coordinate, return the viewpoint position

void vtkXYPlotActor::SetViewportCoordinate (  double  [2]  )

Given a plot coordinate, return the viewpoint position

virtual double* vtkXYPlotActor::GetViewportCoordinate (   )  [virtual]

Given a plot coordinate, return the viewpoint position

virtual void vtkXYPlotActor::GetViewportCoordinate (  double &  , double &  )  [virtual]

Given a plot coordinate, return the viewpoint position

virtual void vtkXYPlotActor::GetViewportCoordinate (  double  [2]  )  [virtual]

Given a plot coordinate, return the viewpoint position

int vtkXYPlotActor::IsInPlot (  vtkViewport *  viewport, double  u, double  v )

Is the specified viewport position within the plot area (as opposed to the region used by the plot plus the labels)?

unsigned long vtkXYPlotActor::GetMTime (   )  [virtual]

Take into account the modified time of internal helper classes. Reimplemented from vtkActor2D.

void vtkXYPlotActor::PrintAsCSV (  ostream &  os  )

Write the XY Ploat Actor as a CSV (comma separated value) representation.

int vtkXYPlotActor::RenderOpaqueGeometry (  vtkViewport *   )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS. Draw the x-y plot. Reimplemented from vtkActor2D.

int vtkXYPlotActor::RenderOverlay (  vtkViewport *   )  [virtual]

Write the XY Ploat Actor as a CSV (comma separated value) representation. Reimplemented from vtkActor2D.

int vtkXYPlotActor::RenderTranslucentGeometry (  vtkViewport *   )  [inline, virtual]

Write the XY Ploat Actor as a CSV (comma separated value) representation. Reimplemented from vtkActor2D. Definition at line 483 of file vtkXYPlotActor.h.

void vtkXYPlotActor::ReleaseGraphicsResources (  vtkWindow *   )  [virtual]

Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkActor2D.

void vtkXYPlotActor::InitializeEntries (   )  [protected]

void vtkXYPlotActor::ComputeXRange (  double  range[2], double *  lengths )  [protected]

void vtkXYPlotActor::ComputeYRange (  double  range[2]  )  [protected]

void vtkXYPlotActor::ComputeDORange (  double  xrange[2], double  yrange[2], double *  lengths )  [protected]

virtual void vtkXYPlotActor::CreatePlotData (  int *  pos, int *  pos2, double  xRange[2], double  yRange[2], double *  norms, int  numDS, int  numDO )  [protected, virtual]

void vtkXYPlotActor::PlaceAxes (  vtkViewport *  viewport, int *  size, int  pos[2], int  pos2[2] )  [protected]

void vtkXYPlotActor::GenerateClipPlanes (  int *  pos, int *  pos2 )  [protected]

double vtkXYPlotActor::ComputeGlyphScale (  int  i, int *  pos, int *  pos2 )  [protected]

void vtkXYPlotActor::ClipPlotData (  int *  pos, int *  pos2, vtkPolyData *  pd )  [protected]

double* vtkXYPlotActor::TransformPoint (  int  pos[2], int  pos2[2], double  x[3], double  xNew[3] )  [protected]

---

Member Data Documentation

vtkDataSetCollection* vtkXYPlotActor::InputList [protected]

Definition at line 496 of file vtkXYPlotActor.h.

char** vtkXYPlotActor::SelectedInputScalars [protected]

Definition at line 497 of file vtkXYPlotActor.h.

vtkIntArray* vtkXYPlotActor::SelectedInputScalarsComponent [protected]

Definition at line 498 of file vtkXYPlotActor.h.

vtkDataObjectCollection* vtkXYPlotActor::DataObjectInputList [protected]

Definition at line 499 of file vtkXYPlotActor.h.

char* vtkXYPlotActor::Title [protected]

Definition at line 500 of file vtkXYPlotActor.h.

char* vtkXYPlotActor::XTitle [protected]

Definition at line 501 of file vtkXYPlotActor.h.

char* vtkXYPlotActor::YTitle [protected]

Definition at line 502 of file vtkXYPlotActor.h.

int vtkXYPlotActor::XValues [protected]

Definition at line 503 of file vtkXYPlotActor.h.

int vtkXYPlotActor::NumberOfXLabels [protected]

Definition at line 504 of file vtkXYPlotActor.h.

int vtkXYPlotActor::NumberOfYLabels [protected]

Definition at line 505 of file vtkXYPlotActor.h.

int vtkXYPlotActor::Logx [protected]

Definition at line 506 of file vtkXYPlotActor.h.

char* vtkXYPlotActor::LabelFormat [protected]

Definition at line 507 of file vtkXYPlotActor.h.

double vtkXYPlotActor::XRange[2] [protected]

Definition at line 508 of file vtkXYPlotActor.h.

double vtkXYPlotActor::YRange[2] [protected]

Definition at line 509 of file vtkXYPlotActor.h.

double vtkXYPlotActor::XComputedRange[2] [protected]

Definition at line 510 of file vtkXYPlotActor.h.

double vtkXYPlotActor::YComputedRange[2] [protected]

Definition at line 511 of file vtkXYPlotActor.h.

int vtkXYPlotActor::Border [protected]

Definition at line 512 of file vtkXYPlotActor.h.

int vtkXYPlotActor::PlotLines [protected]

Definition at line 513 of file vtkXYPlotActor.h.

int vtkXYPlotActor::PlotPoints [protected]

Definition at line 514 of file vtkXYPlotActor.h.

int vtkXYPlotActor::PlotCurveLines [protected]

Definition at line 515 of file vtkXYPlotActor.h.

int vtkXYPlotActor::PlotCurvePoints [protected]

Definition at line 516 of file vtkXYPlotActor.h.

int vtkXYPlotActor::ExchangeAxes [protected]

Definition at line 517 of file vtkXYPlotActor.h.

int vtkXYPlotActor::ReverseXAxis [protected]

Definition at line 518 of file vtkXYPlotActor.h.

int vtkXYPlotActor::ReverseYAxis [protected]

Definition at line 519 of file vtkXYPlotActor.h.

vtkTextMapper* vtkXYPlotActor::TitleMapper [protected]

Definition at line 521 of file vtkXYPlotActor.h.

vtkActor2D* vtkXYPlotActor::TitleActor [protected]

Definition at line 522 of file vtkXYPlotActor.h.

vtkTextProperty* vtkXYPlotActor::TitleTextProperty [protected]

Definition at line 523 of file vtkXYPlotActor.h.

vtkAxisActor2D* vtkXYPlotActor::XAxis [protected]

Definition at line 525 of file vtkXYPlotActor.h.

vtkAxisActor2D* vtkXYPlotActor::YAxis [protected]

Definition at line 526 of file vtkXYPlotActor.h.

vtkTextProperty* vtkXYPlotActor::AxisTitleTextProperty [protected]

Definition at line 528 of file vtkXYPlotActor.h.

vtkTextProperty* vtkXYPlotActor::AxisLabelTextProperty [protected]

Definition at line 529 of file vtkXYPlotActor.h.

double vtkXYPlotActor::ViewportCoordinate[2] [protected]

Definition at line 531 of file vtkXYPlotActor.h.

double vtkXYPlotActor::PlotCoordinate[2] [protected]

Definition at line 532 of file vtkXYPlotActor.h.

int vtkXYPlotActor::DataObjectPlotMode [protected]

Definition at line 535 of file vtkXYPlotActor.h.

vtkIntArray* vtkXYPlotActor::XComponent [protected]

Definition at line 536 of file vtkXYPlotActor.h.

vtkIntArray* vtkXYPlotActor::YComponent [protected]

Definition at line 537 of file vtkXYPlotActor.h.

vtkIntArray* vtkXYPlotActor::LinesOn [protected]

Definition at line 538 of file vtkXYPlotActor.h.

vtkIntArray* vtkXYPlotActor::PointsOn [protected]

Definition at line 539 of file vtkXYPlotActor.h.

int vtkXYPlotActor::NumberOfInputs [protected]

Definition at line 544 of file vtkXYPlotActor.h.

vtkPolyData** vtkXYPlotActor::PlotData [protected]

Definition at line 545 of file vtkXYPlotActor.h.

vtkGlyph2D** vtkXYPlotActor::PlotGlyph [protected]

Definition at line 546 of file vtkXYPlotActor.h.

vtkAppendPolyData** vtkXYPlotActor::PlotAppend [protected]

Definition at line 547 of file vtkXYPlotActor.h.

vtkPolyDataMapper2D** vtkXYPlotActor::PlotMapper [protected]

Definition at line 548 of file vtkXYPlotActor.h.

vtkActor2D** vtkXYPlotActor::PlotActor [protected]

Definition at line 549 of file vtkXYPlotActor.h.

int vtkXYPlotActor::Legend [protected]

Definition at line 554 of file vtkXYPlotActor.h.

double vtkXYPlotActor::LegendPosition[2] [protected]

Definition at line 555 of file vtkXYPlotActor.h.

double vtkXYPlotActor::LegendPosition2[2] [protected]

Definition at line 556 of file vtkXYPlotActor.h.

vtkLegendBoxActor* vtkXYPlotActor::LegendActor [protected]

Definition at line 557 of file vtkXYPlotActor.h.

vtkGlyphSource2D* vtkXYPlotActor::GlyphSource [protected]

Definition at line 558 of file vtkXYPlotActor.h.

vtkPlanes* vtkXYPlotActor::ClipPlanes [protected]

Definition at line 559 of file vtkXYPlotActor.h.

double vtkXYPlotActor::GlyphSize [protected]

Definition at line 560 of file vtkXYPlotActor.h.

int vtkXYPlotActor::CachedSize[2] [protected]

Definition at line 563 of file vtkXYPlotActor.h.

vtkTimeStamp vtkXYPlotActor::BuildTime [protected]

Definition at line 564 of file vtkXYPlotActor.h.

---

The documentation for this class was generated from the following file:

• dox/Hybrid/vtkXYPlotActor.h

---
