vtkAssignAttribute Class Reference

Labels a field as an attribute. More...

#include <vtkAssignAttribute.h>

Inheritance diagram for vtkAssignAttribute:

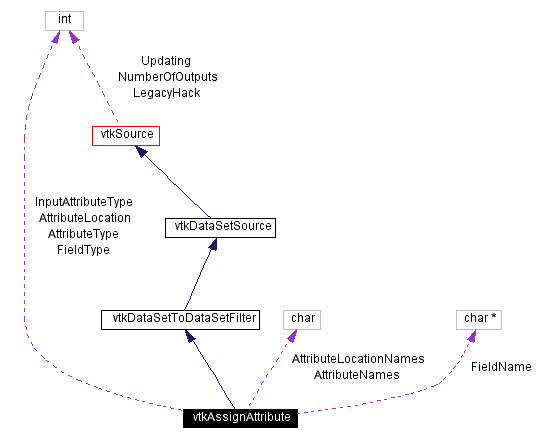

[legend]Collaboration diagram for vtkAssignAttribute:

[legend]List of all members.

Public Types
enum	AttributeLocation { POINT_DATA = 0, CELL_DATA = 1 }
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Assign (int inputAttributeType, int attributeType, int attributeLoc)
void	Assign (const char *fieldName, int attributeType, int attributeLoc)
void	Assign (const char *name, const char *attributeType, const char *attributeLoc)
Static Public Methods
int	IsTypeOf (const char *type)
vtkAssignAttribute *	SafeDownCast (vtkObject *o)
vtkAssignAttribute *	New ()
Protected Types
enum	FieldType { NAME, ATTRIBUTE }
Protected Methods
	vtkAssignAttribute ()
virtual	~vtkAssignAttribute ()
void	Execute ()
Protected Attributes
char *	FieldName
int	FieldType
int	AttributeType
int	InputAttributeType
int	AttributeLocation
Static Protected Attributes
char	AttributeLocationNames [2][12]
char	AttributeNames [vtkDataSetAttributes::NUM_ATTRIBUTES][10]

---

Detailed Description

Labels a field as an attribute.

Date:

2001/11/13 14:13:48

Revision:

1.4

vtkAssignAttribute is use to label a field (vtkDataArray) as an attribute. A field name or an attribute to labeled can be specified. For example:

 aa->Assign("foo", vtkDataSetAttributes::SCALARS,
            vtkAttributeLocation::POINT_DATA);


tells vtkAssignAttribute to make the array in the point data called "foo" the active scalars. On the other hand,

 aa->Assign(vtkDataSetAttributes::VECTORS, vtkDataSetAttributes::SCALARS,
            vtkAttributeLocation::POINT_DATA);


tells vtkAssignAttribute to make the active vectors also the active scalars. The same can be done more easily from Tcl by using the Assign() method which takes strings:

 aa Assign "foo" SCALARS POINT_DATA
 or
 aa Assign SCALARS VECTORS POINT_DATA

 AttributeTypes: SCALARS, VECTORS, NORMALS, TCOORDS, TENSORS
 Attribute locations: POINT_DATA, CELL_DATA


Warning:

When using Tcl, Java, Python or Visual Basic bindings, the array name can not be one of the AttributeTypes when calling Assign() which takes strings as arguments. The Tcl (Java etc.) command will always assume the string corresponds to an attribute type when the argument is one of the AttributeTypes. In this situation, use the Assign() which takes enums.

See also:

vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkRearrangeFields vtkSplitField vtkMergeFields

Examples:

vtkAssignAttribute (Examples)

Tests:

vtkAssignAttribute (Tests)

Definition at line 97 of file vtkAssignAttribute.h.

---

Member Enumeration Documentation

enum vtkAssignAttribute::AttributeLocation

Enumeration values: POINT_DATA  CELL_DATA  Definition at line 121 of file vtkAssignAttribute.h.

enum vtkAssignAttribute::FieldType [protected]

Enumeration values: NAME  ATTRIBUTE  Definition at line 131 of file vtkAssignAttribute.h.

---

Constructor & Destructor Documentation

vtkAssignAttribute::vtkAssignAttribute (    )  [protected]

virtual vtkAssignAttribute::~vtkAssignAttribute (    )  [protected, virtual]

---

Member Function Documentation

virtual const char* vtkAssignAttribute::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

int vtkAssignAttribute::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkAssignAttribute::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkAssignAttribute* vtkAssignAttribute::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

void vtkAssignAttribute::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

vtkAssignAttribute* vtkAssignAttribute::New (    )  [static]

Create a new vtkAssignAttribute. Reimplemented from vtkDataSetSource.

void vtkAssignAttribute::Assign (  int    inputAttributeType, int    attributeType, int    attributeLoc )

Label an attribute as another attribute.

void vtkAssignAttribute::Assign (  const char *    fieldName, int    attributeType, int    attributeLoc )

Label an array as an attribute.

void vtkAssignAttribute::Assign (  const char *    name, const char *    attributeType, const char *    attributeLoc )

Helper method used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkAssignAttribute::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

---

Member Data Documentation

char* vtkAssignAttribute::FieldName [protected]

Definition at line 143 of file vtkAssignAttribute.h.

int vtkAssignAttribute::FieldType [protected]

Definition at line 144 of file vtkAssignAttribute.h.

int vtkAssignAttribute::AttributeType [protected]

Definition at line 145 of file vtkAssignAttribute.h.

int vtkAssignAttribute::InputAttributeType [protected]

Definition at line 146 of file vtkAssignAttribute.h.

int vtkAssignAttribute::AttributeLocation [protected]

Definition at line 147 of file vtkAssignAttribute.h.

char vtkAssignAttribute::AttributeLocationNames[2][12] [static, protected]

Definition at line 149 of file vtkAssignAttribute.h.

char vtkAssignAttribute::AttributeNames[vtkDataSetAttributes::NUM_ATTRIBUTES][10] [static, protected]

Definition at line 150 of file vtkAssignAttribute.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkAssignAttribute.h

---
