vtkSplitField Class Reference

Split a field into single component fields. More...

#include <vtkSplitField.h>

Inheritance diagram for vtkSplitField:

[legend]Collaboration diagram for vtkSplitField:

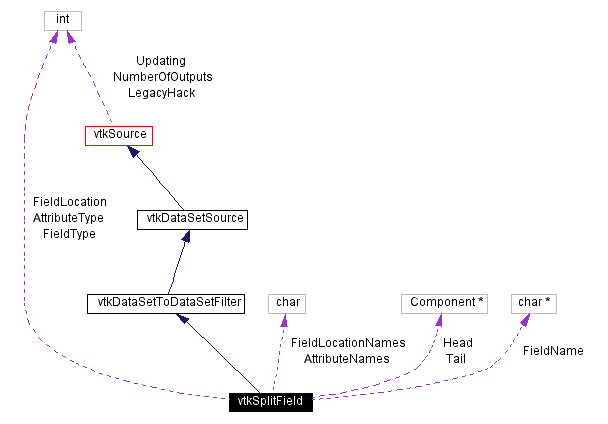

[legend]List of all members.

Public Types
enum	FieldLocations { DATA_OBJECT = 0, POINT_DATA = 1, CELL_DATA = 2 }
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInputField (int attributeType, int fieldLoc)
void	SetInputField (const char *name, int fieldLoc)
void	SetInputField (const char *name, const char *fieldLoc)
void	Split (int component, const char *arrayName)
Static Public Methods
int	IsTypeOf (const char *type)
vtkSplitField *	SafeDownCast (vtkObject *o)
vtkSplitField *	New ()
Protected Types
enum	FieldTypes { NAME, ATTRIBUTE }
Protected Methods
	vtkSplitField ()
virtual	~vtkSplitField ()
void	Execute ()
vtkDataArray *	SplitArray (vtkDataArray *da, int component)
Component *	GetNextComponent (Component *op)
Component *	GetFirst ()
void	AddComponent (Component *op)
Component *	FindComponent (int index)
void	DeleteAllComponents ()
void	PrintComponent (Component *op, ostream &os, vtkIndent indent)
void	PrintAllComponents (ostream &os, vtkIndent indent)
Protected Attributes
char *	FieldName
int	FieldType
int	AttributeType
int	FieldLocation
Component *	Head
Component *	Tail
Static Protected Attributes
char	FieldLocationNames [3][12]
char	AttributeNames [vtkDataSetAttributes::NUM_ATTRIBUTES][10]

---

Detailed Description

Split a field into single component fields.

Date:

2001/11/13 14:13:50

Revision:

1.6

vtkSplitField is used to split a multi-component field (vtkDataArray) into multiple single component fields. The new fields are put in the same field data as the original field. The output arrays are of the same type as the input array. Example:

 sf->SetInputField("gradient", vtkSplitField::POINT_DATA);
 sf->Split(0, "firstcomponent");


tells vtkSplitField to extract the first component of the field called gradient and create an array called firstcomponent (the new field will be in the output's point data). The same can be done from Tcl:

 sf SetInputField gradient POINT_DATA
 sf Split 0 firstcomponent

 AttributeTypes: SCALARS, VECTORS, NORMALS, TCOORDS, TENSORS
 Field locations: DATA_OBJECT, POINT_DATA, CELL_DATA


Note that, by default, the original array is also passed through.

Warning:

When using Tcl, Java, Python or Visual Basic bindings, the array name can not be one of the AttributeTypes when calling Split() which takes strings as arguments. The Tcl (Java etc.) command will always assume the string corresponds to an attribute type when the argument is one of the AttributeTypes. In this situation, use the Split() which takes enums.

See also:

vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkRearrangeFields vtkAssignAttribute vtkMergeFields

Tests:

vtkSplitField (Tests)

Definition at line 91 of file vtkSplitField.h.

---

Member Enumeration Documentation

enum vtkSplitField::FieldLocations

Enumeration values: DATA_OBJECT  POINT_DATA  CELL_DATA  Definition at line 116 of file vtkSplitField.h.

enum vtkSplitField::FieldTypes [protected]

Enumeration values: NAME  ATTRIBUTE  Definition at line 148 of file vtkSplitField.h.

---

Constructor & Destructor Documentation

vtkSplitField::vtkSplitField (    )  [protected]

virtual vtkSplitField::~vtkSplitField (    )  [protected, virtual]

---

Member Function Documentation

virtual const char* vtkSplitField::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

int vtkSplitField::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkSplitField::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkSplitField* vtkSplitField::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

void vtkSplitField::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

vtkSplitField* vtkSplitField::New (    )  [static]

Create a new vtkSplitField. Reimplemented from vtkDataSetSource.

void vtkSplitField::SetInputField (  int    attributeType, int    fieldLoc )

Use the given attribute in the field data given by fieldLoc as input.

void vtkSplitField::SetInputField (  const char *    name, int    fieldLoc )

Use the array with given name in the field data given by fieldLoc as input.

void vtkSplitField::SetInputField (  const char *    name, const char *    fieldLoc )

Helper method used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkSplitField::Split (  int    component, const char *    arrayName )

Create a new array with the given component.

void vtkSplitField::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

vtkDataArray* vtkSplitField::SplitArray (  vtkDataArray *    da, int    component )  [protected]

Component* vtkSplitField::GetNextComponent (  Component *    op )  [inline, protected]

Definition at line 176 of file vtkSplitField.h.

Component* vtkSplitField::GetFirst (    )  [inline, protected]

Definition at line 178 of file vtkSplitField.h.

void vtkSplitField::AddComponent (  Component *    op )  [protected]

Component* vtkSplitField::FindComponent (  int    index )  [protected]

void vtkSplitField::DeleteAllComponents (    )  [protected]

void vtkSplitField::PrintComponent (  Component *    op, ostream &    os, vtkIndent    indent )  [inline, protected]

Definition at line 184 of file vtkSplitField.h.

void vtkSplitField::PrintAllComponents (  ostream &    os, vtkIndent    indent )  [inline, protected]

Definition at line 190 of file vtkSplitField.h.

---

Member Data Documentation

char* vtkSplitField::FieldName [protected]

Definition at line 160 of file vtkSplitField.h.

int vtkSplitField::FieldType [protected]

Definition at line 161 of file vtkSplitField.h.

int vtkSplitField::AttributeType [protected]

Definition at line 162 of file vtkSplitField.h.

int vtkSplitField::FieldLocation [protected]

Definition at line 163 of file vtkSplitField.h.

char vtkSplitField::FieldLocationNames[3][12] [static, protected]

Definition at line 165 of file vtkSplitField.h.

char vtkSplitField::AttributeNames[vtkDataSetAttributes::NUM_ATTRIBUTES][10] [static, protected]

Definition at line 166 of file vtkSplitField.h.

Component* vtkSplitField::Head [protected]

Definition at line 172 of file vtkSplitField.h.

Component* vtkSplitField::Tail [protected]

Definition at line 173 of file vtkSplitField.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkSplitField.h

---
