vtkMergeFields Class Reference

Merge multiple fields into one. More...

#include <vtkMergeFields.h>

Inheritance diagram for vtkMergeFields:

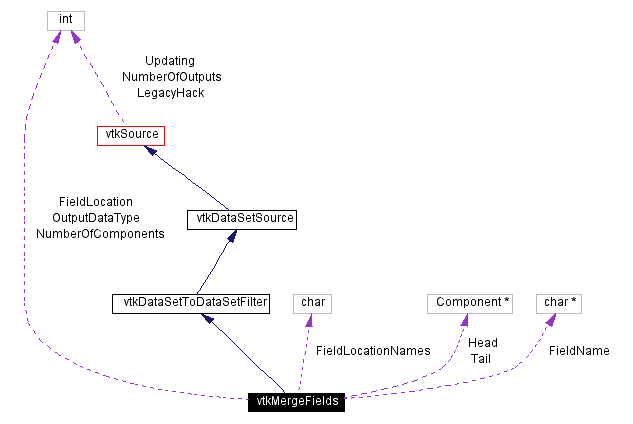

[legend]Collaboration diagram for vtkMergeFields:

[legend]List of all members.

Public Types
enum	FieldLocations { DATA_OBJECT = 0, POINT_DATA = 1, CELL_DATA = 2 }
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetOutputField (const char *name, int fieldLoc)
void	SetOutputField (const char *name, const char *fieldLoc)
void	Merge (int component, const char *arrayName, int sourceComp)
virtual void	SetNumberOfComponents (int)
Static Public Methods
int	IsTypeOf (const char *type)
vtkMergeFields *	SafeDownCast (vtkObject *o)
vtkMergeFields *	New ()
Protected Types
enum	FieldType { NAME, ATTRIBUTE }
Protected Methods
	vtkMergeFields ()
virtual	~vtkMergeFields ()
void	Execute ()
int	MergeArray (vtkDataArray *in, vtkDataArray *out, int inComp, int outComp)
Component *	GetNextComponent (Component *op)
Component *	GetFirst ()
void	AddComponent (Component *op)
Component *	FindComponent (int index)
void	DeleteAllComponents ()
void	PrintComponent (Component *op, ostream &os, vtkIndent indent)
void	PrintAllComponents (ostream &os, vtkIndent indent)
Protected Attributes
char *	FieldName
int	FieldLocation
int	NumberOfComponents
int	OutputDataType
Component *	Head
Component *	Tail
Static Protected Attributes
char	FieldLocationNames [3][12]

---

Detailed Description

Merge multiple fields into one.

Date:

2001/11/13 14:13:50

Revision:

1.6

vtkMergeFields is used to merge mutliple field into one. The new field is put in the same field data as the original field. For example

 mf->SetOutputField("foo", vtkMergeFields::POINT_DATA);
 mf->SetNumberOfComponents(2);
 mf->Merge(0, "array1", 1);
 mf->Merge(1, "array2", 0);


will tell vtkMergeFields to use the 2nd component of array1 and the 1st component of array2 to create a 2 component field called foo. The same can be done using Tcl:

 mf SetOutputField foo POINT_DATA
 mf Merge 0 array1 1
 mf Merge 1 array2 0

 Field locations: DATA_OBJECT, POINT_DATA, CELL_DATA


See also:

vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkRearrangeFields vtkSplitField vtkAssignAttribute

Tests:

vtkMergeFields (Tests)

Definition at line 82 of file vtkMergeFields.h.

---

Member Enumeration Documentation

enum vtkMergeFields::FieldLocations

Enumeration values: DATA_OBJECT  POINT_DATA  CELL_DATA  Definition at line 110 of file vtkMergeFields.h.

enum vtkMergeFields::FieldType [protected]

Enumeration values: NAME  ATTRIBUTE  Definition at line 143 of file vtkMergeFields.h.

---

Constructor & Destructor Documentation

vtkMergeFields::vtkMergeFields (    )  [protected]

virtual vtkMergeFields::~vtkMergeFields (    )  [protected, virtual]

---

Member Function Documentation

virtual const char* vtkMergeFields::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

int vtkMergeFields::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkMergeFields::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkMergeFields* vtkMergeFields::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

void vtkMergeFields::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

vtkMergeFields* vtkMergeFields::New (    )  [static]

Create a new vtkMergeFields. Reimplemented from vtkDataSetSource.

void vtkMergeFields::SetOutputField (  const char *    name, int    fieldLoc )

The output field will have the given name and it will be in fieldLoc (the input fields also have to be in fieldLoc).

void vtkMergeFields::SetOutputField (  const char *    name, const char *    fieldLoc )

Helper method used by the other language bindings. Allows the caller to specify arguments as strings instead of enums.Returns an operation id which can later be used to remove the operation.

void vtkMergeFields::Merge (  int    component, const char *    arrayName, int    sourceComp )

Add a component (arrayName,sourceComp) to the output field.

virtual void vtkMergeFields::SetNumberOfComponents (  int    )  [virtual]

Set the number of the components in the output field. This has to be set before execution. Default value is 0.

void vtkMergeFields::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

int vtkMergeFields::MergeArray (  vtkDataArray *    in, vtkDataArray *    out, int    inComp, int    outComp )  [protected]

Component* vtkMergeFields::GetNextComponent (  Component *    op )  [inline, protected]

Definition at line 170 of file vtkMergeFields.h.

Component* vtkMergeFields::GetFirst (    )  [inline, protected]

Definition at line 172 of file vtkMergeFields.h.

void vtkMergeFields::AddComponent (  Component *    op )  [protected]

Component* vtkMergeFields::FindComponent (  int    index )  [protected]

void vtkMergeFields::DeleteAllComponents (    )  [protected]

void vtkMergeFields::PrintComponent (  Component *    op, ostream &    os, vtkIndent    indent )  [inline, protected]

Definition at line 178 of file vtkMergeFields.h.

void vtkMergeFields::PrintAllComponents (  ostream &    os, vtkIndent    indent )  [inline, protected]

Definition at line 185 of file vtkMergeFields.h.

---

Member Data Documentation

char* vtkMergeFields::FieldName [protected]

Definition at line 155 of file vtkMergeFields.h.

int vtkMergeFields::FieldLocation [protected]

Definition at line 156 of file vtkMergeFields.h.

int vtkMergeFields::NumberOfComponents [protected]

Definition at line 157 of file vtkMergeFields.h.

int vtkMergeFields::OutputDataType [protected]

Definition at line 158 of file vtkMergeFields.h.

char vtkMergeFields::FieldLocationNames[3][12] [static, protected]

Definition at line 160 of file vtkMergeFields.h.

Component* vtkMergeFields::Head [protected]

Definition at line 166 of file vtkMergeFields.h.

Component* vtkMergeFields::Tail [protected]

Definition at line 167 of file vtkMergeFields.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkMergeFields.h

---
