vtkRearrangeFields Class Reference

Move/copy fields between field data, point data and cell data. More...

#include <vtkRearrangeFields.h>

Inheritance diagram for vtkRearrangeFields:

Inheritance graph
[legend]

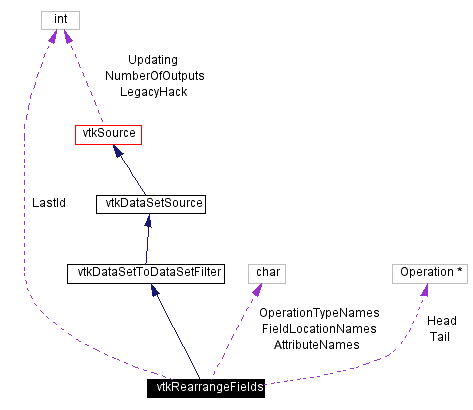

Collaboration diagram for vtkRearrangeFields:

Collaboration graph
[legend]
List of all members.

Public Types

enum  OperationType { COPY = 0, MOVE = 1 }
enum  FieldLocation { DATA_OBJECT = 0, POINT_DATA = 1, CELL_DATA = 2 }
enum  FieldType { NAME, ATTRIBUTE }

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int AddOperation (int operationType, int attributeType, int fromFieldLoc, int toFieldLoc)
int AddOperation (int operationType, const char *name, int fromFieldLoc, int toFieldLoc)
int AddOperation (const char *operationType, const char *attributeType, const char *fromFieldLoc, const char *toFieldLoc)
int RemoveOperation (int operationId)
int RemoveOperation (int operationType, int attributeType, int fromFieldLoc, int toFieldLoc)
int RemoveOperation (int operationType, const char *name, int fromFieldLoc, int toFieldLoc)
int RemoveOperation (const char *operationType, const char *attributeType, const char *fromFieldLoc, const char *toFieldLoc)
void RemoveAllOperations ()

Static Public Methods

int IsTypeOf (const char *type)
vtkRearrangeFields * SafeDownCast (vtkObject *o)
vtkRearrangeFields * New ()

Protected Methods

 vtkRearrangeFields ()
virtual ~vtkRearrangeFields ()
void Execute ()
Operation * GetNextOperation (Operation *op)
Operation * GetFirst ()
void AddOperation (Operation *op)
void DeleteOperation (Operation *op, Operation *before)
Operation * FindOperation (int id, Operation *&before)
Operation * FindOperation (const char *name, Operation *&before)
Operation * FindOperation (int operationType, const char *name, int fromFieldLoc, int toFieldLoc, Operation *&before)
Operation * FindOperation (int operationType, int attributeType, int fromFieldLoc, int toFieldLoc, Operation *&before)
int CompareOperationsByType (const Operation *op1, const Operation *op2)
int CompareOperationsByName (const Operation *op1, const Operation *op2)
void DeleteAllOperations ()
void ApplyOperation (Operation *op, vtkDataSet *input, vtkDataSet *output)
vtkFieldData * GetFieldDataFromLocation (vtkDataSet *ds, int fieldLoc)
void PrintAllOperations (ostream &os, vtkIndent indent)
void PrintOperation (Operation *op, ostream &os, vtkIndent indent)

Protected Attributes

Operation * Head
Operation * Tail
int LastId

Static Protected Attributes

char OperationTypeNames [2][5]
char FieldLocationNames [3][12]
char AttributeNames [vtkDataSetAttributes::NUM_ATTRIBUTES][10]

Detailed Description

Move/copy fields between field data, point data and cell data.

Date:
2001/11/13 14:13:50
Revision:
1.6

vtkRearrangeFields is used to copy/move fields (vtkDataArrays) between data object's field data, point data and cell data. To specify which fields are copied/moved, the user adds operations. There are two types of operations: 1. the type which copies/moves an attribute's data (i.e. the field will be copied but will not be an attribute in the target), 2. the type which copies/moves fields by name. For example:

 rf->AddOperation(vtkRearrangeFields::COPY, "foo",
                  vtkRearrangeFields::DATA_OBJECT,
                  vtkRearrangeFields::POINT_DATA);
adds an operation which copies a field (data array) called foo from the data object's field data to point data. From Tcl, the same operation can be added as follows:
 rf AddOperation COPY foo DATA_OBJECT POINT_DATA
The same can be done using Python and Java bindings by passing strings as arguments.
 Operation types: COPY, MOVE
 AttributeTypes: SCALARS, VECTORS, NORMALS, TCOORDS, TENSORS
 Field data locations: DATA_OBJECT, POINT_DATA, CELL_DATA

Warning:
When using Tcl, Java, Python or Visual Basic bindings, the array name can not be one of the AttributeTypes when calling AddOperation() which takes strings as arguments. The Tcl (Java etc.) command will always assume the string corresponds to an attribute type when the argument is one of the AttributeTypes. In this situation, use the AddOperation() which takes enums.
See also:
vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkAssignAttribute vtkSplitField vtkMergeFields
Examples:
vtkRearrangeFields (Examples)
Tests:
vtkRearrangeFields (Tests)

Definition at line 98 of file vtkRearrangeFields.h.

Member Enumeration Documentation

enum vtkRearrangeFields::OperationType


Enumeration values:
COPY
MOVE

Definition at line 108 of file vtkRearrangeFields.h.

enum vtkRearrangeFields::FieldLocation


Enumeration values:
DATA_OBJECT
POINT_DATA
CELL_DATA

Definition at line 113 of file vtkRearrangeFields.h.

enum vtkRearrangeFields::FieldType


Enumeration values:
NAME
ATTRIBUTE

Definition at line 172 of file vtkRearrangeFields.h.

Constructor & Destructor Documentation

vtkRearrangeFields::vtkRearrangeFields (    )  [protected]


virtual vtkRearrangeFields::~vtkRearrangeFields (    )  [protected, virtual]


Member Function Documentation

virtual const char* vtkRearrangeFields::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

int vtkRearrangeFields::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkRearrangeFields::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

vtkRearrangeFields* vtkRearrangeFields::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

void vtkRearrangeFields::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

vtkRearrangeFields* vtkRearrangeFields::New (    )  [static]


Create a new vtkRearrangeFields with an empty operation list.

Reimplemented from vtkDataSetSource.

int vtkRearrangeFields::AddOperation (  int    operationType,
int    attributeType,
int    fromFieldLoc,
int    toFieldLoc
)


Add an operation which copies an attribute's field (data array) from one field data to another. Returns an operation id which can later be used to remove the operation.

int vtkRearrangeFields::AddOperation (  int    operationType,
const char *    name,
int    fromFieldLoc,
int    toFieldLoc
)


Add an operation which copies an attribute's field (data array) from one field data to another. Returns an operation id which can later be used to remove the operation.

int vtkRearrangeFields::AddOperation (  const char *    operationType,
const char *    attributeType,
const char *    fromFieldLoc,
const char *    toFieldLoc
)


Add an operation which copies an attribute's field (data array) from one field data to another. Returns an operation id which can later be used to remove the operation.

int vtkRearrangeFields::RemoveOperation (  int    operationId )


Remove an operation with the given id.

int vtkRearrangeFields::RemoveOperation (  int    operationType,
int    attributeType,
int    fromFieldLoc,
int    toFieldLoc
)


Remove an operation with the given id.

int vtkRearrangeFields::RemoveOperation (  int    operationType,
const char *    name,
int    fromFieldLoc,
int    toFieldLoc
)


Remove an operation with the given id.

int vtkRearrangeFields::RemoveOperation (  const char *    operationType,
const char *    attributeType,
const char *    fromFieldLoc,
const char *    toFieldLoc
)


Remove an operation with the given id.

void vtkRearrangeFields::RemoveAllOperations (    )  [inline]


Remove all operations.

Definition at line 163 of file vtkRearrangeFields.h.

void vtkRearrangeFields::Execute (    )  [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.

Operation* vtkRearrangeFields::GetNextOperation (  Operation *    op )  [inline, protected]


Definition at line 209 of file vtkRearrangeFields.h.

Operation* vtkRearrangeFields::GetFirst (    )  [inline, protected]


Definition at line 211 of file vtkRearrangeFields.h.

void vtkRearrangeFields::AddOperation (  Operation *    op )  [protected]


void vtkRearrangeFields::DeleteOperation (  Operation *    op,
Operation *    before
)  [protected]


Operation* vtkRearrangeFields::FindOperation (  int    id,
Operation *&    before
)  [protected]


Operation* vtkRearrangeFields::FindOperation (  const char *    name,
Operation *&    before
)  [protected]


Operation* vtkRearrangeFields::FindOperation (  int    operationType,
const char *    name,
int    fromFieldLoc,
int    toFieldLoc,
Operation *&    before
)  [protected]


Operation* vtkRearrangeFields::FindOperation (  int    operationType,
int    attributeType,
int    fromFieldLoc,
int    toFieldLoc,
Operation *&    before
)  [protected]


int vtkRearrangeFields::CompareOperationsByType (  const Operation *    op1,
const Operation *    op2
)  [protected]


int vtkRearrangeFields::CompareOperationsByName (  const Operation *    op1,
const Operation *    op2
)  [protected]


void vtkRearrangeFields::DeleteAllOperations (    )  [protected]


void vtkRearrangeFields::ApplyOperation (  Operation *    op,
vtkDataSet *    input,
vtkDataSet *    output
)  [protected]


vtkFieldData* vtkRearrangeFields::GetFieldDataFromLocation (  vtkDataSet *    ds,
int    fieldLoc
)  [protected]


void vtkRearrangeFields::PrintAllOperations (  ostream &    os,
vtkIndent    indent
)  [inline, protected]


Definition at line 239 of file vtkRearrangeFields.h.

void vtkRearrangeFields::PrintOperation (  Operation *    op,
ostream &    os,
vtkIndent    indent
)  [inline, protected]


Definition at line 254 of file vtkRearrangeFields.h.

Member Data Documentation

Operation* vtkRearrangeFields::Head [protected]


Definition at line 202 of file vtkRearrangeFields.h.

Operation* vtkRearrangeFields::Tail [protected]


Definition at line 203 of file vtkRearrangeFields.h.

int vtkRearrangeFields::LastId [protected]


Definition at line 206 of file vtkRearrangeFields.h.

char vtkRearrangeFields::OperationTypeNames[2][5] [static, protected]


Definition at line 235 of file vtkRearrangeFields.h.

char vtkRearrangeFields::FieldLocationNames[3][12] [static, protected]


Definition at line 236 of file vtkRearrangeFields.h.

char vtkRearrangeFields::AttributeNames[vtkDataSetAttributes::NUM_ATTRIBUTES][10] [static, protected]


Definition at line 237 of file vtkRearrangeFields.h.

The documentation for this class was generated from the following file:
