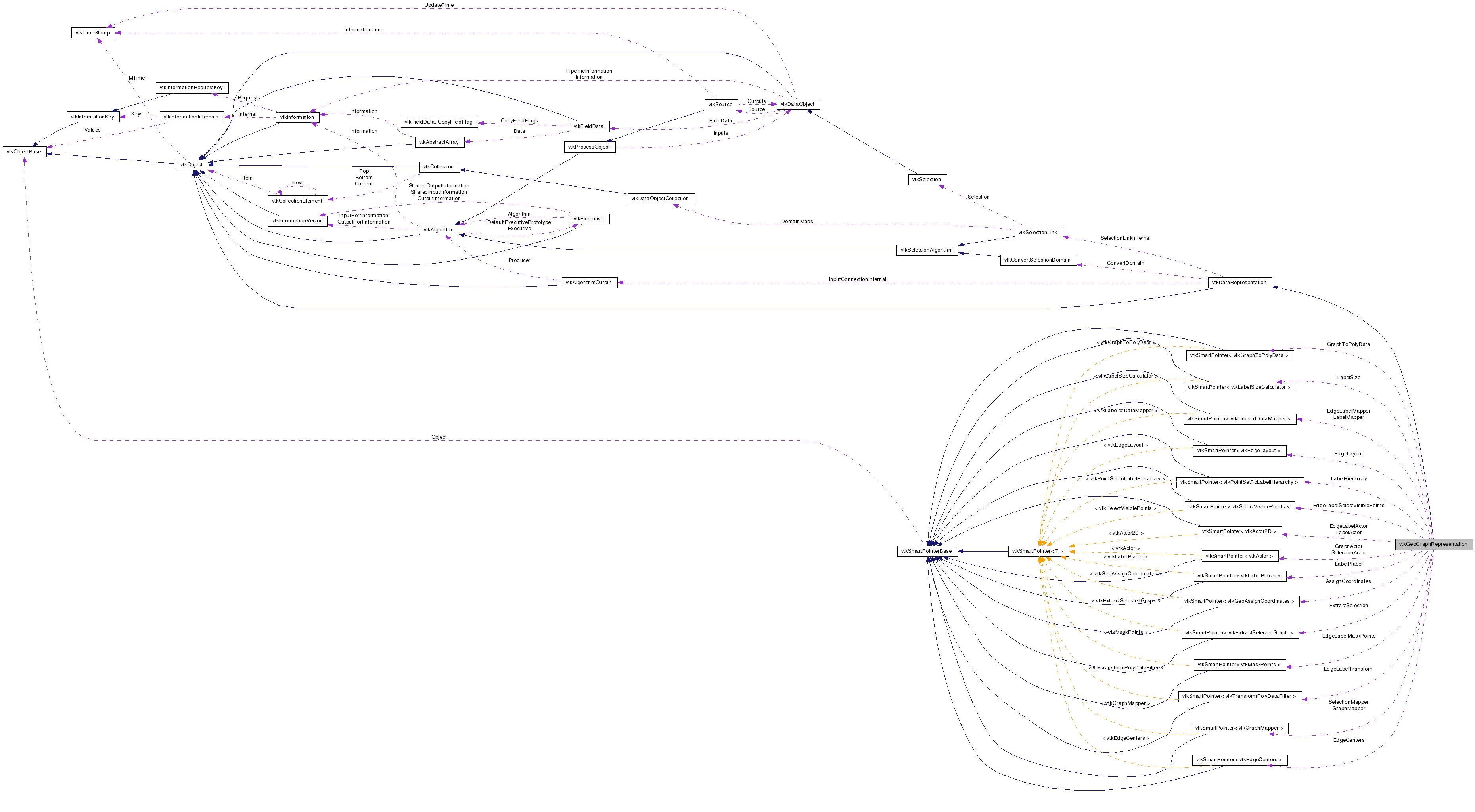

Collaboration diagram for vtkGeoGraphRepresentation:

[legend]

List of all members.

Detailed Description

Displays a graph on a earth view.

vtkGeoGraphRepresentation is used to show a graph in a 3D geo view. Set the graph input with SetInputConnection(), then add the representation to a vtkGeoView.

See also:: vtkGeoView

Tests:: vtkGeoGraphRepresentation (Tests)

Definition at line 66 of file vtkGeoGraphRepresentation.h.


Public Types
typedef vtkDataRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInputConnection (vtkAlgorithmOutput *conn)
void	ApplyViewTheme (vtkViewTheme *theme)
virtual void	PrepareForRendering ()

virtual void	SetVertexLabelArrayName (const char *name)
virtual const char *	GetVertexLabelArrayName ()

virtual void	SetVertexLabelVisibility (bool b)
virtual bool	GetVertexLabelVisibility ()
virtual void	VertexLabelVisibilityOn ()
virtual void	VertexLabelVisibilityOff ()

virtual void	SetExplodeFactor (double factor)
virtual double	GetExplodeFactor ()

virtual void	SetNumberOfSubdivisions (int num)
virtual int	GetNumberOfSubdivisions ()

virtual void	SetLatitudeArrayName (const char *name)
virtual const char *	GetLatitudeArrayName ()

virtual void	SetLongitudeArrayName (const char *name)
virtual const char *	GetLongitudeArrayName ()

void	SetVertexLabelFontSize (int size)
int	GetVertexLabelFontSize ()

void	SetColorVertices (bool b)
bool	GetColorVertices ()
virtual void	ColorVerticesOn ()
virtual void	ColorVerticesOff ()

void	SetVertexColorArrayName (const char *name)
const char *	GetVertexColorArrayName ()

void	SetEdgeLabelVisibility (bool b)
bool	GetEdgeLabelVisibility ()
virtual void	EdgeLabelVisibilityOn ()
virtual void	EdgeLabelVisibilityOff ()

void	SetEdgeLabelArrayName (const char *name)
const char *	GetEdgeLabelArrayName ()

virtual void	SetEdgeLayoutStrategy (vtkEdgeLayoutStrategy *strategy)
virtual vtkEdgeLayoutStrategy *	GetEdgeLayoutStrategy ()
virtual void	SetEdgeLayoutStrategyToGeo ()
virtual void	SetEdgeLayoutStrategyToArcParallel ()

void	SetEdgeLabelFontSize (int size)
int	GetEdgeLabelFontSize ()

void	SetColorEdges (bool b)
bool	GetColorEdges ()
virtual void	ColorEdgesOn ()
virtual void	ColorEdgesOff ()

void	SetEdgeColorArrayName (const char *name)
const char *	GetEdgeColorArrayName ()

void	SetTransform (vtkAbstractTransform *trans)
vtkAbstractTransform *	GetTransform ()
Static Public Member Functions
static vtkGeoGraphRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoGraphRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGeoGraphRepresentation ()
	~vtkGeoGraphRepresentation ()
virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)
virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)

virtual void	SetLabelArrayName (const char *)
virtual char *	GetLabelArrayName ()
Protected Attributes
char *	LabelArrayName
bool	In3DGeoView

vtkSmartPointer < vtkGeoAssignCoordinates >	AssignCoordinates
vtkSmartPointer < vtkLabelSizeCalculator >	LabelSize
vtkSmartPointer < vtkPointSetToLabelHierarchy >	LabelHierarchy
vtkSmartPointer< vtkLabelPlacer >	LabelPlacer
vtkSmartPointer < vtkLabeledDataMapper >	LabelMapper
vtkSmartPointer< vtkActor2D >	LabelActor
vtkSmartPointer< vtkEdgeLayout >	EdgeLayout
vtkSmartPointer< vtkGraphMapper >	GraphMapper
vtkSmartPointer< vtkActor >	GraphActor
vtkSmartPointer < vtkGraphToPolyData >	GraphToPolyData
vtkSmartPointer< vtkEdgeCenters >	EdgeCenters
vtkSmartPointer < vtkLabeledDataMapper >	EdgeLabelMapper
vtkSmartPointer< vtkActor2D >	EdgeLabelActor
vtkSmartPointer< vtkMaskPoints >	EdgeLabelMaskPoints
vtkSmartPointer < vtkSelectVisiblePoints >	EdgeLabelSelectVisiblePoints
vtkSmartPointer < vtkTransformPolyDataFilter >	EdgeLabelTransform
vtkSmartPointer < vtkExtractSelectedGraph >	ExtractSelection
vtkSmartPointer< vtkGraphMapper >	SelectionMapper
vtkSmartPointer< vtkActor >	SelectionActor

Member Typedef Documentation

typedef vtkDataRepresentation vtkGeoGraphRepresentation::Superclass

Reimplemented from vtkDataRepresentation.

Definition at line 70 of file vtkGeoGraphRepresentation.h.

Constructor & Destructor Documentation

vtkGeoGraphRepresentation::vtkGeoGraphRepresentation ( ) [protected]

vtkGeoGraphRepresentation::~vtkGeoGraphRepresentation ( ) [protected]

Member Function Documentation

static vtkGeoGraphRepresentation* vtkGeoGraphRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataRepresentation.

virtual const char* vtkGeoGraphRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkDataRepresentation.

static int vtkGeoGraphRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

virtual int vtkGeoGraphRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

static vtkGeoGraphRepresentation* vtkGeoGraphRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataRepresentation.

void vtkGeoGraphRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataRepresentation.

virtual void vtkGeoGraphRepresentation::SetInputConnection ( vtkAlgorithmOutput * conn ) [virtual]

Sets the input pipeline connection to this representation.

Reimplemented from vtkDataRepresentation.

virtual void vtkGeoGraphRepresentation::SetVertexLabelArrayName ( const char * name ) [virtual]

The array to use for vertex labeling. Default is "label".

virtual const char* vtkGeoGraphRepresentation::GetVertexLabelArrayName ( ) [virtual]

The array to use for vertex labeling. Default is "label".

virtual void vtkGeoGraphRepresentation::SetVertexLabelVisibility ( bool b ) [virtual]

Whether to show vertex labels.

virtual bool vtkGeoGraphRepresentation::GetVertexLabelVisibility ( ) [virtual]

Whether to show vertex labels.

virtual void vtkGeoGraphRepresentation::VertexLabelVisibilityOn ( ) [inline, virtual]

Whether to show vertex labels.

Definition at line 86 of file vtkGeoGraphRepresentation.h.

virtual void vtkGeoGraphRepresentation::VertexLabelVisibilityOff ( ) [inline, virtual]

Whether to show vertex labels.

Definition at line 87 of file vtkGeoGraphRepresentation.h.

virtual void vtkGeoGraphRepresentation::SetExplodeFactor ( double factor ) [virtual]

Sets the explode factor for the geo arcs.

virtual double vtkGeoGraphRepresentation::GetExplodeFactor ( ) [virtual]

Sets the explode factor for the geo arcs.

virtual void vtkGeoGraphRepresentation::SetNumberOfSubdivisions ( int num ) [virtual]

The number of subdivisions per arc.

virtual int vtkGeoGraphRepresentation::GetNumberOfSubdivisions ( ) [virtual]

The number of subdivisions per arc.

virtual void vtkGeoGraphRepresentation::SetLatitudeArrayName ( const char * name ) [virtual]

The point array holding the latitude.

virtual const char* vtkGeoGraphRepresentation::GetLatitudeArrayName ( ) [virtual]

The point array holding the latitude.

virtual void vtkGeoGraphRepresentation::SetLongitudeArrayName ( const char * name ) [virtual]

The point array holding the longitude.

virtual const char* vtkGeoGraphRepresentation::GetLongitudeArrayName ( ) [virtual]

The point array holding the longitude.

void vtkGeoGraphRepresentation::SetVertexLabelFontSize ( int size )

The size of the vertex labels in pixels.

int vtkGeoGraphRepresentation::GetVertexLabelFontSize ( )

The size of the vertex labels in pixels.

void vtkGeoGraphRepresentation::SetColorVertices ( bool b )

Whether to color vertices using a data array.

bool vtkGeoGraphRepresentation::GetColorVertices ( )

Whether to color vertices using a data array.

virtual void vtkGeoGraphRepresentation::ColorVerticesOn ( ) [virtual]

Whether to color vertices using a data array.

virtual void vtkGeoGraphRepresentation::ColorVerticesOff ( ) [virtual]

Whether to color vertices using a data array.

void vtkGeoGraphRepresentation::SetVertexColorArrayName ( const char * name )

The data array to use to color vertices.

const char* vtkGeoGraphRepresentation::GetVertexColorArrayName ( )

The data array to use to color vertices.

void vtkGeoGraphRepresentation::SetEdgeLabelVisibility ( bool b )

Whether to show edge labels.

bool vtkGeoGraphRepresentation::GetEdgeLabelVisibility ( )

Whether to show edge labels.

virtual void vtkGeoGraphRepresentation::EdgeLabelVisibilityOn ( ) [virtual]

Whether to show edge labels.

virtual void vtkGeoGraphRepresentation::EdgeLabelVisibilityOff ( ) [virtual]

Whether to show edge labels.

void vtkGeoGraphRepresentation::SetEdgeLabelArrayName ( const char * name )

The data array to use for labelling edges.

const char* vtkGeoGraphRepresentation::GetEdgeLabelArrayName ( )

The data array to use for labelling edges.

virtual void vtkGeoGraphRepresentation::SetEdgeLayoutStrategy ( vtkEdgeLayoutStrategy * strategy ) [virtual]

The edge layout strategy to use. The default is vtkGeoEdgeStrategy.

virtual vtkEdgeLayoutStrategy* vtkGeoGraphRepresentation::GetEdgeLayoutStrategy ( ) [virtual]

The edge layout strategy to use. The default is vtkGeoEdgeStrategy.

virtual void vtkGeoGraphRepresentation::SetEdgeLayoutStrategyToGeo ( ) [virtual]

The edge layout strategy to use. The default is vtkGeoEdgeStrategy.

virtual void vtkGeoGraphRepresentation::SetEdgeLayoutStrategyToArcParallel ( ) [virtual]

The edge layout strategy to use. The default is vtkGeoEdgeStrategy.

void vtkGeoGraphRepresentation::SetEdgeLabelFontSize ( int size )

The size of edge labels in pixels.

int vtkGeoGraphRepresentation::GetEdgeLabelFontSize ( )

The size of edge labels in pixels.

void vtkGeoGraphRepresentation::SetColorEdges ( bool b )

Whether to color edges using a data array.

bool vtkGeoGraphRepresentation::GetColorEdges ( )

Whether to color edges using a data array.

virtual void vtkGeoGraphRepresentation::ColorEdgesOn ( ) [virtual]

Whether to color edges using a data array.

virtual void vtkGeoGraphRepresentation::ColorEdgesOff ( ) [virtual]

Whether to color edges using a data array.

void vtkGeoGraphRepresentation::SetEdgeColorArrayName ( const char * name )

The data array to use for coloring edges.

const char* vtkGeoGraphRepresentation::GetEdgeColorArrayName ( )

The data array to use for coloring edges.

void vtkGeoGraphRepresentation::SetTransform ( vtkAbstractTransform * trans )

The transform used in vtkGeoAssignCoordinates to transform the vertex locations from lat/long to world coordinates.

vtkAbstractTransform* vtkGeoGraphRepresentation::GetTransform ( )

The transform used in vtkGeoAssignCoordinates to transform the vertex locations from lat/long to world coordinates.

void vtkGeoGraphRepresentation::ApplyViewTheme ( vtkViewTheme * theme )

Apply a theme to this view.

virtual void vtkGeoGraphRepresentation::PrepareForRendering ( ) [virtual]

Called by the view when the renderer is about to render.

virtual void vtkGeoGraphRepresentation::SetLabelArrayName ( const char * ) [protected, virtual]

Store the name of the LabelText array so we dont update if we are already using the same array.

virtual char* vtkGeoGraphRepresentation::GetLabelArrayName ( ) [protected, virtual]

Store the name of the LabelText array so we dont update if we are already using the same array.

virtual bool vtkGeoGraphRepresentation::AddToView ( vtkView * view ) [protected, virtual]

Adds the representation to the view. This is called from vtkView::AddRepresentation().

virtual bool vtkGeoGraphRepresentation::RemoveFromView ( vtkView * view ) [protected, virtual]

Removes the representation to the view. This is called from vtkView::RemoveRepresentation().

virtual vtkSelection* vtkGeoGraphRepresentation::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			`[protected, virtual]`

Convert the selection to a type appropriate for sharing with other representations through vtkSelectionLink. If the selection cannot be applied to this representation, returns NULL.

Reimplemented from vtkDataRepresentation.
