vtkGeoGraphRepresentation2D Class Reference

#include <vtkGeoGraphRepresentation2D.h>

Inheritance diagram for vtkGeoGraphRepresentation2D:

[legend]

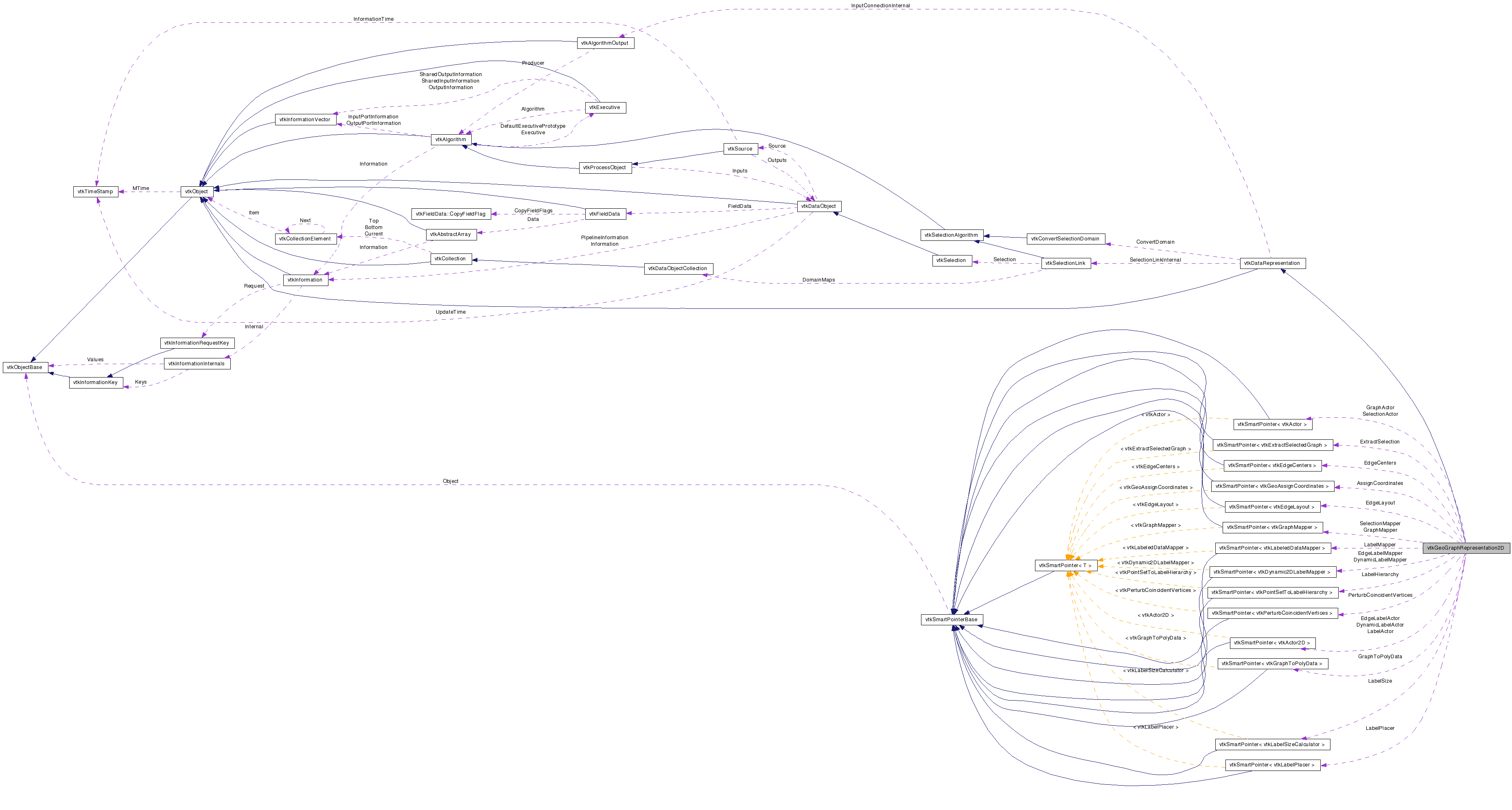

Collaboration diagram for vtkGeoGraphRepresentation2D:

[legend]

List of all members.

Detailed Description

Displays a graph on a 2D earth view.

vtkGeoGraphRepresentation2D is used to show a graph in a 2D geo view. Set the graph input with SetInputConnection(), set the projection of the view with SetTransform(), then add the representation to a vtkGeoView2D.

See also:: vtkGeoView2D

Tests:: vtkGeoGraphRepresentation2D (Tests)

Definition at line 64 of file vtkGeoGraphRepresentation2D.h.


Public Types
typedef vtkDataRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInputConnection (vtkAlgorithmOutput *conn)
void	ApplyViewTheme (vtkViewTheme *theme)
virtual void	PrepareForRendering ()

virtual void	SetVertexLabelArrayName (const char *name)
virtual const char *	GetVertexLabelArrayName ()

virtual void	SetVertexLabelVisibility (bool b)
virtual bool	GetVertexLabelVisibility ()
virtual void	VertexLabelVisibilityOn ()
virtual void	VertexLabelVisibilityOff ()

virtual void	SetLatitudeArrayName (const char *name)
virtual const char *	GetLatitudeArrayName ()

virtual void	SetLongitudeArrayName (const char *name)
virtual const char *	GetLongitudeArrayName ()

void	SetVertexLabelFontSize (int size)
int	GetVertexLabelFontSize ()

void	SetColorVertices (bool b)
bool	GetColorVertices ()
virtual void	ColorVerticesOn ()
virtual void	ColorVerticesOff ()

void	SetVertexColorArrayName (const char *name)
const char *	GetVertexColorArrayName ()

void	SetEdgeLabelVisibility (bool b)
bool	GetEdgeLabelVisibility ()
virtual void	EdgeLabelVisibilityOn ()
virtual void	EdgeLabelVisibilityOff ()

void	SetEdgeLabelArrayName (const char *name)
const char *	GetEdgeLabelArrayName ()

virtual void	SetEdgeLayoutStrategy (vtkEdgeLayoutStrategy *strategy)
virtual vtkEdgeLayoutStrategy *	GetEdgeLayoutStrategy ()
virtual void	SetEdgeLayoutStrategyToArcParallel ()
virtual void	SetEdgeLayoutStrategyToPassThrough ()

void	SetEdgeLabelFontSize (int size)
int	GetEdgeLabelFontSize ()

void	SetColorEdges (bool b)
bool	GetColorEdges ()
virtual void	ColorEdgesOn ()
virtual void	ColorEdgesOff ()

void	SetEdgeColorArrayName (const char *name)
const char *	GetEdgeColorArrayName ()

void	SetTransform (vtkAbstractTransform *trans)
vtkAbstractTransform *	GetTransform ()

void	SetUseLabelHierarchy (bool b)
virtual bool	GetUseLabelHierarchy ()
virtual void	UseLabelHierarchyOn ()
virtual void	UseLabelHierarchyOff ()
Static Public Member Functions
static vtkGeoGraphRepresentation2D *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoGraphRepresentation2D *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGeoGraphRepresentation2D ()
	~vtkGeoGraphRepresentation2D ()
virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)
virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)
Protected Attributes
bool	UseLabelHierarchy

vtkSmartPointer < vtkGeoAssignCoordinates >	AssignCoordinates
vtkSmartPointer < vtkPerturbCoincidentVertices >	PerturbCoincidentVertices
vtkSmartPointer < vtkLabelSizeCalculator >	LabelSize
vtkSmartPointer < vtkPointSetToLabelHierarchy >	LabelHierarchy
vtkSmartPointer< vtkLabelPlacer >	LabelPlacer
vtkSmartPointer < vtkLabeledDataMapper >	LabelMapper
vtkSmartPointer< vtkActor2D >	LabelActor
vtkSmartPointer < vtkDynamic2DLabelMapper >	DynamicLabelMapper
vtkSmartPointer< vtkActor2D >	DynamicLabelActor
vtkSmartPointer< vtkEdgeLayout >	EdgeLayout
vtkSmartPointer< vtkGraphMapper >	GraphMapper
vtkSmartPointer< vtkActor >	GraphActor
vtkSmartPointer < vtkGraphToPolyData >	GraphToPolyData
vtkSmartPointer< vtkEdgeCenters >	EdgeCenters
vtkSmartPointer < vtkDynamic2DLabelMapper >	EdgeLabelMapper
vtkSmartPointer< vtkActor2D >	EdgeLabelActor
vtkSmartPointer < vtkExtractSelectedGraph >	ExtractSelection
vtkSmartPointer< vtkGraphMapper >	SelectionMapper
vtkSmartPointer< vtkActor >	SelectionActor

Member Typedef Documentation

typedef vtkDataRepresentation vtkGeoGraphRepresentation2D::Superclass

Reimplemented from vtkDataRepresentation.

Definition at line 68 of file vtkGeoGraphRepresentation2D.h.

Constructor & Destructor Documentation

vtkGeoGraphRepresentation2D::vtkGeoGraphRepresentation2D ( ) [protected]

vtkGeoGraphRepresentation2D::~vtkGeoGraphRepresentation2D ( ) [protected]

Member Function Documentation

static vtkGeoGraphRepresentation2D* vtkGeoGraphRepresentation2D::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataRepresentation.

virtual const char* vtkGeoGraphRepresentation2D::GetClassName ( ) [virtual]

Reimplemented from vtkDataRepresentation.

static int vtkGeoGraphRepresentation2D::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

virtual int vtkGeoGraphRepresentation2D::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

static vtkGeoGraphRepresentation2D* vtkGeoGraphRepresentation2D::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataRepresentation.

void vtkGeoGraphRepresentation2D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataRepresentation.

virtual void vtkGeoGraphRepresentation2D::SetInputConnection ( vtkAlgorithmOutput * conn ) [virtual]

Sets the input pipeGraph connection to this representation.

Reimplemented from vtkDataRepresentation.

virtual void vtkGeoGraphRepresentation2D::SetVertexLabelArrayName ( const char * name ) [virtual]

The array to use for vertex labeling. Default is "label".

virtual const char* vtkGeoGraphRepresentation2D::GetVertexLabelArrayName ( ) [virtual]

The array to use for vertex labeling. Default is "label".

virtual void vtkGeoGraphRepresentation2D::SetVertexLabelVisibility ( bool b ) [virtual]

Whether to show vertex labels.

virtual bool vtkGeoGraphRepresentation2D::GetVertexLabelVisibility ( ) [virtual]

Whether to show vertex labels.

virtual void vtkGeoGraphRepresentation2D::VertexLabelVisibilityOn ( ) [virtual]

Whether to show vertex labels.

virtual void vtkGeoGraphRepresentation2D::VertexLabelVisibilityOff ( ) [virtual]

Whether to show vertex labels.

virtual void vtkGeoGraphRepresentation2D::SetLatitudeArrayName ( const char * name ) [virtual]

The point array holding the latitude.

virtual const char* vtkGeoGraphRepresentation2D::GetLatitudeArrayName ( ) [virtual]

The point array holding the latitude.

virtual void vtkGeoGraphRepresentation2D::SetLongitudeArrayName ( const char * name ) [virtual]

The point array holding the longitude.

virtual const char* vtkGeoGraphRepresentation2D::GetLongitudeArrayName ( ) [virtual]

The point array holding the longitude.

void vtkGeoGraphRepresentation2D::SetVertexLabelFontSize ( int size )

The size of the vertex labels in pixels.

int vtkGeoGraphRepresentation2D::GetVertexLabelFontSize ( )

The size of the vertex labels in pixels.

void vtkGeoGraphRepresentation2D::SetColorVertices ( bool b )

Whether to color vertices using a data array.

bool vtkGeoGraphRepresentation2D::GetColorVertices ( )

Whether to color vertices using a data array.

virtual void vtkGeoGraphRepresentation2D::ColorVerticesOn ( ) [virtual]

Whether to color vertices using a data array.

virtual void vtkGeoGraphRepresentation2D::ColorVerticesOff ( ) [virtual]

Whether to color vertices using a data array.

void vtkGeoGraphRepresentation2D::SetVertexColorArrayName ( const char * name )

The data array to use to color vertices.

const char* vtkGeoGraphRepresentation2D::GetVertexColorArrayName ( )

The data array to use to color vertices.

void vtkGeoGraphRepresentation2D::SetEdgeLabelVisibility ( bool b )

Whether to show edge labels.

bool vtkGeoGraphRepresentation2D::GetEdgeLabelVisibility ( )

Whether to show edge labels.

virtual void vtkGeoGraphRepresentation2D::EdgeLabelVisibilityOn ( ) [virtual]

Whether to show edge labels.

virtual void vtkGeoGraphRepresentation2D::EdgeLabelVisibilityOff ( ) [virtual]

Whether to show edge labels.

void vtkGeoGraphRepresentation2D::SetEdgeLabelArrayName ( const char * name )

The data array to use for labelling edges.

const char* vtkGeoGraphRepresentation2D::GetEdgeLabelArrayName ( )

The data array to use for labelling edges.

virtual void vtkGeoGraphRepresentation2D::SetEdgeLayoutStrategy ( vtkEdgeLayoutStrategy * strategy ) [virtual]

The edge layout strategy to use. The default is vtkArcParallelEdgeStrategy.

virtual vtkEdgeLayoutStrategy* vtkGeoGraphRepresentation2D::GetEdgeLayoutStrategy ( ) [virtual]

The edge layout strategy to use. The default is vtkArcParallelEdgeStrategy.

virtual void vtkGeoGraphRepresentation2D::SetEdgeLayoutStrategyToArcParallel ( ) [virtual]

The edge layout strategy to use. The default is vtkArcParallelEdgeStrategy.

virtual void vtkGeoGraphRepresentation2D::SetEdgeLayoutStrategyToPassThrough ( ) [virtual]

The edge layout strategy to use. The default is vtkArcParallelEdgeStrategy.

void vtkGeoGraphRepresentation2D::SetEdgeLabelFontSize ( int size )

The size of edge labels in pixels.

int vtkGeoGraphRepresentation2D::GetEdgeLabelFontSize ( )

The size of edge labels in pixels.

void vtkGeoGraphRepresentation2D::SetColorEdges ( bool b )

Whether to color edges using a data array.

bool vtkGeoGraphRepresentation2D::GetColorEdges ( )

Whether to color edges using a data array.

virtual void vtkGeoGraphRepresentation2D::ColorEdgesOn ( ) [virtual]

Whether to color edges using a data array.

virtual void vtkGeoGraphRepresentation2D::ColorEdgesOff ( ) [virtual]

Whether to color edges using a data array.

void vtkGeoGraphRepresentation2D::SetEdgeColorArrayName ( const char * name )

The data array to use for coloring edges.

const char* vtkGeoGraphRepresentation2D::GetEdgeColorArrayName ( )

The data array to use for coloring edges.

void vtkGeoGraphRepresentation2D::SetTransform ( vtkAbstractTransform * trans )

The transform used in vtkGeoAssignCoordinates to transform the vertex locations from lat/long to world coordinates.

vtkAbstractTransform* vtkGeoGraphRepresentation2D::GetTransform ( )

The transform used in vtkGeoAssignCoordinates to transform the vertex locations from lat/long to world coordinates.

void vtkGeoGraphRepresentation2D::ApplyViewTheme ( vtkViewTheme * theme )

Apply a theme to this view.

virtual void vtkGeoGraphRepresentation2D::PrepareForRendering ( ) [virtual]

Called by the view when the renderer is about to render.

void vtkGeoGraphRepresentation2D::SetUseLabelHierarchy ( bool b )

When on uses vtkLabelPlacer otherwise use older vtkDynamic2DLabelMapper, which has O(n^2) preprocessing time.

virtual bool vtkGeoGraphRepresentation2D::GetUseLabelHierarchy ( ) [virtual]

When on uses vtkLabelPlacer otherwise use older vtkDynamic2DLabelMapper, which has O(n^2) preprocessing time.

virtual void vtkGeoGraphRepresentation2D::UseLabelHierarchyOn ( ) [virtual]

When on uses vtkLabelPlacer otherwise use older vtkDynamic2DLabelMapper, which has O(n^2) preprocessing time.

virtual void vtkGeoGraphRepresentation2D::UseLabelHierarchyOff ( ) [virtual]

When on uses vtkLabelPlacer otherwise use older vtkDynamic2DLabelMapper, which has O(n^2) preprocessing time.

virtual bool vtkGeoGraphRepresentation2D::AddToView ( vtkView * view ) [protected, virtual]

Adds the representation to the view. This is called from vtkView::AddRepresentation().

virtual bool vtkGeoGraphRepresentation2D::RemoveFromView ( vtkView * view ) [protected, virtual]

Removes the representation to the view. This is called from vtkView::RemoveRepresentation().

virtual vtkSelection* vtkGeoGraphRepresentation2D::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			`[protected, virtual]`

Convert the selection to a type appropriate for sharing with other representations through vtkSelectionLink. If the selection cannot be applied to this representation, returns NULL.

Reimplemented from vtkDataRepresentation.
